Antilock Brake System Schematics

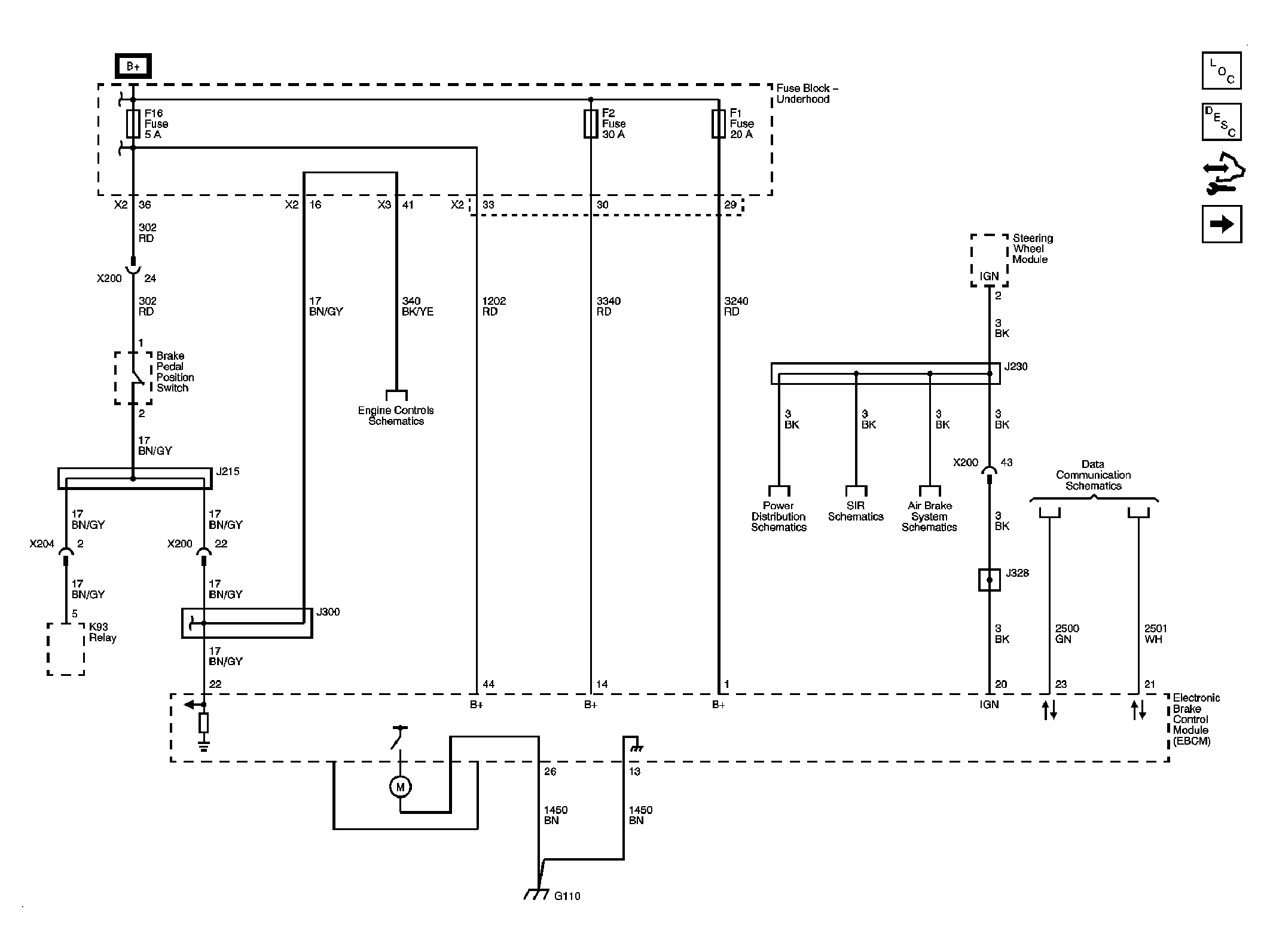

Fig 1: Power, Ground, Brake Pedal Position Switch, and Data Communications Schematic
GM2033496Courtesy of GENERAL MOTORS CORP.

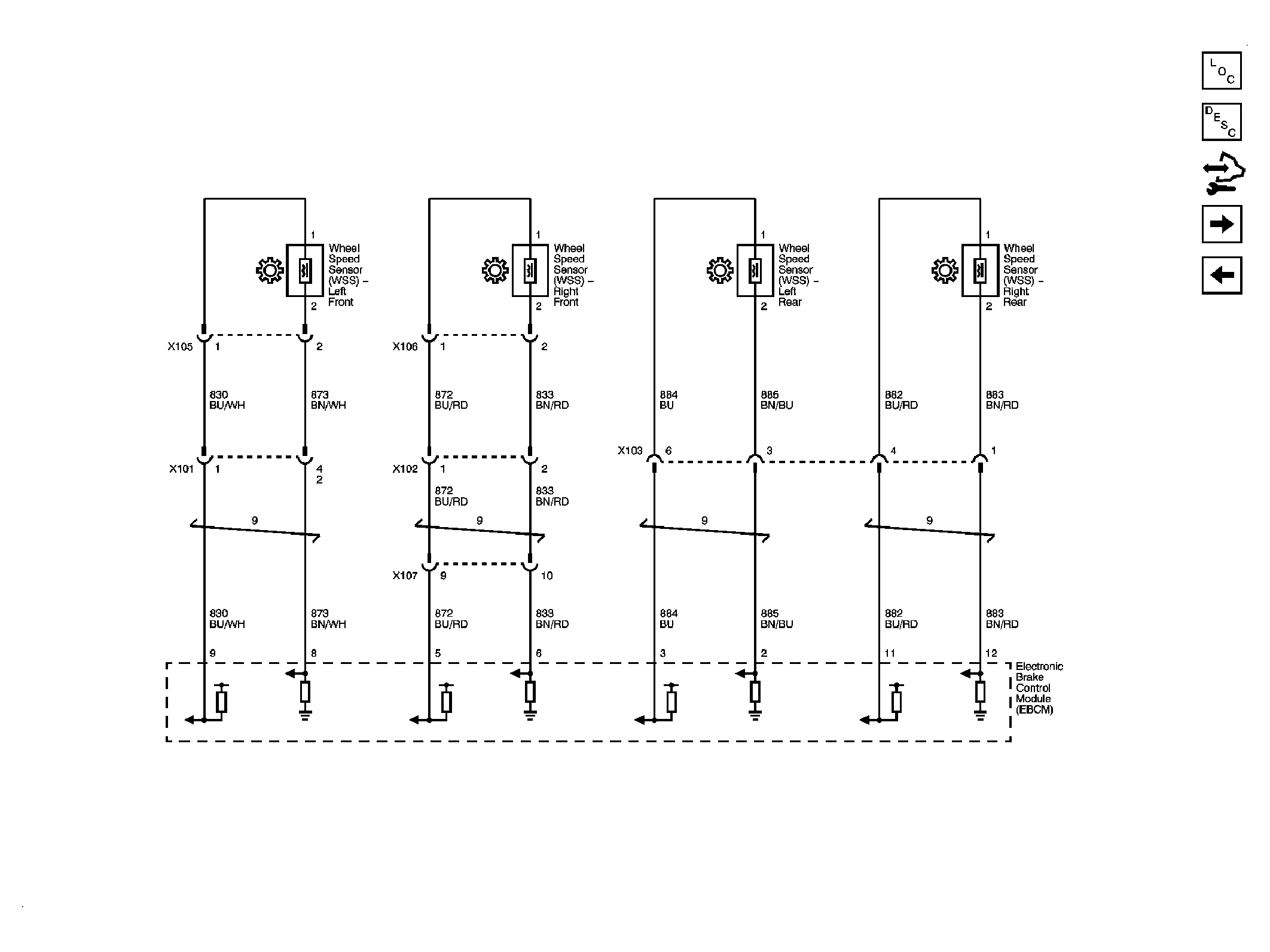

Fig 2: Wheel Speed Sensors Schematic
GM2033500Courtesy of GENERAL MOTORS CORP.
Fig 3: Yaw and Lateral Accelerometer Sensor Schematic
GM2033501Courtesy of GENERAL MOTORS CORP.
