Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the battery.
    2. Fig 1: Identifying I/P Compartment Cover Bolts
    GM1941219Courtesy of GENERAL MOTORS CORP.
  2. Remove the instrument panel (I/P) compartment.
    • Open the I/P compartment door.
    • Remove the 4 bolts (1).
    • Disconnect the wiring harness plug.
    • Remove the I/P compartment.

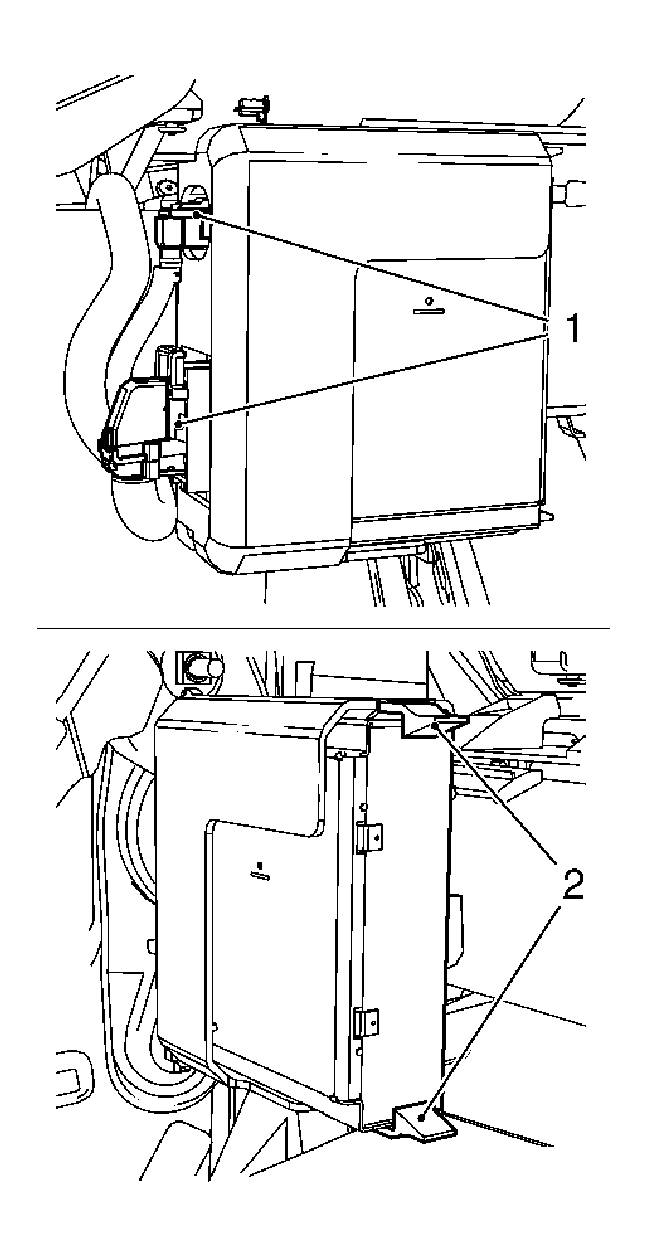

    3. Fig 2: View Of Digital Radio Receiver Wiring Harness Plugs And Retaining Lugs
    GM1944542Courtesy of GENERAL MOTORS CORP.
  3. Remove the digital radio receiver.
    • Disconnect the 2 wiring harness plugs (1).
    • Release the 2 retaining lugs (2).
    • Remove the digital radio receiver to the vehicle center.
    4. Fig 3: View Of Digital Radio Receiver Bracket
    GM1944543Courtesy of GENERAL MOTORS CORP.
  4. Remove the digital radio receiver bracket.

    Disconnect the bracket from the crossmember (1) and remove.
