Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the tweeter speaker to the inner door handle assembly.

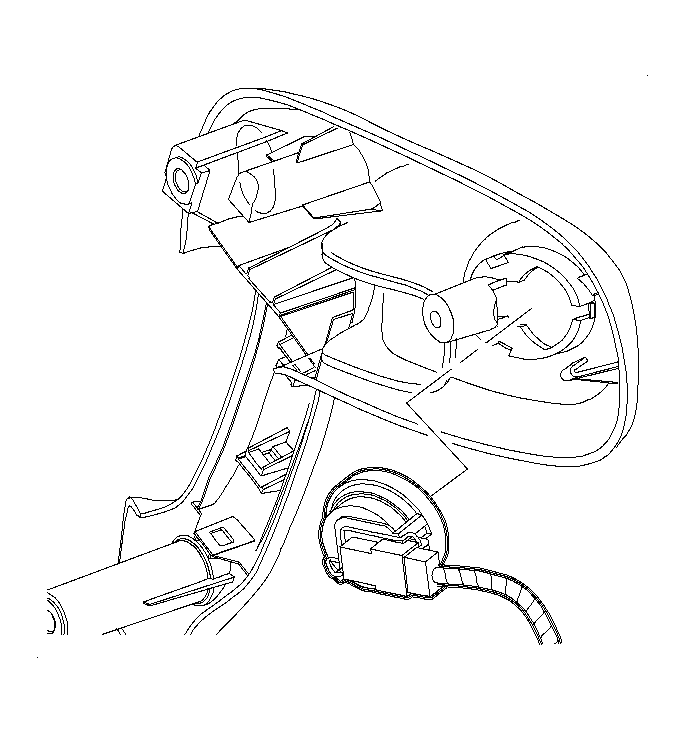

    Fig 1: Removing & Installing Front Door Upper Speaker (Tweeter)
    GM897182Courtesy of GENERAL MOTORS CORP.
  2. Install the front door pull handle. Refer to Pull Handle Replacement - Front Door in Doors.
