Front Side Marker Lamp Bulb Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

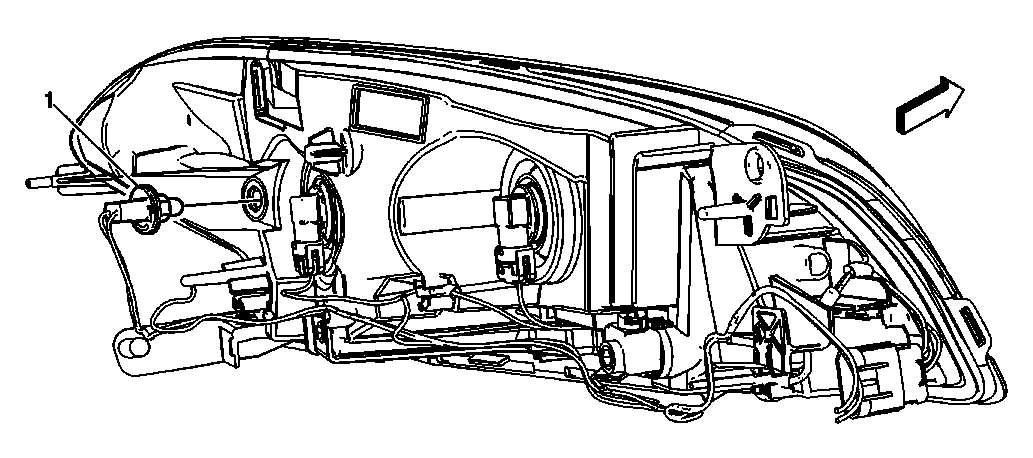

Fig 1: Identifying Front Side Marker Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the headlamp assembly. Refer to Headlamp Replacement .
1	Side Marker Lamp Bulb Procedure Turn the side marker bulb socket counterclockwise and remove from the headlamp assembly. Pull the side marker bulb from the bulb socket.

Callout

Component Name

Preliminary Procedure:
Remove the headlamp assembly. Refer to Headlamp Replacement .

Side Marker Lamp Bulb

Procedure

Turn the side marker bulb socket counterclockwise and remove from the headlamp assembly.
Pull the side marker bulb from the bulb socket.
