Engine Controls Schematics

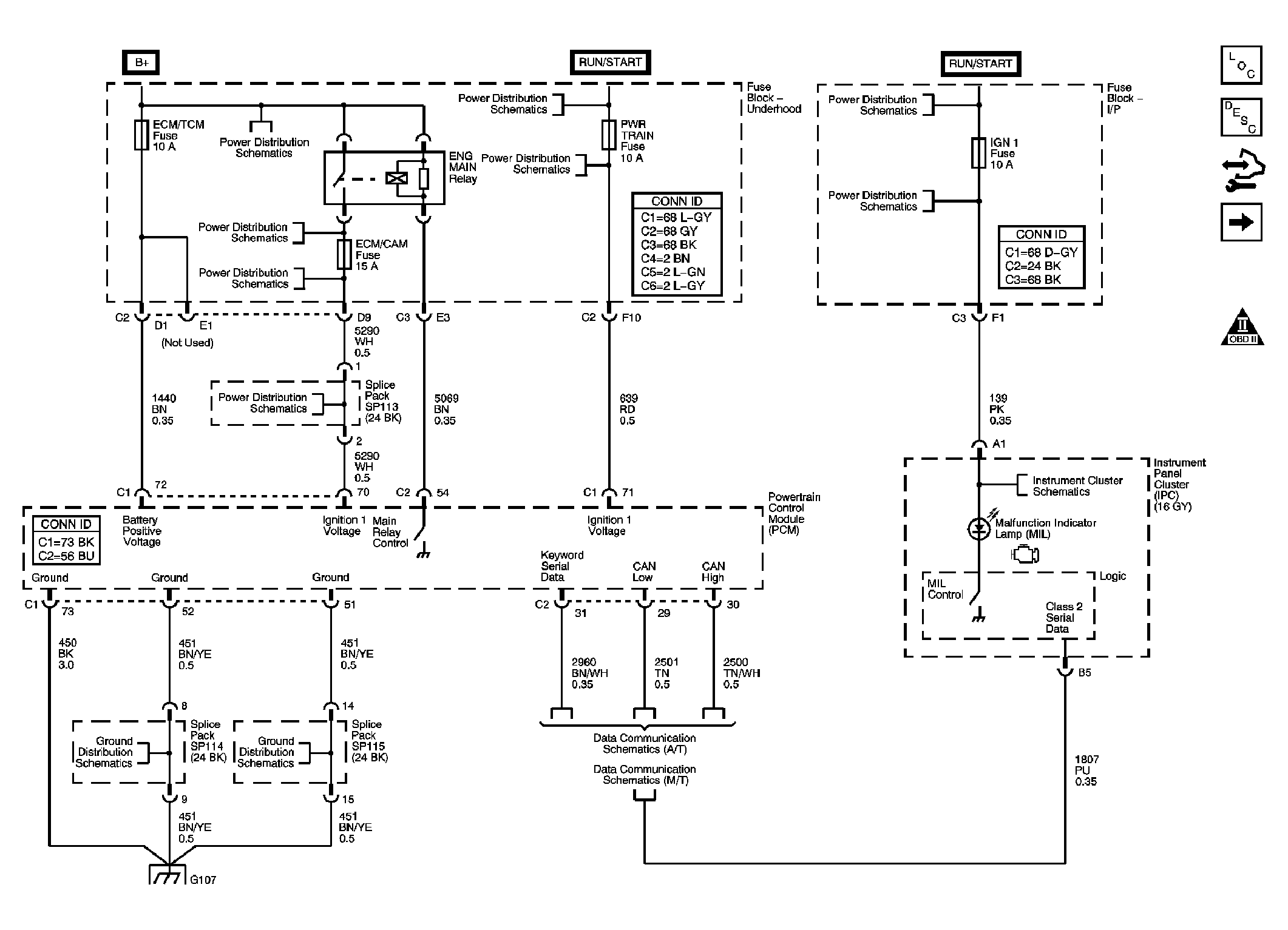

Fig 1: Module Power, Ground, Serial Data, and MIL

Courtesy of GENERAL MOTORS CORP.

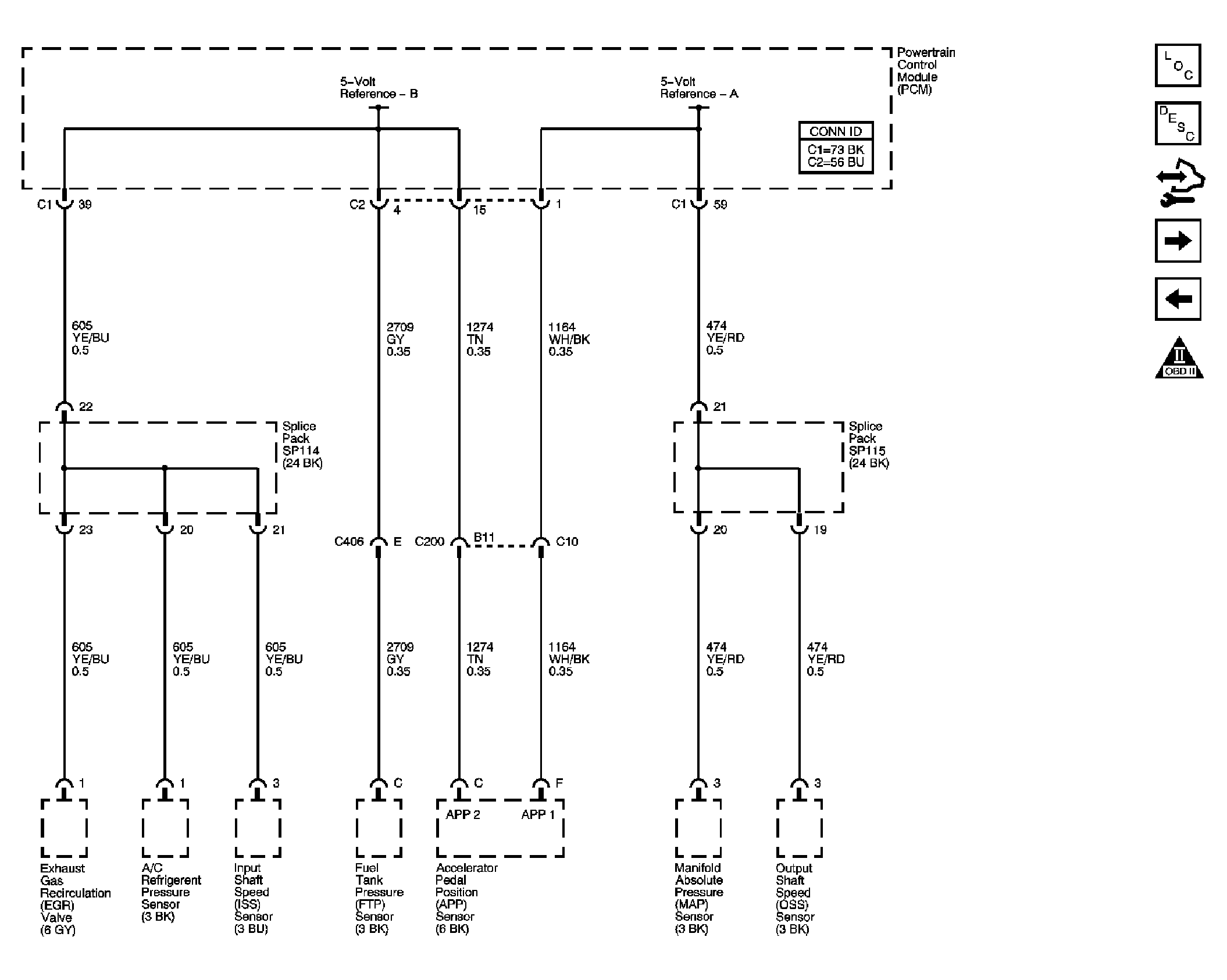

Fig 2: 5-Volt Reference

Courtesy of GENERAL MOTORS CORP.

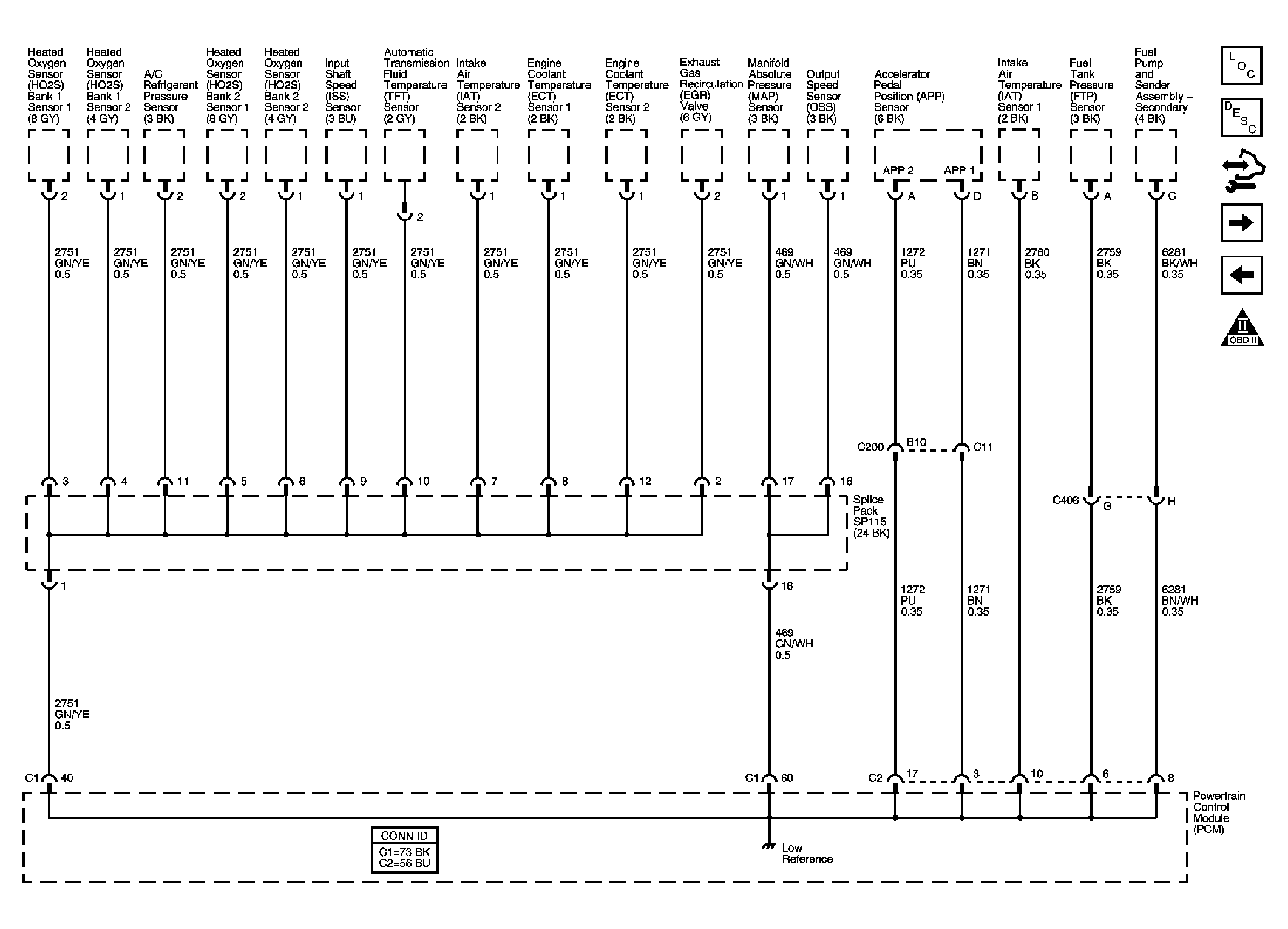

Fig 3: Low References

Courtesy of GENERAL MOTORS CORP.

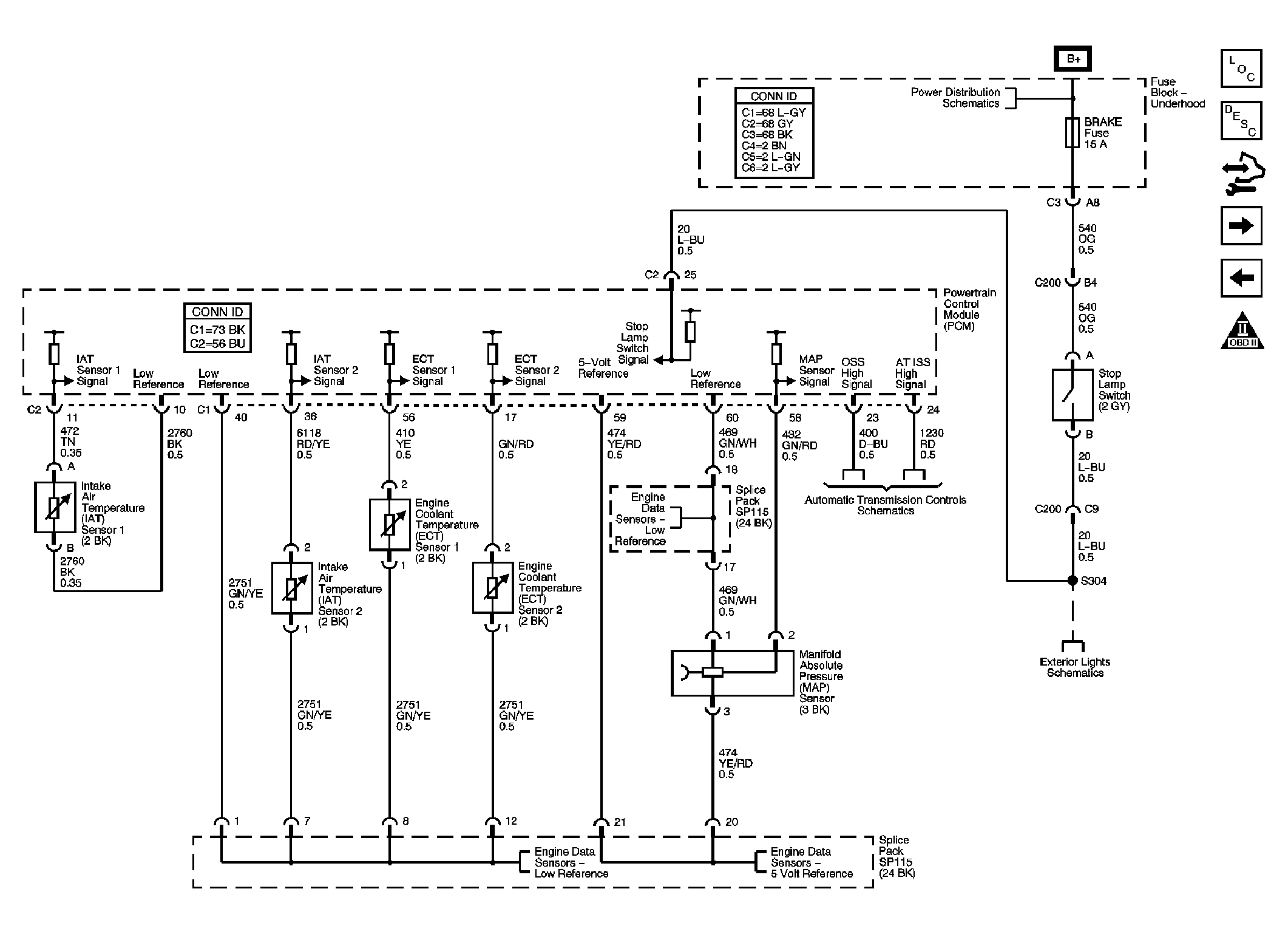

Fig 4: Engine Data Sensors - Pressure, Temperature, and Stop Lamp Switch Signal

Courtesy of GENERAL MOTORS CORP.

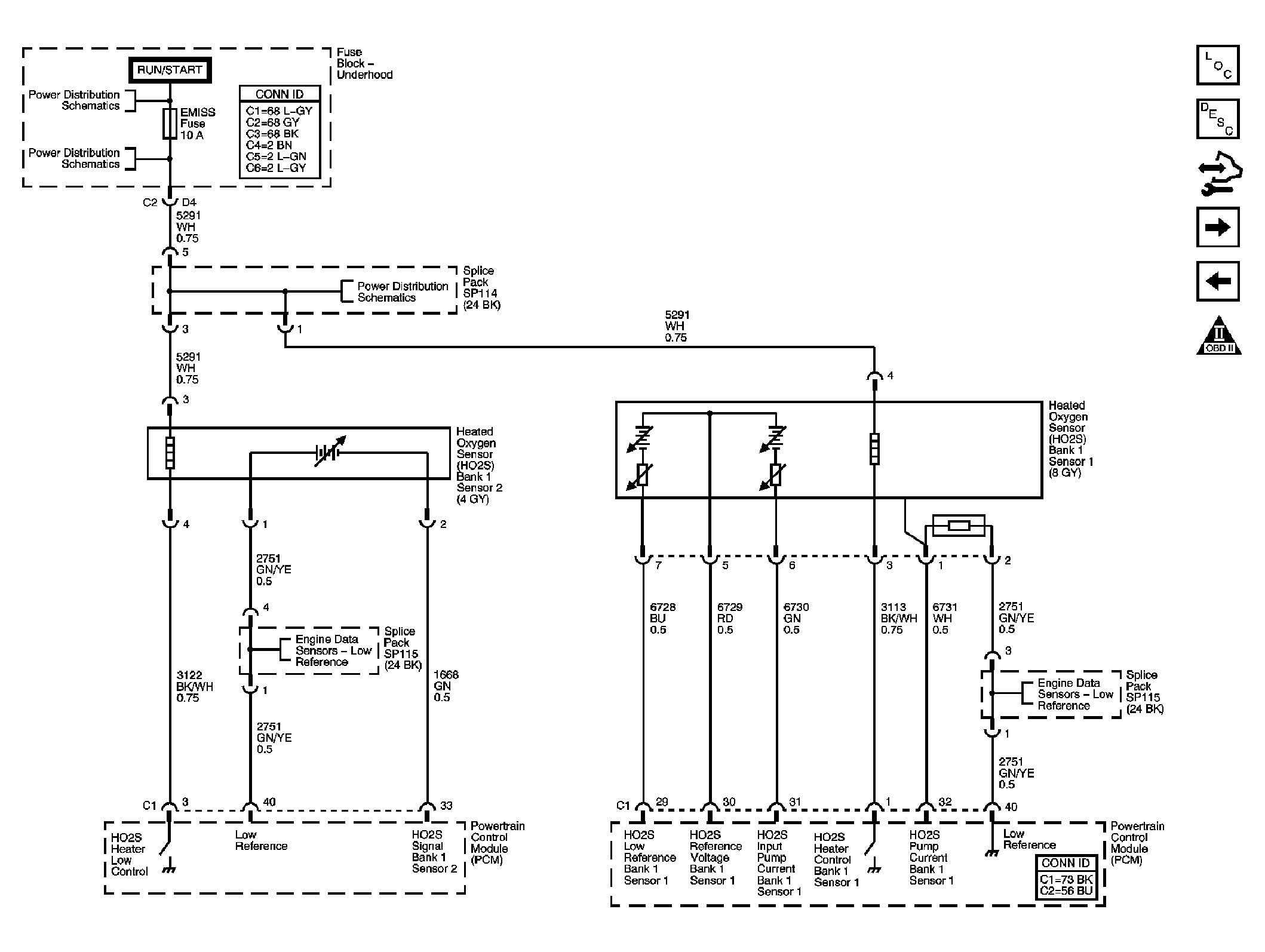

Fig 5: Bank 1 Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

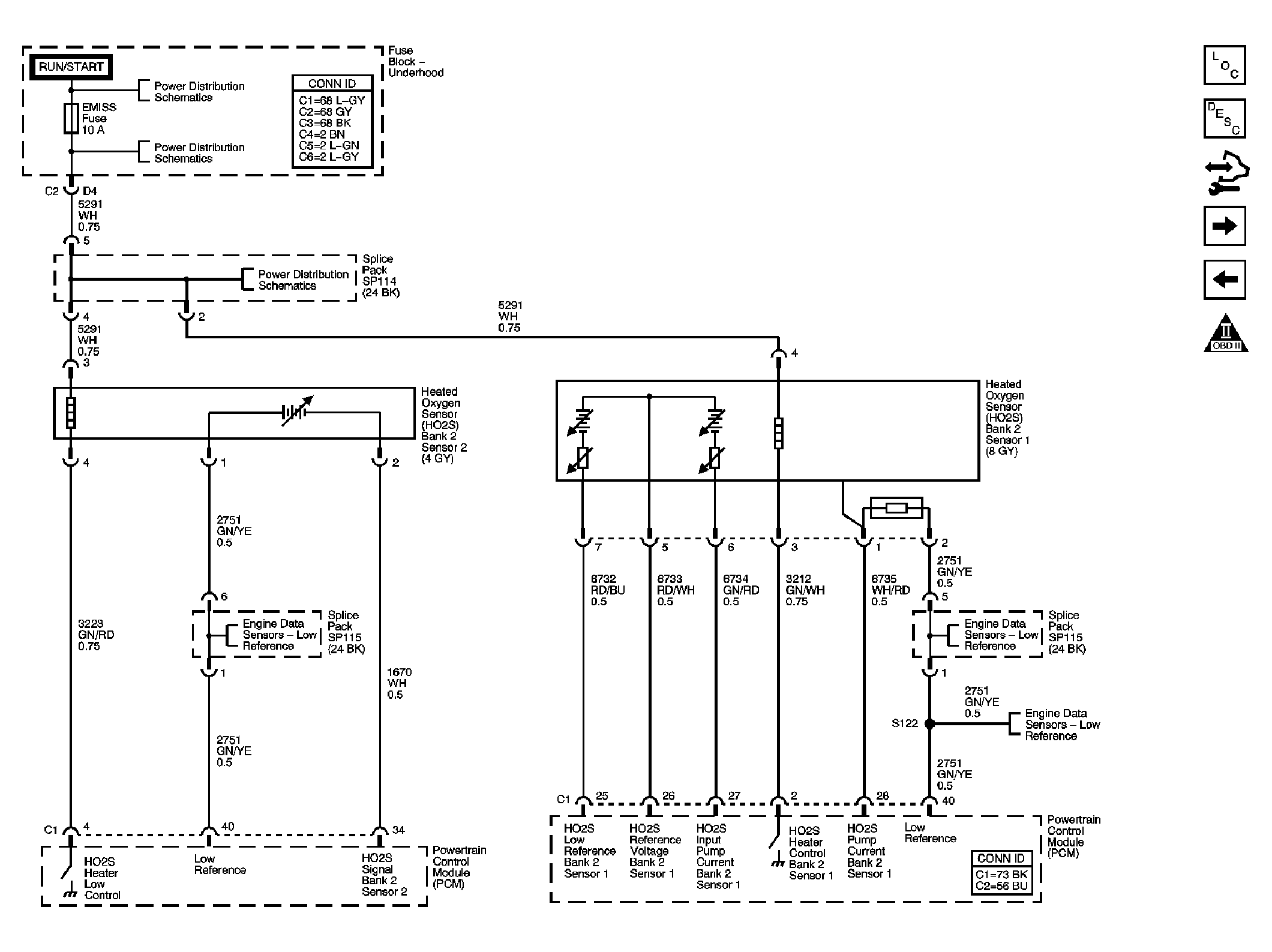

Fig 6: Bank 2 Oxygen Sensors

Courtesy of GENERAL MOTORS CORP.

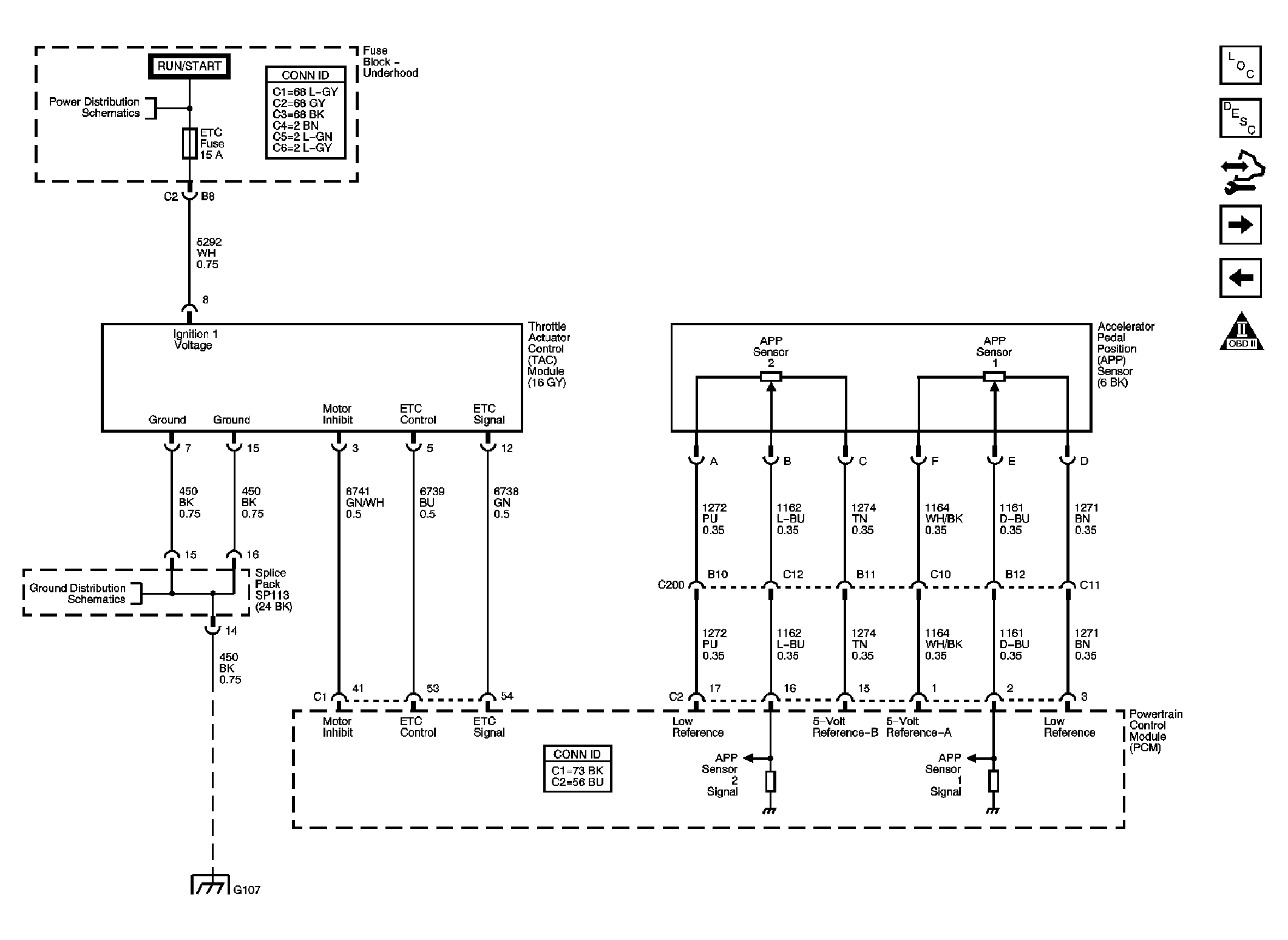

Fig 7: Throttle Actuator Controls

Courtesy of GENERAL MOTORS CORP.

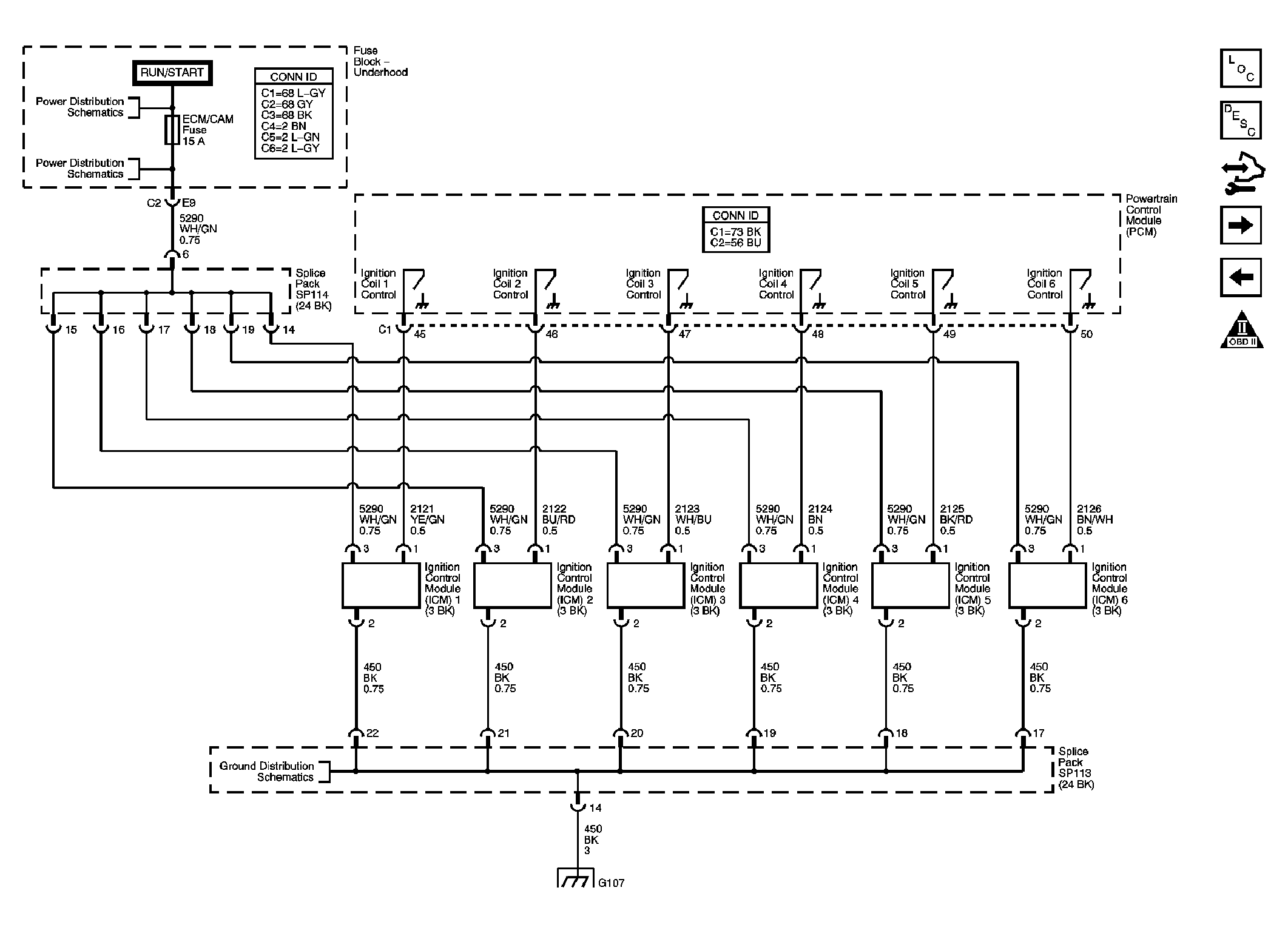

Fig 8: Ignition Control Modules

Courtesy of GENERAL MOTORS CORP.

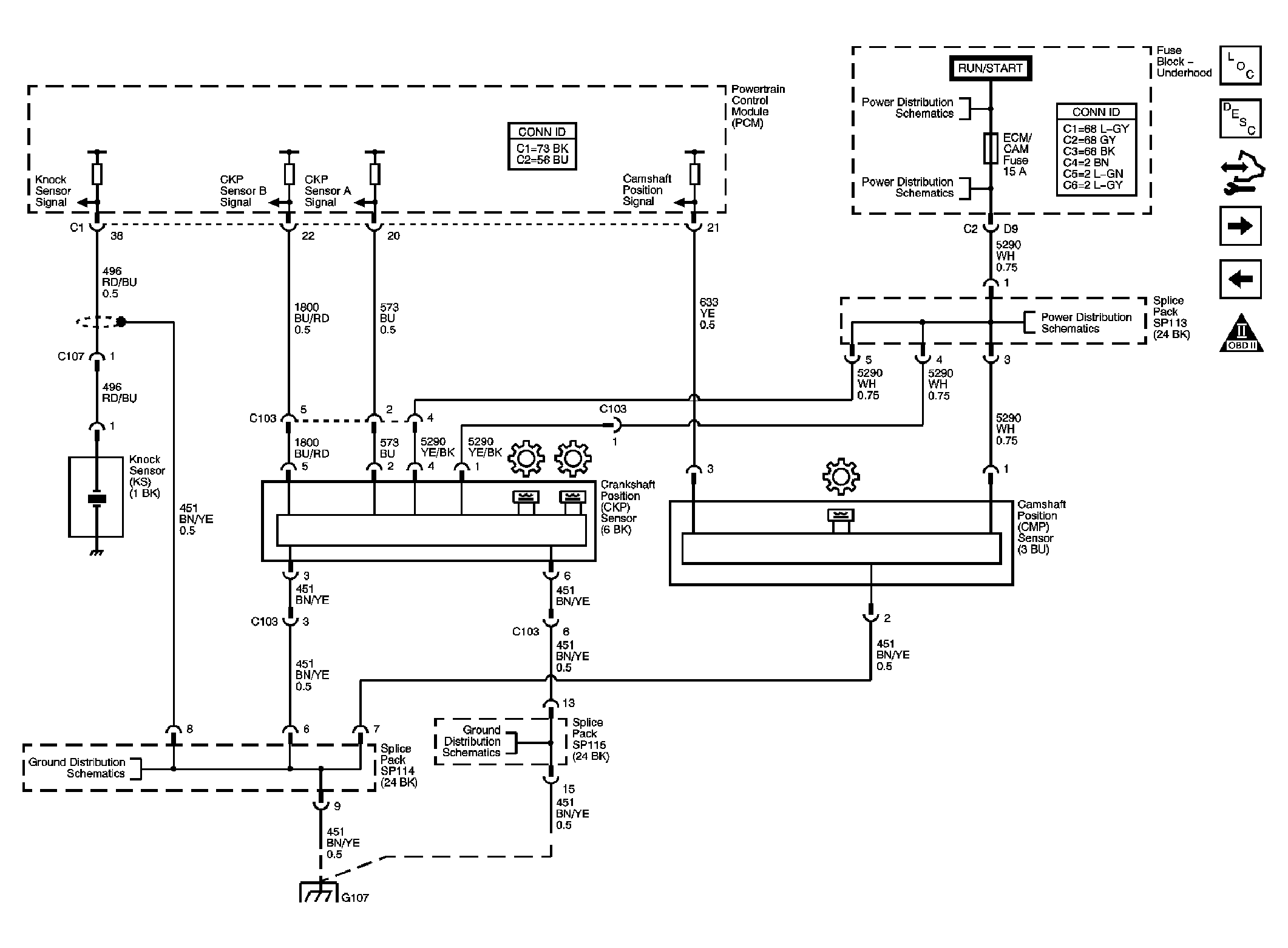

Fig 9: Knock, Crankshaft, and Camshaft Sensors

Courtesy of GENERAL MOTORS CORP.

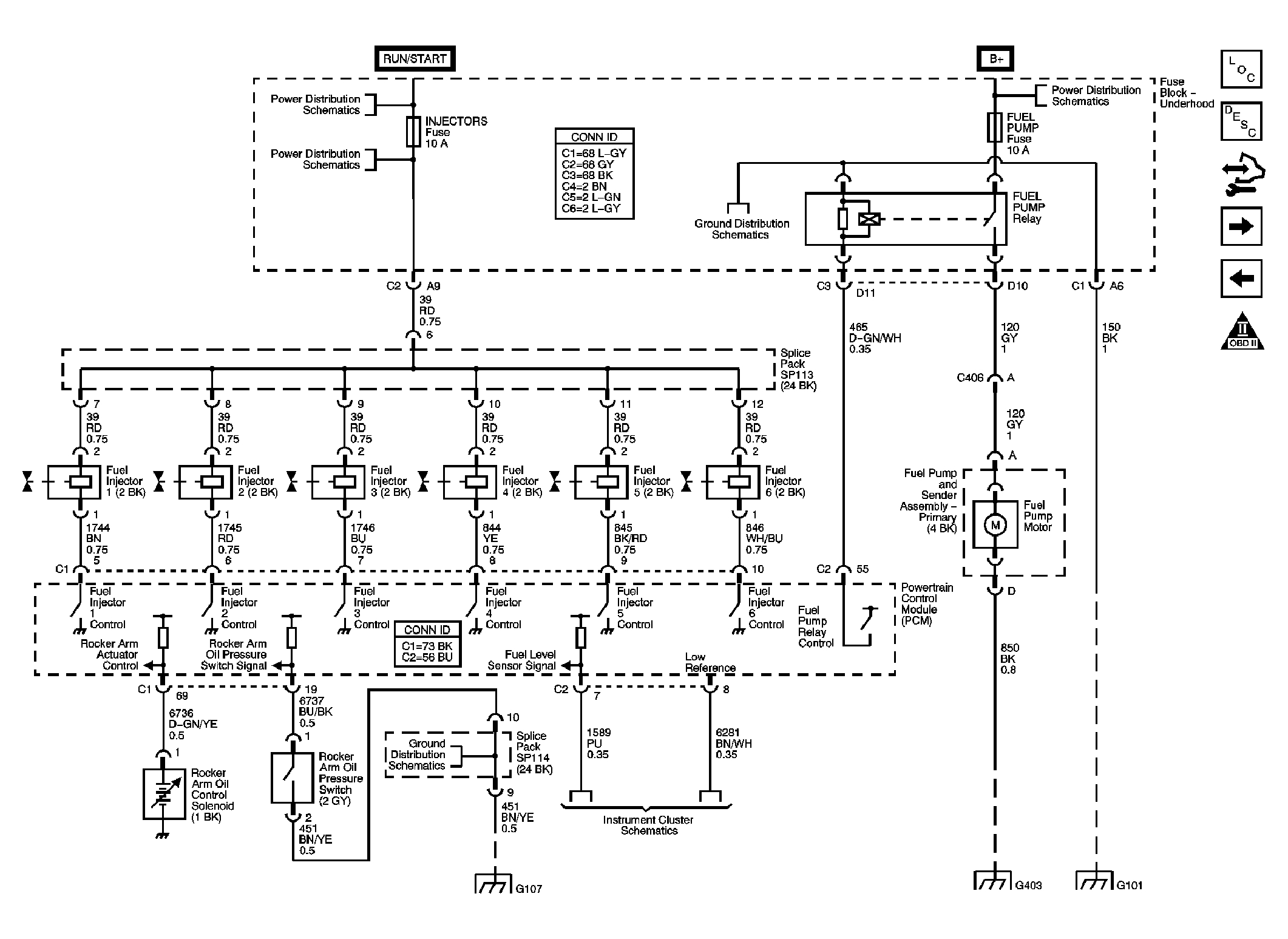

Fig 10: Fuel Injectors, Fuel Pump, Rocker Arm Oil Switch, and Solenoid

Courtesy of GENERAL MOTORS CORP.

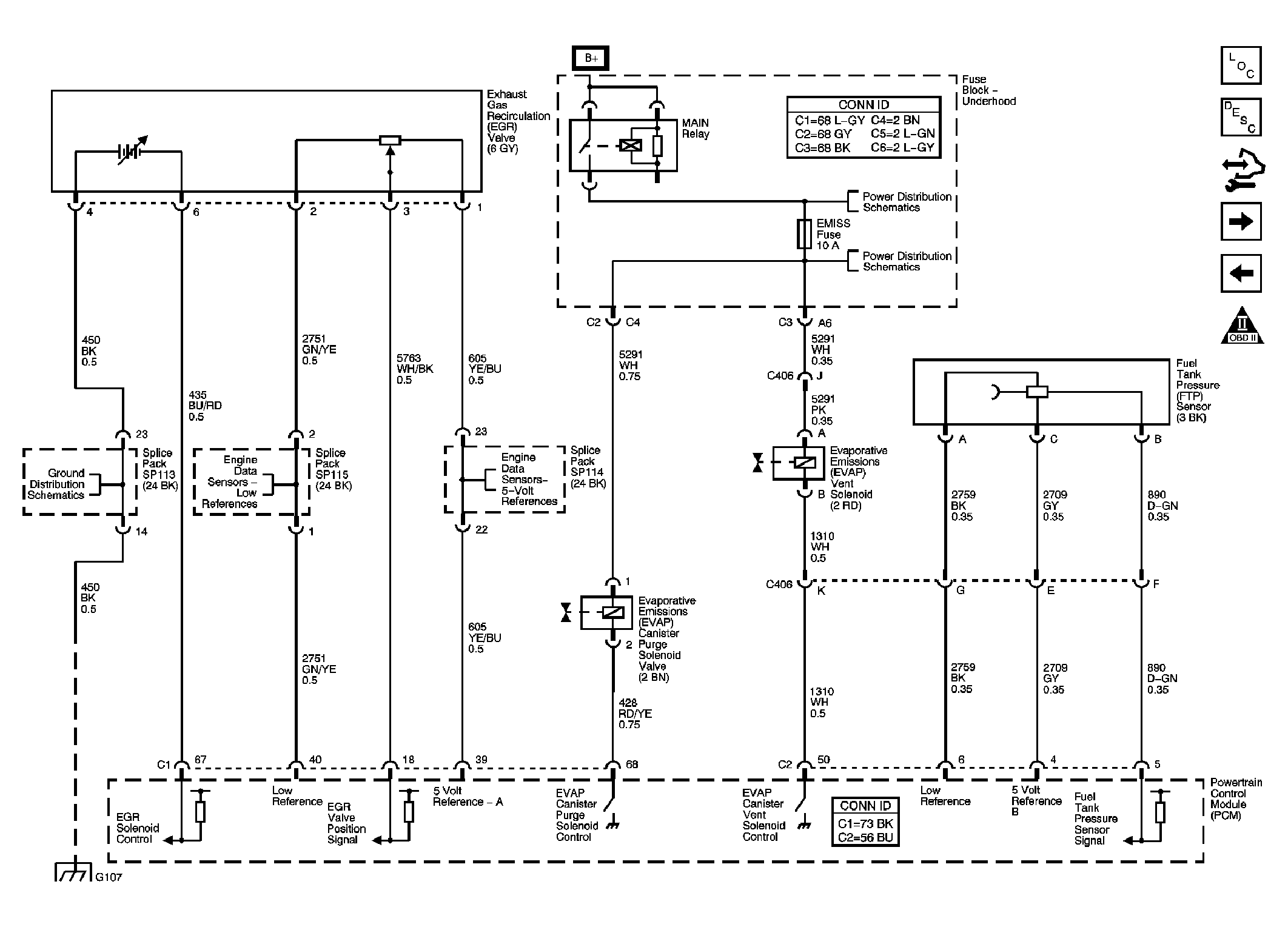

Fig 11: EVAP Controls

Courtesy of GENERAL MOTORS CORP.

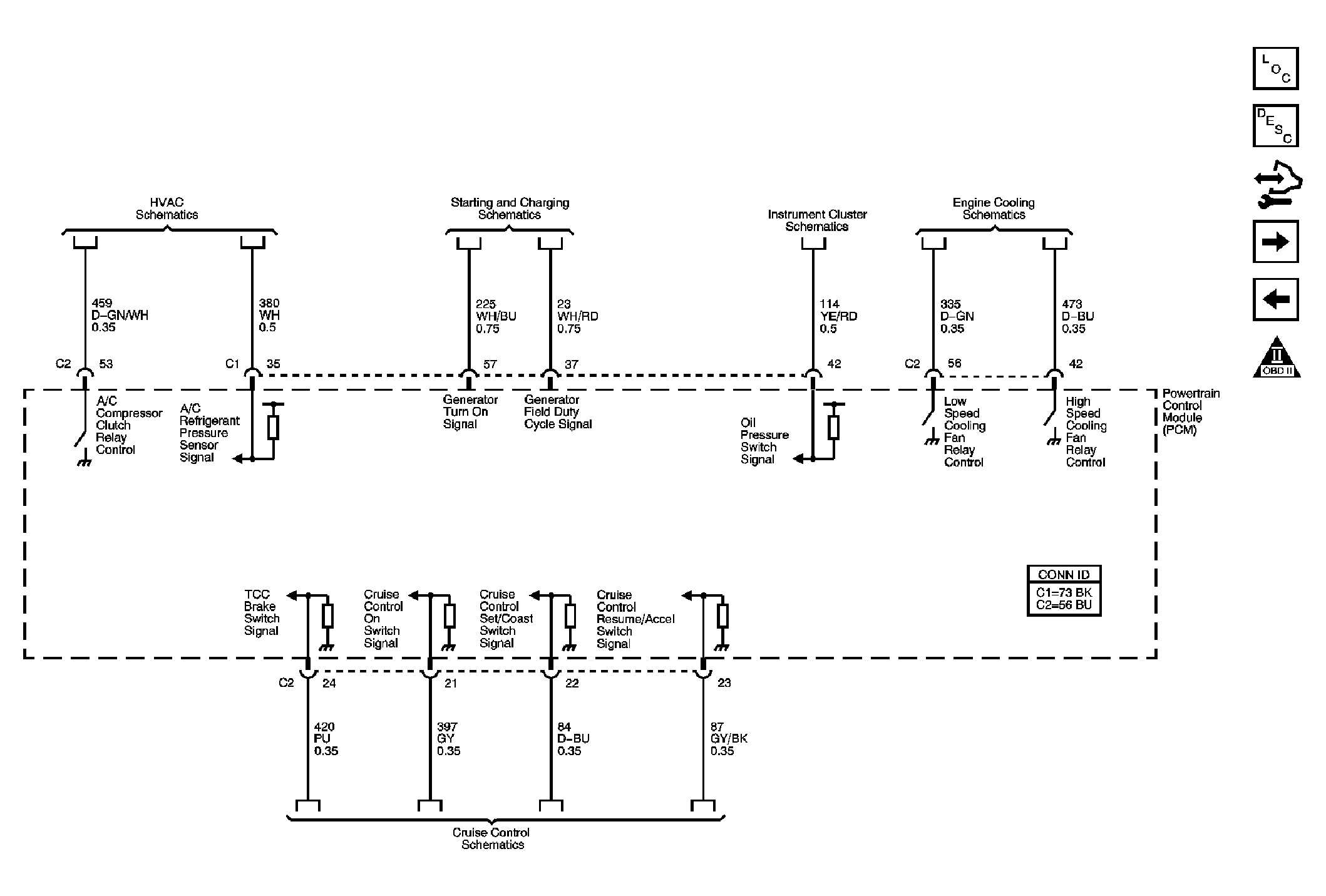

Fig 12: Controlled/Monitored Subsystem References

Courtesy of GENERAL MOTORS CORP.

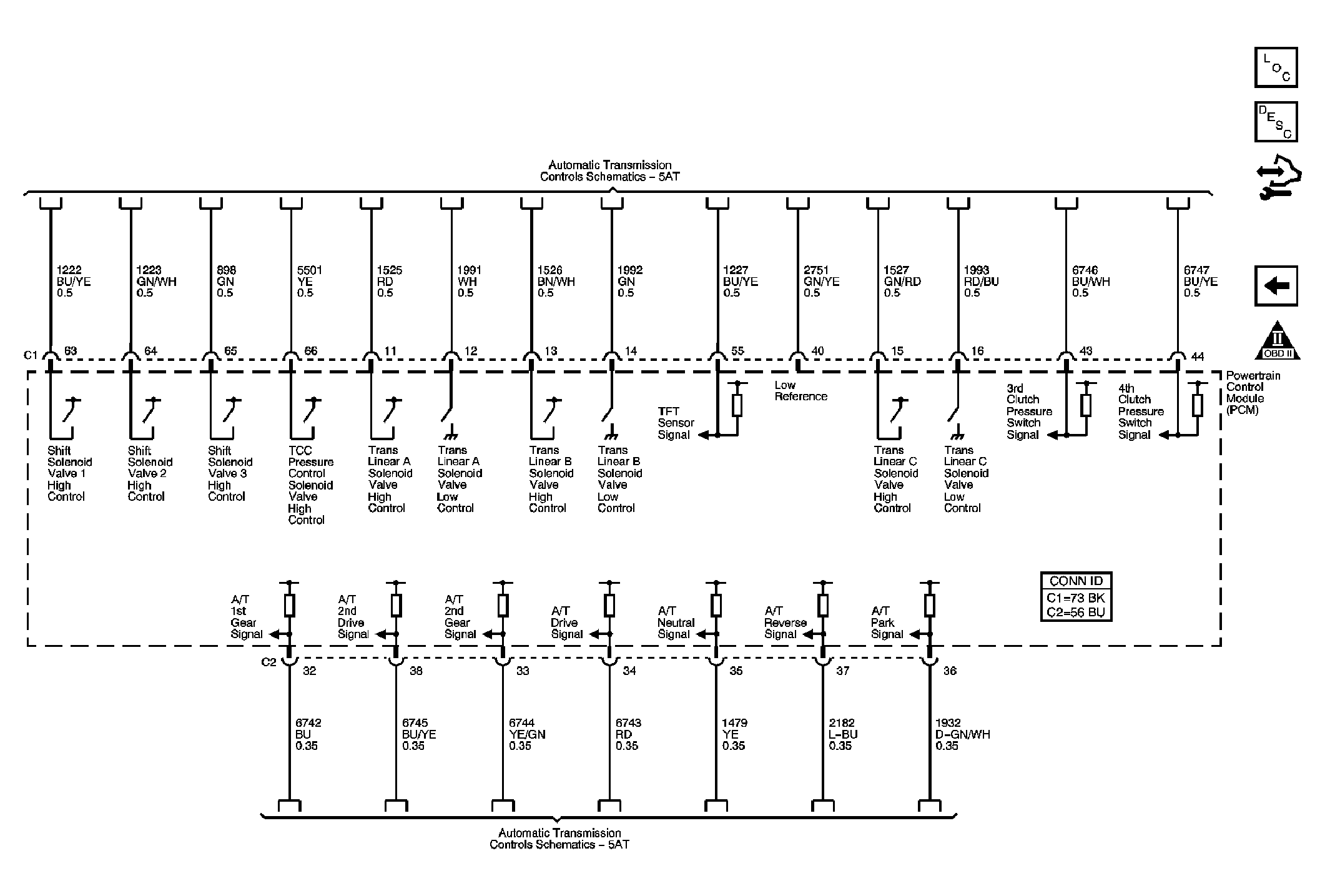

Fig 13: Transmission Controls Reference

Courtesy of GENERAL MOTORS CORP.
