Ground Distribution Schematics

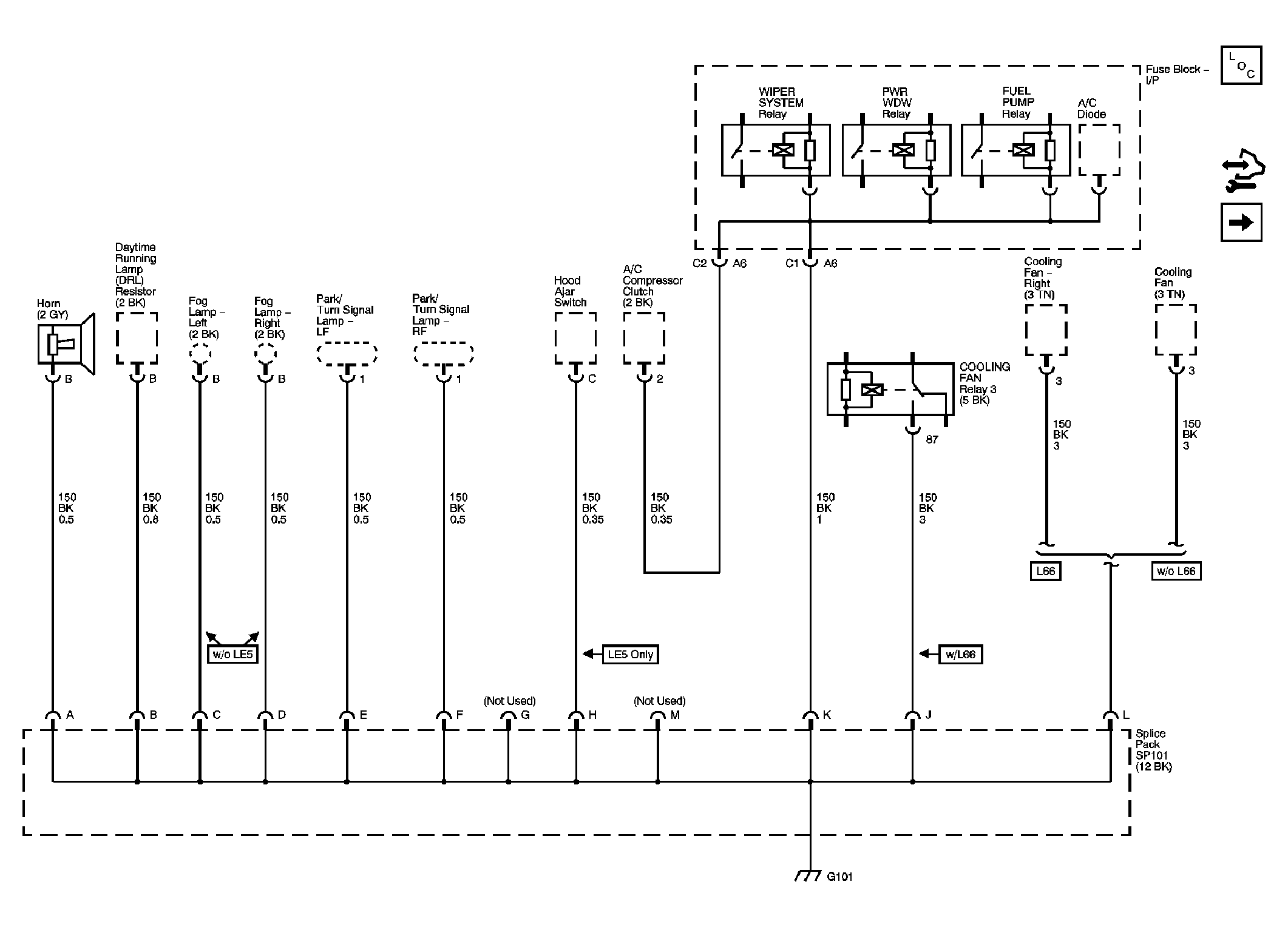

Fig 1: G101

GM1794628

Courtesy of GENERAL MOTORS CORP.

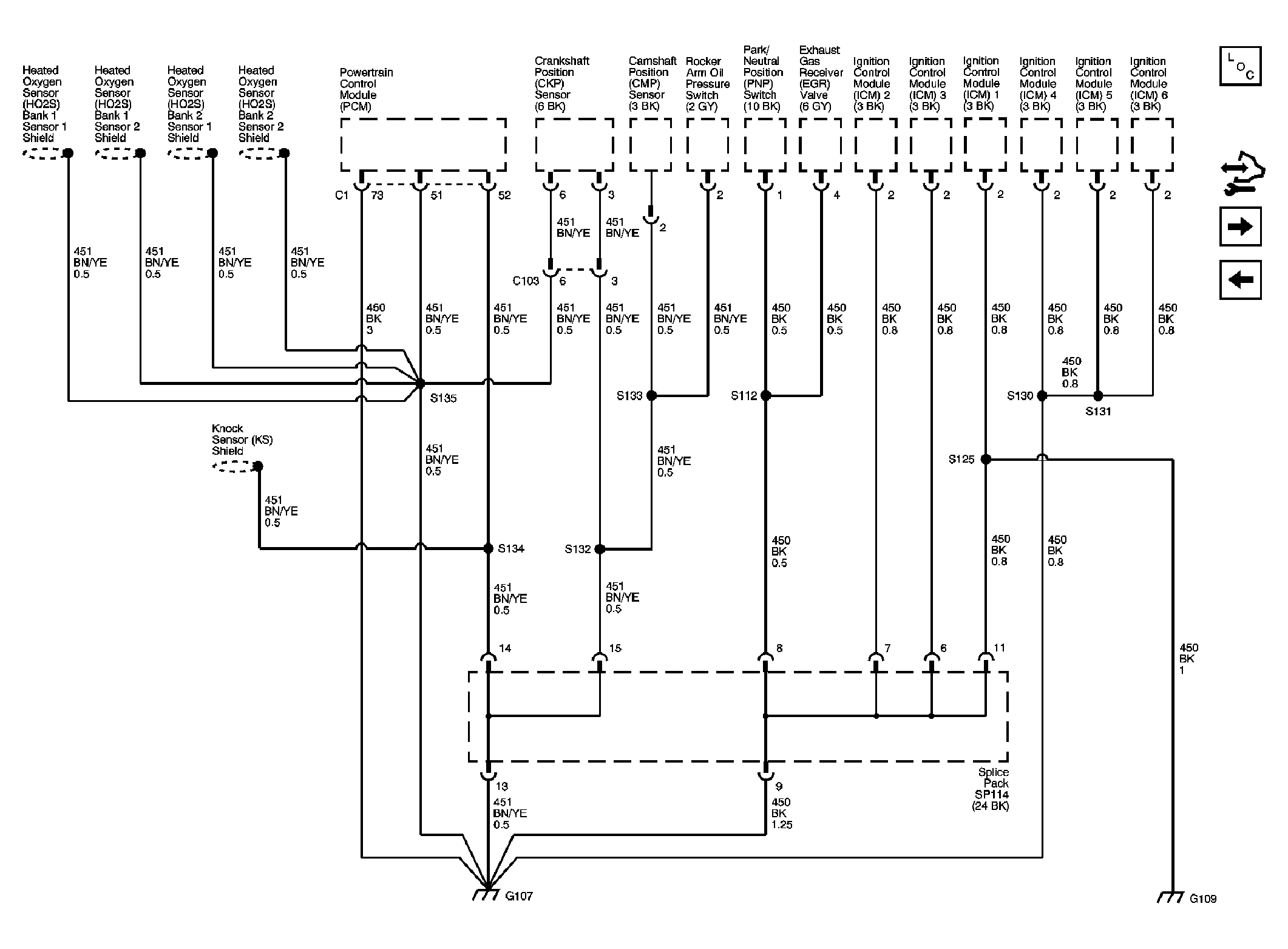

Fig 2: G107 and G109

GM1794639

Courtesy of GENERAL MOTORS CORP.

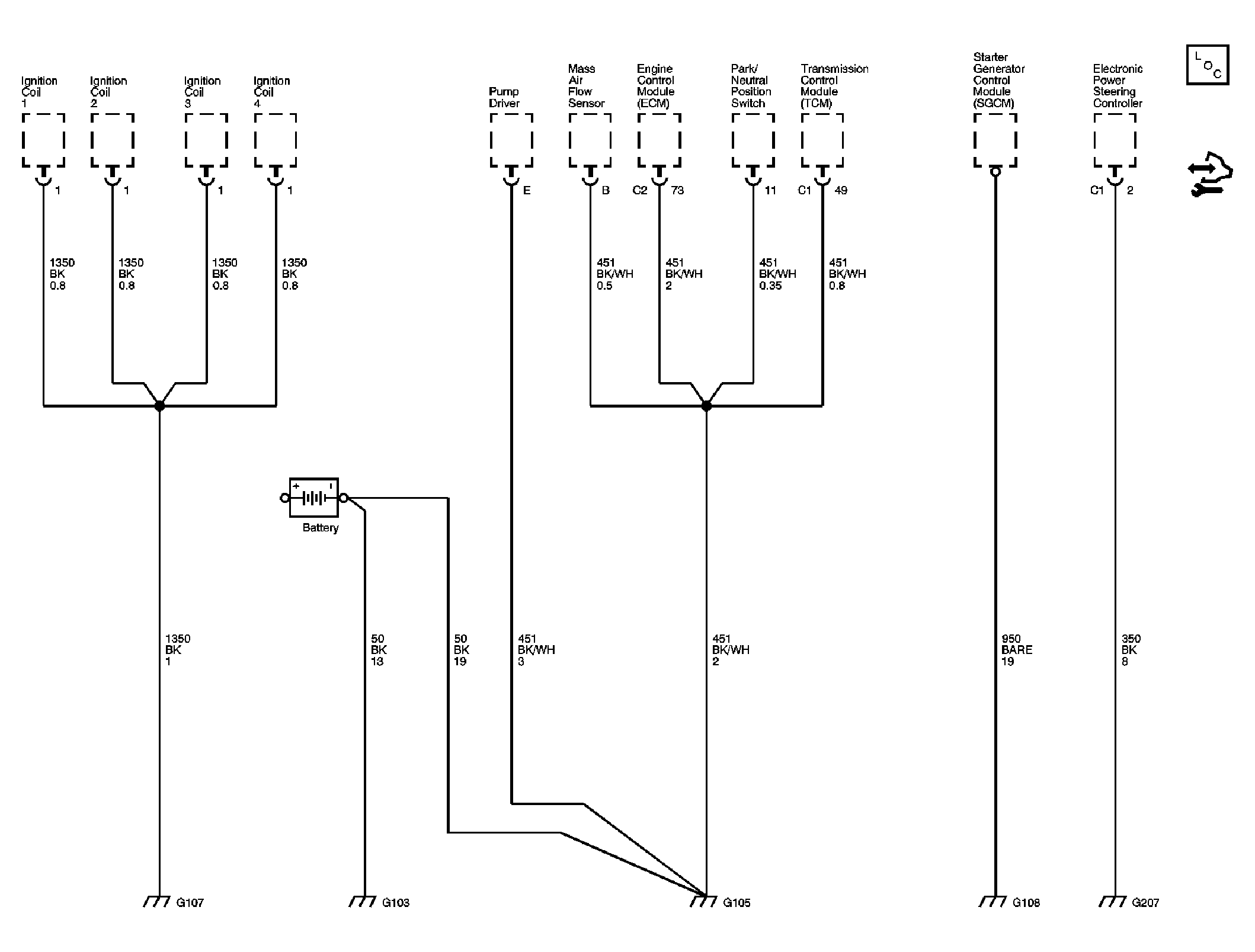

Fig 3: G103, G105, G107, G108, and G207 (LAT)

GM1848414

Courtesy of GENERAL MOTORS CORP.

Fig 4: G103, G105, and G107

GM1794647

Courtesy of GENERAL MOTORS CORP.

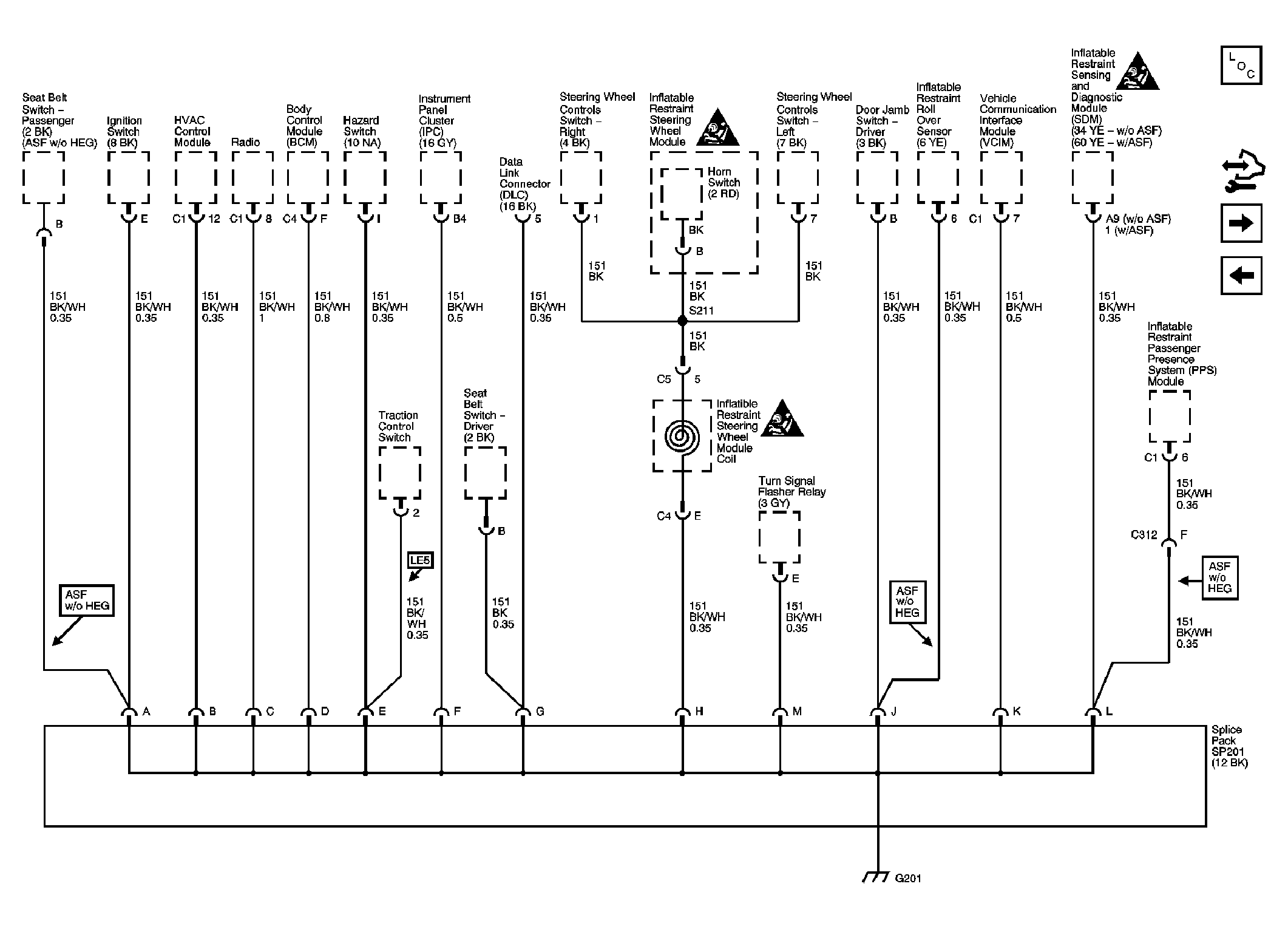

Fig 5: G201

GM1794652

Courtesy of GENERAL MOTORS CORP.

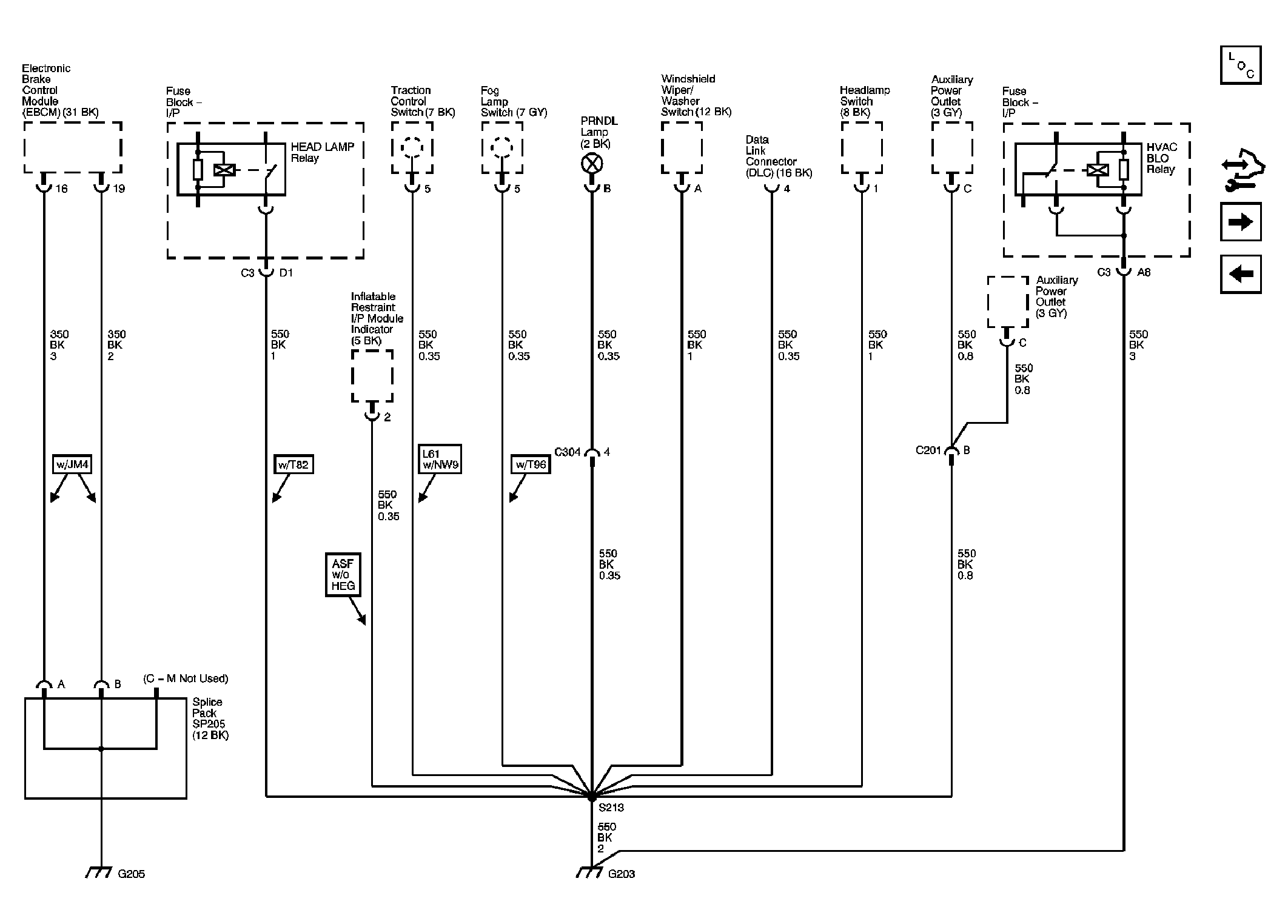

Fig 6: G203 and G205

GM1794655

Courtesy of GENERAL MOTORS CORP.

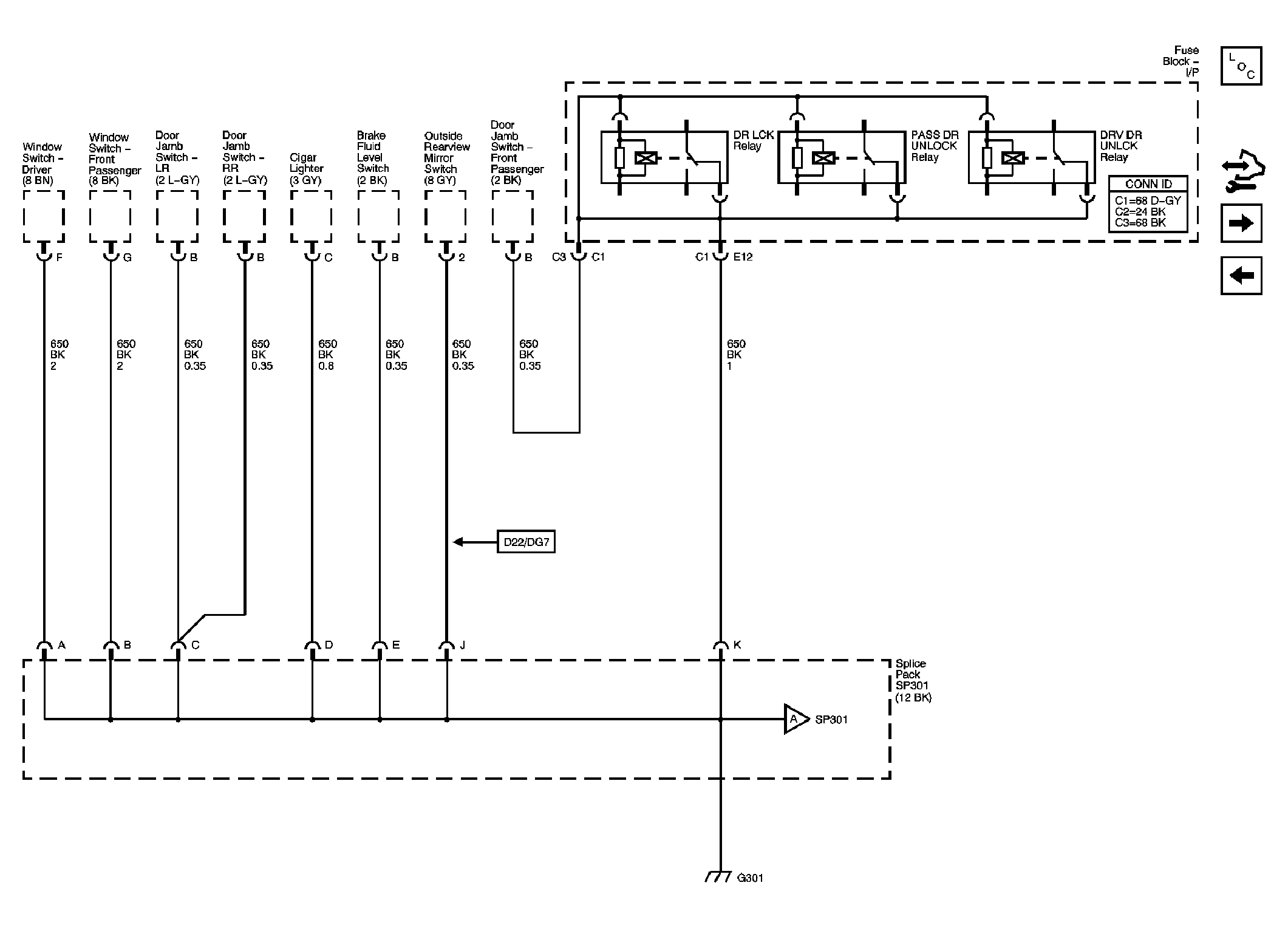

Fig 7: G301 1 of 2

GM1794657

Courtesy of GENERAL MOTORS CORP.

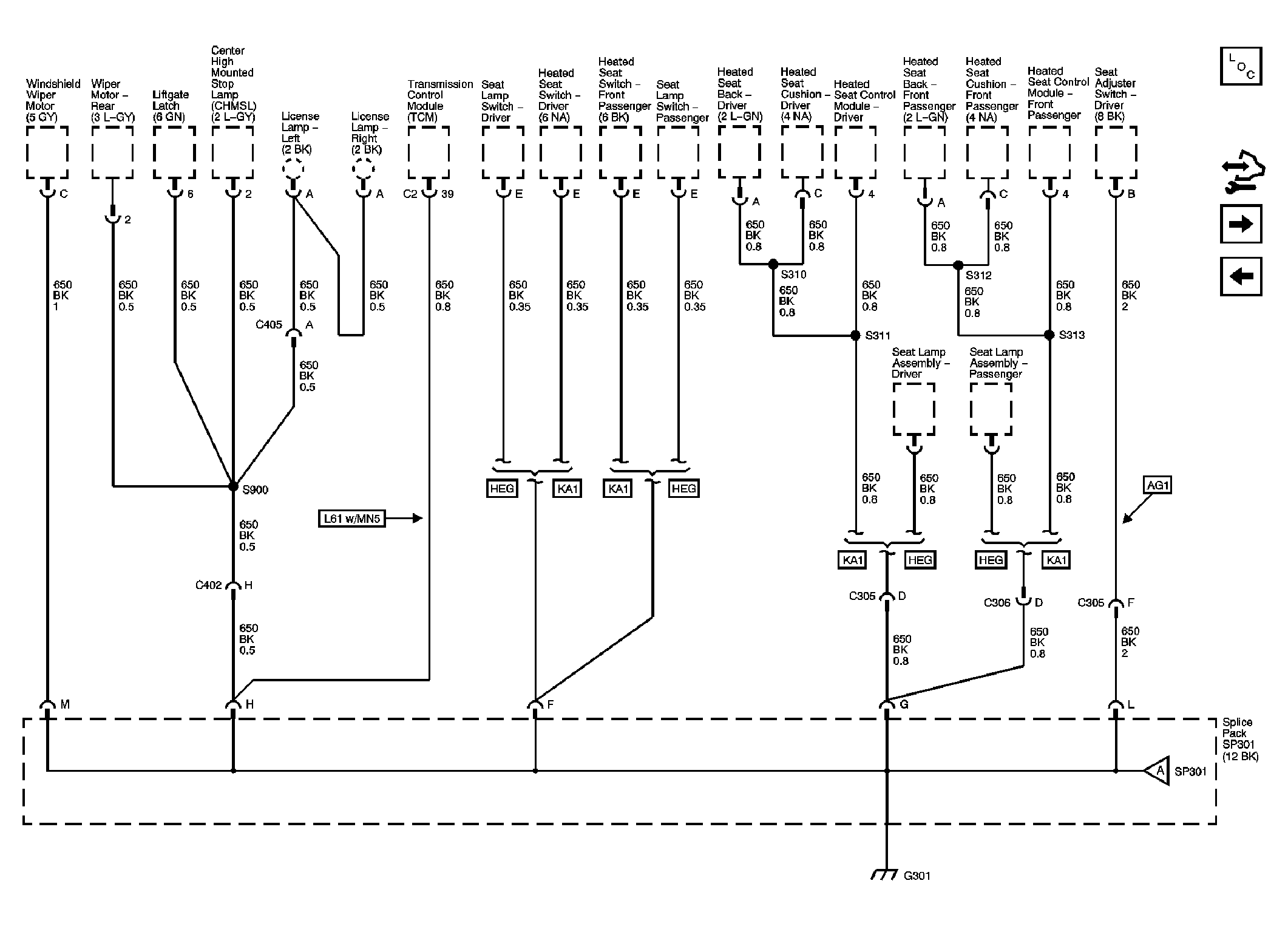

Fig 8: G301 2 of 2

GM1794665

Courtesy of GENERAL MOTORS CORP.

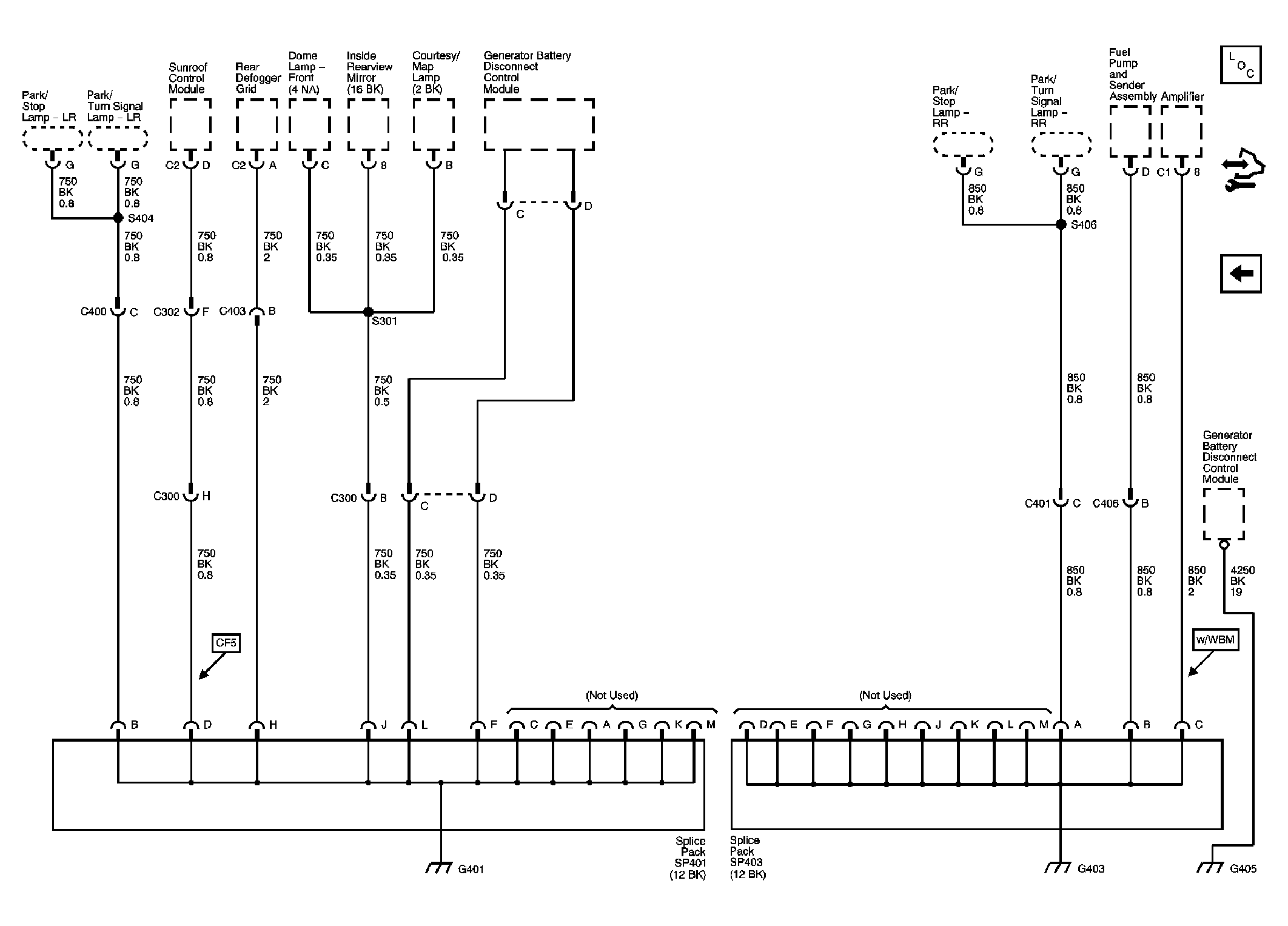

Fig 9: G401 and G403

GM1794669

Courtesy of GENERAL MOTORS CORP.
