Door Component Views
WARNING: This page is about a different car, the 2008 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Door Frame |
| 2 | Outside Rearview Mirror - Driver |
| 3 | Outside Rearview Mirror Switch |
| 4 | Courtesy Lamp - Left Front Door |
| 5 | Door Lock Switch - Driver |
| 6 | Window Motor - Driver |
| 7 | Speaker - Left Front |
| 8 | Rear Compartment Lid Release Switch |
| 9 | Window Switch - Driver |
| 10 | Inflatable Restraint Side Impact Sensor (SIS) - Left |
| 11 | Door Latch - Driver |
| Callout | Component Name |
|---|---|
| 1 | Outside Rearview Mirror - Passenger |
| 2 | Door Frame |
| 3 | Door Latch - Passenger |
| 4 | Inflatable Restraint Side Impact Sensor (SIS) - Right |
| 5 | Window Switch - Passenger |
| 6 | Speaker - Right Front |
| 7 | Window Motor - Passenger |
| 8 | Door Lock Switch - Passenger |
| 9 | Courtesy Lamp - Right Front Door |

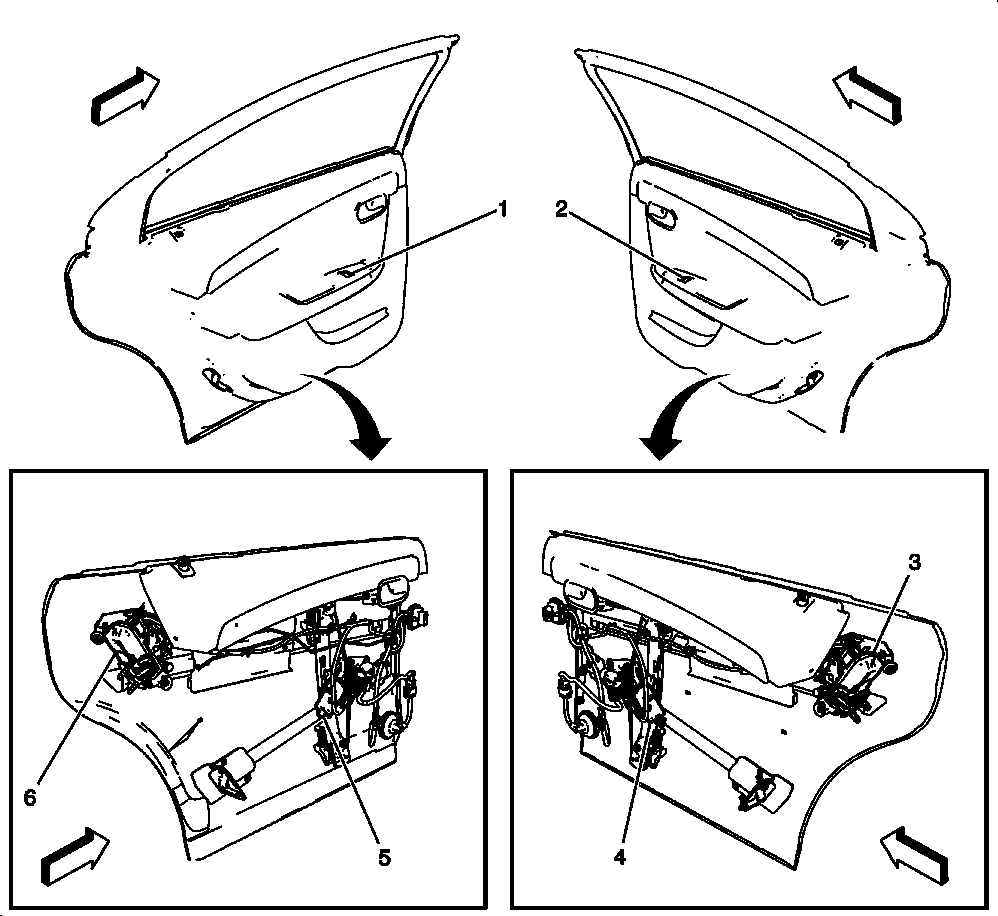

| Callout | Component Name |
|---|---|
| 1 | Window Switch - Left Rear |
| 2 | Window Switch - Right Rear |
| 3 | Door Latch - Right Rear |
| 4 | Window Motor - Right Rear |
| 5 | Window Motor - Left Rear |
| 6 | Door Latch - Left Rear |
