Removal Procedure

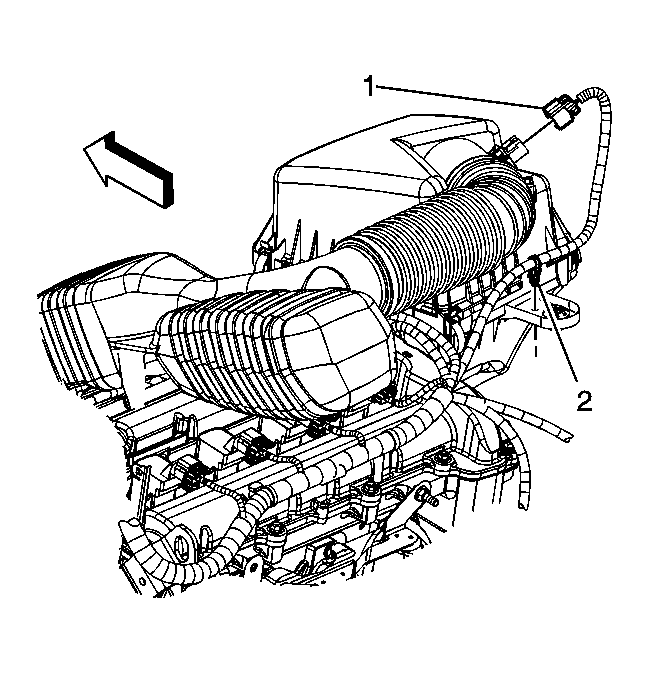

    Fig 1: Locating Mass Air Flow (MAF)/intake Air Temperature (IAT) Sensor Connector
    GM1814555Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the engine wiring harness electrical connector (1) from the mass air flow (MAF)/intake air temperature (IAT) sensor.
    2. Fig 2: MAF/IAT Sensor
    GM1820845Courtesy of GENERAL MOTORS CORP.
  2. Remove the MAF/IAT sensor screws (1).
  3. Remove the MAF/IAT sensor (2).
