Installation Procedure

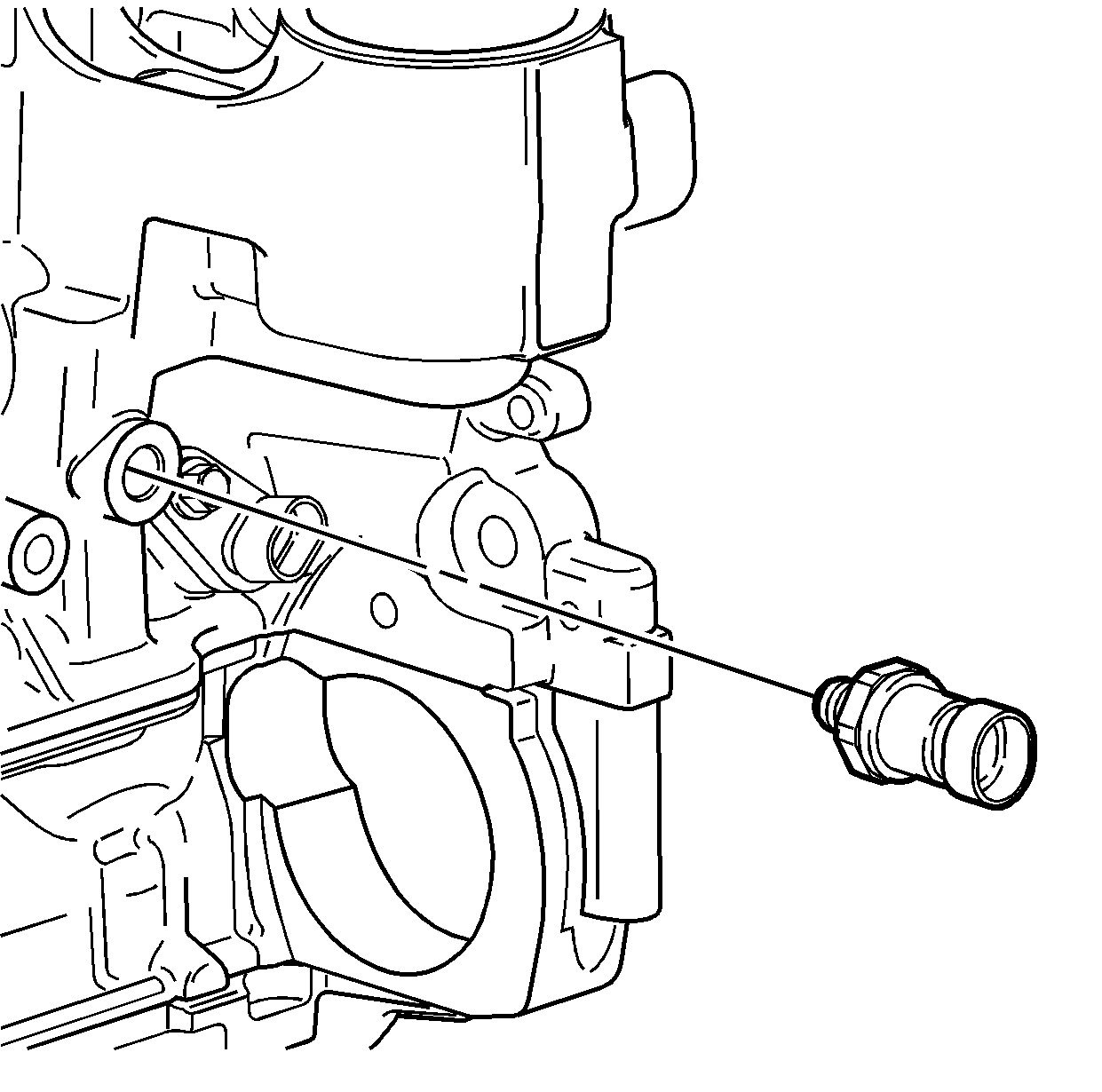

    Fig 1: View Of Engine Oil Pressure Sensor
    GM630350Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Install the engine oil pressure sensor.

    Tighten:  Tighten the sensor to 22 N.m (16 lb ft).

    2. Fig 2: CKP Sensor Electrical Connector
    GM1589842Courtesy of GENERAL MOTORS CORP.
  2. Connect the engine oil pressure sensor electrical connector (2).
  3. Lower the vehicle.
