Harness Routing Views

Fig 1: Forward Lamp

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C111
2	G102
3	S115
4	Wheel Speed Sensor (WSS) - RF
5	C102
6	S115
7	S105
8	S129
9	Fuse Block - Underhood
10	C120
11	S103
12	C103
13	S130
14	S131
15	S109
16	Electronic Brake Control Module (EBCM)
17	S101
18	Wheel Speed Sensor (WSS) - LF
19	G101
20	G105
21	C110

Fig 2: Engine Harness - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C160 (LE5)
2	S104
3	S108
4	Engine Control Module
5	Transmission Control Module (M82)
6	Starter

Fig 3: Engine Harness Routing 1 of 2 (LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block-Underhood
2	C162
3	Transmission Control Module (TCM) (M82)
4	Engine Control Module (ECM) Bracket
5	Splice S137
6	Splice S142
8	Splice S120
9	Engine Harness

Fig 4: Engine Harness - Right Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	S107
2	S106
3	S108
4	Fuse Block Bracket
5	C100
6	Fuse Block - Underhood
7	Engine Coolant Temperature (ECT) Sensor
8	Camshaft Position (CMP) Actuator Solenoid - Exhaust
9	G103
10	Evaporative Emission (EVAP) Canister Purge Solenoid Valve

Fig 5: C100,C120 and C122

Courtesy of GENERAL MOTORS CORP.

Fig 6: HVAC Module Components (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Air Temperature Actuator - Right
2	Air Temperature Actuator - Left
3	Mode Actuator
4	Ambient Light Sensor
5	Air Vent Grille
6	HVAC Control Module
7	C216
8	C218
9	Blower Motor
10	Blower Motor Connector
11	High-Speed Blower Motor Relay
12	Blower Motor Resistor Assembly
13	C208

Fig 7: I/P Harness - Behind Driver and Passenger Seat Area

Courtesy of GENERAL MOTORS CORP.

Fig 8: Underneath Floor Shifter

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C207
2	Floor Shifter (M82)

Fig 9: Driver Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Outside Rearview Mirror Switch
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror Connector - Driver
4	C166
5	C165
6	S501
7	Speaker Connector - LF Door
8	S500
9	Window Motor - Driver
10	Window Switch - Driver
11	Door Lock Actuator - Driver

Fig 10: Passenger Door

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C167
2	Outside Rearview Mirror Connector - Passenger
3	Outside Rearview Mirror - Passenger
4	Window Motor - Passenger
5	Door Lock Actuator - Passenger
6	Window Switch - Passenger
7	Speaker Connector - RF Door
8	S600

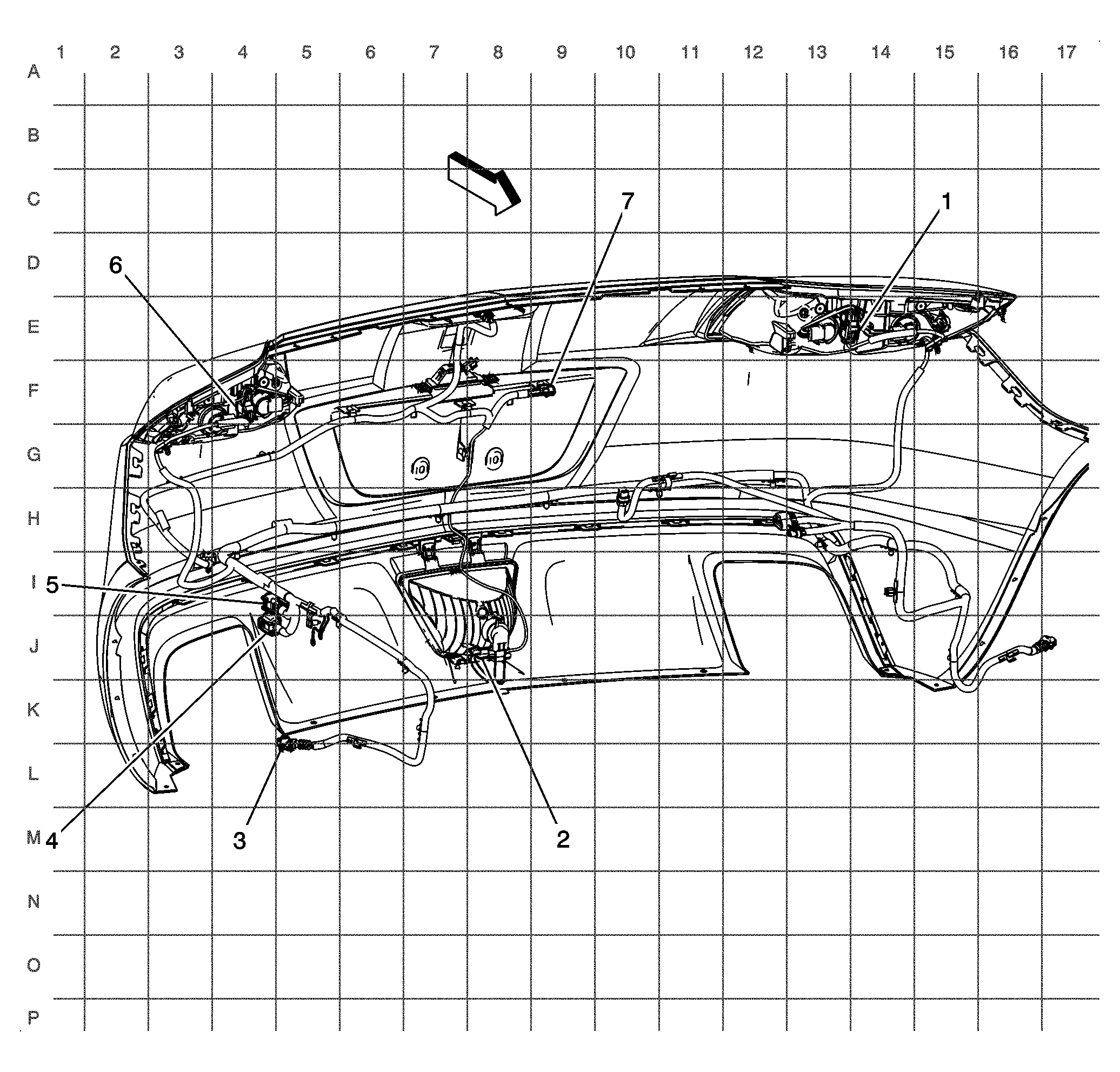

Fig 11: Rear Fascia Harness Routing

Courtesy of GENERAL MOTORS CORP.
