Camshaft Position (CMP) Actuator Solenoid

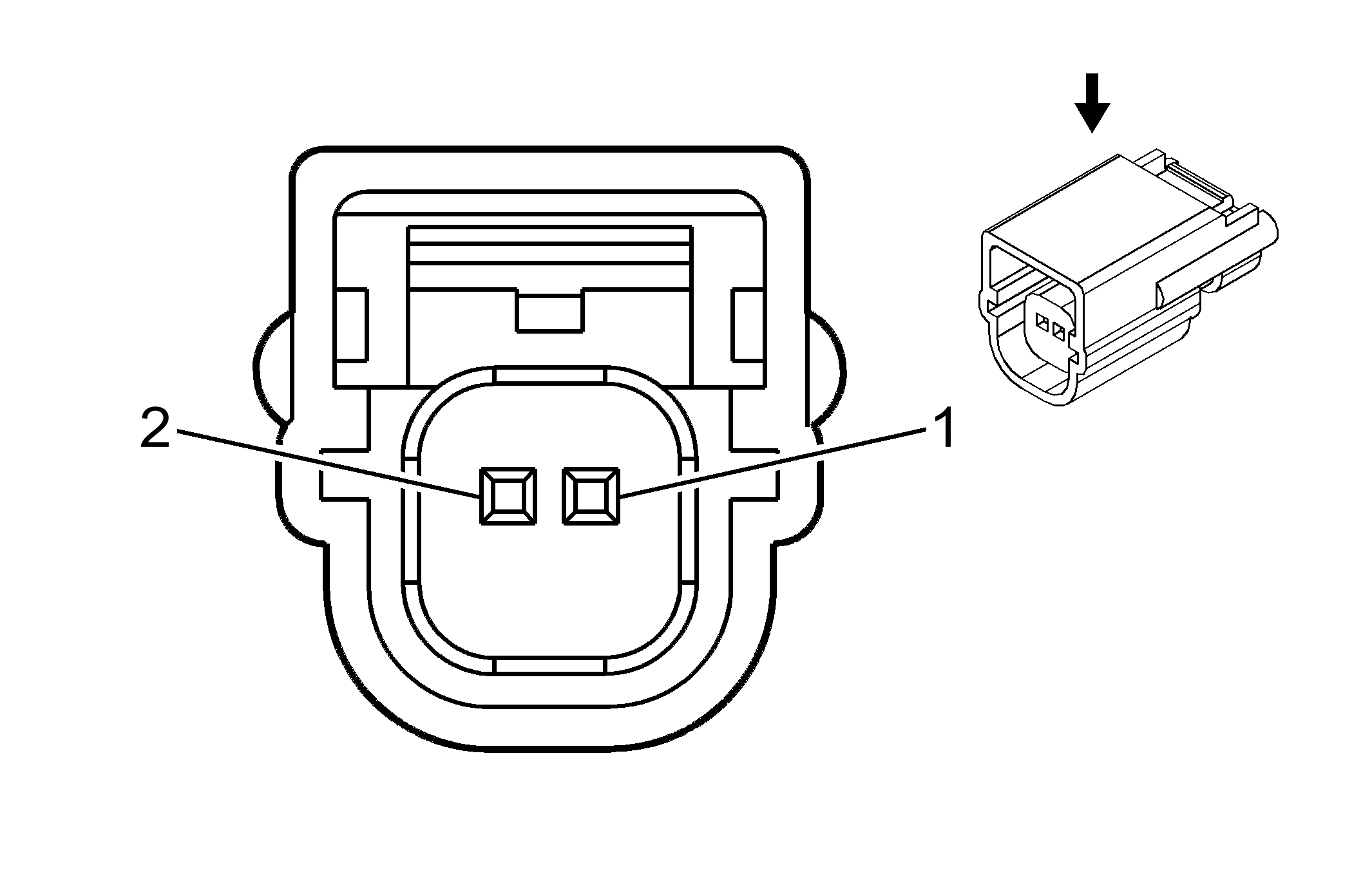

Fig 1: Camshaft Position (CMP) Actuator Solenoid Connector End Views
GM1676163Courtesy of GENERAL MOTORS CORP.
Camshaft Position (CMP) Actuator Solenoid Connector Parts Information

Connector Part Information
  • OEM: 15472554
  • Service: See Catalog
  • Description: 2-Way F Receptacle 064 Series Sealed (BK)
Terminal Part Information
  • Terminal/Tray: 1393364-2/7
  • Core/Insulation Crimp: K/K
  • Release Tool/Test Probe: 15315247/J-35616-64A (L-BU)
Camshaft Position (CMP) Actuator Solenoid Connector Terminal Identification

Pin Wire Color Circuit No. Function
1 BN 2198 Camshaft Position Actuator Solenoid High Control
2 TN 2199 Low Reference
