Backup Lamp Connector End View - Left

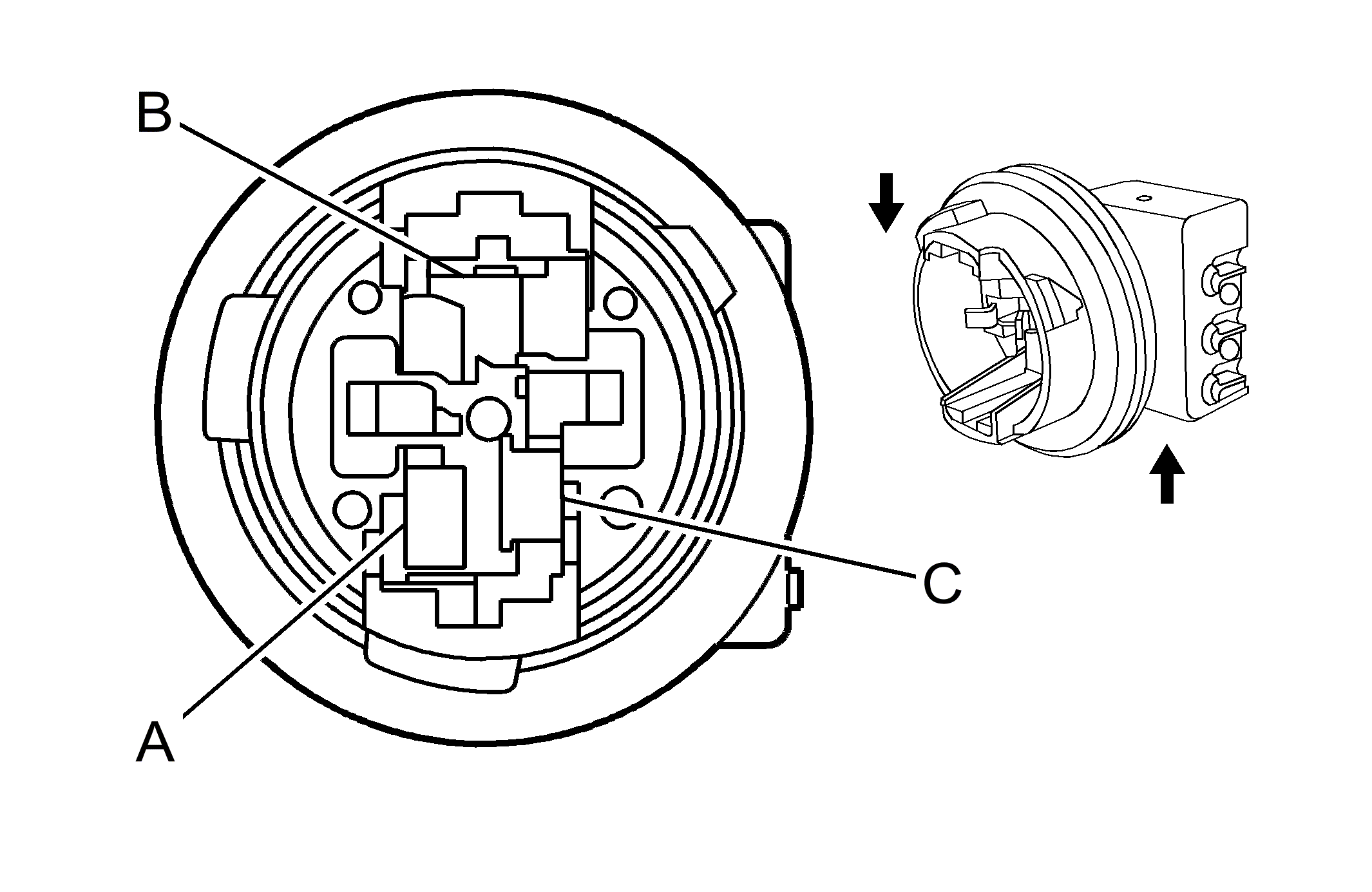

Fig 1: Backup Lamp - Left Connector End Views
GM1694736Courtesy of GENERAL MOTORS CORP.
Backup Lamp - Left Connector Parts Information

Connector Part Information
  • OEM: 1013509
  • Service: See Catalog
  • Description: 3-Way F CIC W3 Socket (L-GY)
Terminal Part Information
  • Terminal: Not Serviced in Kit
  • Core/Insulation Crimp: N/A
  • Release Tool/Test Probe: N/A
Backup Lamp - Left Connector Terminal Identification

Pin Wire Color Circuit No. Function
A YE - Backup Lamp Supply Voltage
B BK - Ground
C - - Not Used
