Liftgate Schematics

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

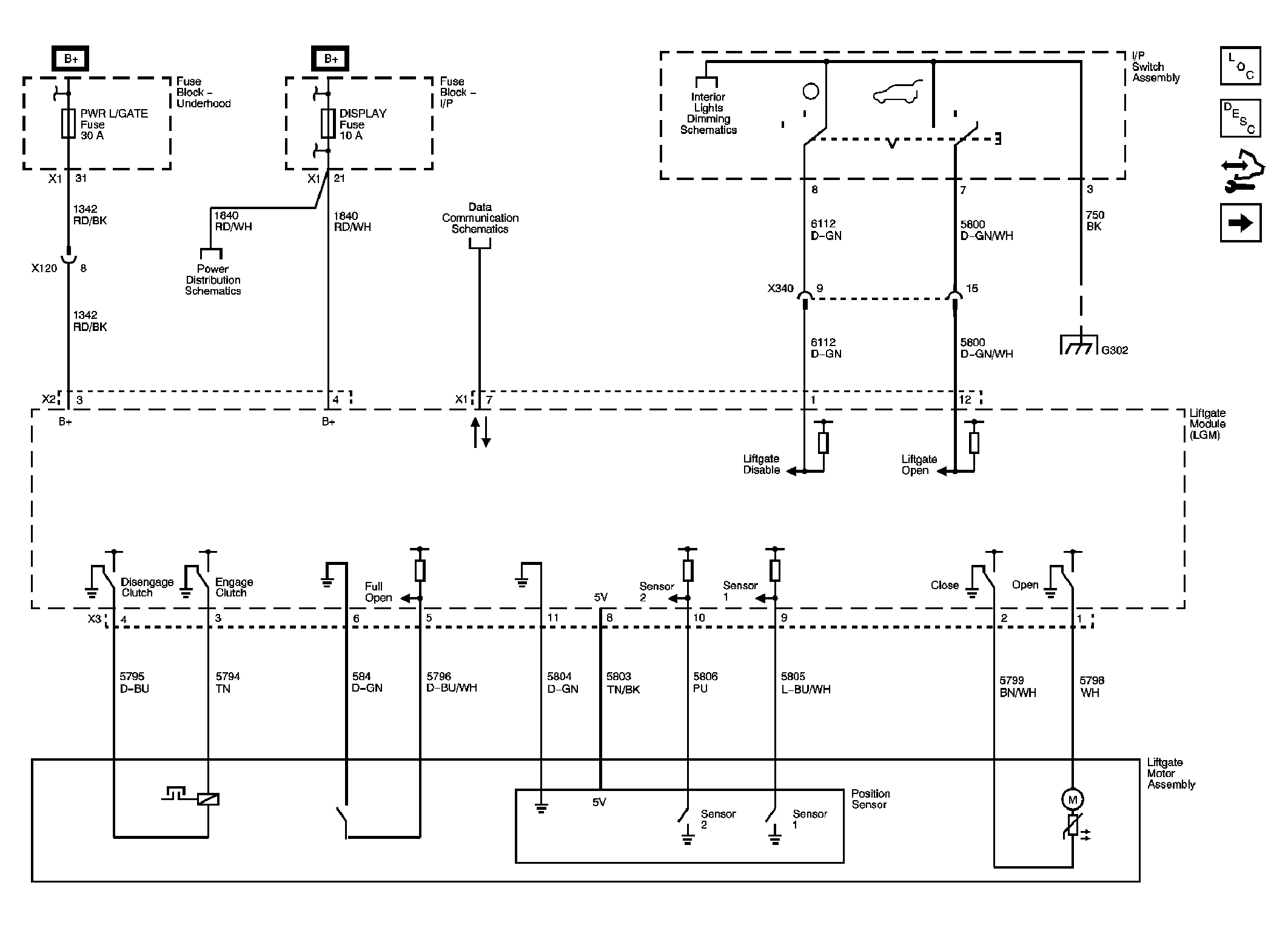

Fig 1: Module Power, Ground, Data Communication, I/P Switch & Liftgate Motor Schematic
GM1844198Courtesy of GENERAL MOTORS CORP.

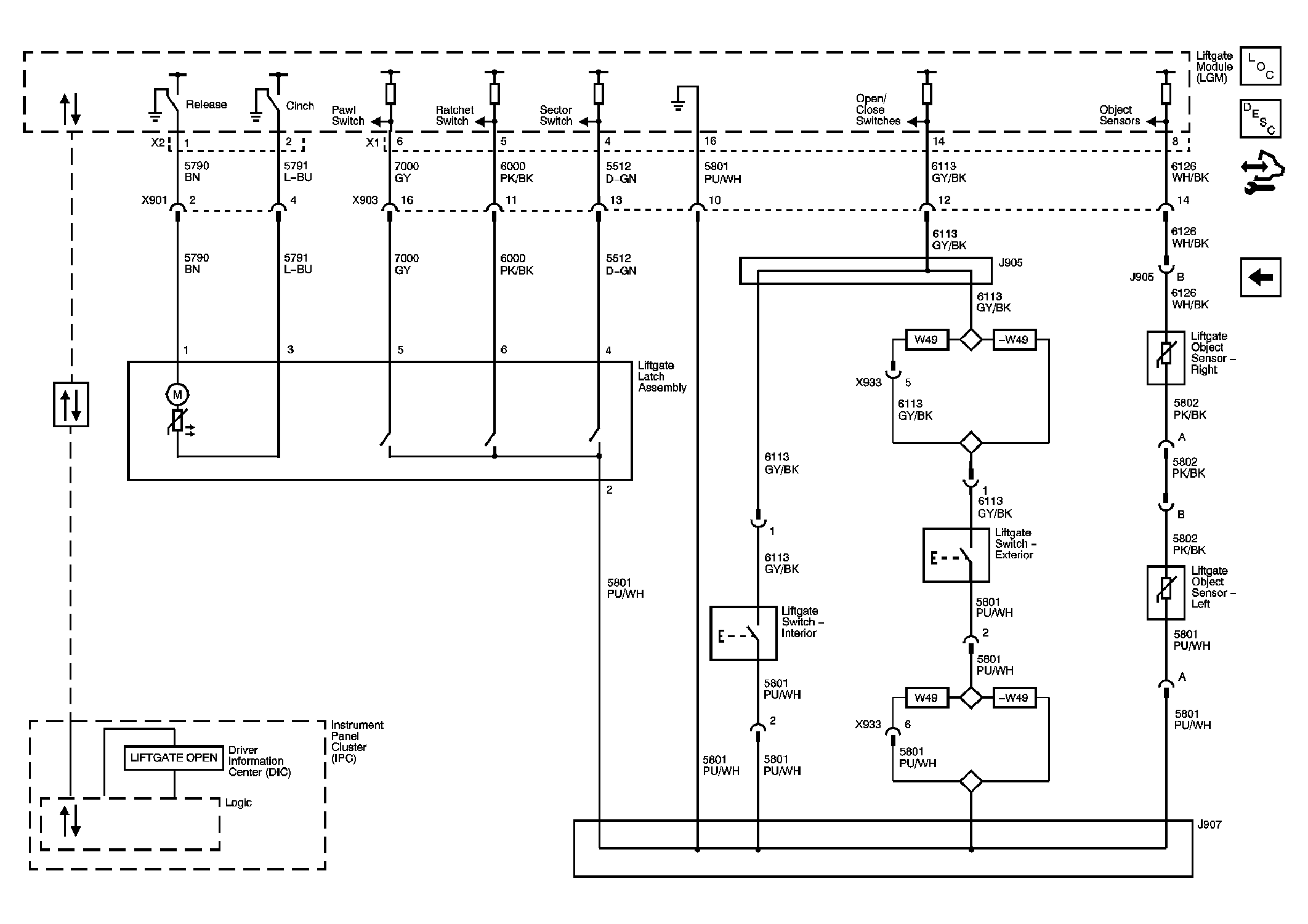

Fig 2: Indicator, Latch, Object Sensors & Switches Schematic
GM1844199Courtesy of GENERAL MOTORS CORP.
