Power Liftgate Motor Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

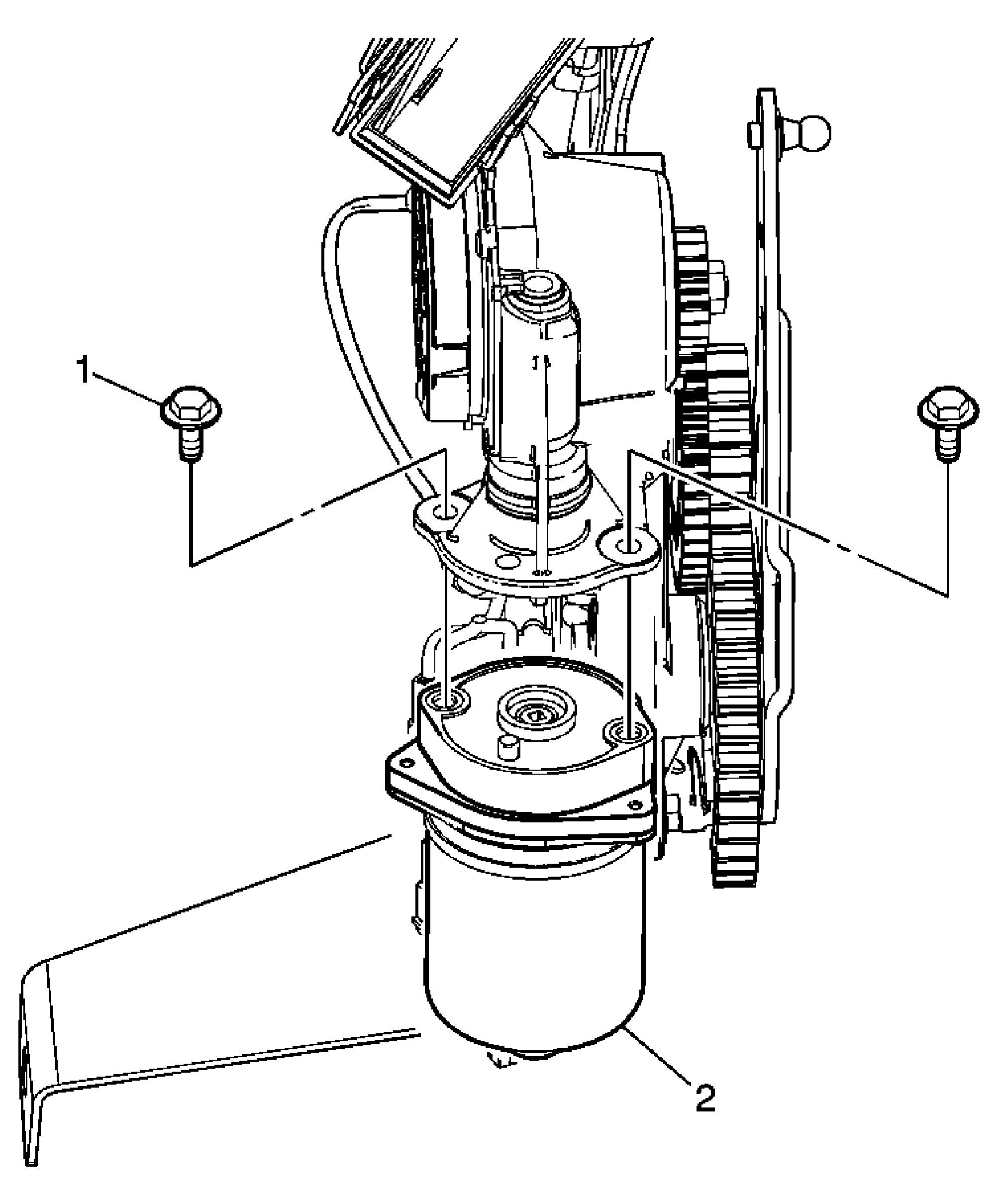

Fig 1: View Of Power Liftgate Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the body side trim panel. Refer to Rear Quarter Lower Trim Panel Replacement (without RPO E61) or Rear Quarter Lower Trim Panel Replacement (with RPO E61) . Remove the liftgate actuator rod. Refer to Liftgate Actuator Rod Replacement .
1	Power Liftgate Actuator Motor Bolts (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 8 N.m (71 lb in)
2	Power Liftgate Actuator Motor Procedure Disconnect the electrical connector. Reprogram liftgate control module. Refer to Liftgate Control Module Programming and Setup .

Callout

Component Name

Preliminary Procedures

Remove the body side trim panel. Refer to Rear Quarter Lower Trim Panel Replacement (without RPO E61) or Rear Quarter Lower Trim Panel Replacement (with RPO E61) .
Remove the liftgate actuator rod. Refer to Liftgate Actuator Rod Replacement .

Power Liftgate Actuator Motor Bolts (Qty: 2)

NOTE: Refer to Fastener Notice .

Tighten: 8 N.m (71 lb in)

Power Liftgate Actuator Motor

Procedure

Disconnect the electrical connector.
Reprogram liftgate control module. Refer to Liftgate Control Module Programming and Setup .
