Tail Lamp Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

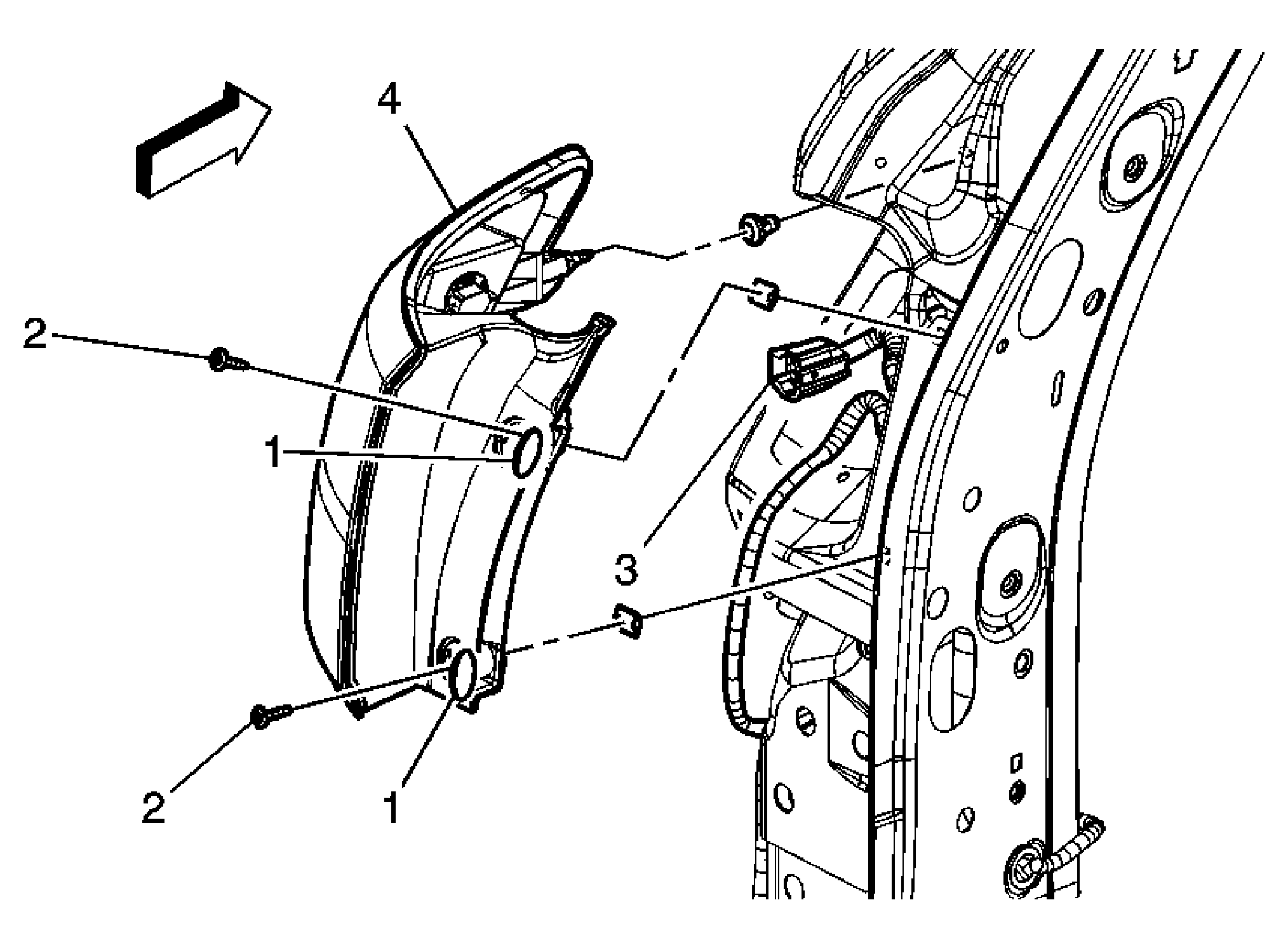

Fig 1: View Of Tail Lamp
GM1847023Courtesy of GENERAL MOTORS CORP.
Tail Lamp Replacement

Callout Component Name
Preliminary Procedure:
Open the lift gate in order to access the tail lamp access hole covers.
1 Tail Lamp Access Hole Covers (Qty: 2)
Tip:  Use a small flat bladed tool in order to remove the covers.
2 Tail Lamp Screws (Qty: 2)
NOTE: Refer to Fastener Notice .

Tighten:  3 N.m (27 lb in)
3 Tail Lamp Wiring Harness Connector
Tip:  Disconnect the harness prior to removing the lamp assembly.
4 Tail Lamp Assembly
Tip:  Transfer the turn signal and side marker lamp bulbs as needed.
