Backup Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Saturn Outlook. However, it is still accessible from the selected car via links, so may be relevant.

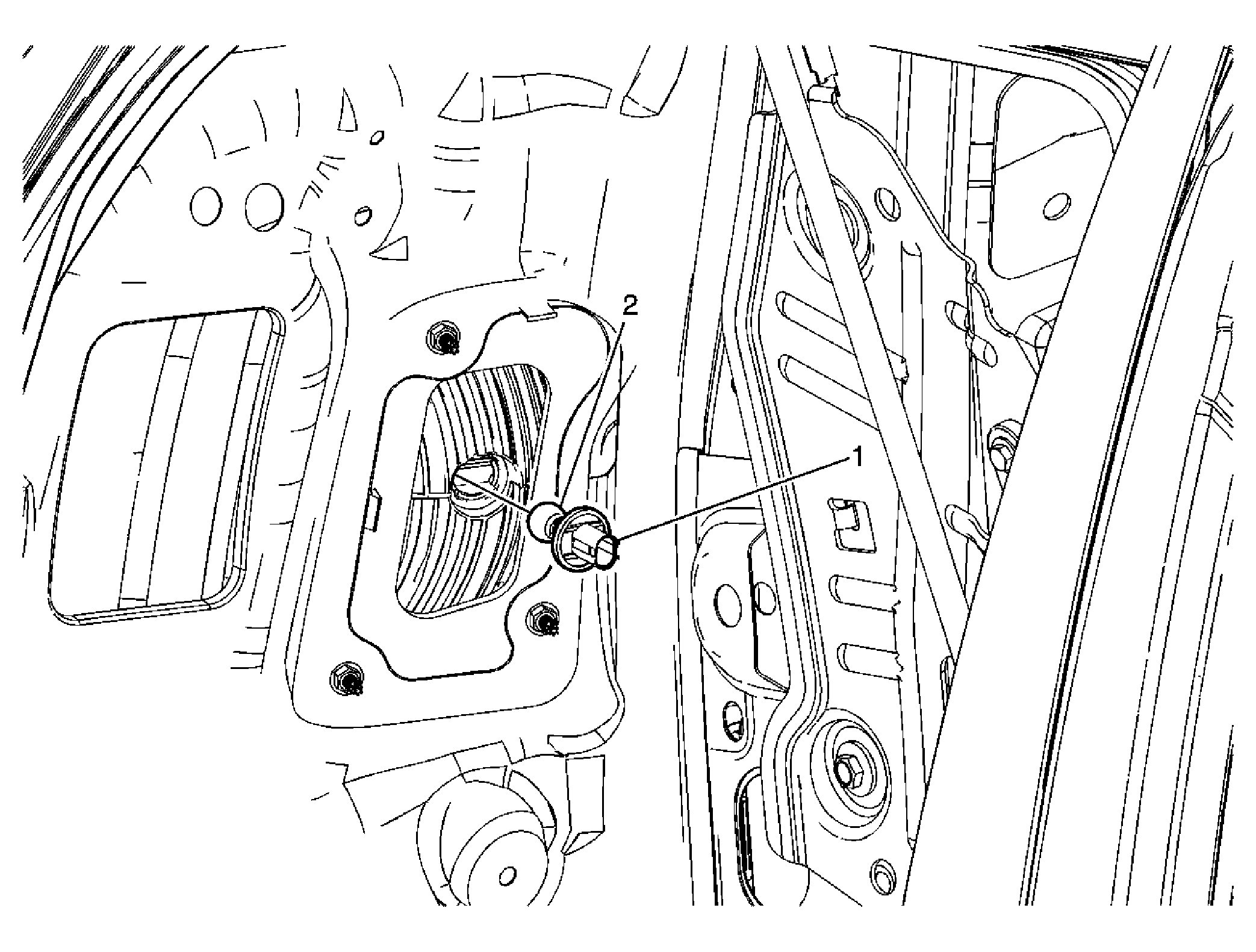

Fig 1: View Of Backup Lamp Bulb
GM1860713Courtesy of GENERAL MOTORS CORP.
Backup Lamp Bulb Replacement

Callout Component Name
Preliminary Procedure:
Remove the lift gate interior trim panel. Refer to Liftgate Trim Panel Replacement .
1 Back Up Lamp Socket
Procedure:
Rotate and remove the socket from the lamp assembly.
2 Back Up Lamp Bulb
Tip:  Remove the bulb and discard.
