Power Distribution Schematics

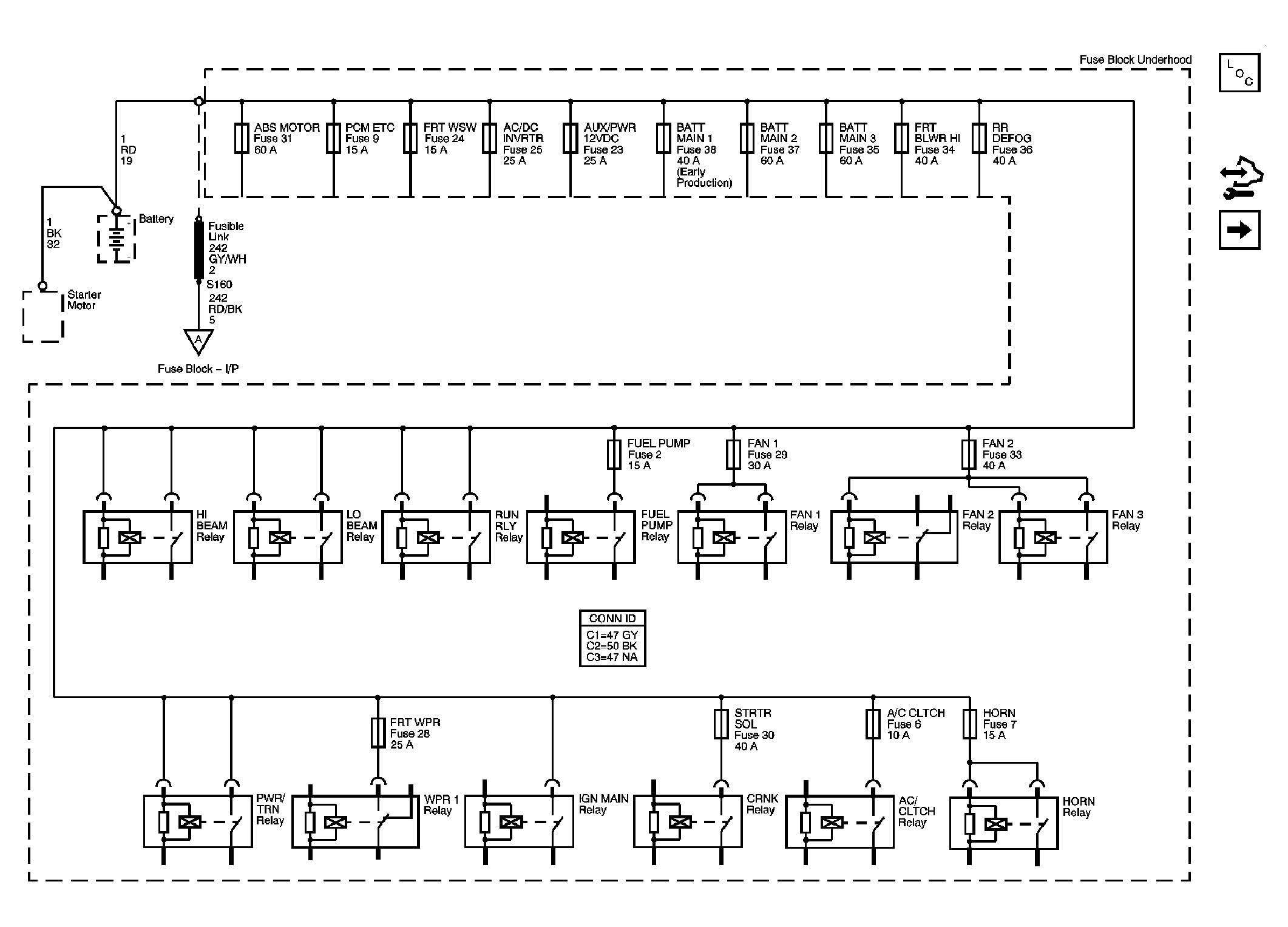

Fig 1: B+ Bus

Courtesy of GENERAL MOTORS CORP.

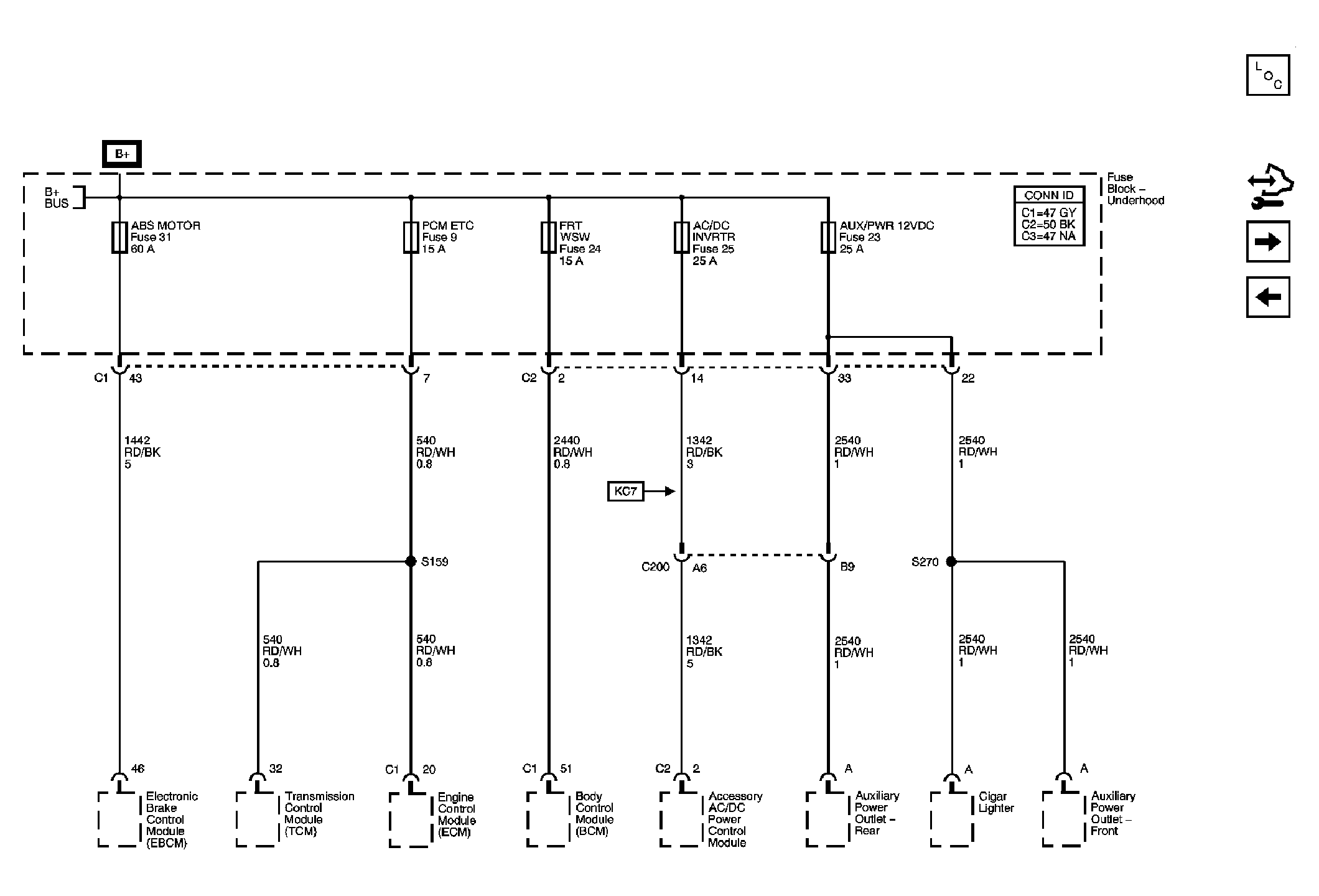

Fig 2: ABS MOTOR, AC/DC INVRTR, AUX/PWR 12VDC, FRT WSW, and PCM Fuses

Courtesy of GENERAL MOTORS CORP.

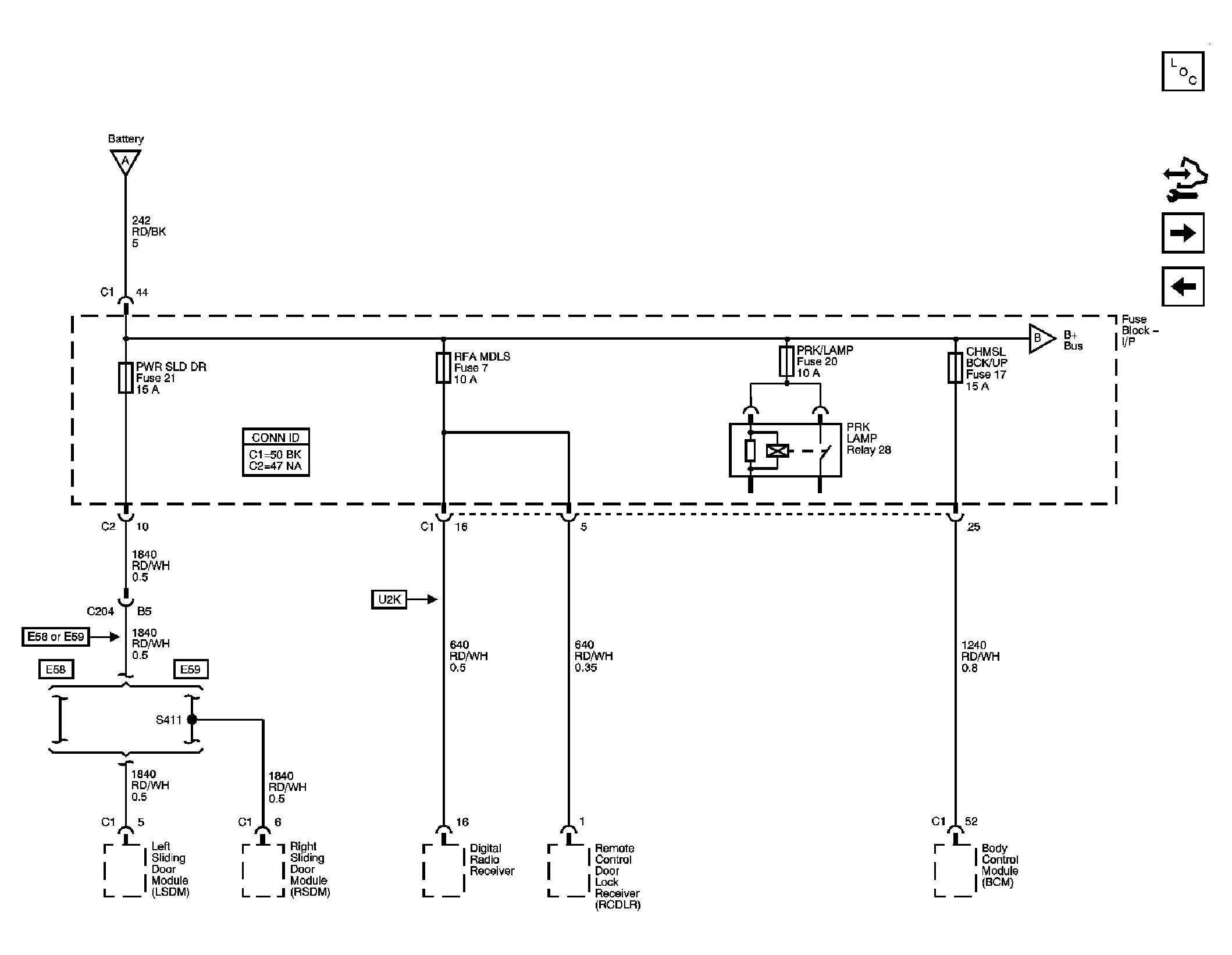

Fig 3: CHMSL BCK/UP, PRK/LAMP, PWR SLD DR, and RFA MDLS Fuses

Courtesy of GENERAL MOTORS CORP.

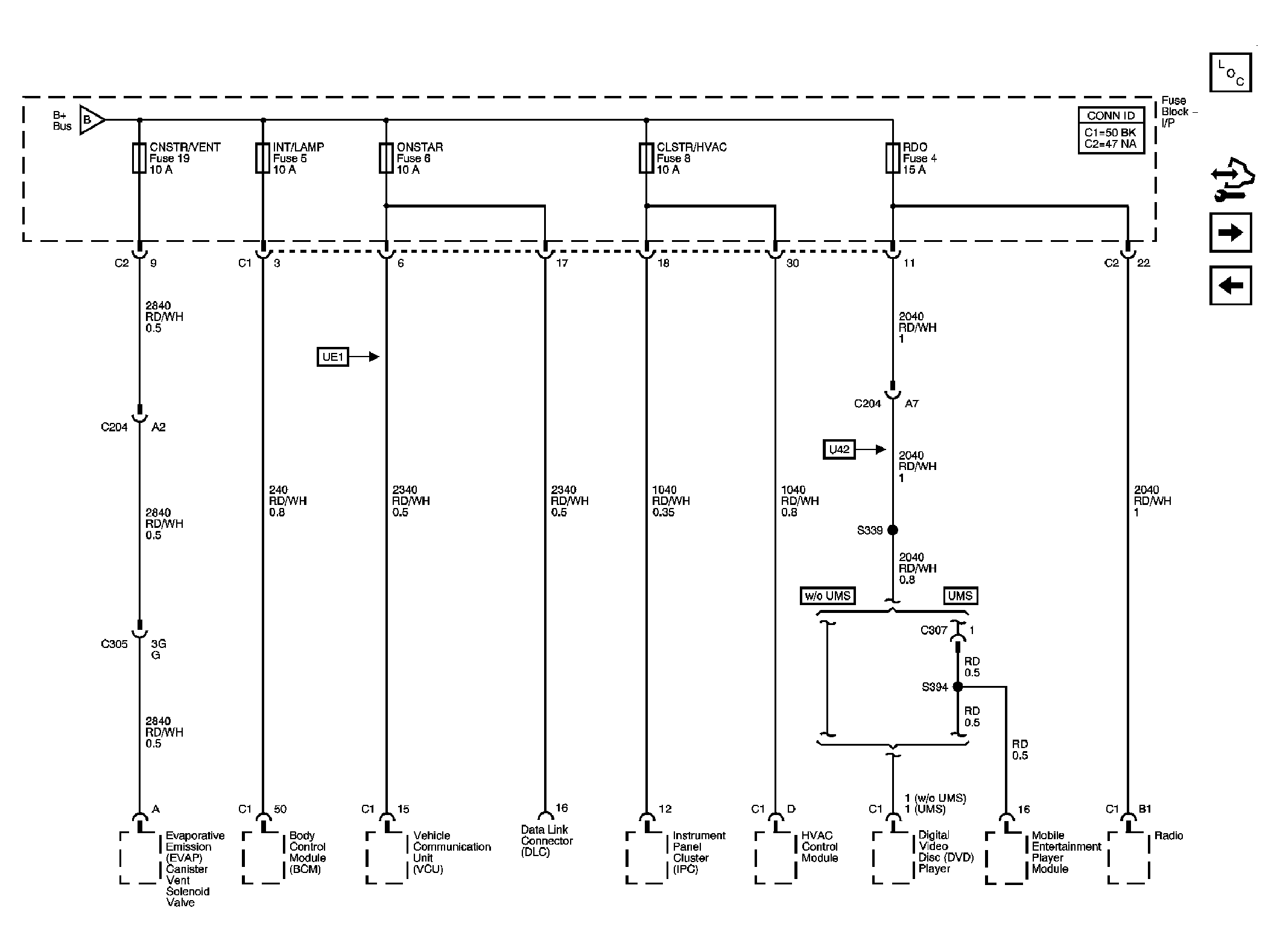

Fig 4: CNSTR/VENT, CLSTR/HVAC, INT/LAMP, ONSTAR, and RDO Fuses

Courtesy of GENERAL MOTORS CORP.

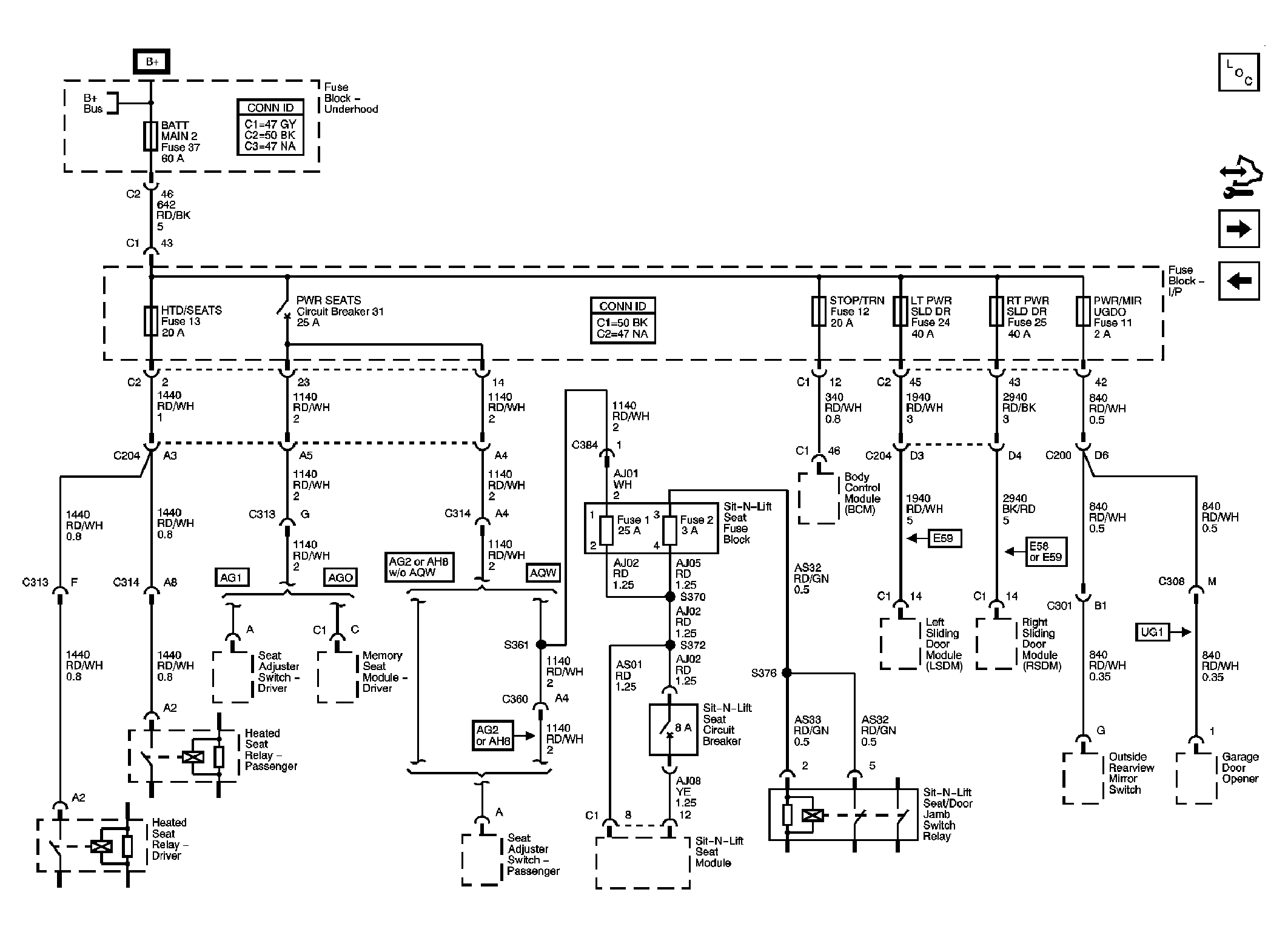

Fig 5: BATT MAIN 2, HTD/SEATS, LT PWR SLD DR, PWR/MIR UGDO, RT PWR SLD DR, Sit-N-Lift Seat and STOP/TRN Fuses, PWR SEATS and Sit-N-Lift Seat Circuit Breakers

Courtesy of GENERAL MOTORS CORP.

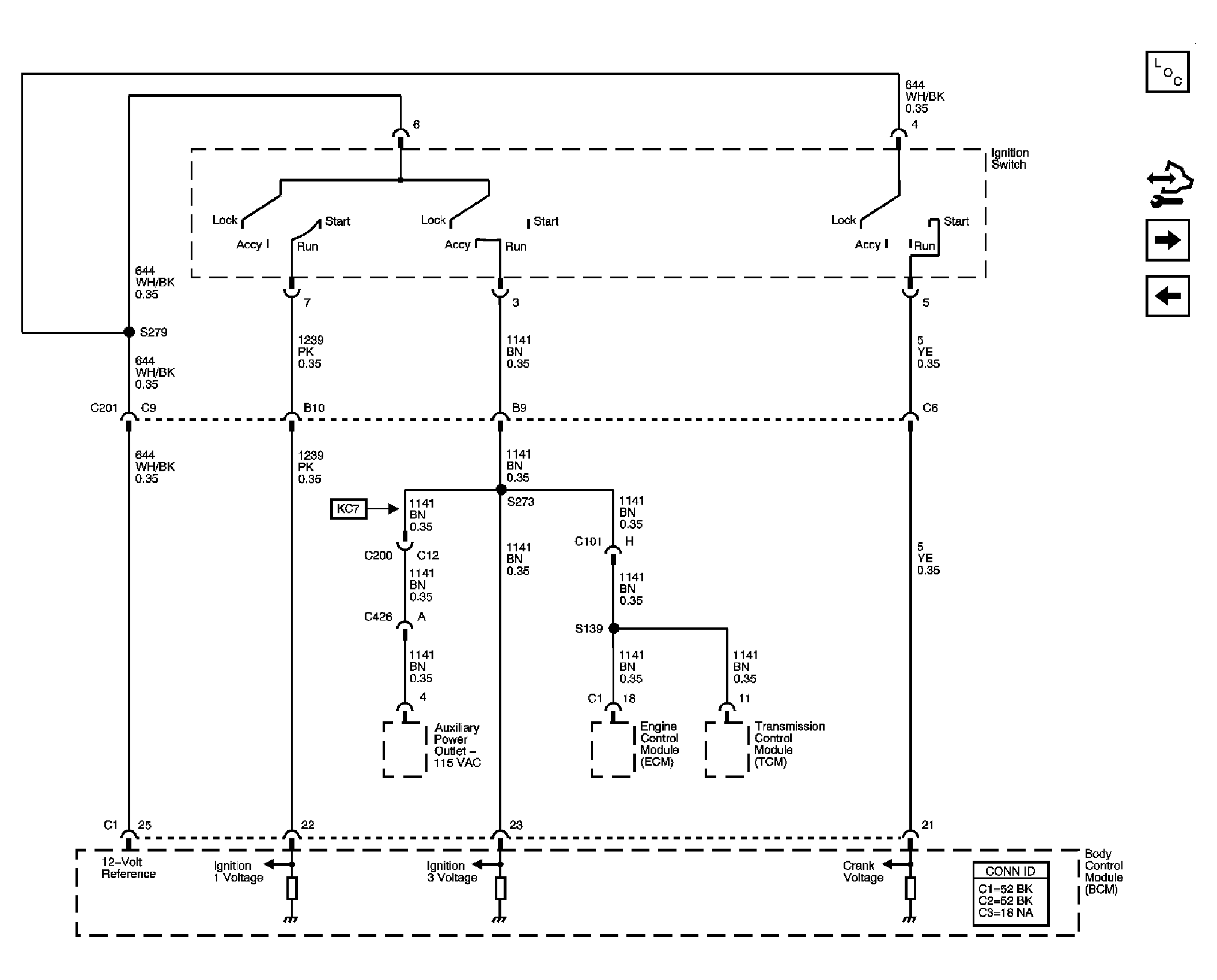

Fig 6: Ignition Switch

Courtesy of GENERAL MOTORS CORP.

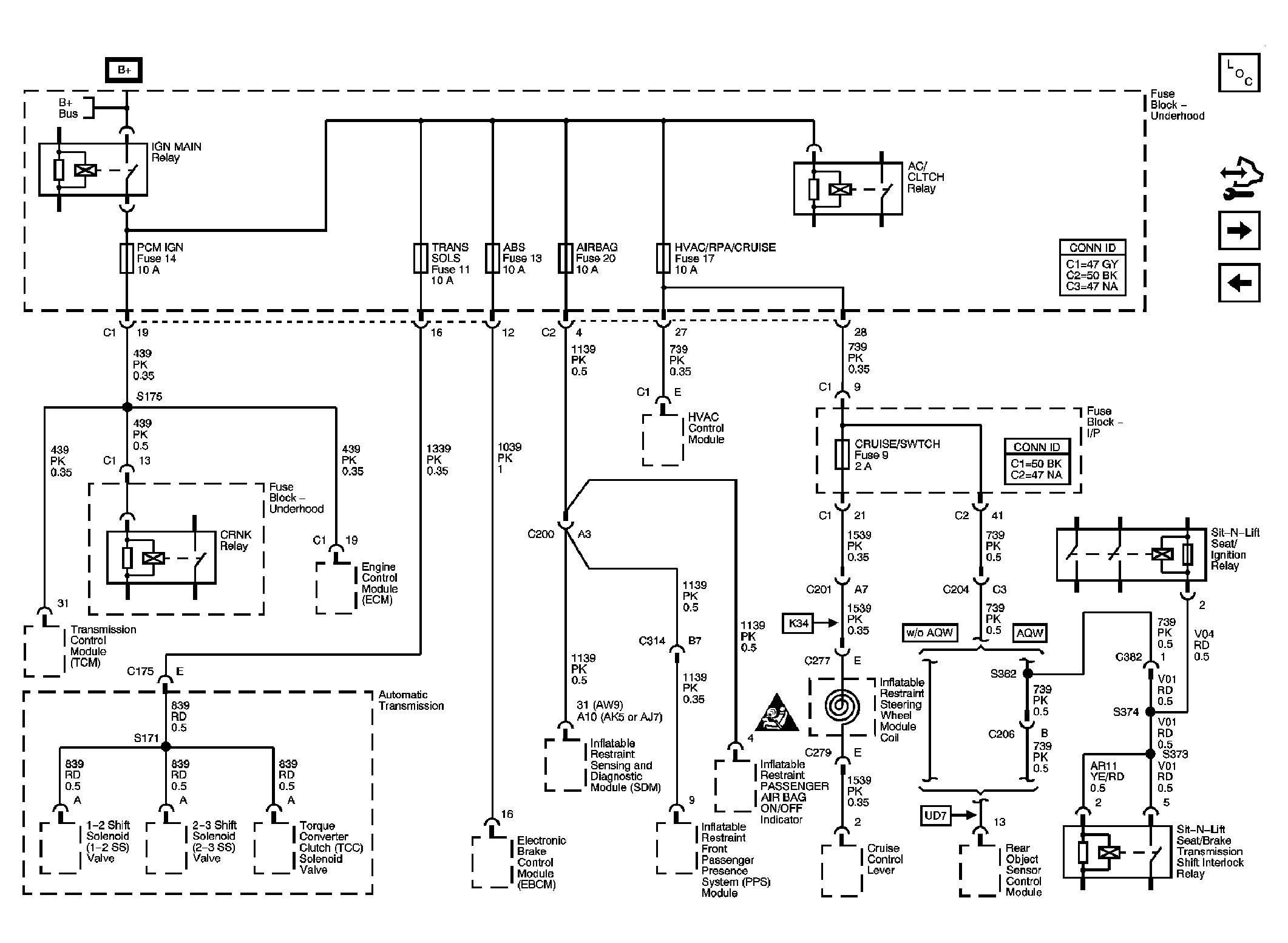

Fig 7: ABS, AIRBAG, CRUISE/SWTCH, HVAC/RPA/CRUISE, PCM IGN, and TRANS SOLS Fuses

Courtesy of GENERAL MOTORS CORP.

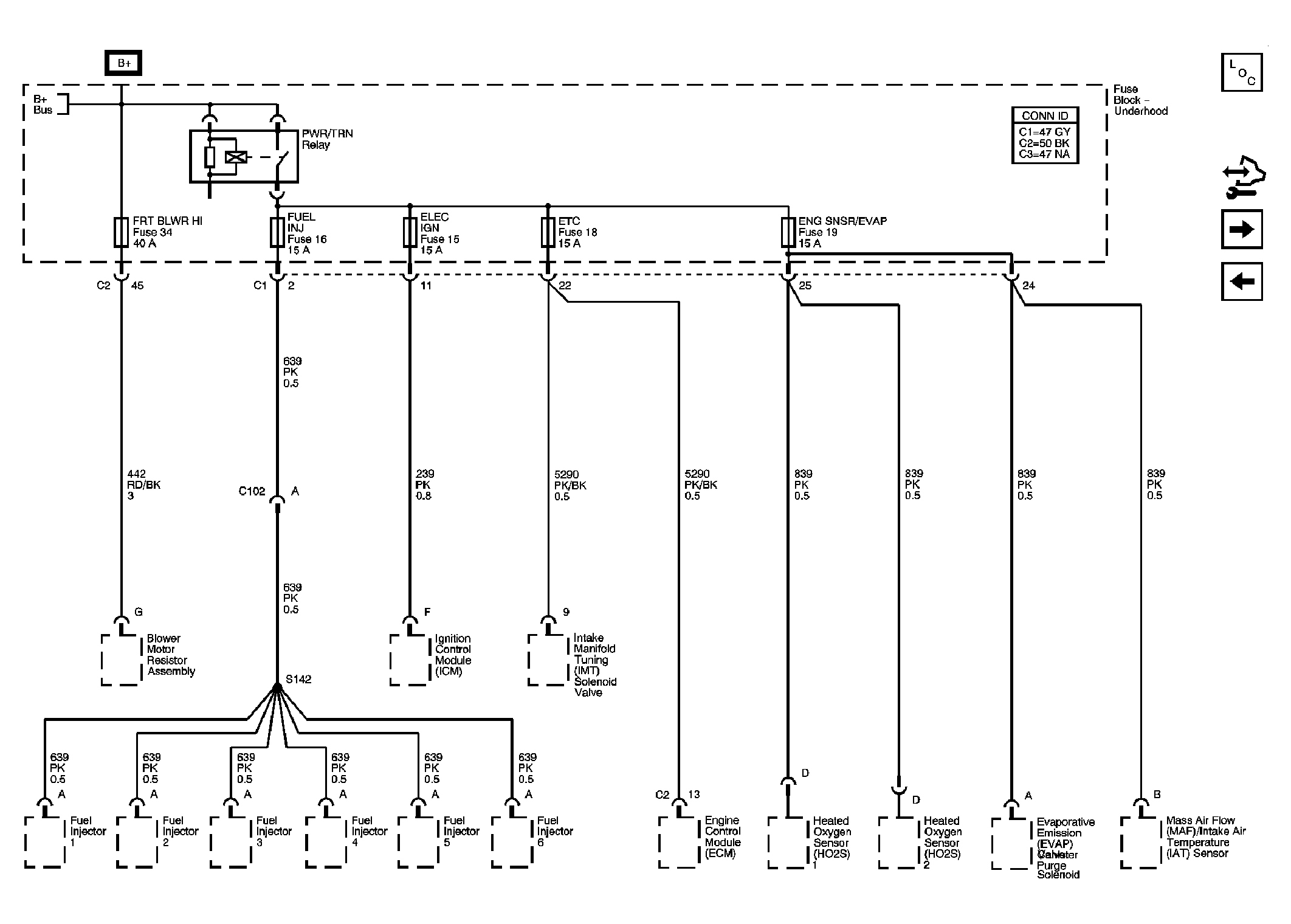

Fig 8: ELEC IGN, ENG SNSR/EVAP, ETC, FRT BLWR HI, and FUEL INJ Fuses

Courtesy of GENERAL MOTORS CORP.

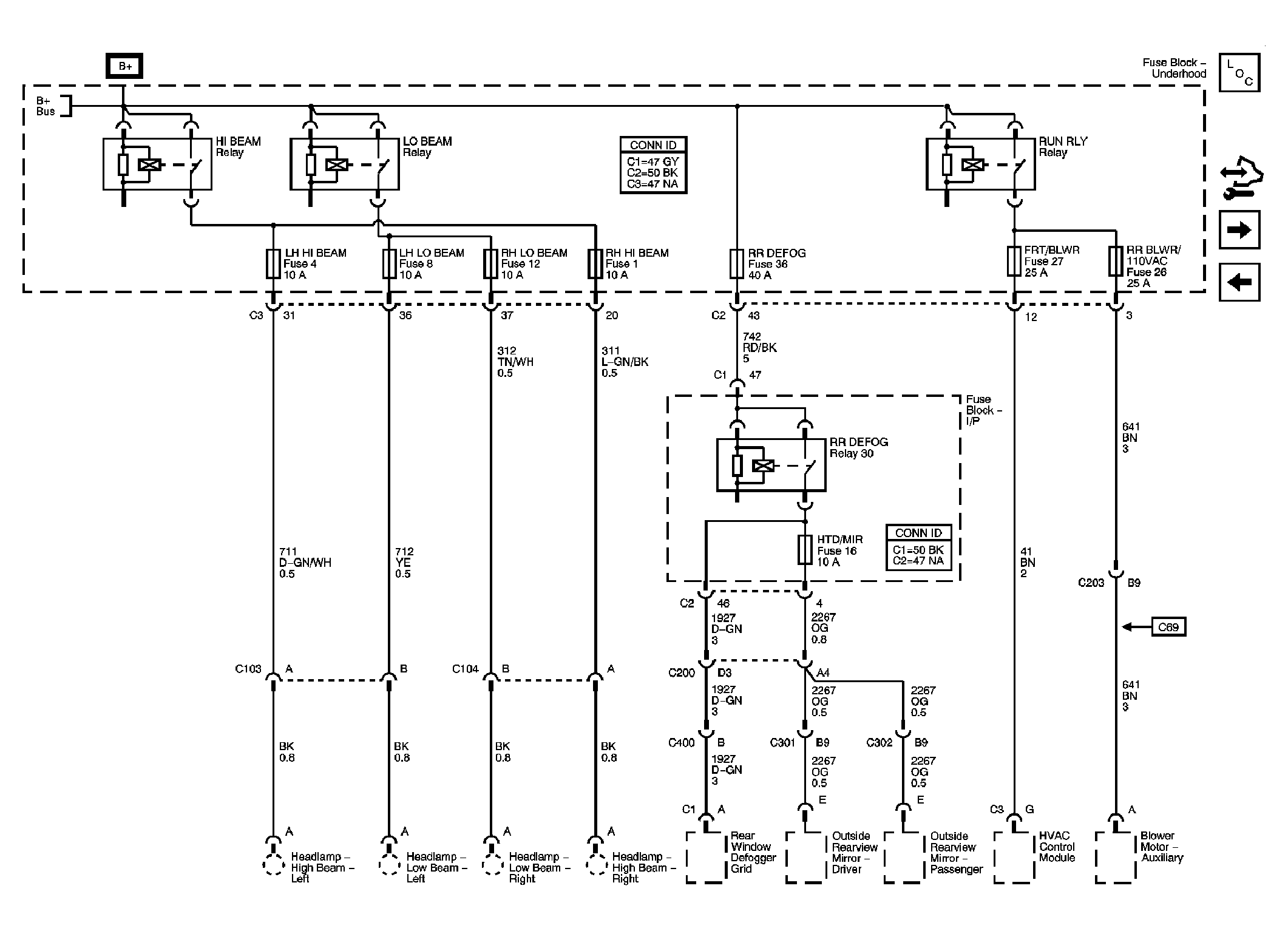

Fig 9: FRT/BLWR, HTD/MIR, LH HI BEAM, LH LO BEAM, RH LO BEAM, RH HI BEAM, RR BLWR/110VAC, and RR DEFOG Fuses

Courtesy of GENERAL MOTORS CORP.

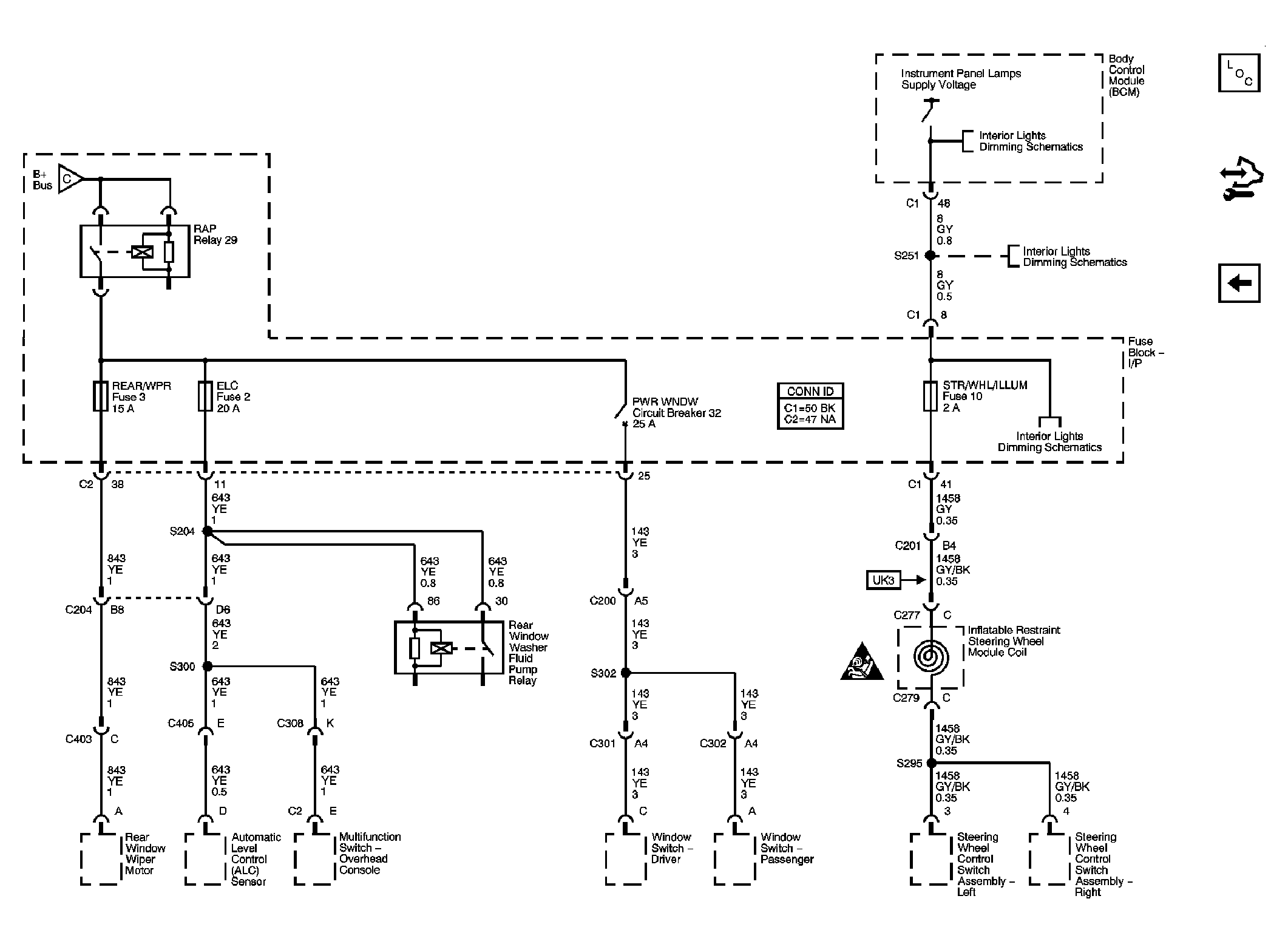

Fig 10: ELC, REAR/WPR, and STR/WHL/ILLUM Fuses, PWR WNDW Circuit Breaker

Courtesy of GENERAL MOTORS CORP.
