Installation Procedure

    Fig 1: Installing Liftgate Handle Gasket
    GM1479960Courtesy of GENERAL MOTORS CORP.
  1. Install a new liftgate handle gasket (1) prior to installing the liftgate handle.
    2. Fig 2: View Of Liftgate Handle
    GM1479958Courtesy of GENERAL MOTORS CORP.
  2. Install the liftgate latch cable to the liftgate handle.
  3. Align the liftgate handle studs with holes in liftgate.
    4. NOTE: Refer to Fastener Notice .
  4. Install the liftgate handle retaining bolts (2).

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

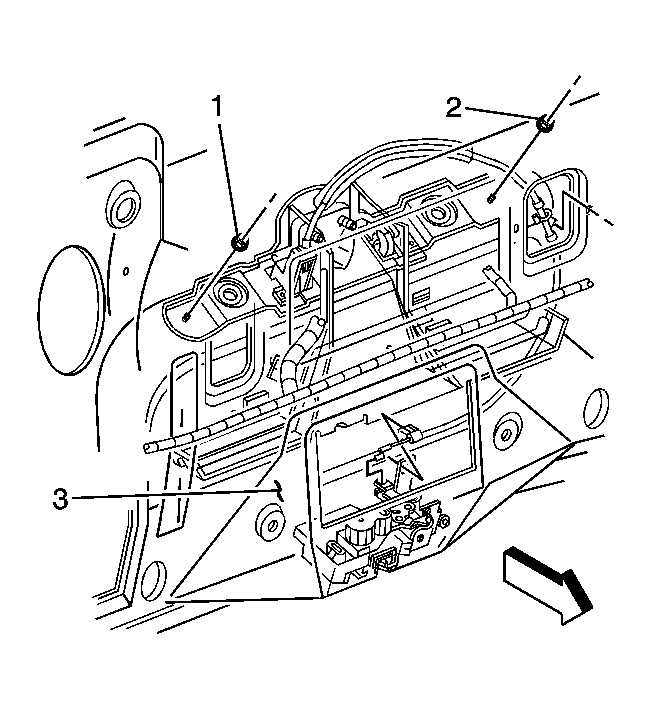

    5. Fig 3: Identifying Liftgate Handle Assembly
    GM1479957Courtesy of GENERAL MOTORS CORP.
  5. Install the liftgate handle retaining nuts (1, 2) to the studs.

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

  6. Install license plate lamp sockets by turning sockets clockwise.
  7. Install the water deflector. Refer to Liftgate Water Deflector Replacement .
  8. Install the liftgate trim panel. Refer to Liftgate Trim Panel Replacement .
  9. Close the liftgate.
