Power Steering Schematics

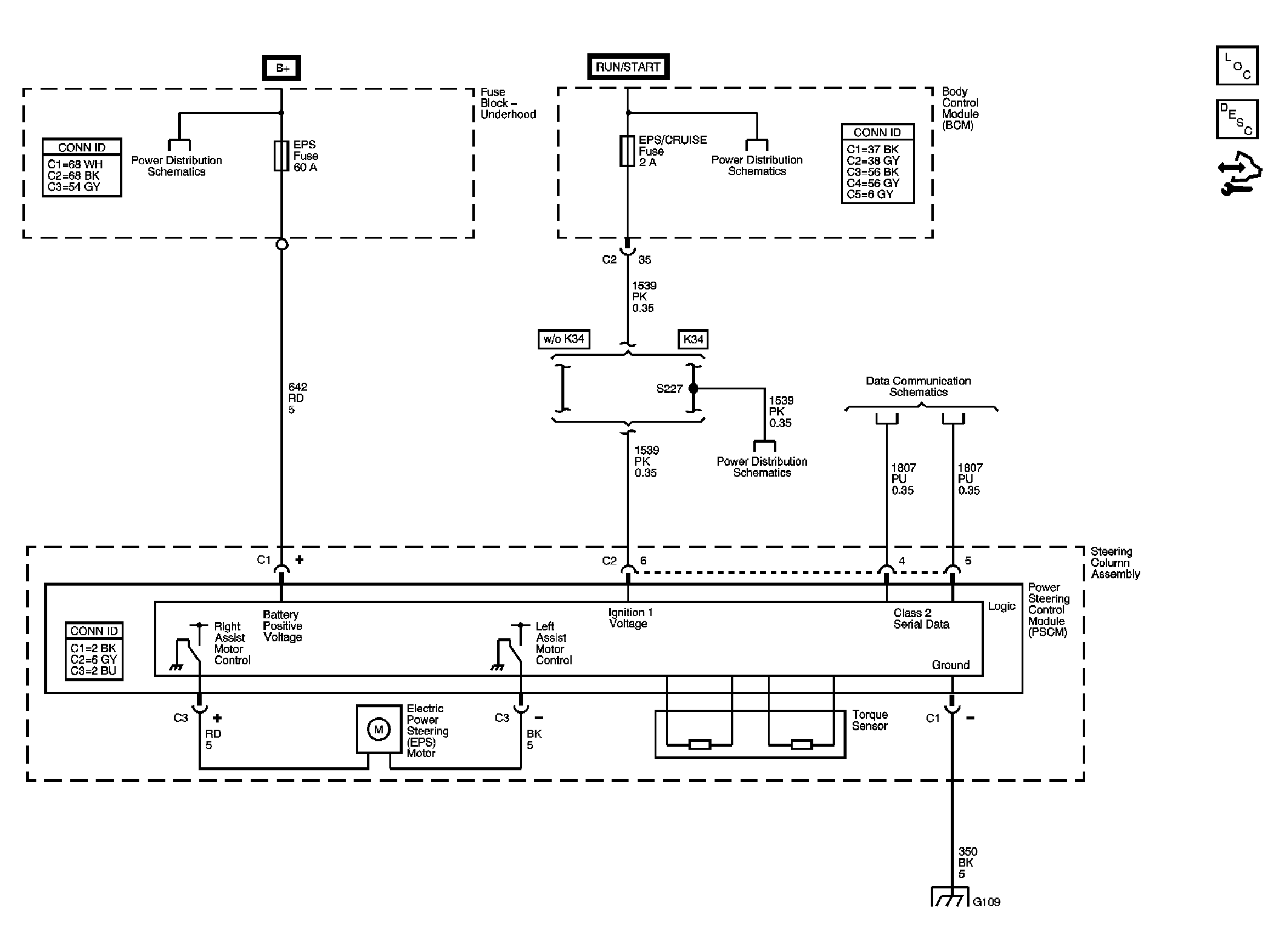

Fig 1: Power Steering Schematics

GM1768375

Courtesy of GENERAL MOTORS CORP.
