Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the bulb into the socket.
  2. Install the side marker bulb/socket into the lamp housing by rotating the socket clockwise.

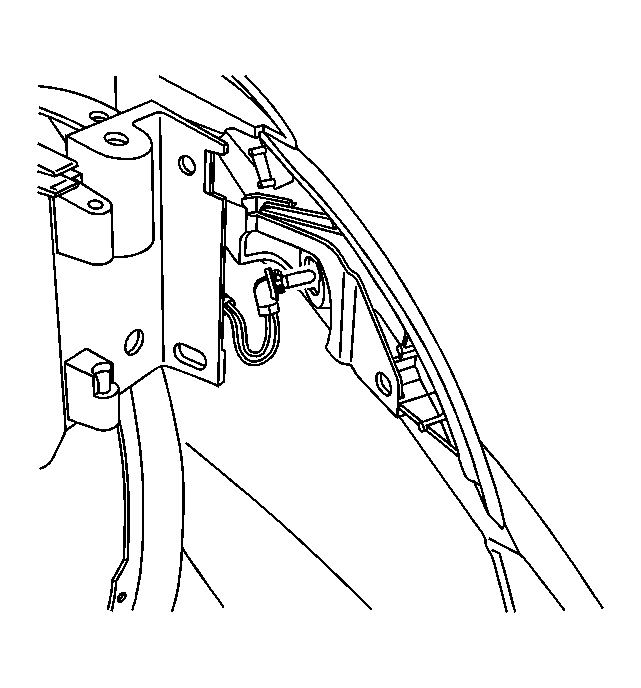

    3. Fig 1: View Of Front Side Mark Bulb
    GM876360Courtesy of GENERAL MOTORS CORP.
  3. Install the headlamp assembly. Refer to Headlamp Assembly or Headlamp Bulb Replacement .
  4. Close the hood.
