Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the Door Switch into the outer trim panel.

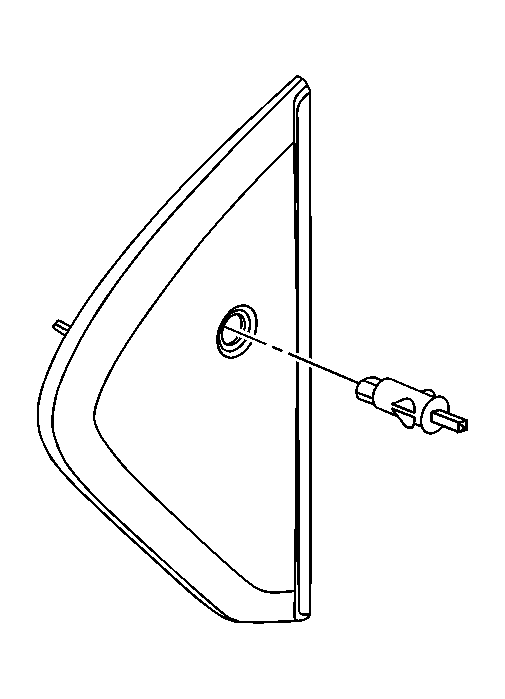

    2. Fig 1: View Of Door Switch
    GM877733Courtesy of GENERAL MOTORS CORP.
  2. Install the Air Bag electrical connector to the blade on the outer trim panel.
  3. Connect the door switch electrical connector.

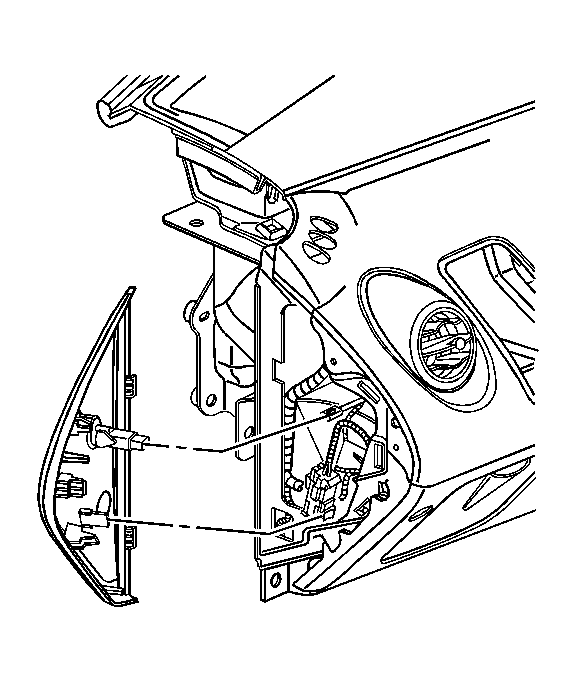

    4. Fig 2: View Of Door Switch & Air Bag Electrical Connectors Behind Left Trim Panel
    GM877766Courtesy of GENERAL MOTORS CORP.
  4. Insert the tabs on the outer trim cover onto the slots on the I/P.
  5. Align the retaining fasteners with the I/P.
  6. Push the outer trim in order to secure.
    7. Fig 3: View Of Outer Trim Cover
    GM877765Courtesy of GENERAL MOTORS CORP.
