Installation Procedure

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the engine support fixture long bar (2), from the SA9105E  across the engine compartment. See Special Tools and Equipment .
  2. Install the Engine support fixture legs (3) from theJ 43405  on the engine support fixture long bar and center above the engine. See Special Tools and Equipment .
  3. Install the engine support fixture hooks (4) and engine support fixture handle to the engine support cross bar.
  4. Place the engine support cross bar over the engine support long bar and connect the hooks to the engine lift brackets.

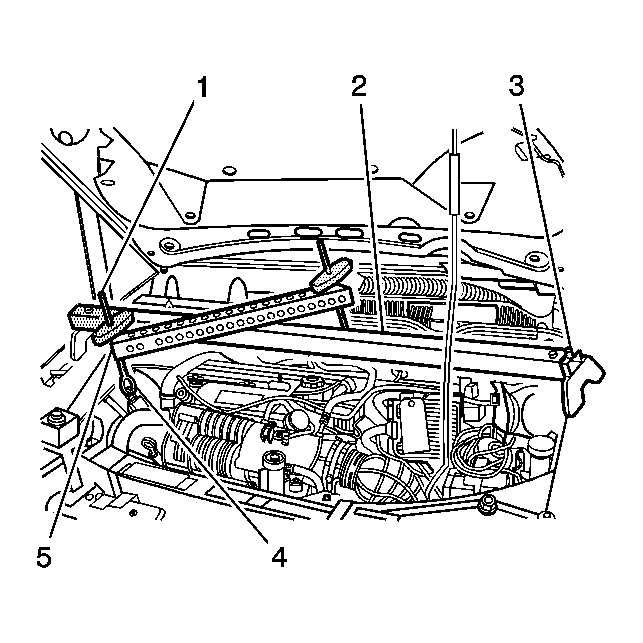

    5. Fig 1: Installing Engine Support Fixture
    GM1386414Courtesy of GENERAL MOTORS CORP.
