Cruise Control Schematics

WARNING: This page is about a different car, the 2004 Saturn Ion Red Line, 2004 Saturn Ion 3, 2004 Saturn Ion 2, and 2004 Saturn Ion 1. However, it is still accessible from the selected car via links, so may be relevant.

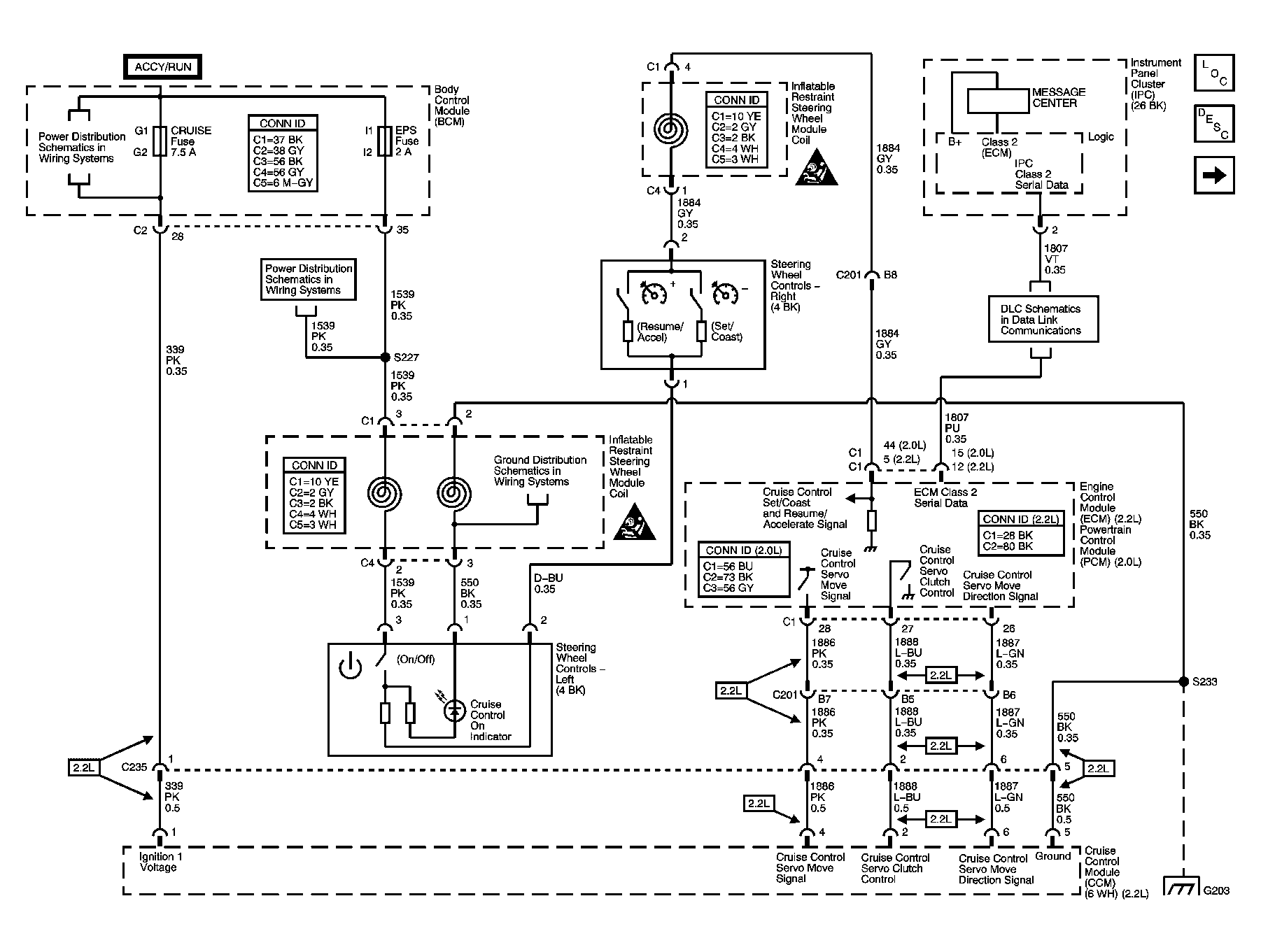

Fig 1: Driver Controls Schematic
GM1255344Courtesy of GENERAL MOTORS CORP.

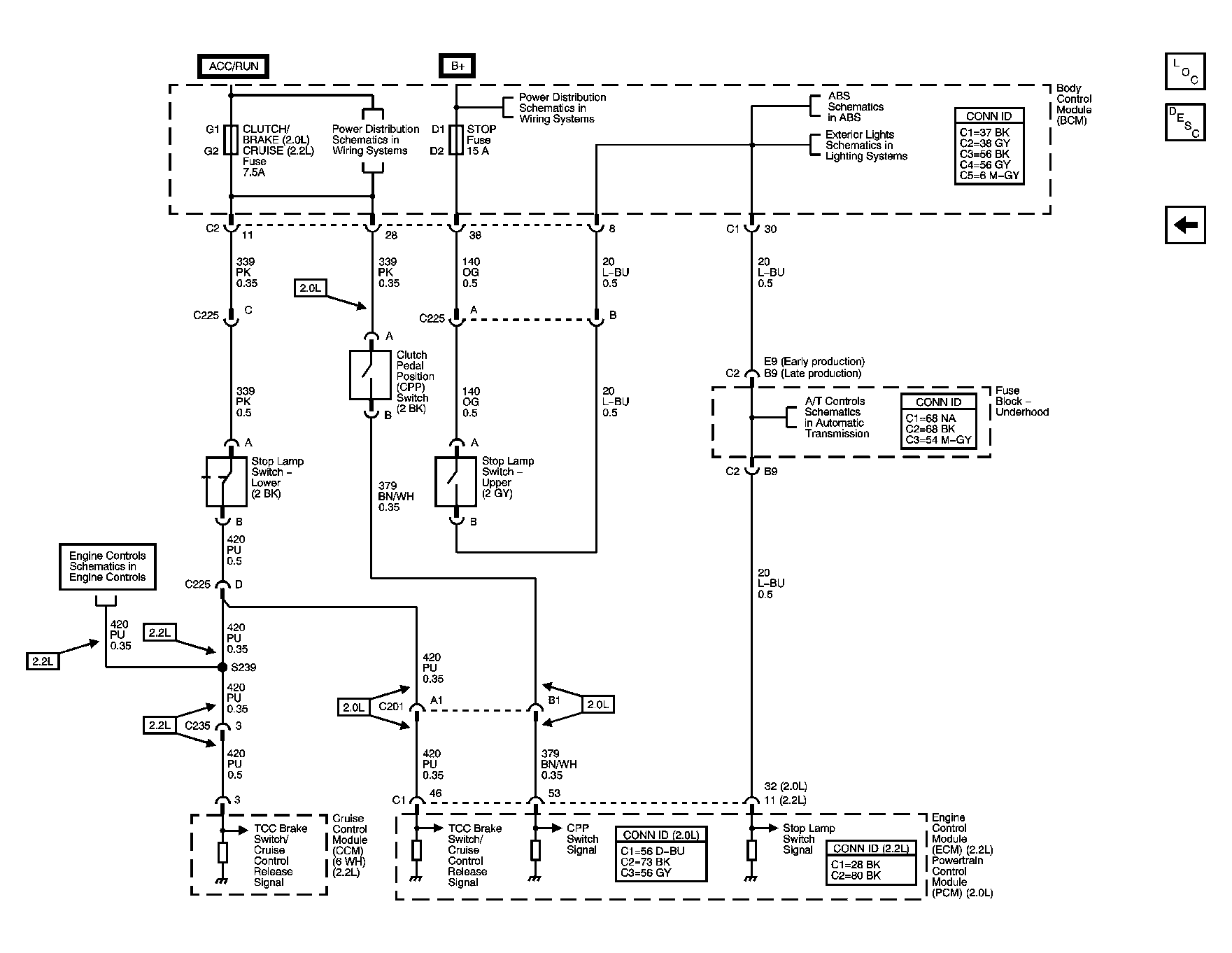

Fig 2: Stop Lamp Switches Schematic
GM1255346Courtesy of GENERAL MOTORS CORP.
