Antilock Brake System Schematics

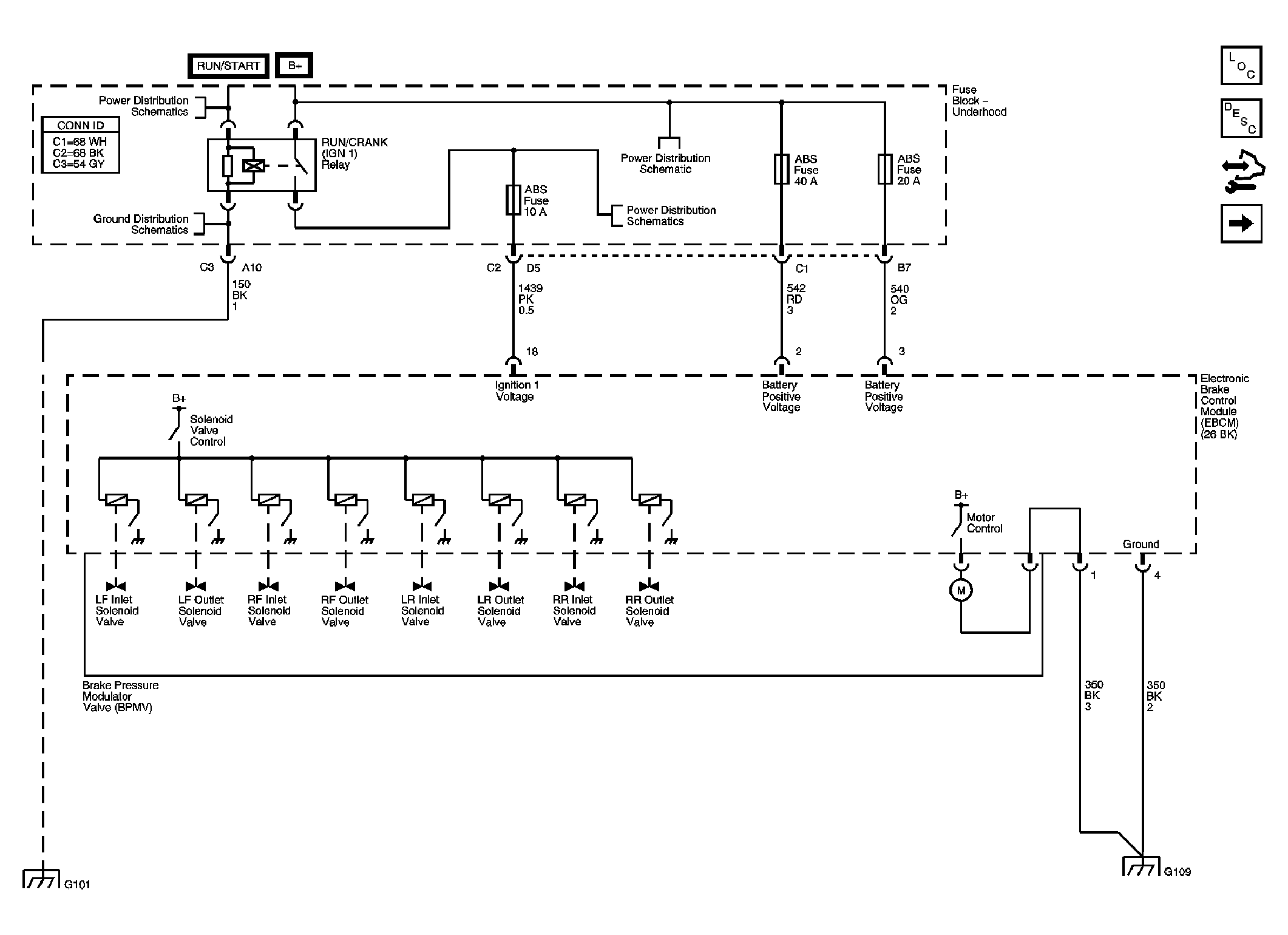

Fig 1: Power, Ground, and BPMV Controls
GM1768382Courtesy of GENERAL MOTORS CORP.

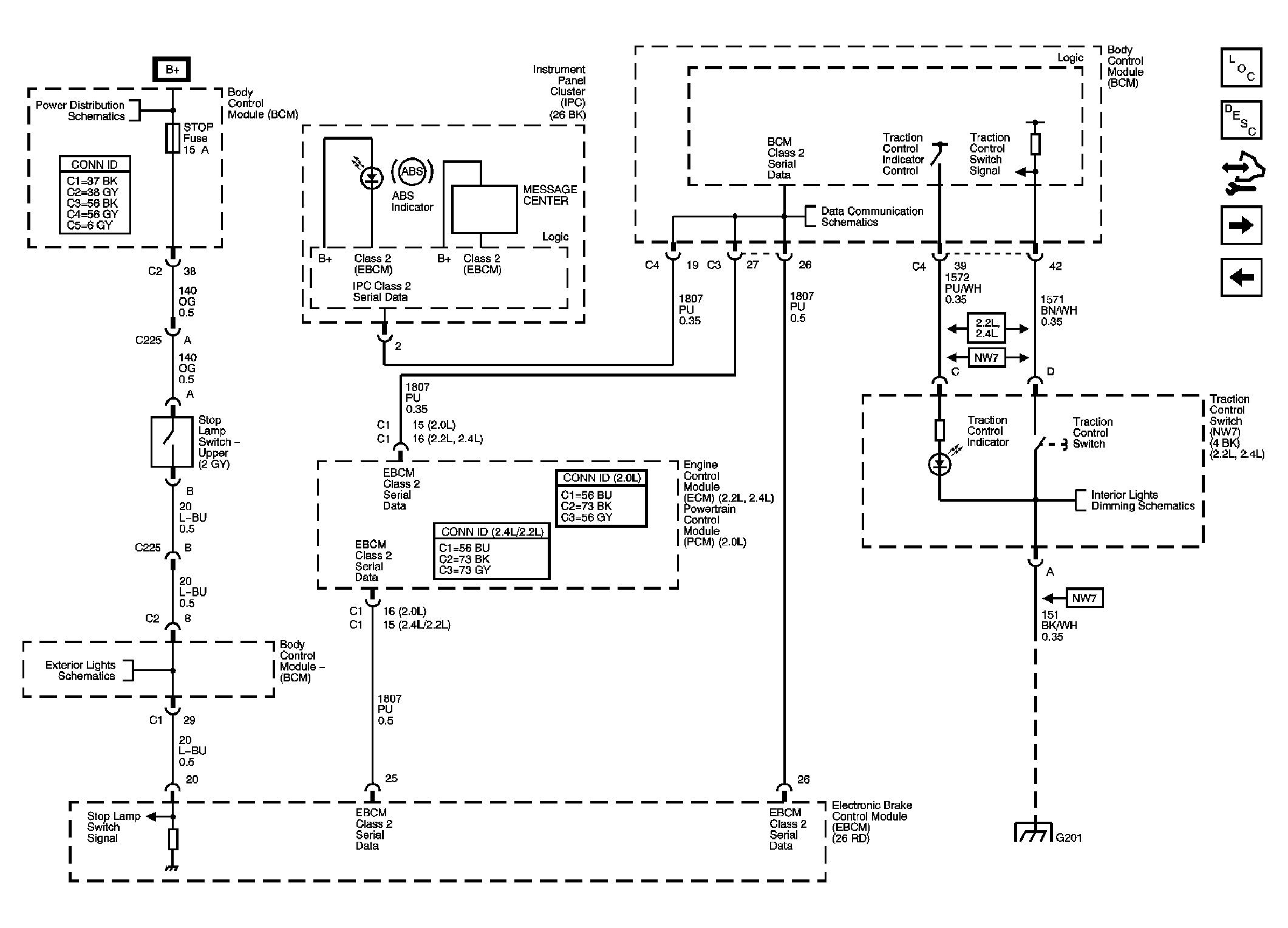

Fig 2: Traction Control, DLC, and Indicators
GM1768386Courtesy of GENERAL MOTORS CORP.

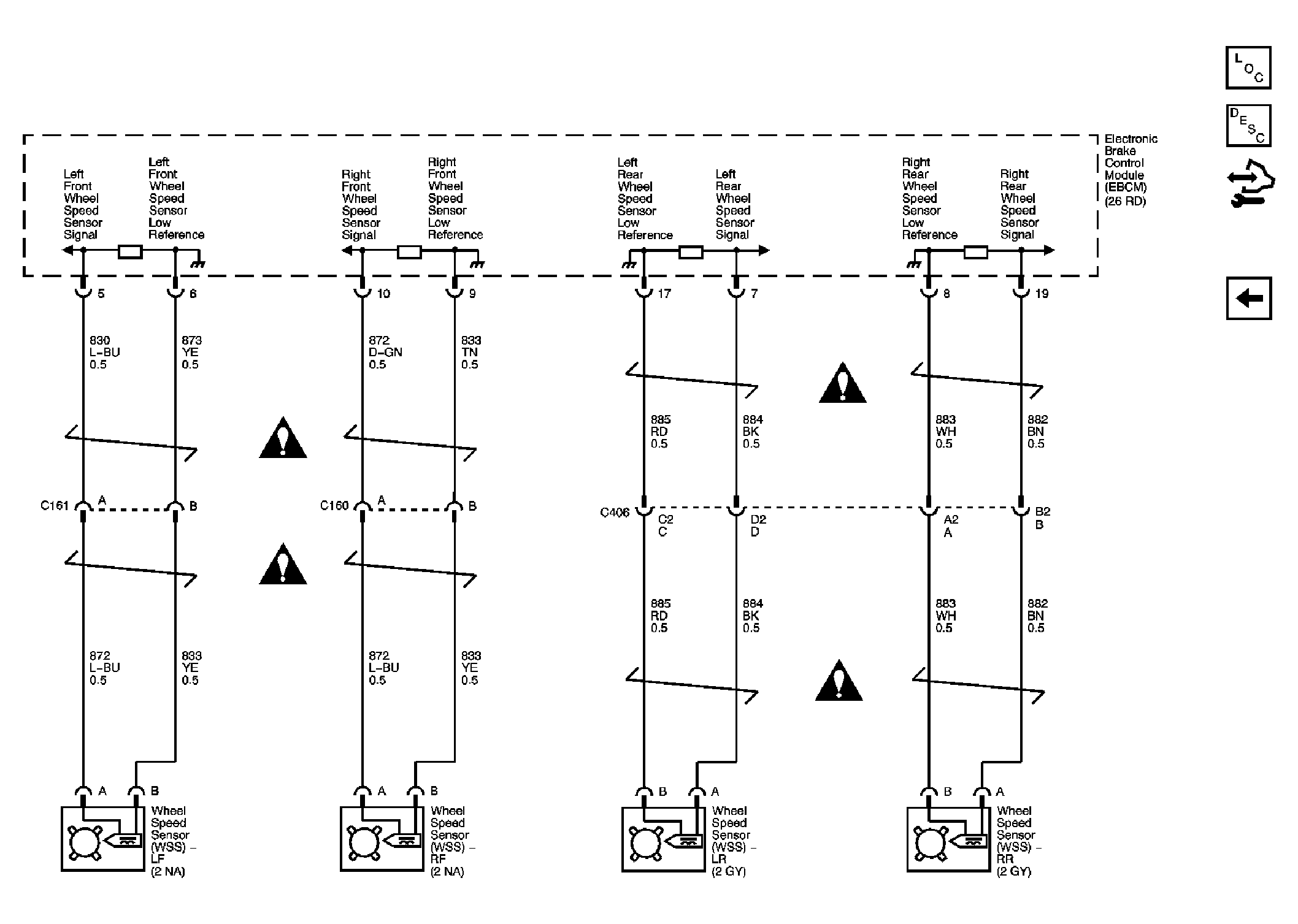

Fig 3: Wheel Speed Sensors
GM1768392Courtesy of GENERAL MOTORS CORP.
