Engine Controls Schematics

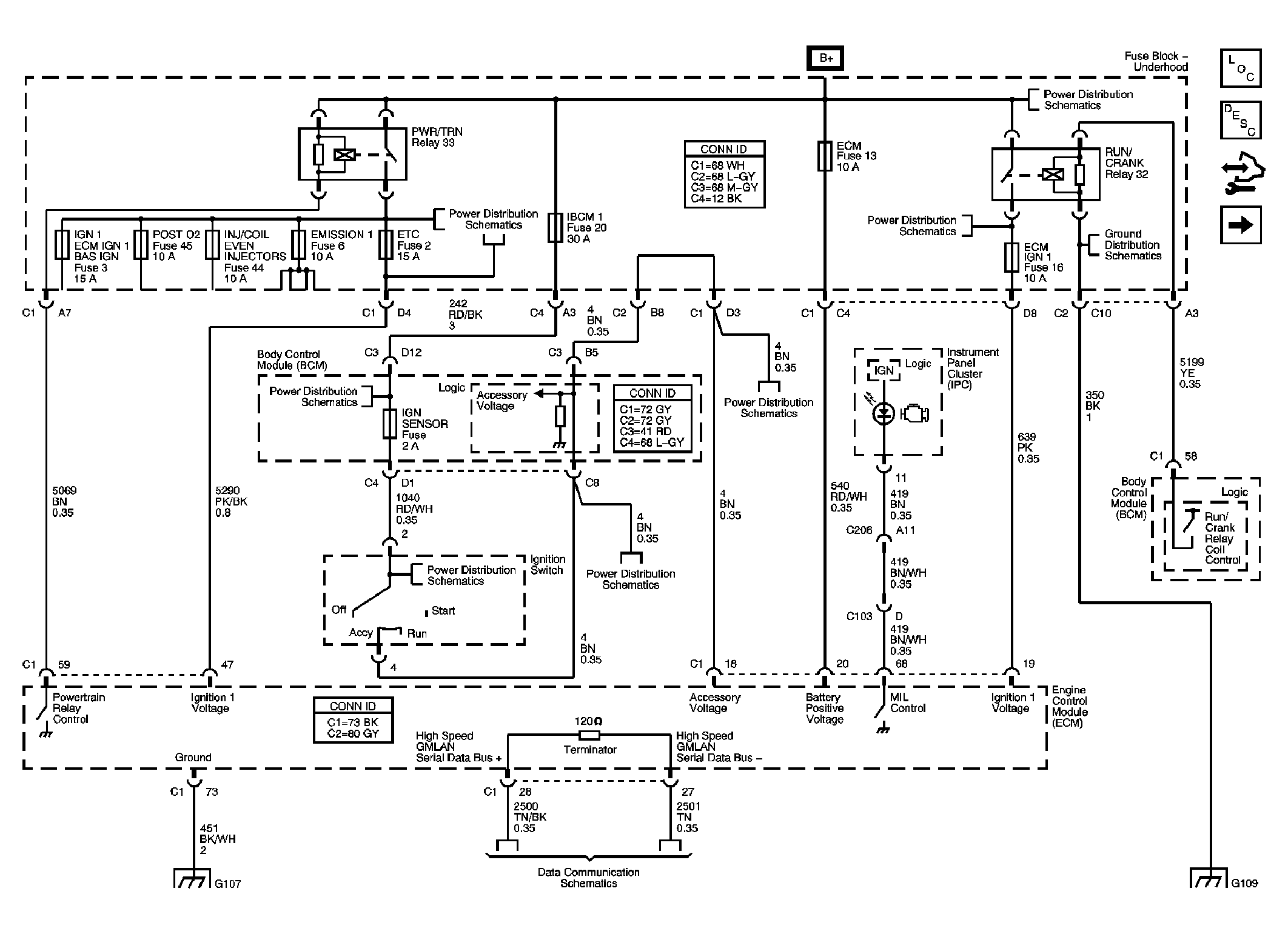

Fig 1: Power, Ground, Serial Data & MIL Schematic
GM1829078Courtesy of GENERAL MOTORS CORP.

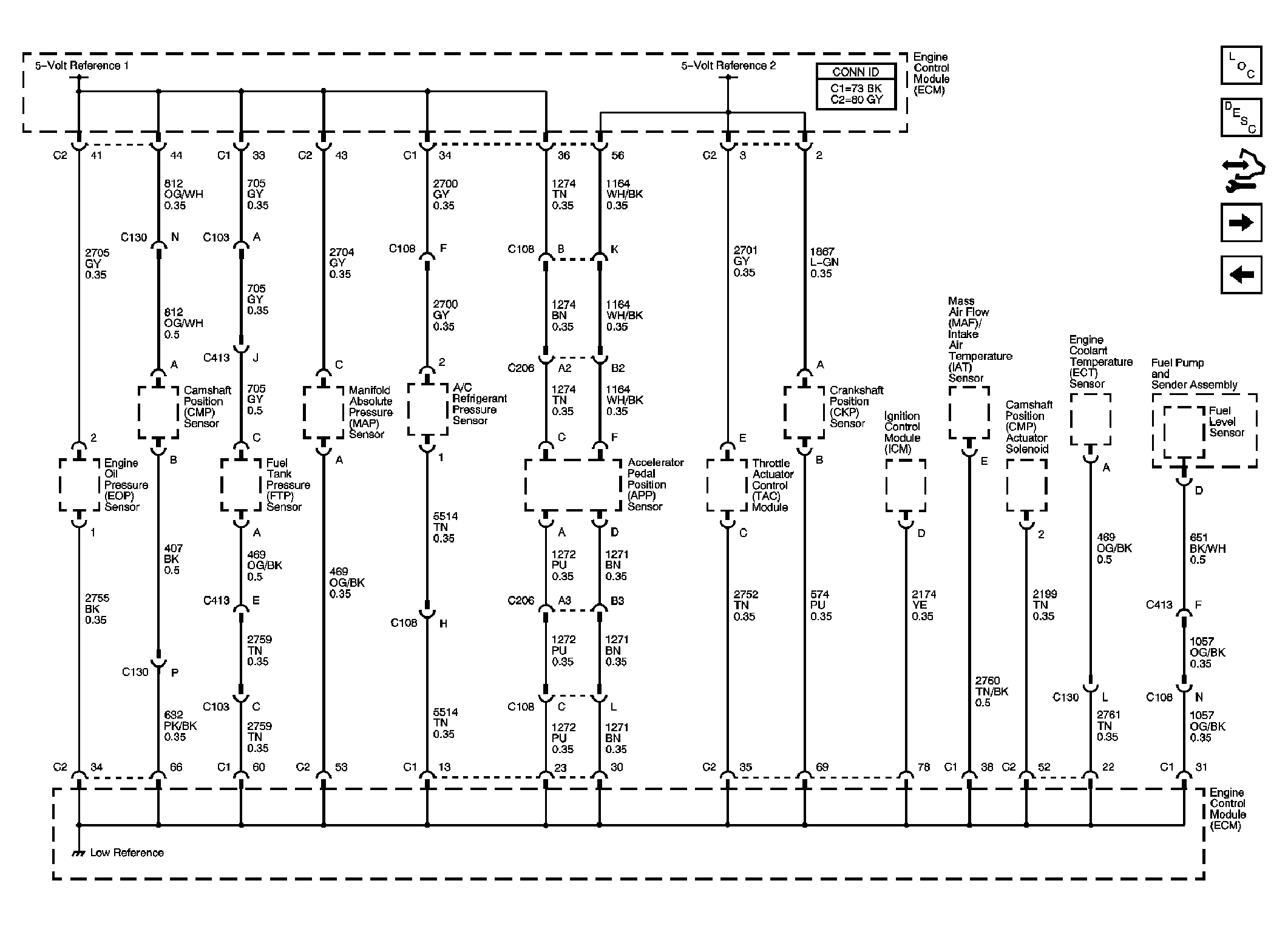

Fig 2: 5-Volt & Low References Schematic
GM1829080Courtesy of GENERAL MOTORS CORP.

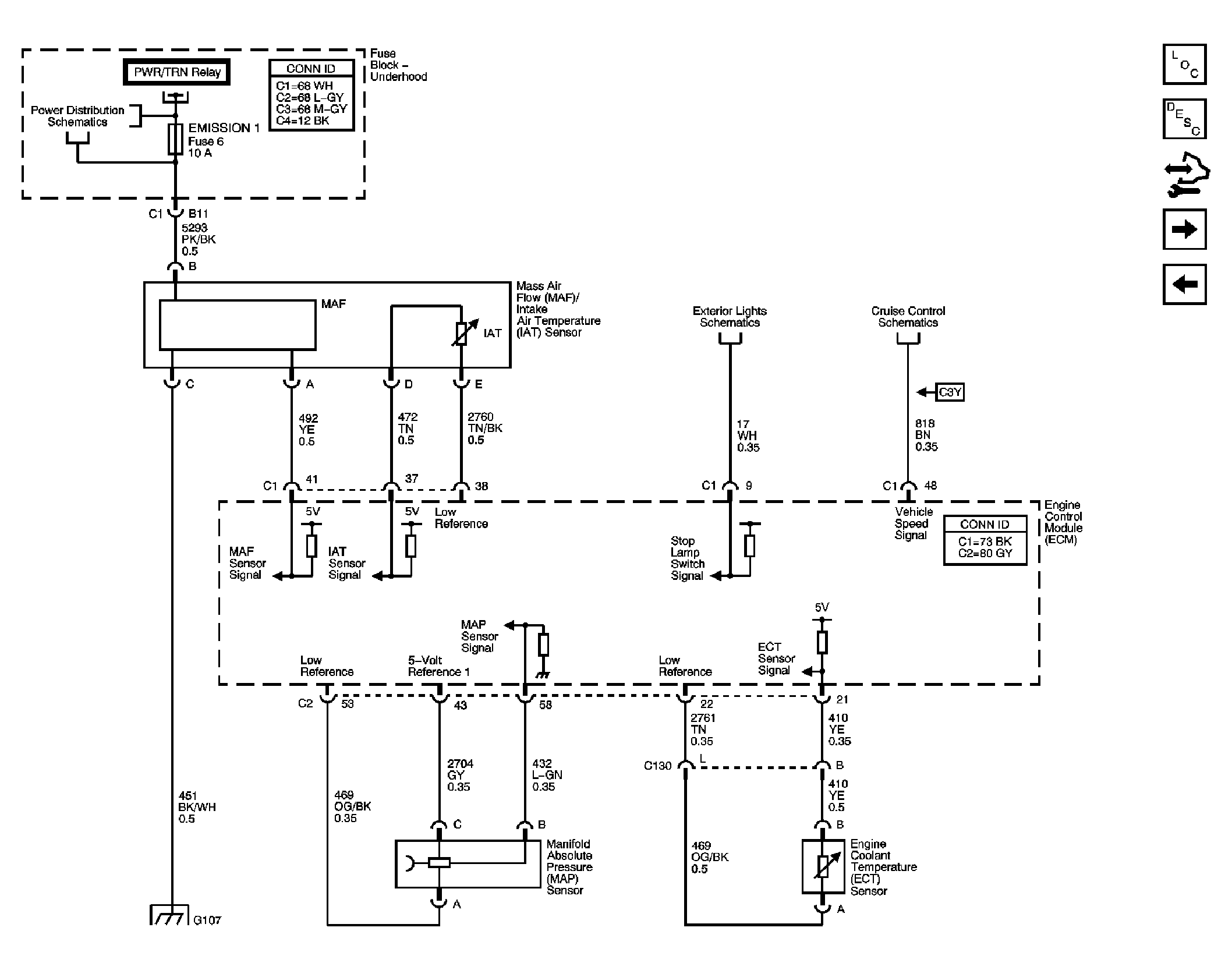

Fig 3: ECT, MAF/IAT & MAP Sensors Schematic
GM1829082Courtesy of GENERAL MOTORS CORP.

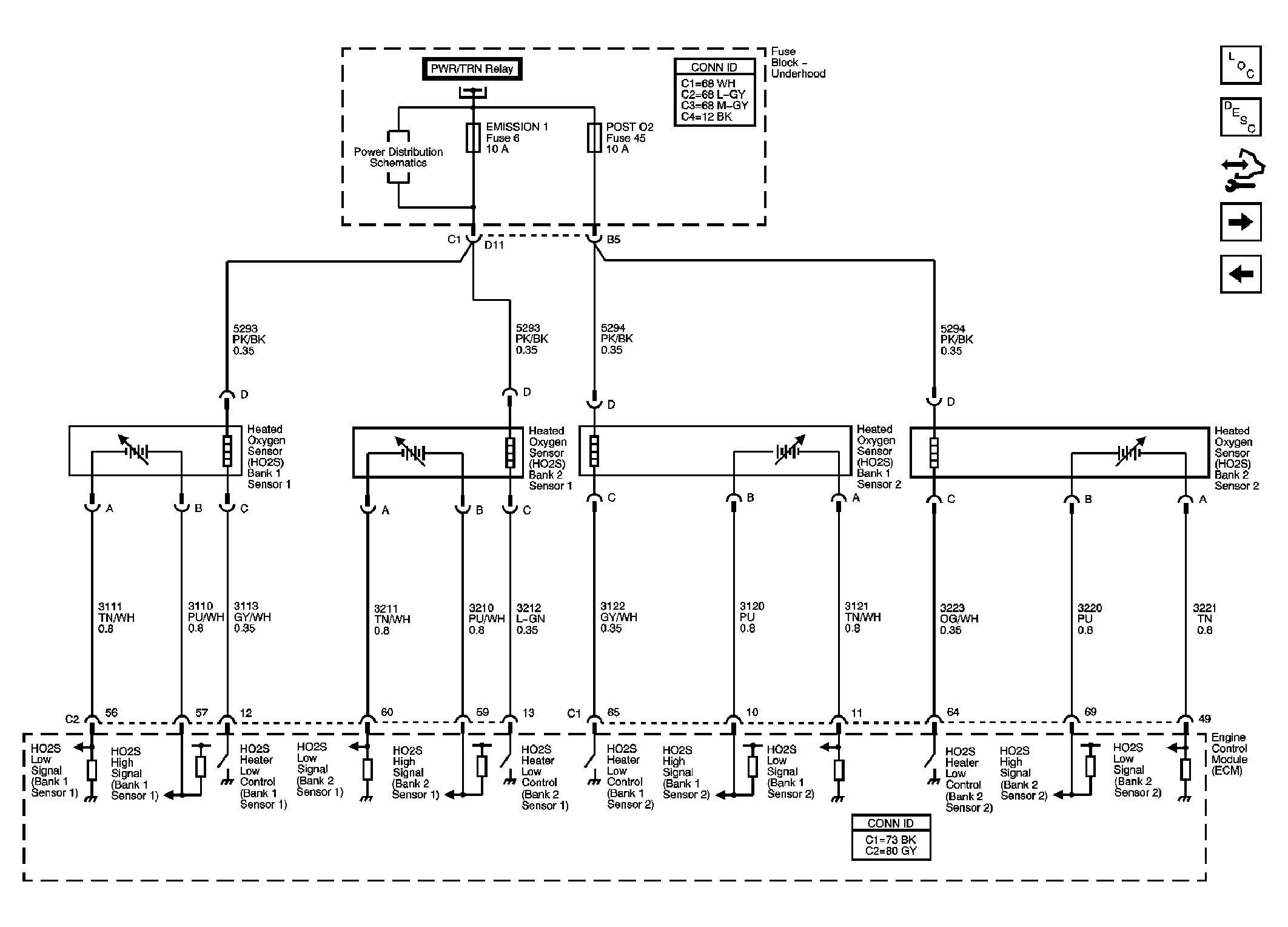

Fig 4: Heated Oxygen Sensors Schematic
GM1829083Courtesy of GENERAL MOTORS CORP.

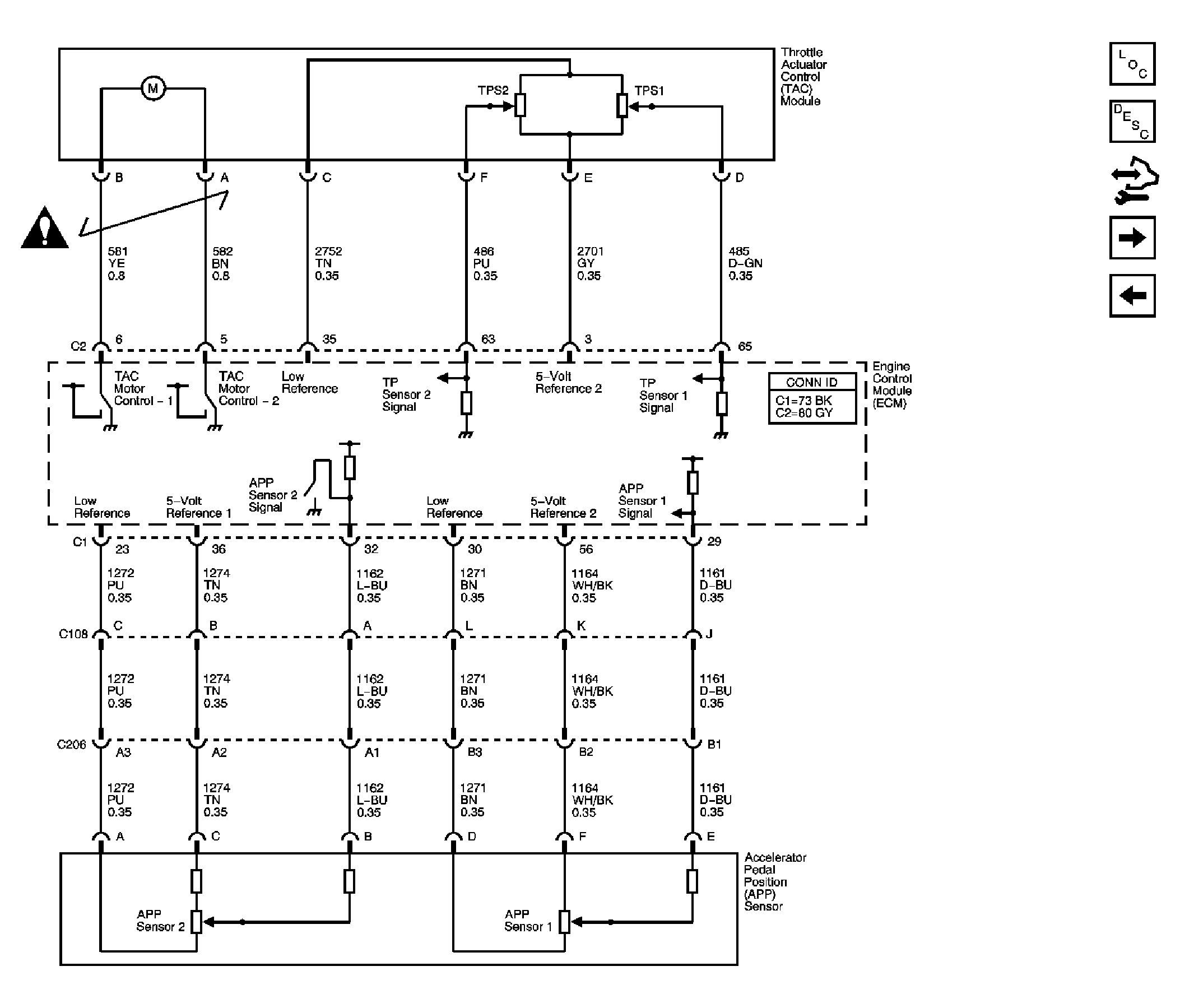

Fig 5: Electronic Throttle Controls Schematic
GM1829084Courtesy of GENERAL MOTORS CORP.

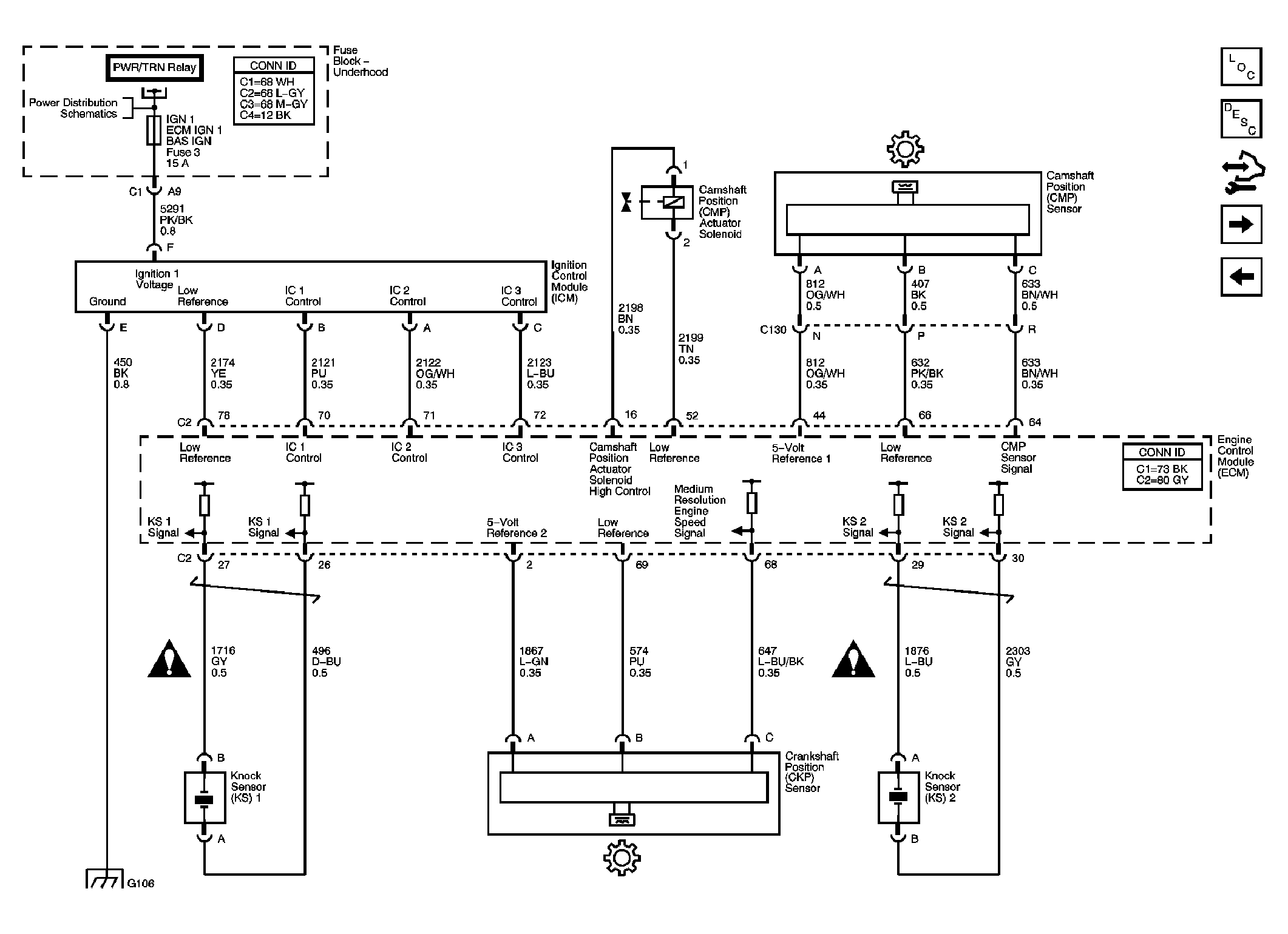

Fig 6: Ignition System Schematic
GM1829086Courtesy of GENERAL MOTORS CORP.

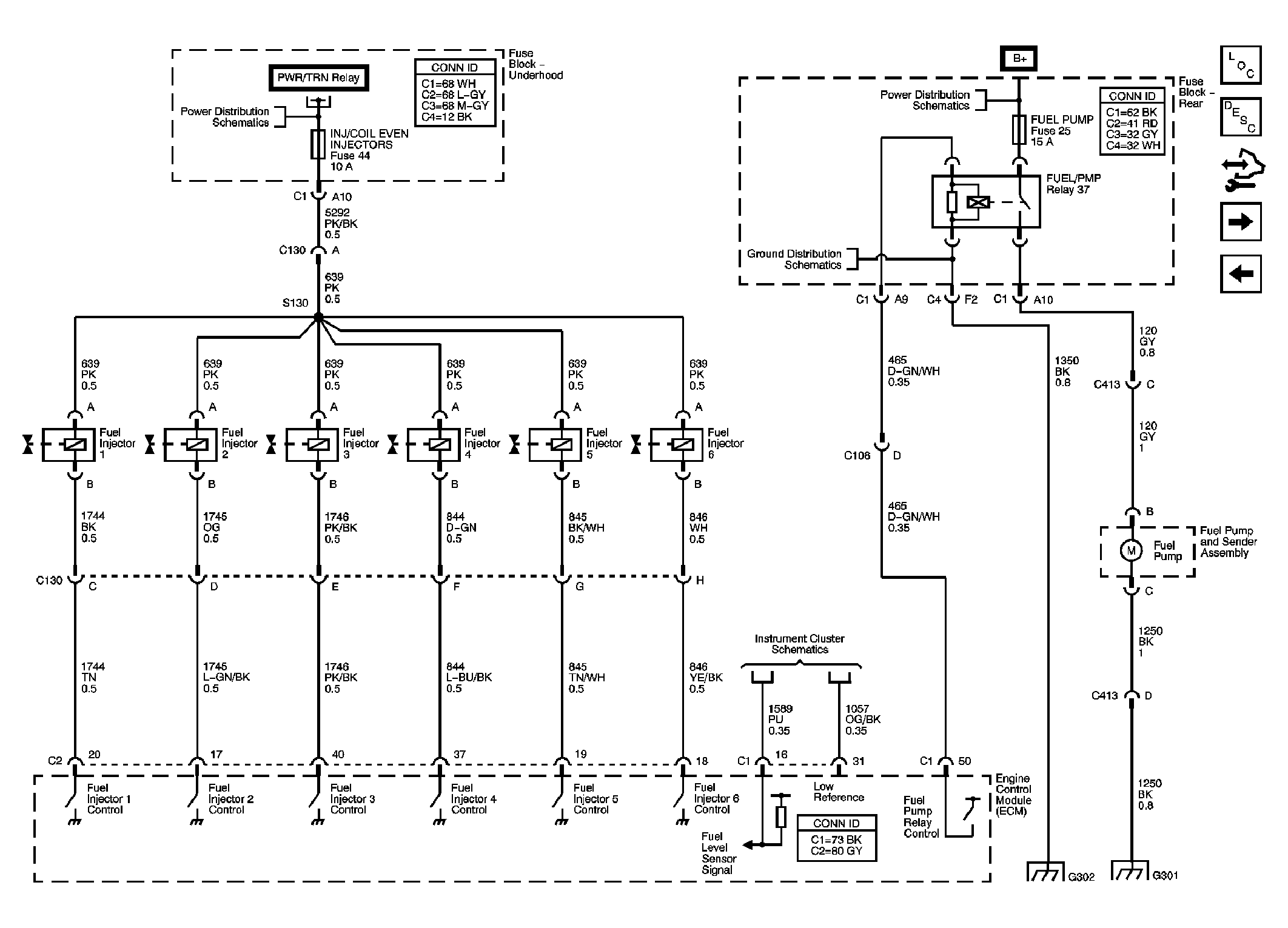

Fig 7: Fuel Pump Controls Schematic
GM1829088Courtesy of GENERAL MOTORS CORP.

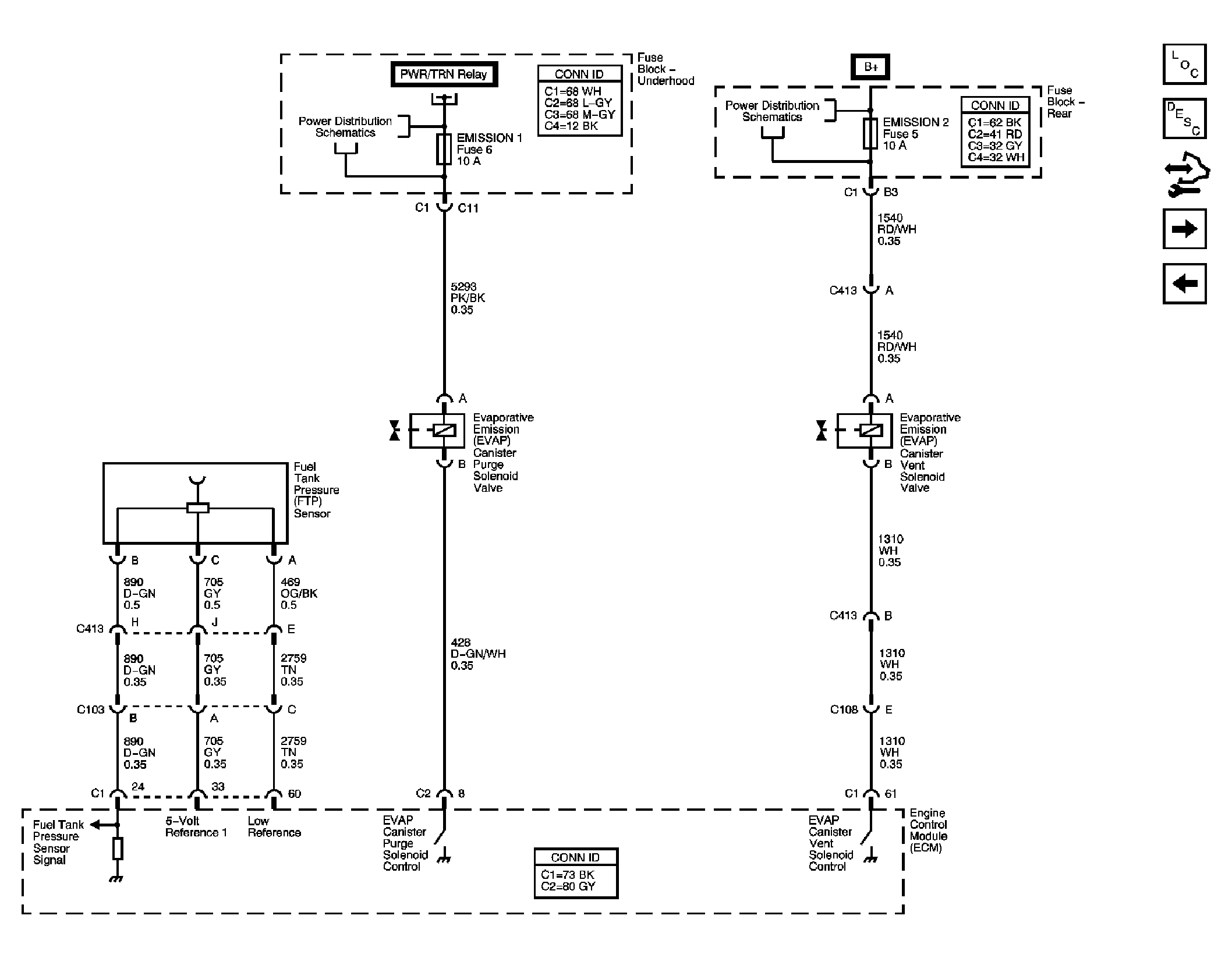

Fig 8: EVAP Controls & FTP Sensor Schematic
GM1829090Courtesy of GENERAL MOTORS CORP.

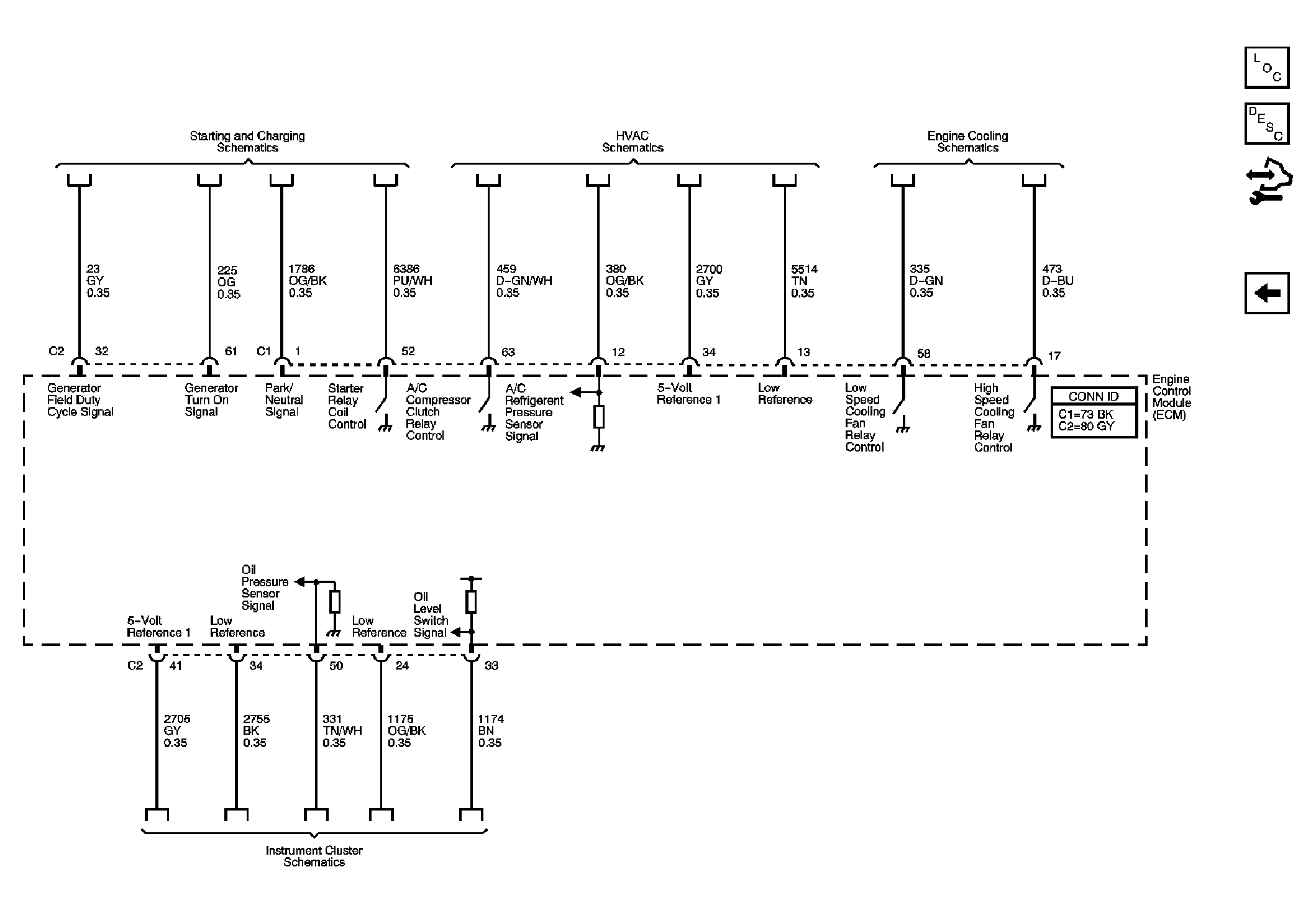

Fig 9: Controlled/Monitored Subsystem References Schematic
GM1829092Courtesy of GENERAL MOTORS CORP.
