Removal Procedure

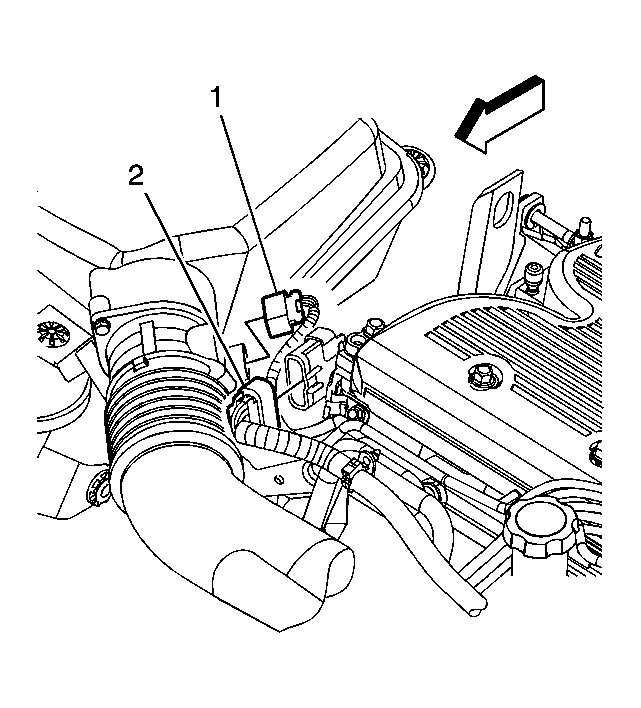

    Fig 1: Identifying Engine Wiring Harness Electrical Connector
    GM1777208Courtesy of GENERAL MOTORS CORP.
  1. Remove the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  2. Disconnect the engine wiring harness electrical connector (1) from the mass airflow (MAF)/intake air temperature (IAT) sensor.
    3. Fig 2: View Of MAF/IAT Sensor
    GM1837985Courtesy of GENERAL MOTORS CORP.
  3. Remove the MAF/IAT sensor screws.
  4. Remove the MAF/IAT sensor.
  5. Remove and discard the MAF/IAT sensor seal.
