Installation Procedure

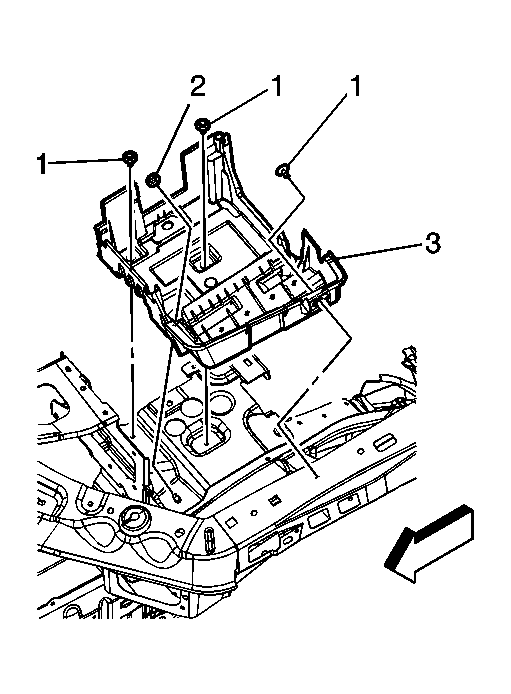

    Fig 1: View Of Battery Tray & Bolts
    GM1891203Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  1. Set the battery tray (2) into position and install the bolts (1).

    Tighten:  Tighten the bolts to 25 N.m (18 lb ft).

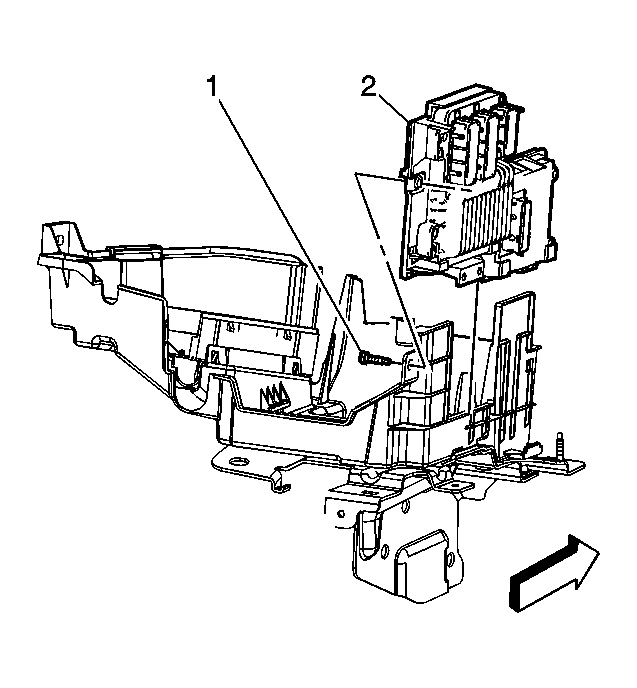

    2. Fig 2: Identifying ECM/TCM Bracket Bolt
    GM1891519Courtesy of GENERAL MOTORS CORP.
  2. Slide the ECM/TCM bracket (2) into position on the battery tray.
  3. Install the ECM/TCM bracket bolt (1).

    Tighten:  Tighten the bolt to 8 N.m (71 lb in).

    4. Fig 3: Locating Engine Wiring Harness Electrical Connectors & ECM
    GM1889666Courtesy of GENERAL MOTORS CORP.
  4. Connect the engine wiring harness electrical connector (1) to the TCM.
  5. Connect the engine wiring harness electrical connectors (2) to the ECM.
  6. Install the engine wiring harness clips (3) to the ECM/TCM bracket (4).
    7. Fig 4: View Of Body Wiring Harness Electrical Connector & Engine Control Module (ECM)
    GM1889665Courtesy of GENERAL MOTORS CORP.
  7. Connect the body wiring harness electrical connector (1) to the ECM.
    8. Fig 5: View Of UBEC Cover
    GM1891511Courtesy of GENERAL MOTORS CORP.
  8. Position the body wiring harness UBEC electrical connectors (5) to the UBEC bracket and snap into place.
  9. Position the forward lamp wiring harness UBEC electrical connector (4) to the UBEC bracket and snap into place.
  10. Position the engine wiring harness UBEC electrical connector (3) to the UBEC bracket and snap into place.
  11. Install junction block (12).
  12. Tighten the junction block bolts (6) until the bolts engage the electrical connectors, an audible click will be heard.

    Tighten:  Tighten the bolts to 4 N.m (35 lb in).

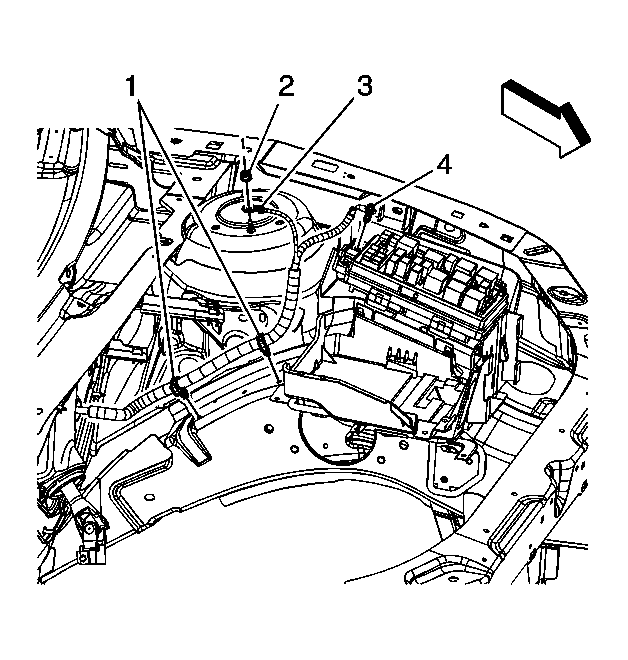

    13. Fig 6: Locating Steering Column Harness Package
    GM1891512Courtesy of GENERAL MOTORS CORP.
  13. Position the steering column harness package lead to the UBEC and tighten the integral bolt (4).

    Tighten:  Tighten the bolt to 5 N.m (44 lb in).

    14. Fig 7: View Of Body Harness Cables & UBEC
    GM1891199Courtesy of GENERAL MOTORS CORP.
  14. Position the positive battery cable to the battery.
  15. Position positive battery cable lead (4) to the UBEC and tighten the integral bolt (5).

    Tighten:  Tighten the bolt to 5 N.m (44 lb in).

  16. Install the UBEC cover.
  17. Install the battery. Refer to Battery Replacement (LAT)  or Battery Replacement (LZ4/LY7) .
