Installation Procedure

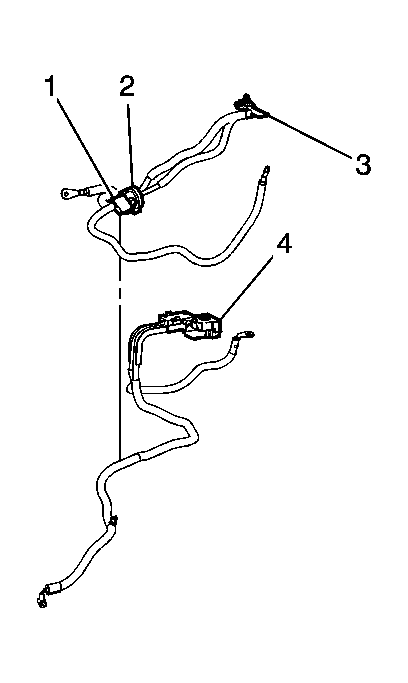

    Fig 1: View Of Positive & Negative Battery Cable Assembly
    GM1891625Courtesy of GENERAL MOTORS CORP.
  1. Install the battery current sensor (2) to the NEW negative battery cable.
  2. Place the NEW negative battery cable (3) next to the positive battery cable (4).
  3. Measure from the same end as earlier and slide the current sensor to that measurement on the negative battery cable.
  4. Measure from the same end as earlier and position the positive battery cable measurement next to the current sensor on the negative battery cable.
  5. Install NEW tape (1) at the positive battery cable measurement and the current sensor measurement.
  6. Place the positive and negative battery cable assembly into position in the vehicle as noted during removal.
    7. Fig 2: View Of Body Harness Cables & UBEC
    GM1891199Courtesy of GENERAL MOTORS CORP.
  7. Install the positive battery cable (3) to the battery.
    8. NOTE: Refer to Fastener Notice .
  8. Tighten the positive battery cable nut (2).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  9. Position positive battery cable lead (4) to the UBEC and tighten the integral bolt (5).

    Tighten:  Tighten the bolt to 5 N.m (44 lb in).

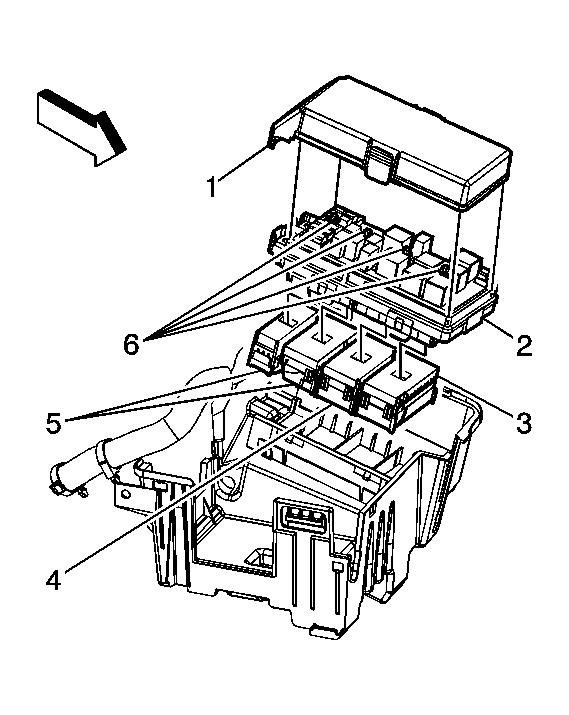

    10. Fig 3: View Of UBEC Cover
    GM1891511Courtesy of GENERAL MOTORS CORP.
  10. Install the UBEC cover (1).

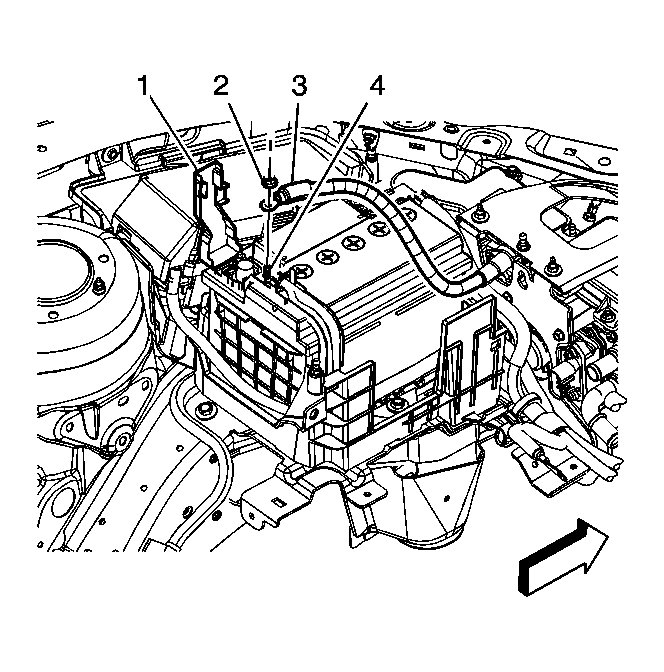

    11. Fig 4: View Of Battery Positive Cable Extension Cable Lead & Positive Battery Cable.
    GM1891200Courtesy of GENERAL MOTORS CORP.
  11. Install the battery positive cable extension cable lead (3) to the positive battery cable.
  12. Install the battery positive cable extension cable nut (2).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

  13. Close the positive battery cable cover (1).

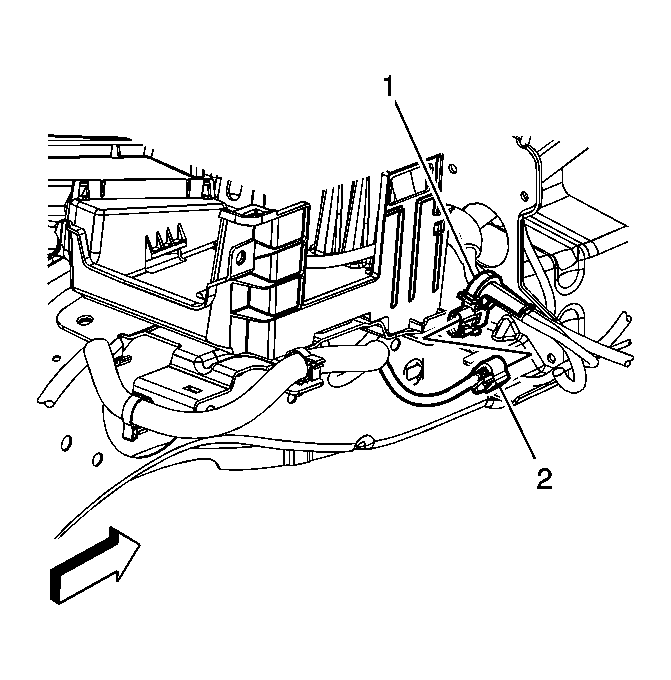

    14. Fig 5: View Of Body Wiring Harness Electrical Connectors
    GM1891205Courtesy of GENERAL MOTORS CORP.
  14. Connect the body wiring harness electrical connector (2) to the battery current sensor (1).

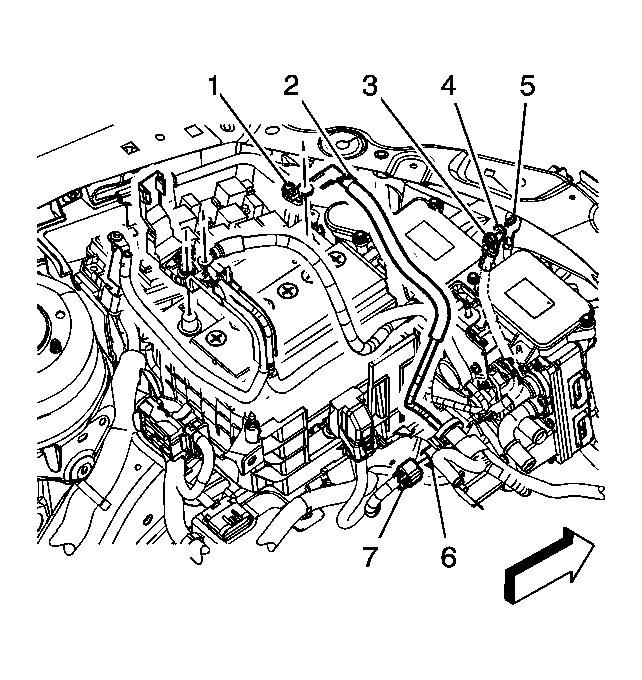

    15. Fig 6: View Of Engine Compartment & Battery Tray Harness Routing
    GM1891198Courtesy of GENERAL MOTORS CORP.
  15. Install the negative battery cable ground lead (4) to the tie bar stud.
  16. Install the negative battery cable ground nut (3) to the stud.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

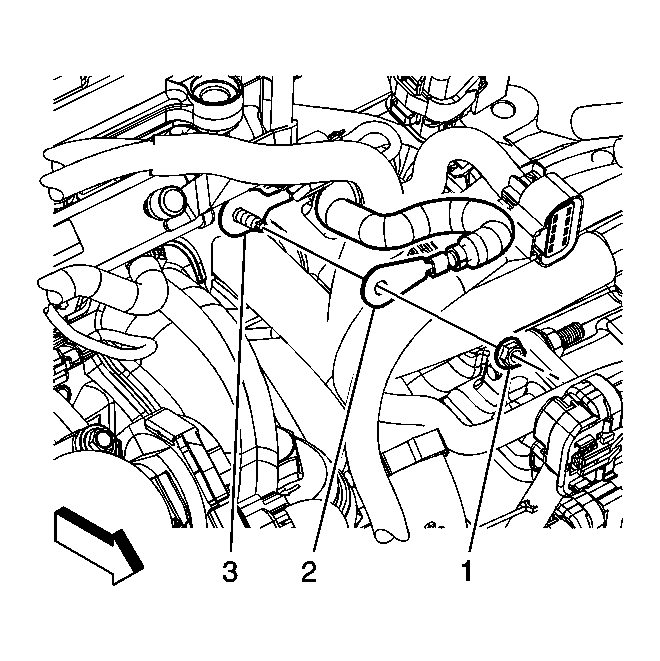

    17. Fig 7: Identifying Negative Battery Cable Ground Lead & Engine Block Stud
    GM1891301Courtesy of GENERAL MOTORS CORP.
  17. Install the negative battery cable ground lead (2) to the engine block stud.
  18. Install the negative battery cable ground nut (1) to the stud.

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

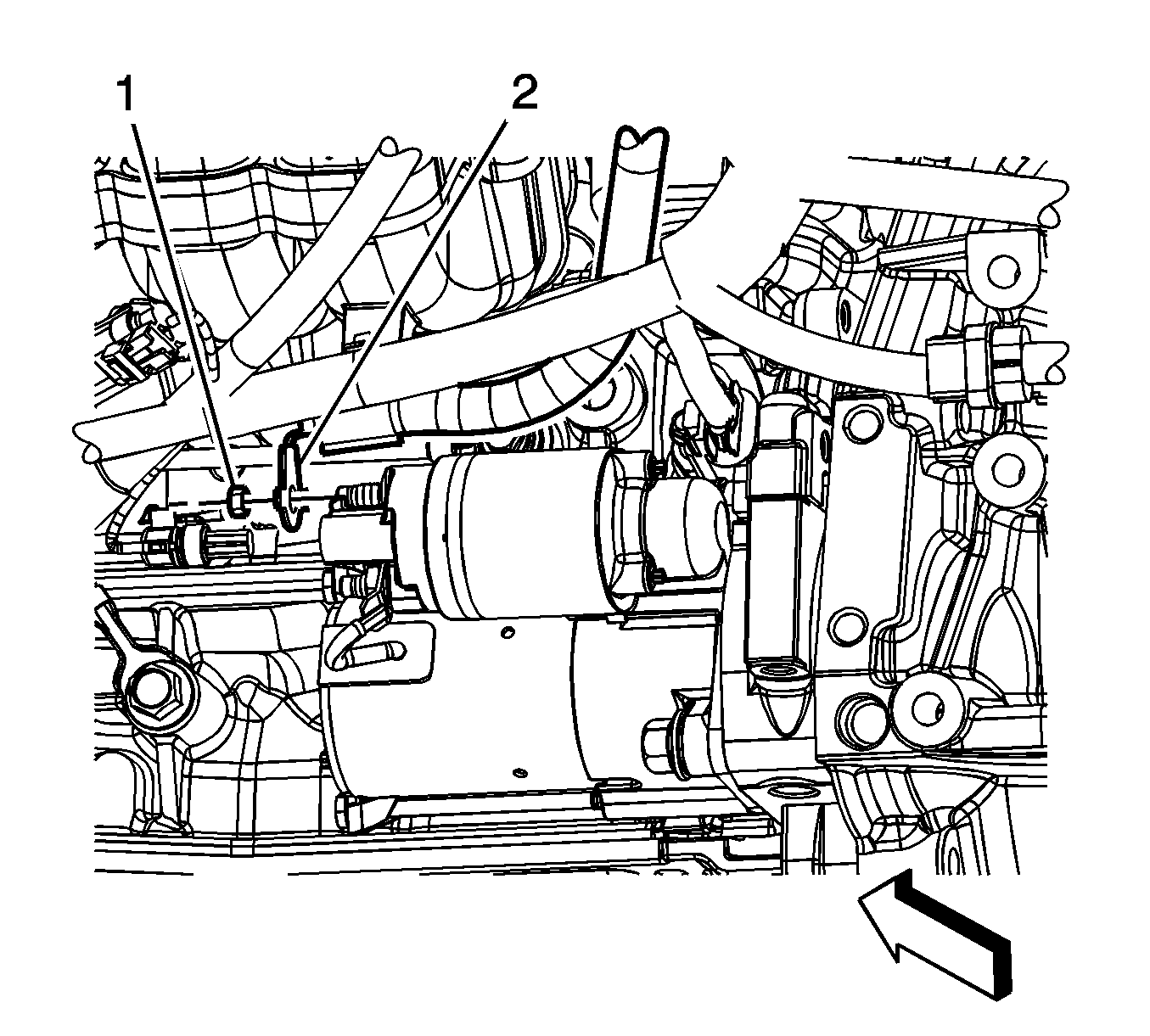

    19. Fig 8: View Of Positive Battery Cable & Starter Motor
    GM1891299Courtesy of GENERAL MOTORS CORP.
  19. Raise and suitably support the vehicle.
  20. Install the positive battery cable lead (2) to the starter motor.
  21. Install the positive battery cable to starter motor nut (1).

    Tighten:  Tighten the nut to 10 N.m (89 lb in).

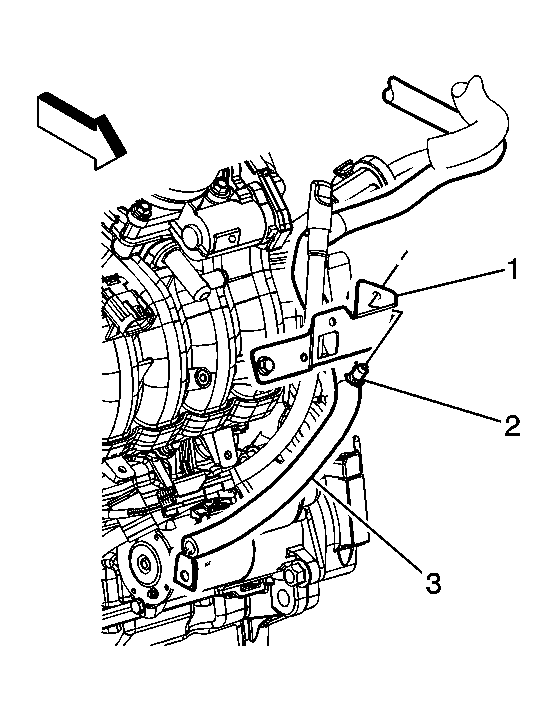

    22. Fig 9: View Of Positive Battery Cable Clip & Oil Level Indicator Tube Bracket
    GM1891297Courtesy of GENERAL MOTORS CORP.
  22. Install the positive battery cable clip (2) to the oil level indicator tube bracket (1).

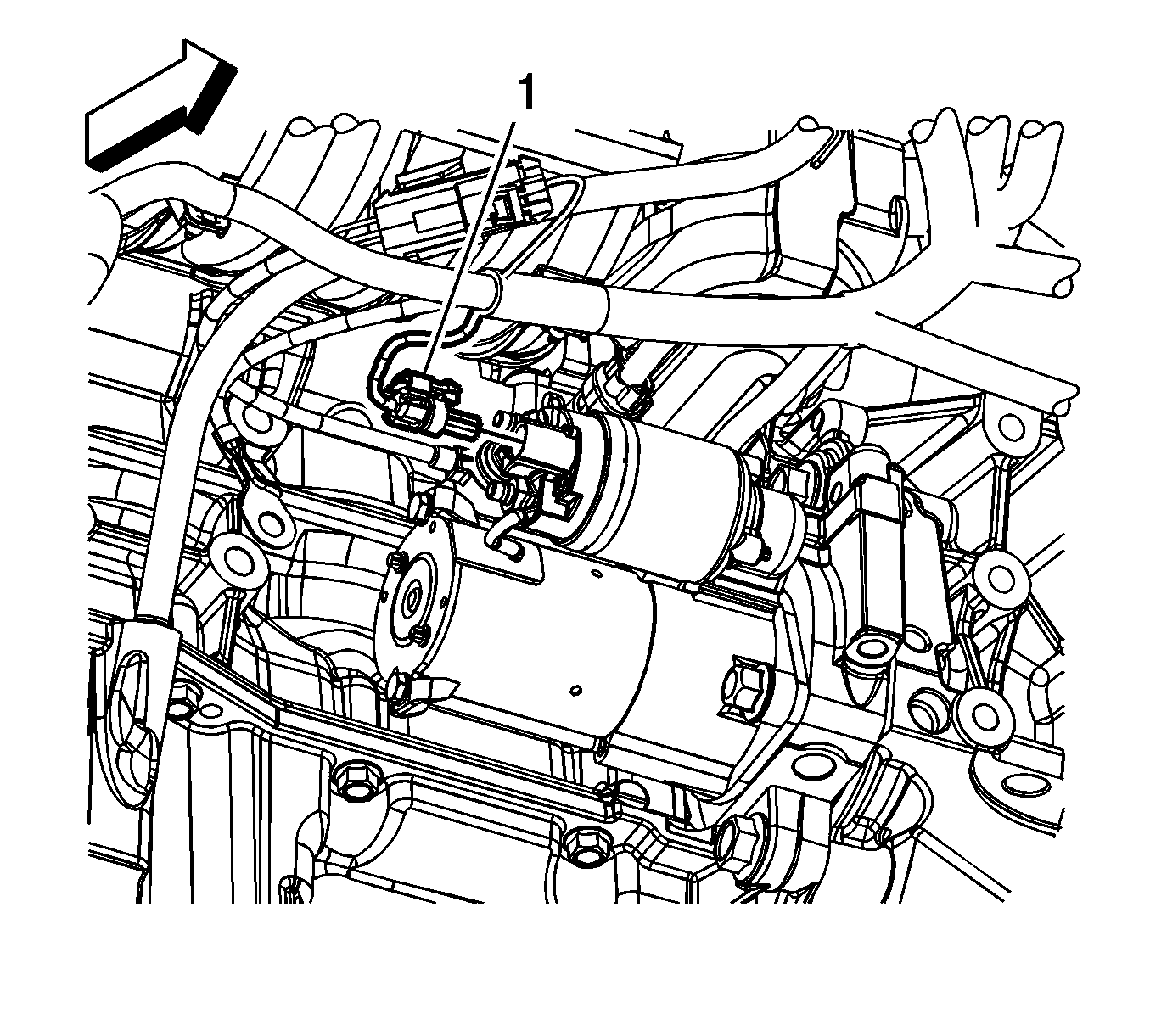

    23. Fig 10: Locating Engine Wiring Harness Electrical Connector At Starter
    GM1891303Courtesy of GENERAL MOTORS CORP.
  23. Connect the engine wiring harness electrical connector (1) to the starter.
  24. Lower the vehicle.
  25. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (LAT)  or Battery Negative Cable Disconnection and Connection (LZ4/LY7) .
