Front Seat Heater Control Module Replacement

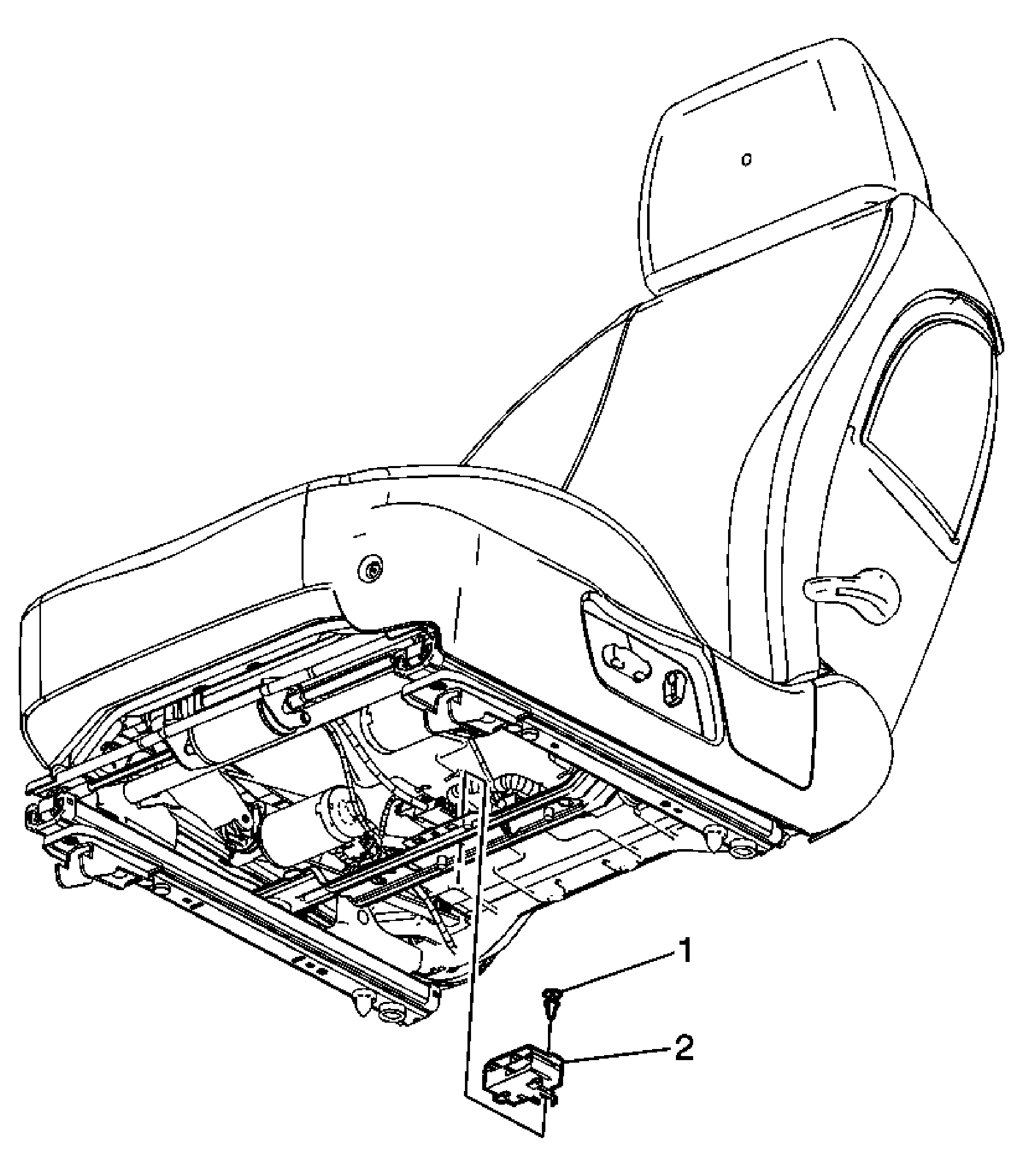

Fig 1: View Of Front Seat Heater Control Module
GM1753785Courtesy of GENERAL MOTORS CORP.
Front Seat Heater Control Module Replacement

Callout Component Name
Preliminary Procedure:
Remove the front seat. Refer to Front Seat Replacement - Bucket .
1 Front Seat Heater Control Module Retainer
2 Front Seat Heater Control Module
Tip:  Disconnect the electrical connector.
