Body Control System Schematics

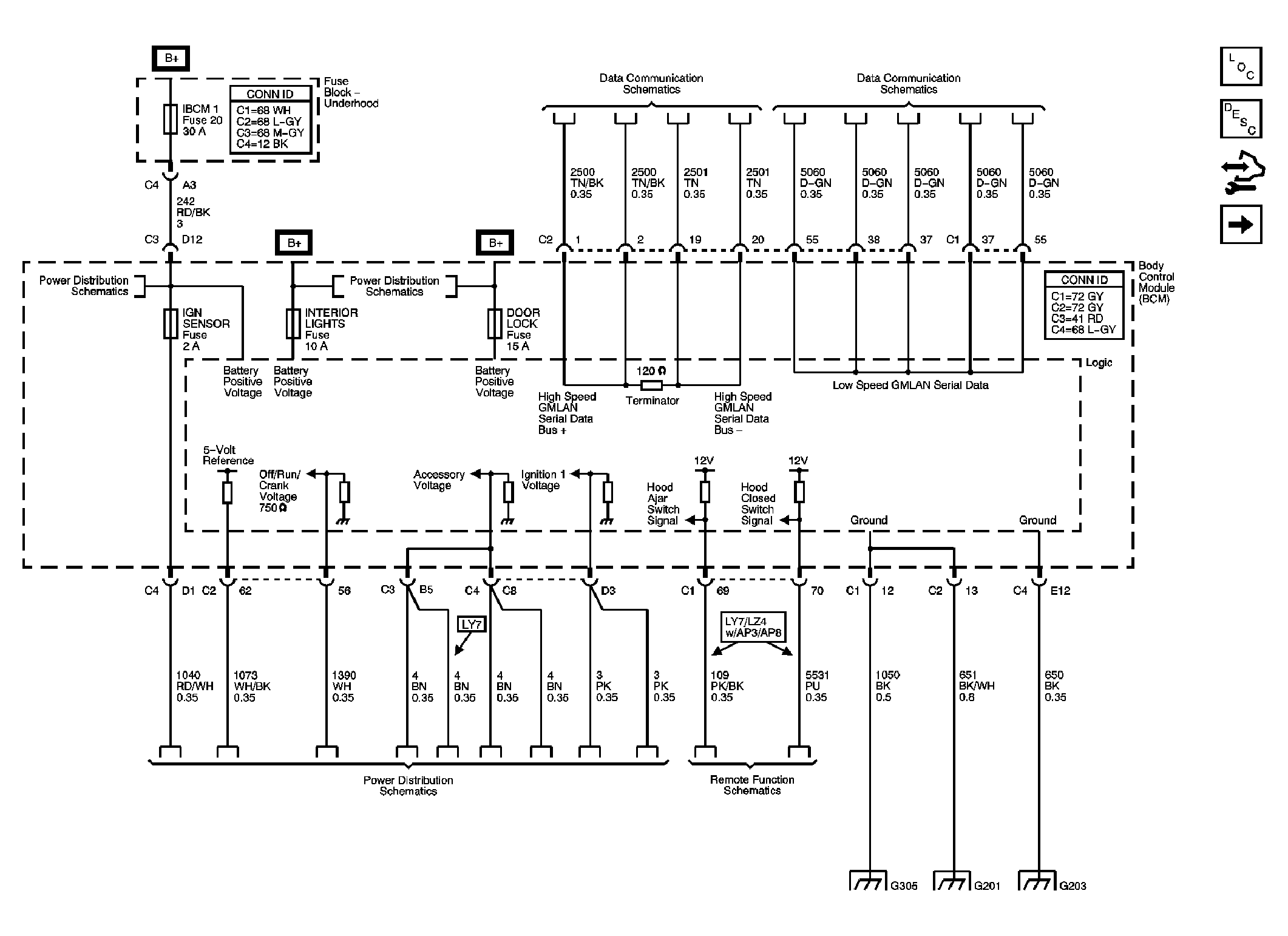

Fig 1: Power, Ground & DLC Schematic
GM1808416Courtesy of GENERAL MOTORS CORP.

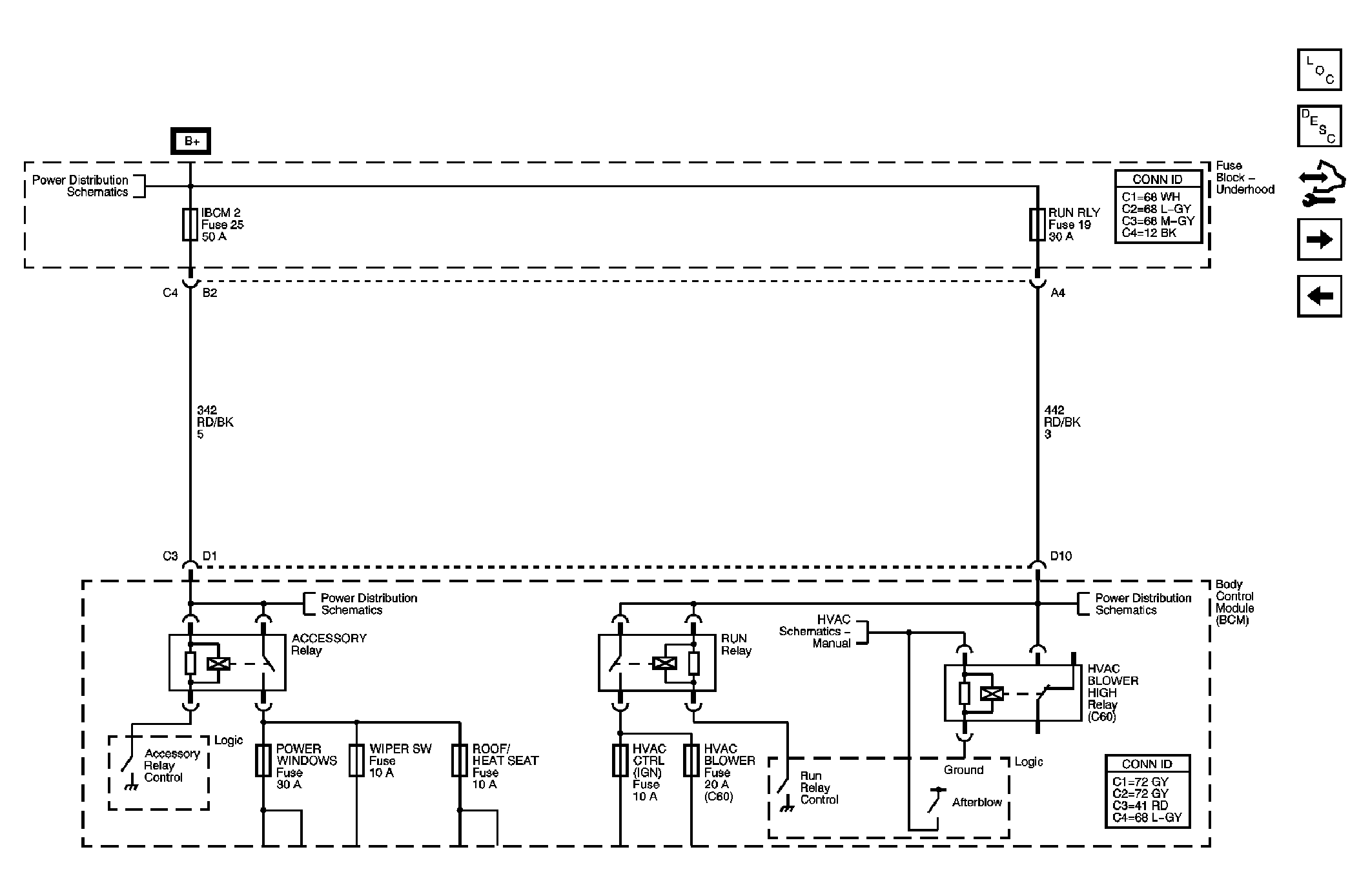

Fig 2: Controlled/Monitored Subsystem References Schematic (1 Of 4)
GM1808421Courtesy of GENERAL MOTORS CORP.

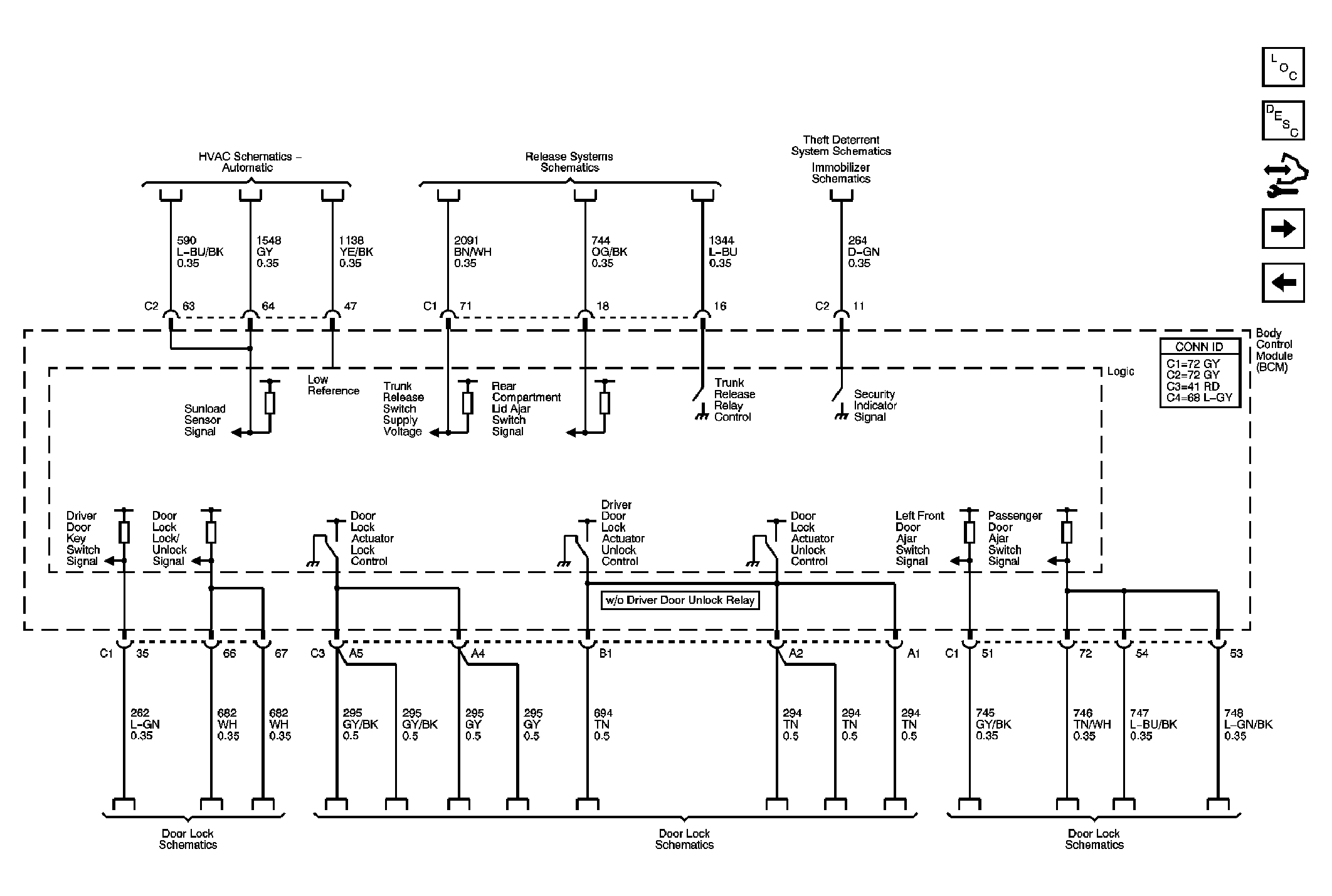

Fig 3: Controlled/Monitored Subsystem References Schematic (2 Of 4)
GM1808423Courtesy of GENERAL MOTORS CORP.

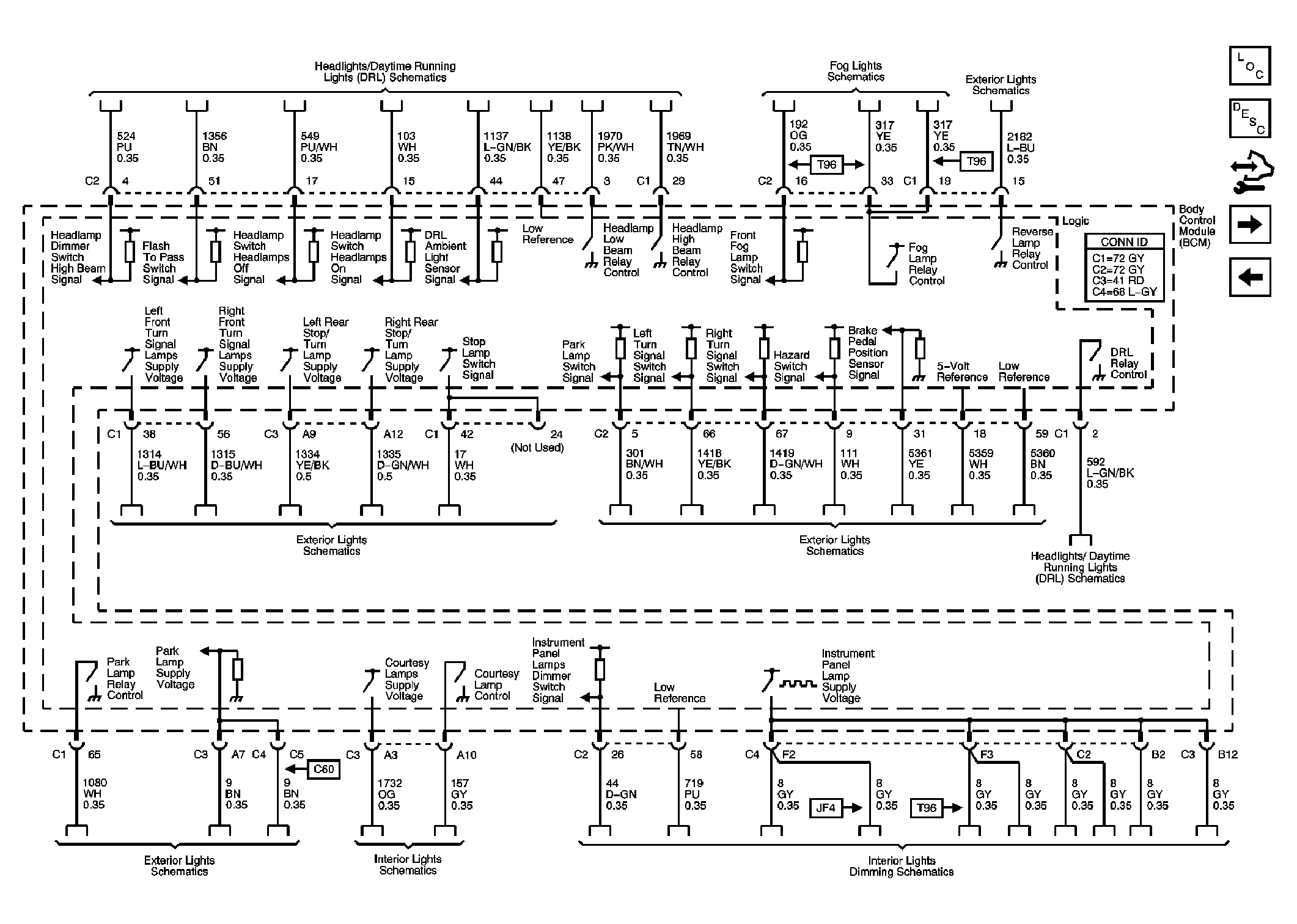

Fig 4: Controlled/Monitored Subsystem References Schematic (3 Of 4)
GM1808424Courtesy of GENERAL MOTORS CORP.

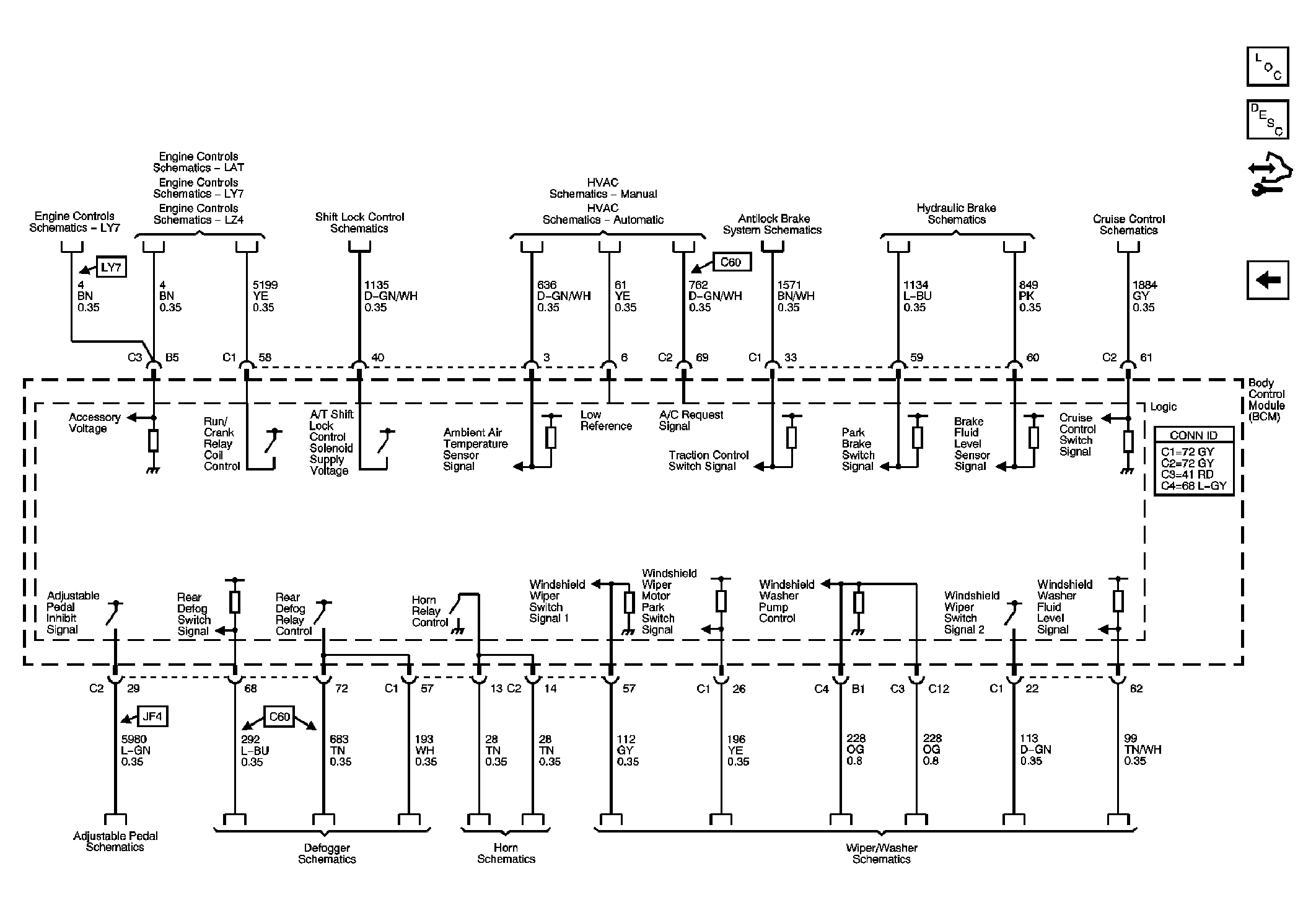

Fig 5: Controlled/Monitored Subsystem References Schematic (4 Of 4)
GM1808426Courtesy of GENERAL MOTORS CORP.
