Power Steering System Schematics

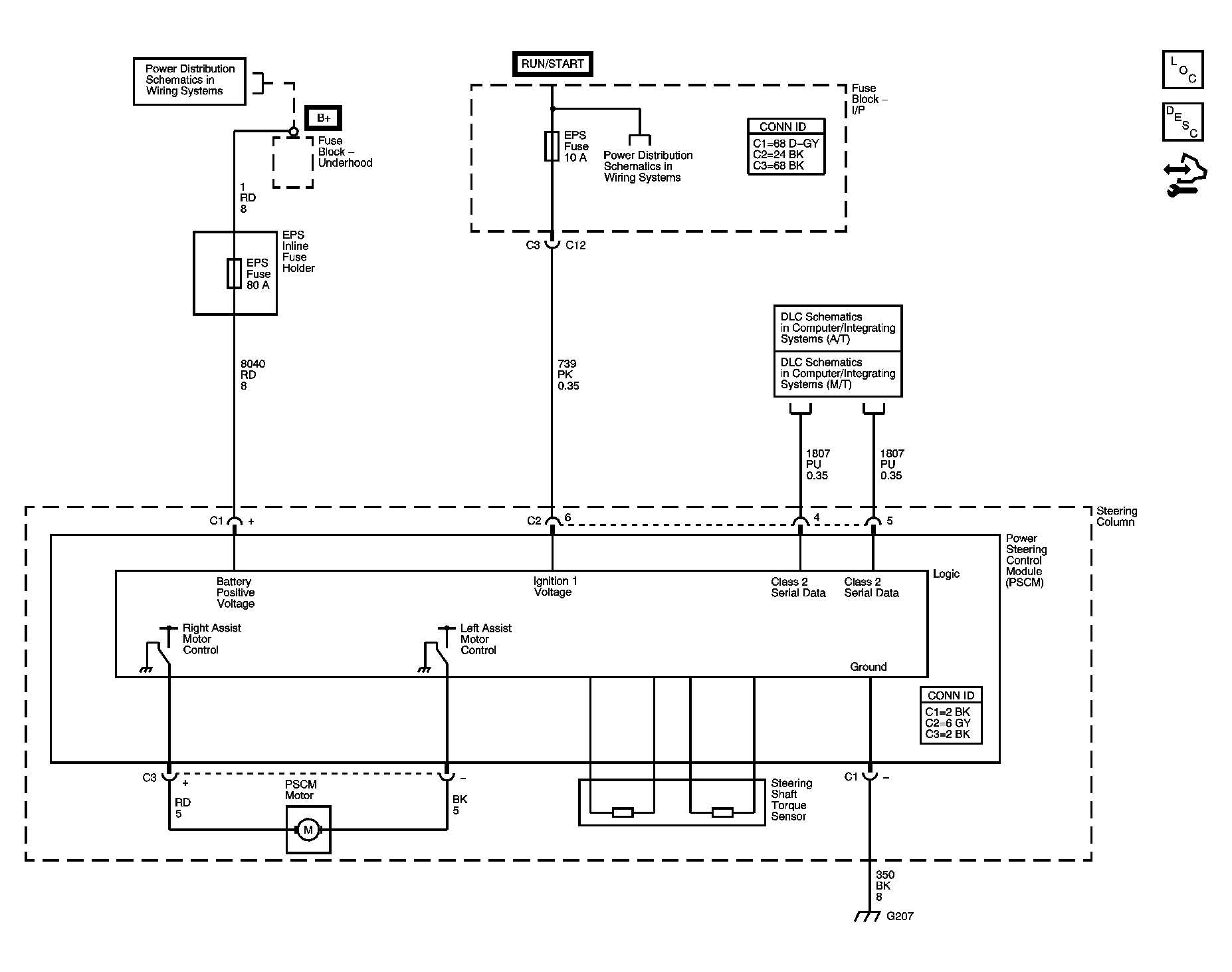

Fig 1: Power Steering System Schematic

GM1583958

Courtesy of GENERAL MOTORS CORP.
