Power Distribution Schematics

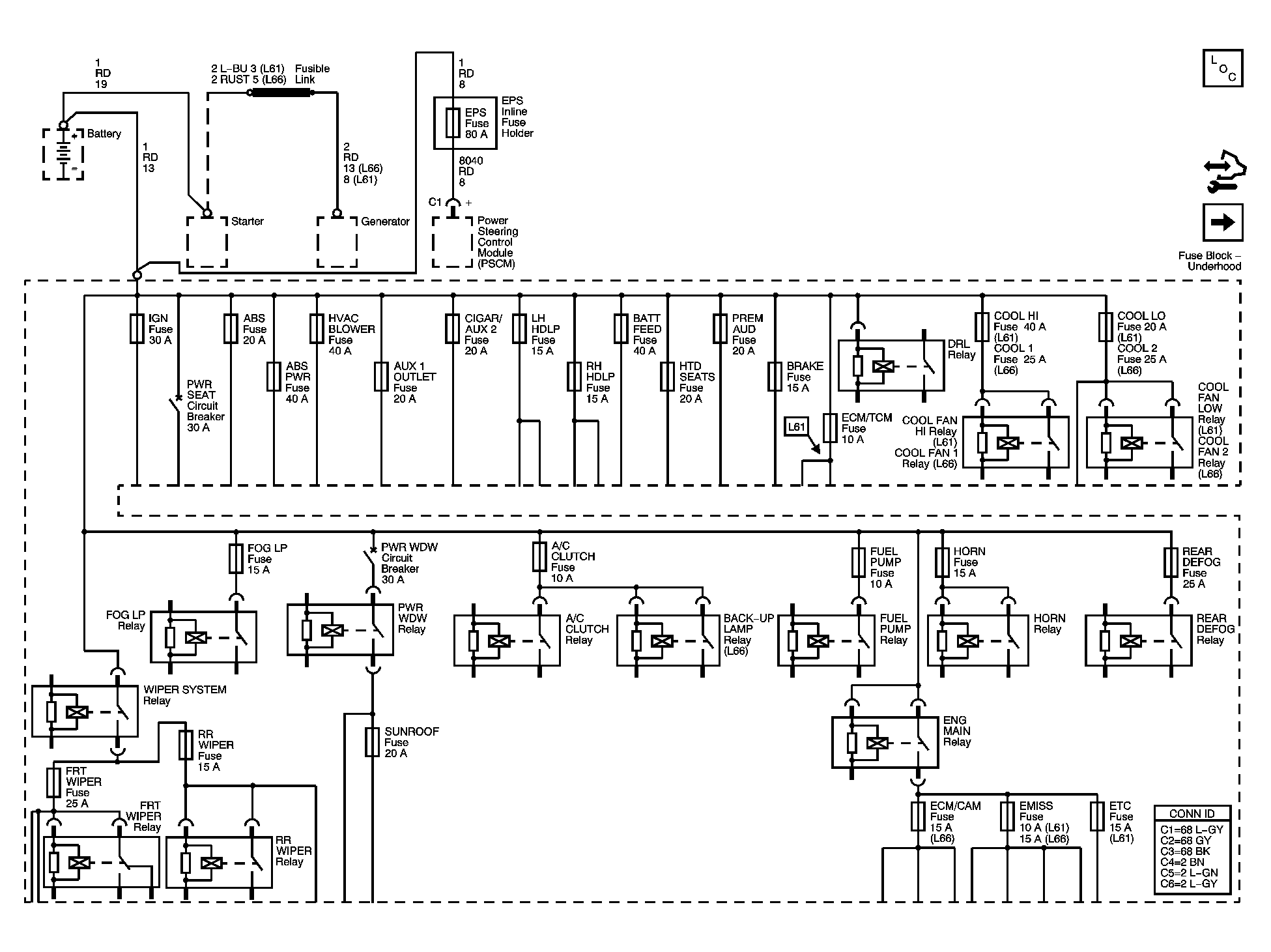

Fig 1: B+ Bussing and the EPS Fuse

Courtesy of GENERAL MOTORS CORP.

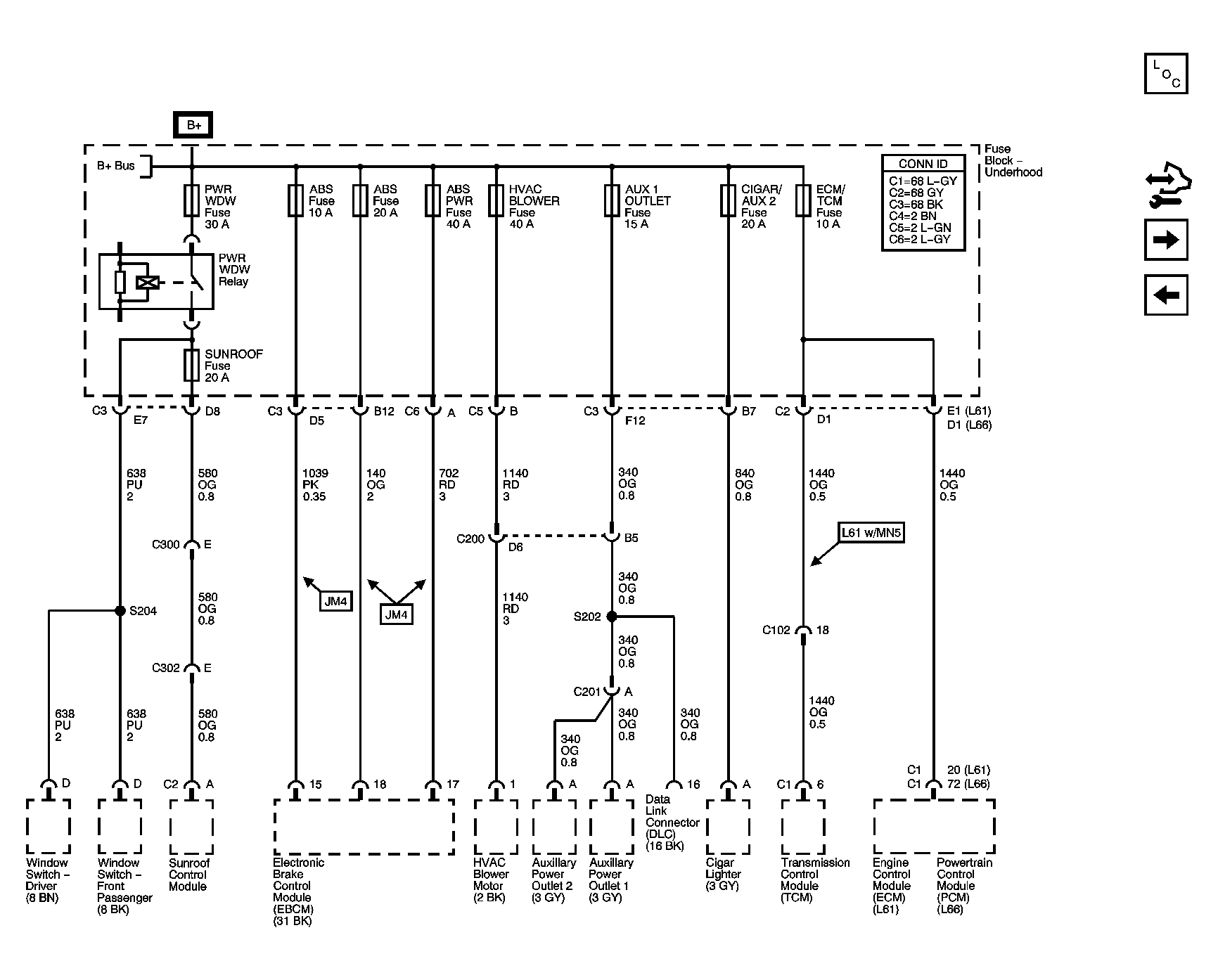

Fig 2: SUNROOF, PWR WDW, ABS 10A, ABS 20A, ABS PWR, HVAC BLOWER, AUX1 OUTLET, CIGAR/AUX2 and ECM/TCM Fuses

Courtesy of GENERAL MOTORS CORP.

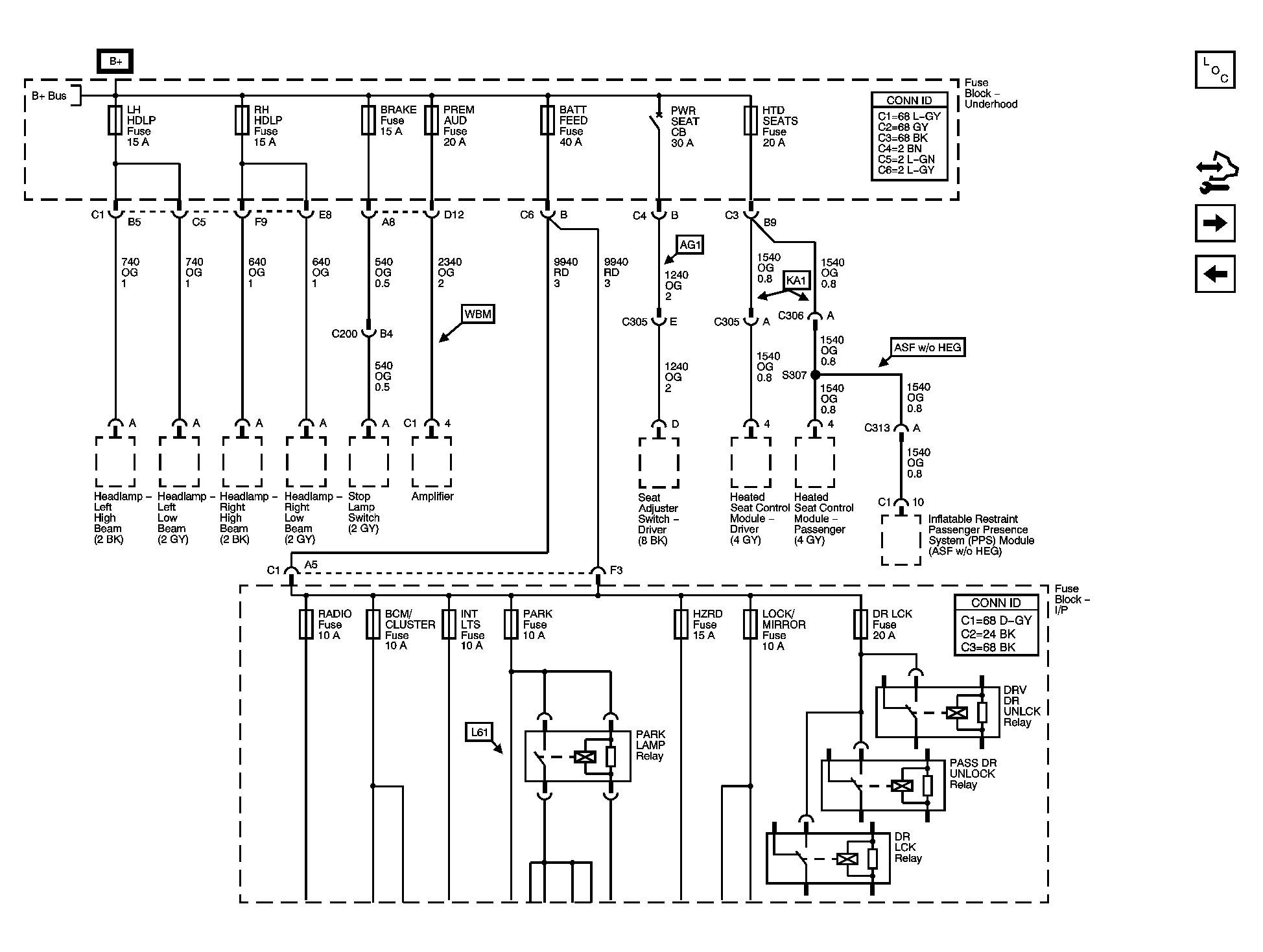

Fig 3: PWR SEAT Circuit Breaker, LH HDLP, RH HDLP, BRAKE, PREM AUD, BATT FEED, and HTD SEATS Fuses

Courtesy of GENERAL MOTORS CORP.

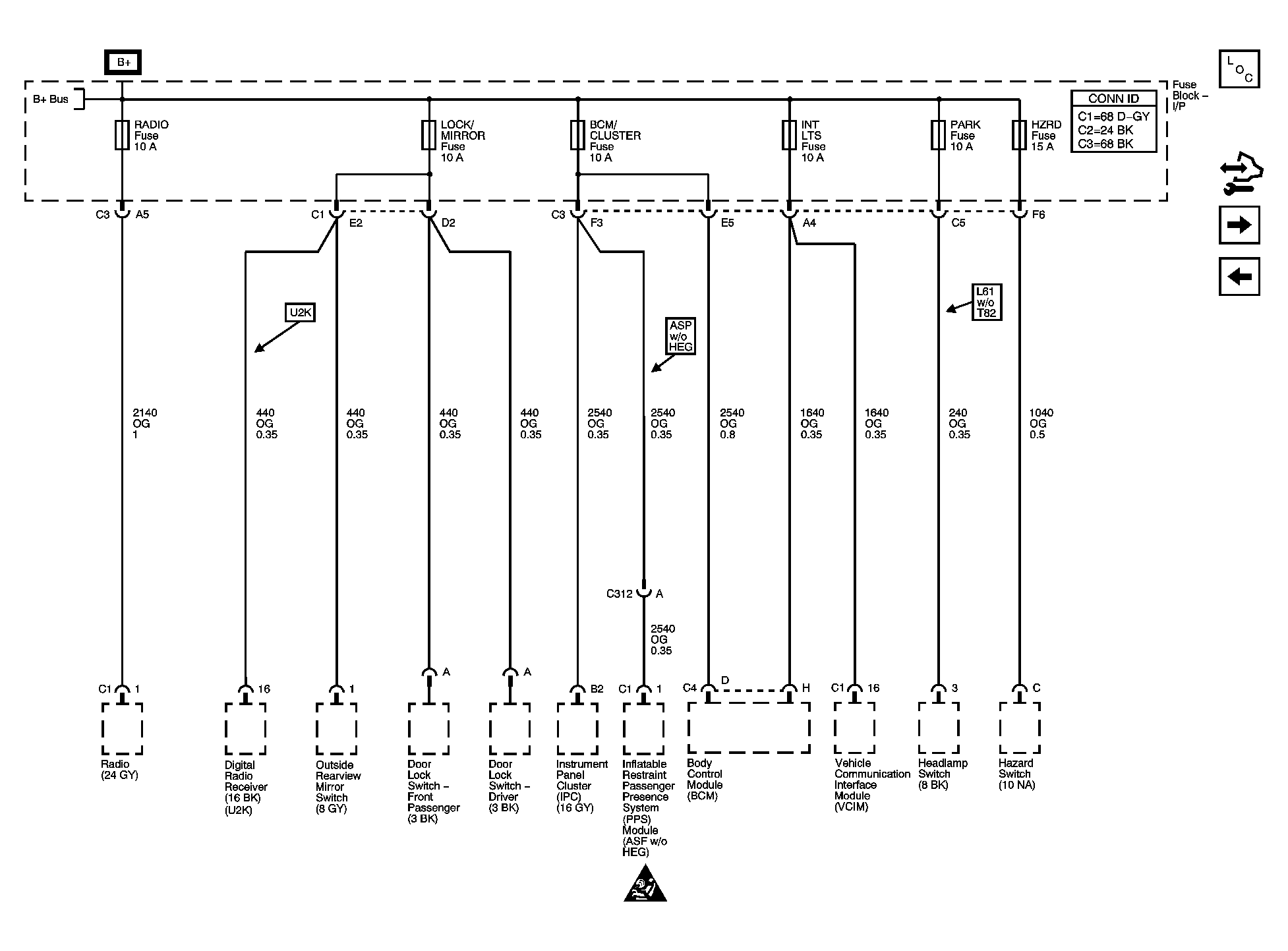

Fig 4: RADIO, LOCK/MIRROR, BCM/CLUSTER, INT LTS, PARK and HZRD Fuses

Courtesy of GENERAL MOTORS CORP.

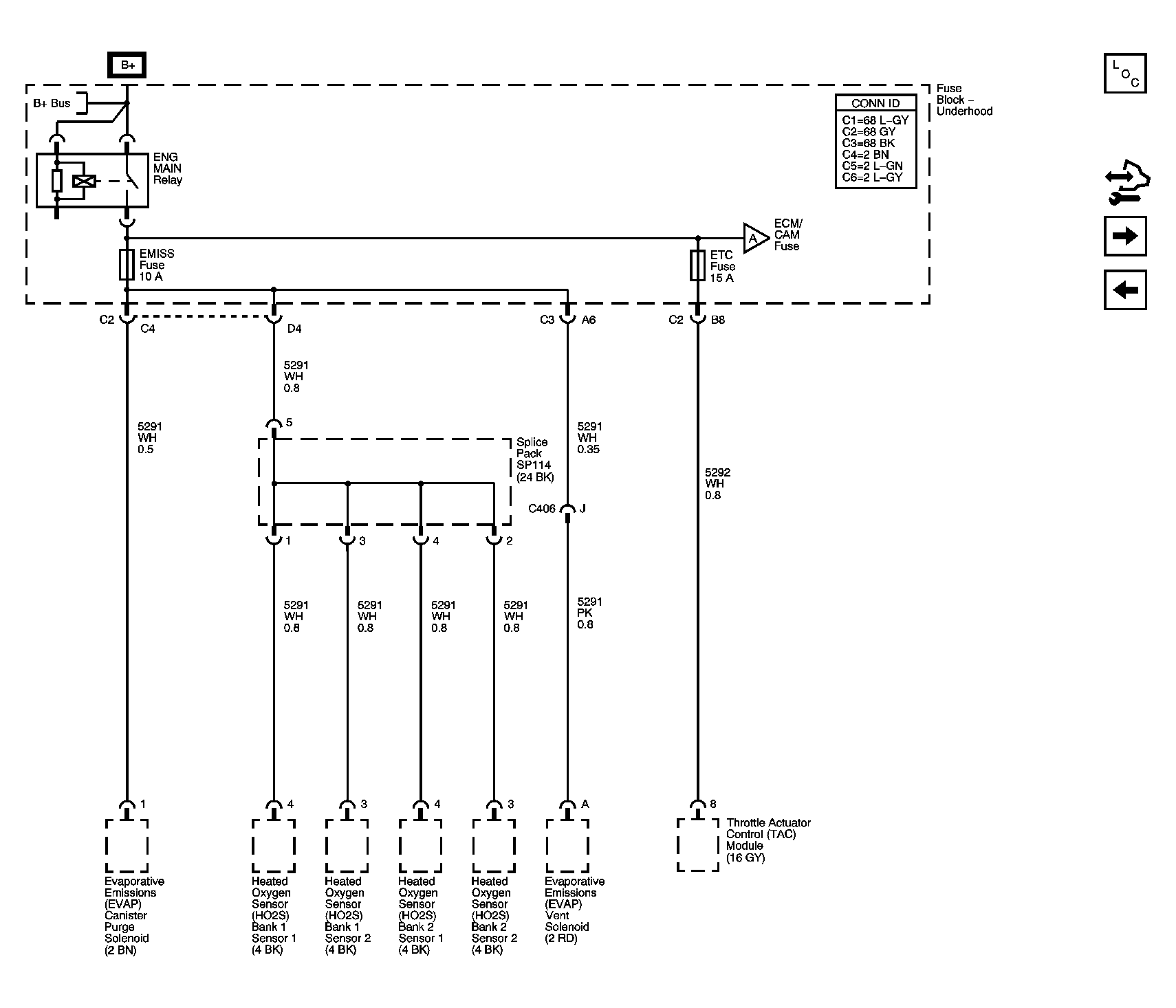

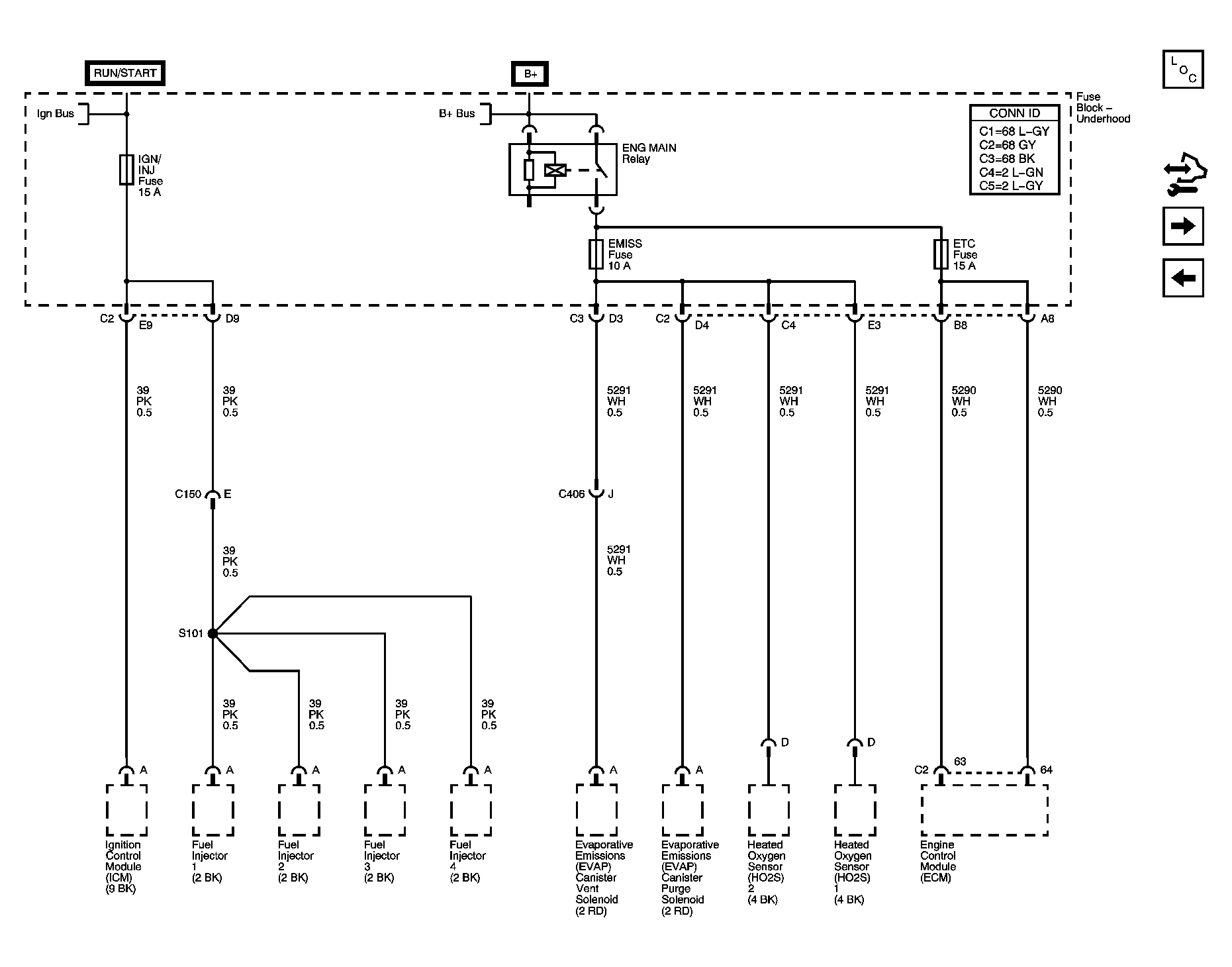

Fig 5: IGN/INJ, EMISS and ETC Fuses - L61

Courtesy of GENERAL MOTORS CORP.

Fig 6: EMISS and ETC Fuses - L66

Courtesy of GENERAL MOTORS CORP.

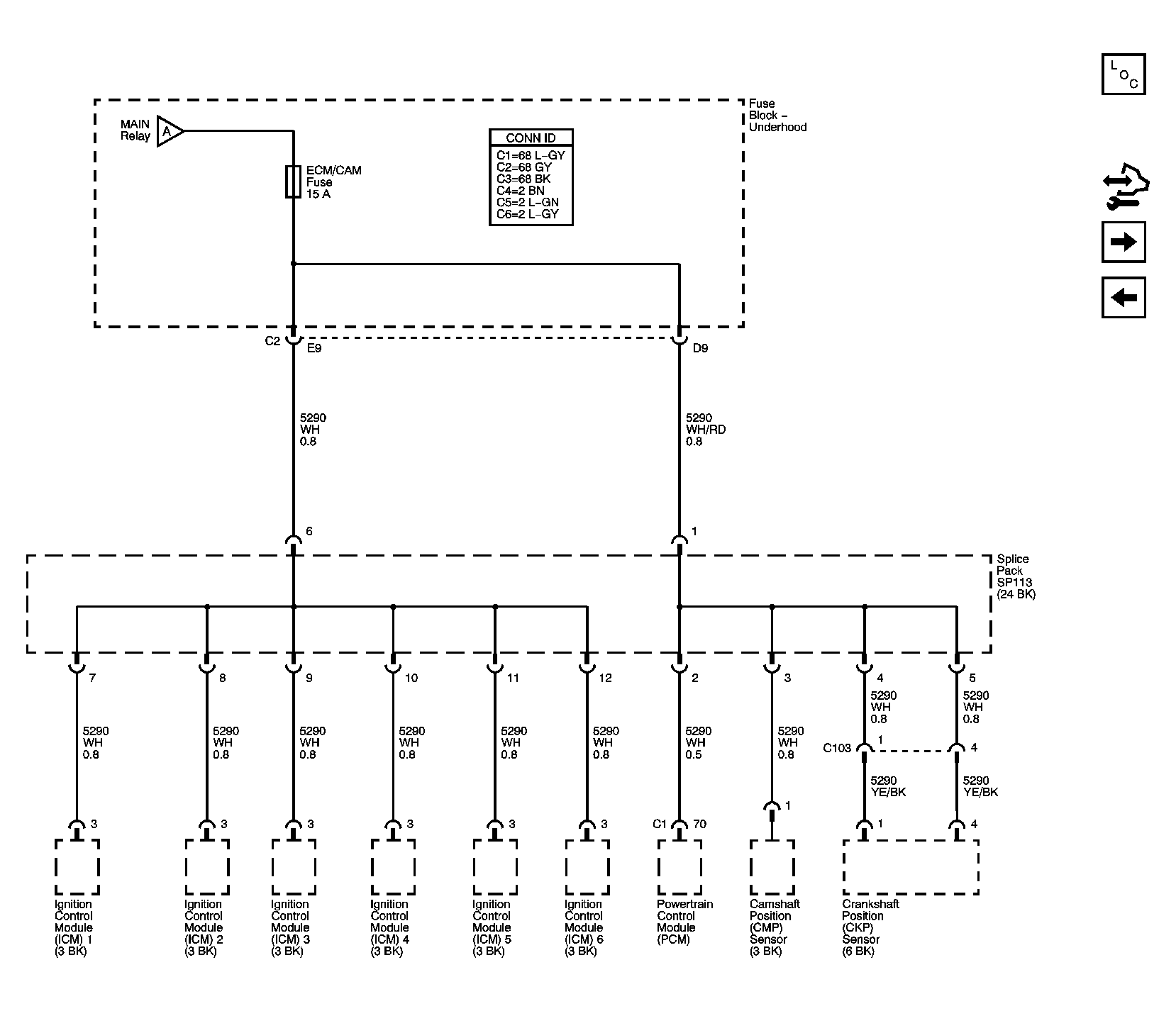

Fig 7: ECM/CAM Fuse - L66

Courtesy of GENERAL MOTORS CORP.

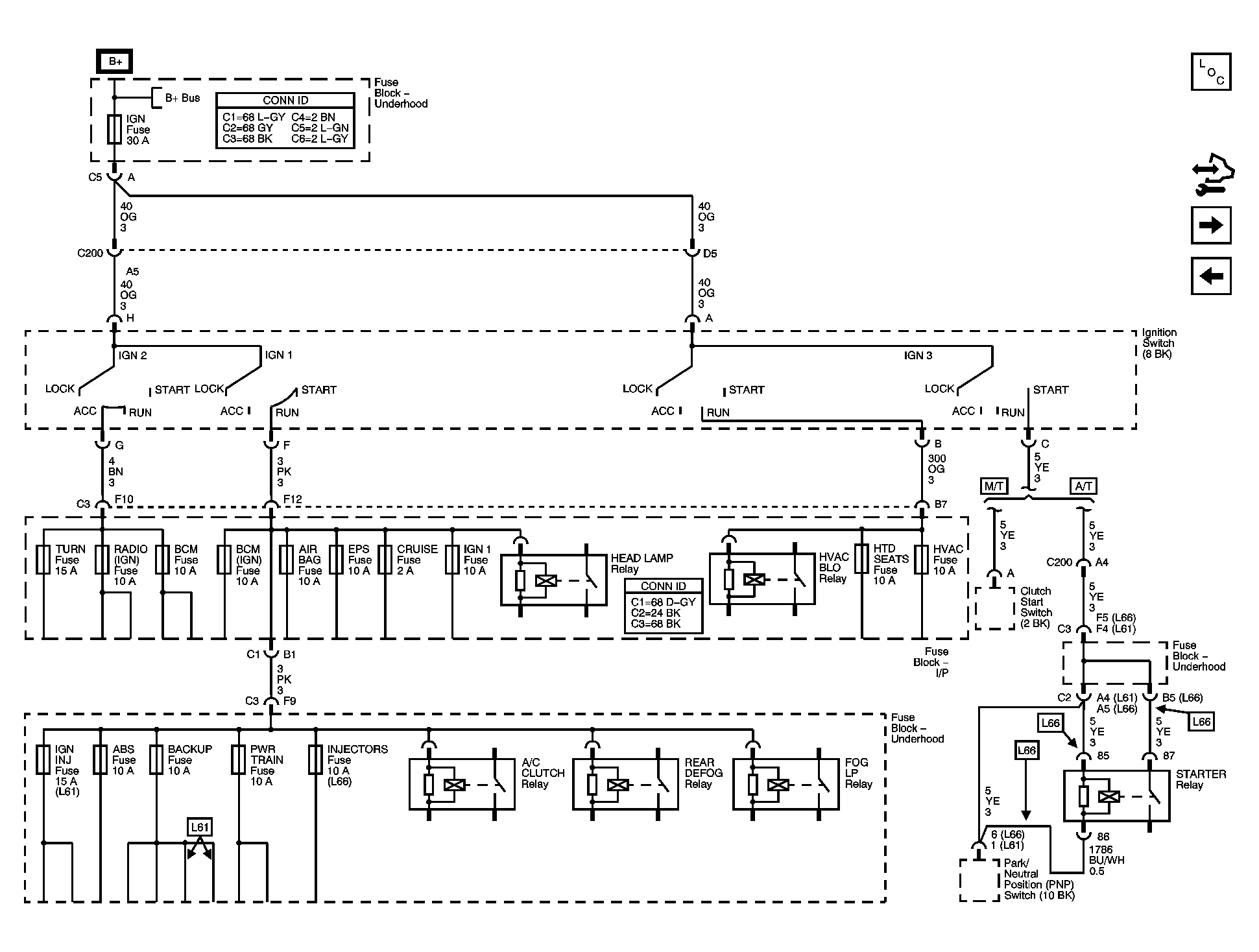

Fig 8: IGN Fuse and the Ignition Switch Circuits

Courtesy of GENERAL MOTORS CORP.

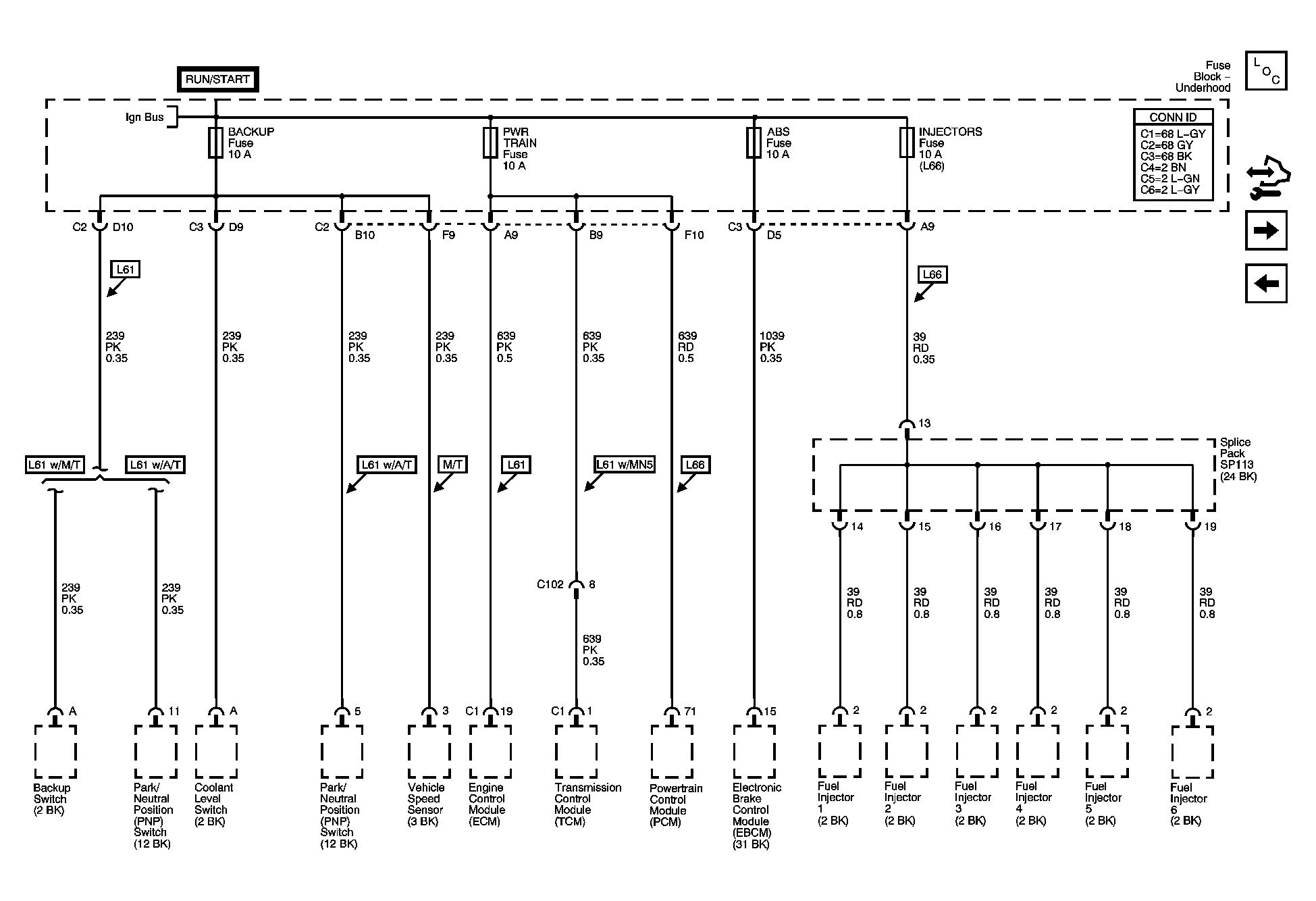

Fig 9: INJECTORS Fuse (L66), BACKUP Fuse, PWR TRAIN Fuse and the 10A ABS Fuse

Courtesy of GENERAL MOTORS CORP.

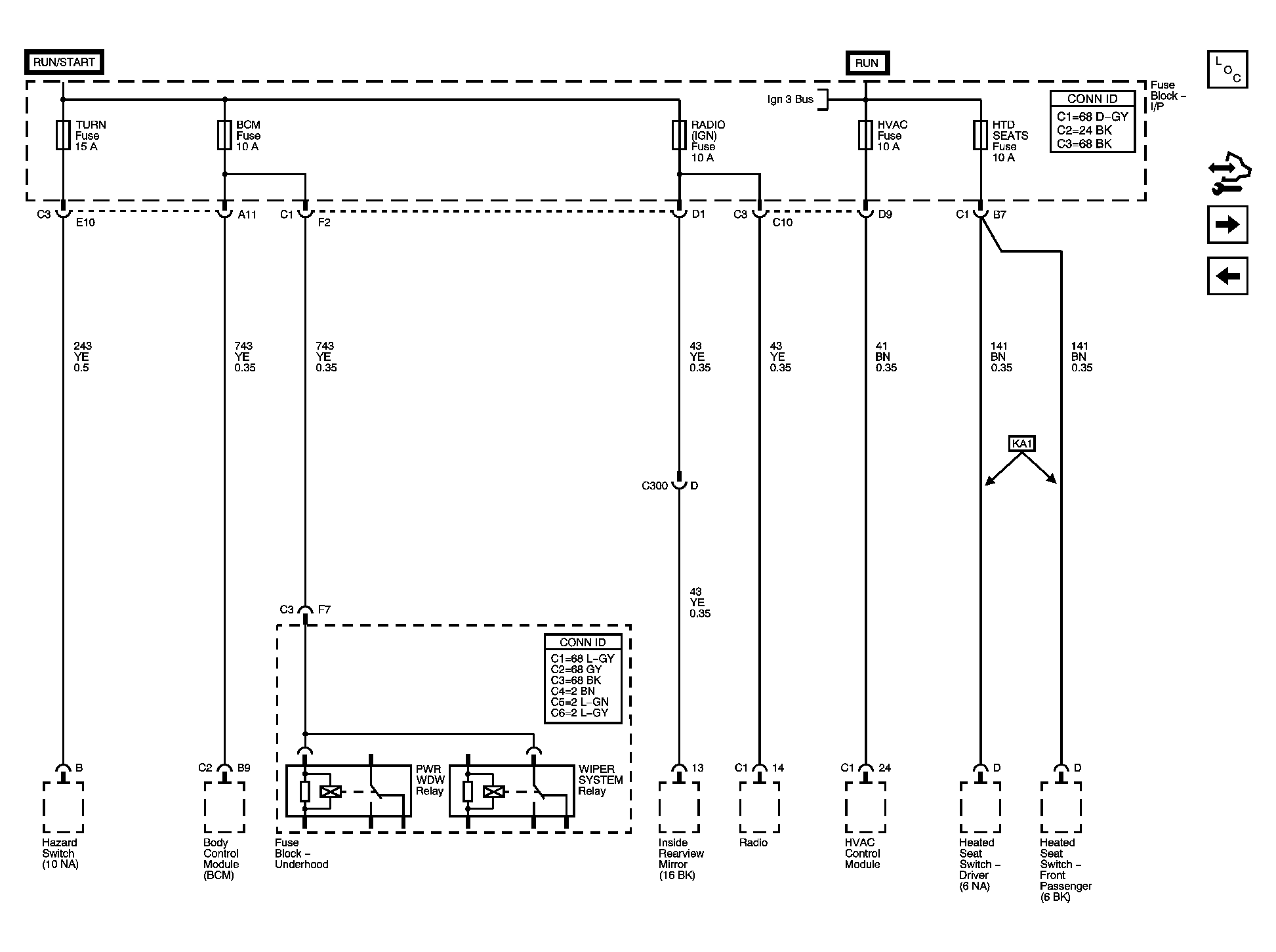

Fig 10: TURN Fuse, BCM Fuse, RADIO(IGN) Fuse, HVAC Fuse and the HTD SEAST Fuse

Courtesy of GENERAL MOTORS CORP.

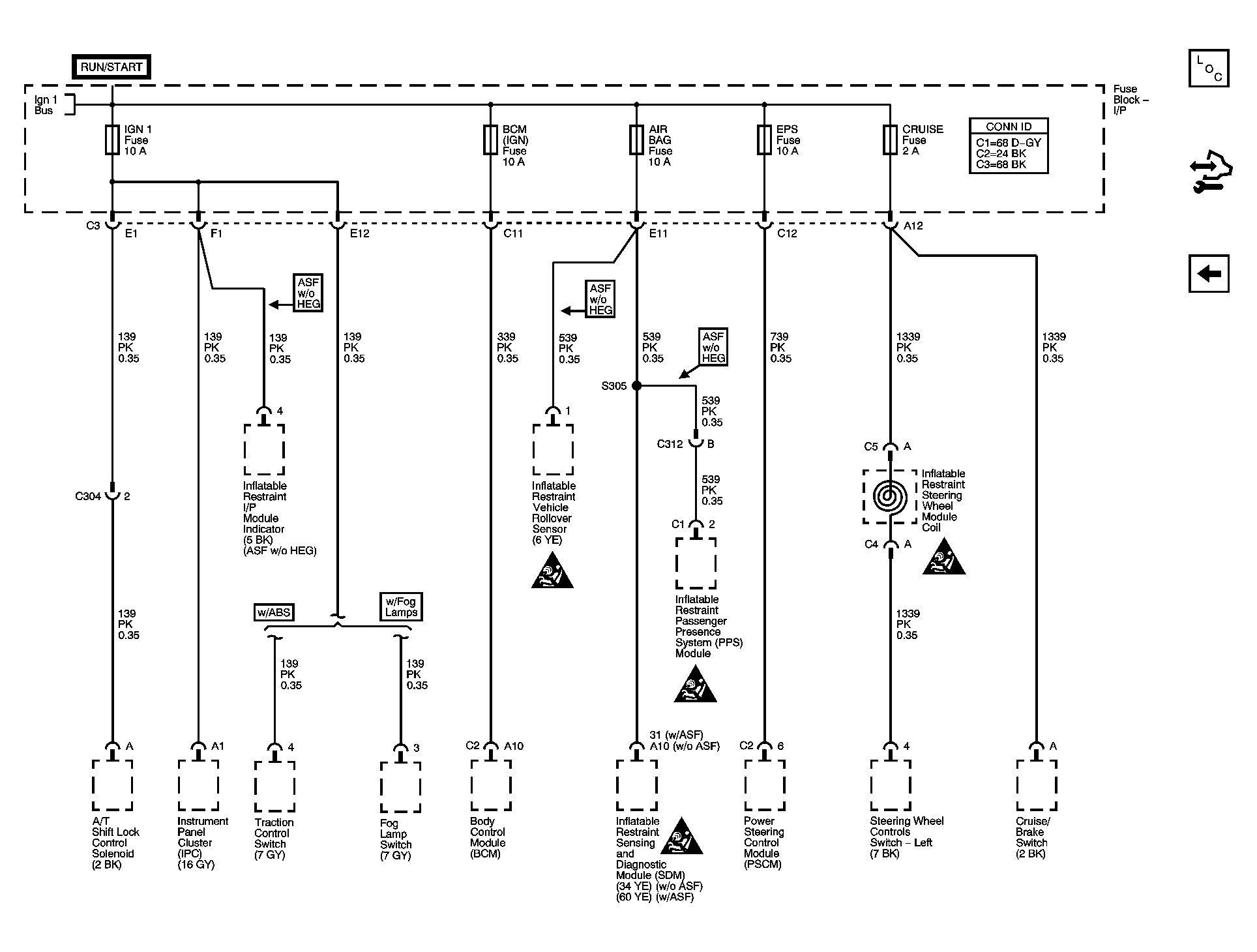

Fig 11: IGN 1 Fuse, BCM(IGN) Fuse, AIR BAG Fuse, EPS Fuse and the CRUISE Fuse

Courtesy of GENERAL MOTORS CORP.
