Ground Distribution Schematics

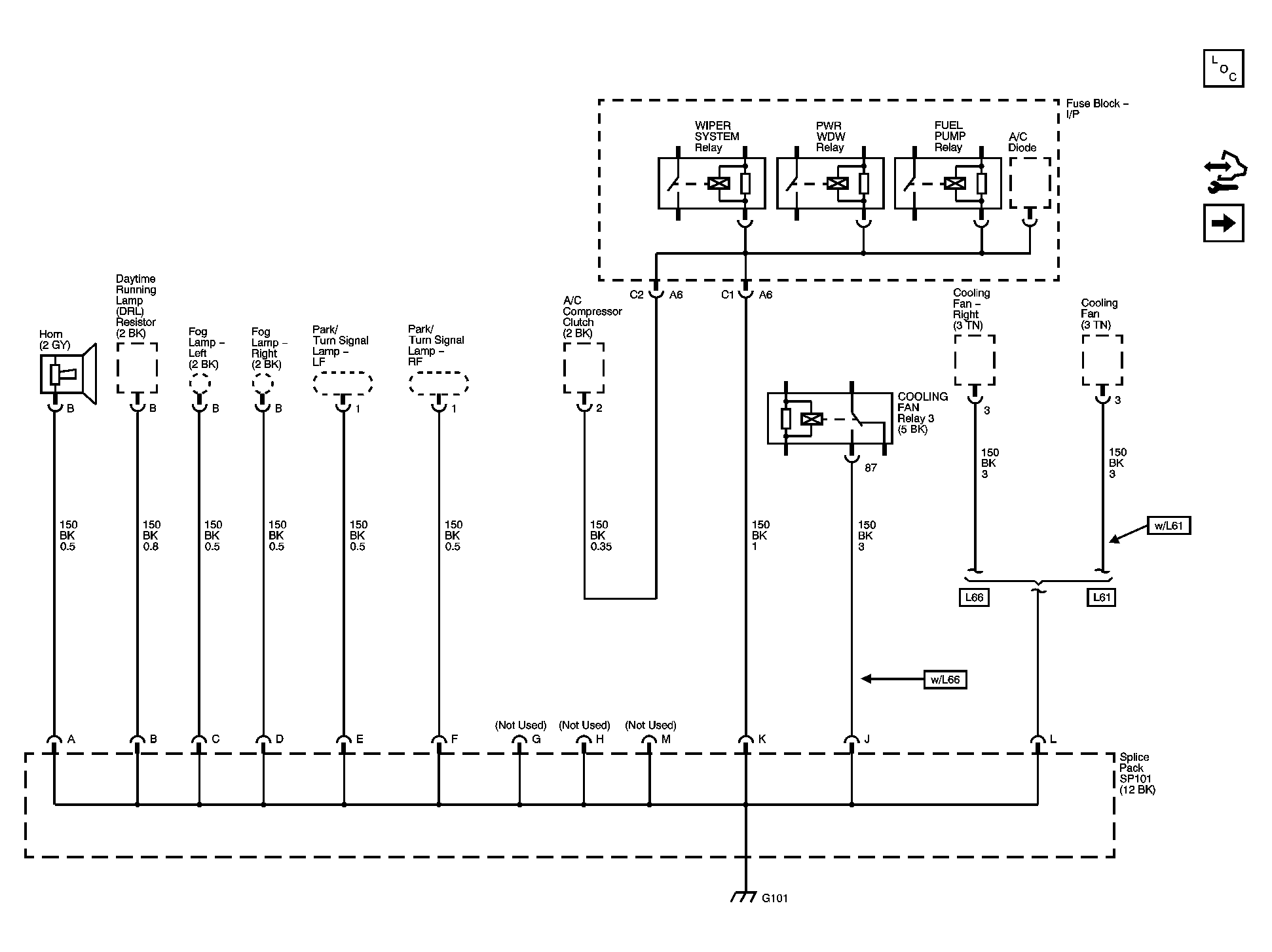

Fig 1: G101
GM1583942Courtesy of GENERAL MOTORS CORP.

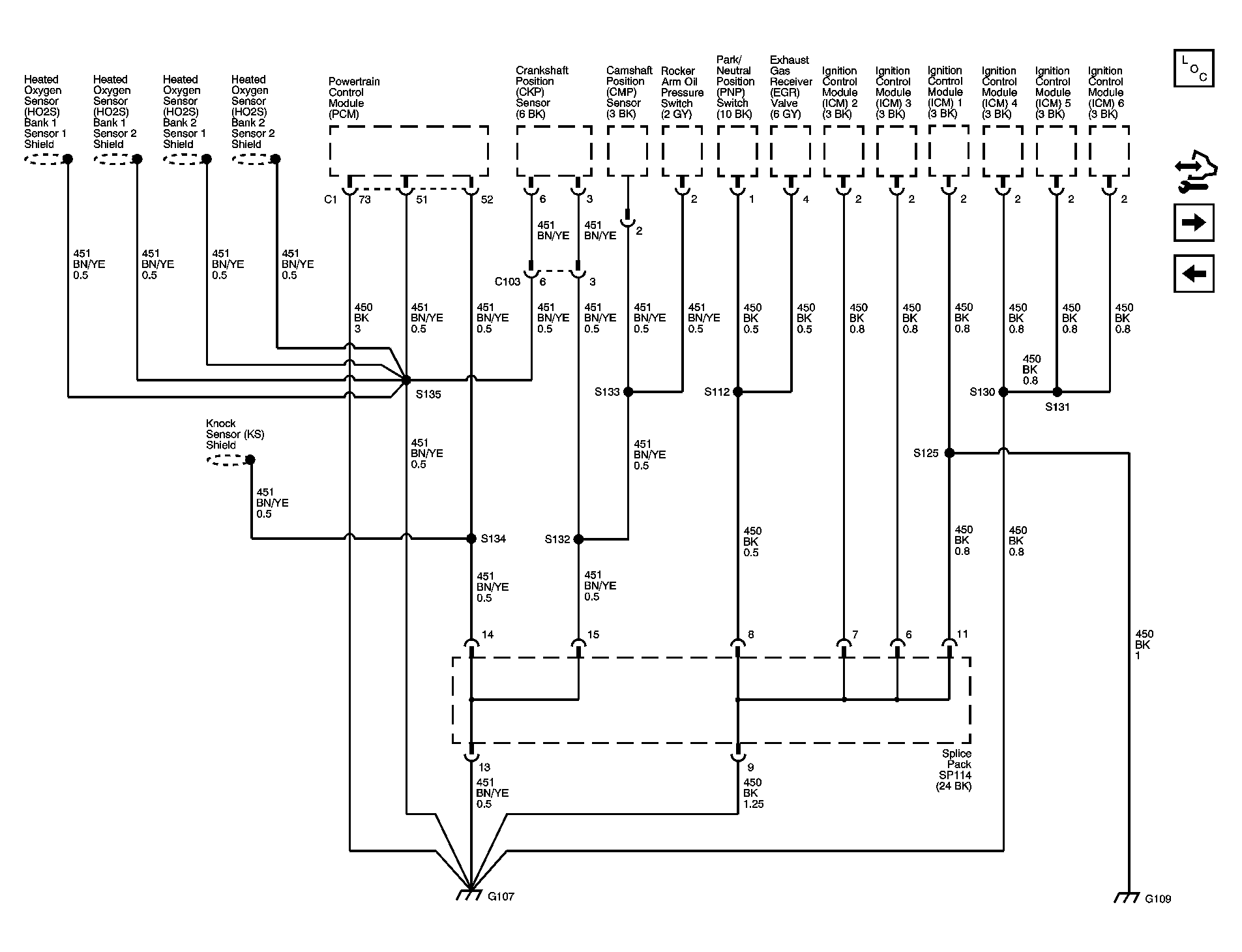

Fig 2: G107 and G109 - L66
GM1583943Courtesy of GENERAL MOTORS CORP.
Fig 3: G103, G105 and G207
GM1583944Courtesy of GENERAL MOTORS CORP.

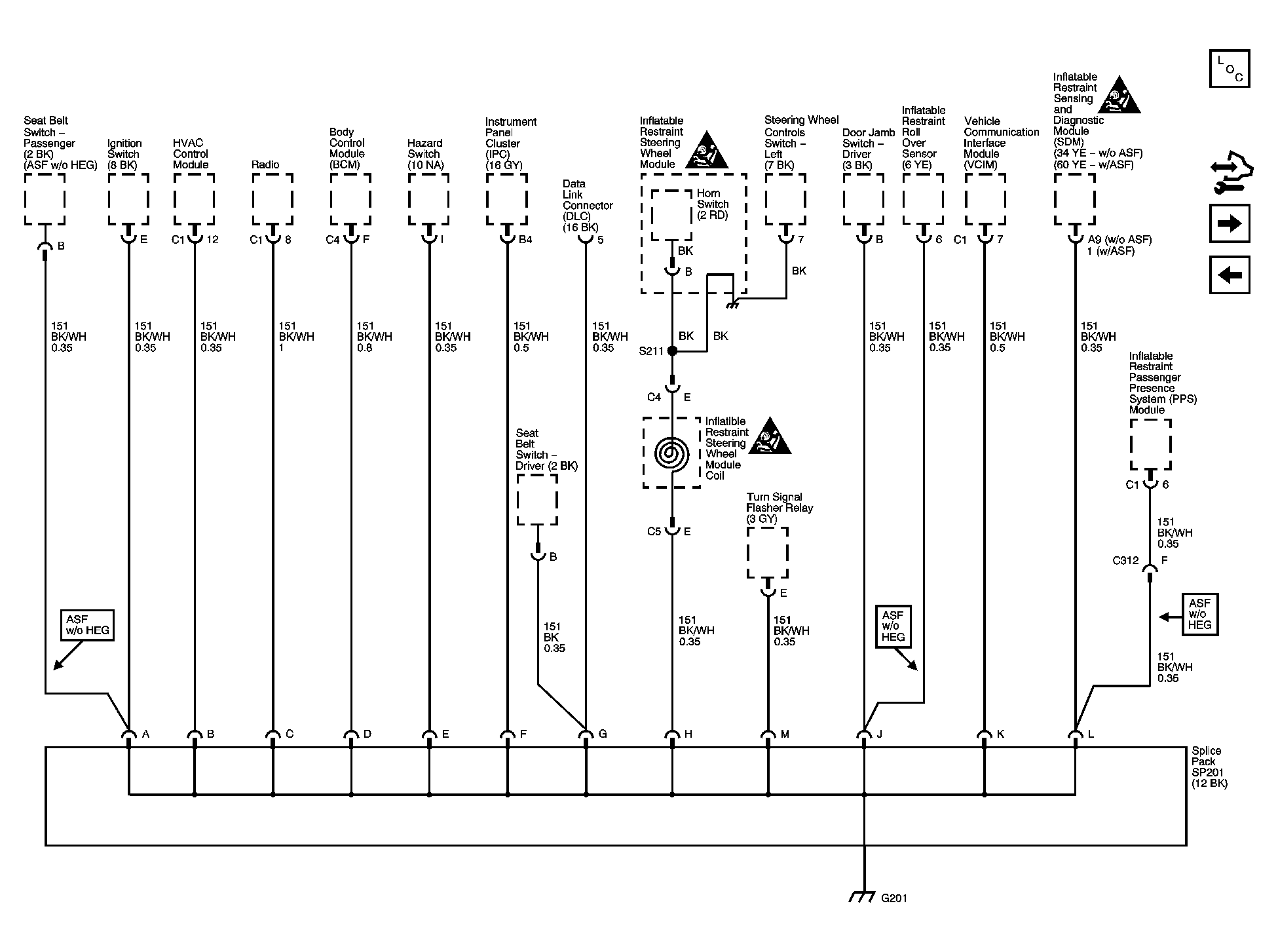

Fig 4: G201
GM1583945Courtesy of GENERAL MOTORS CORP.

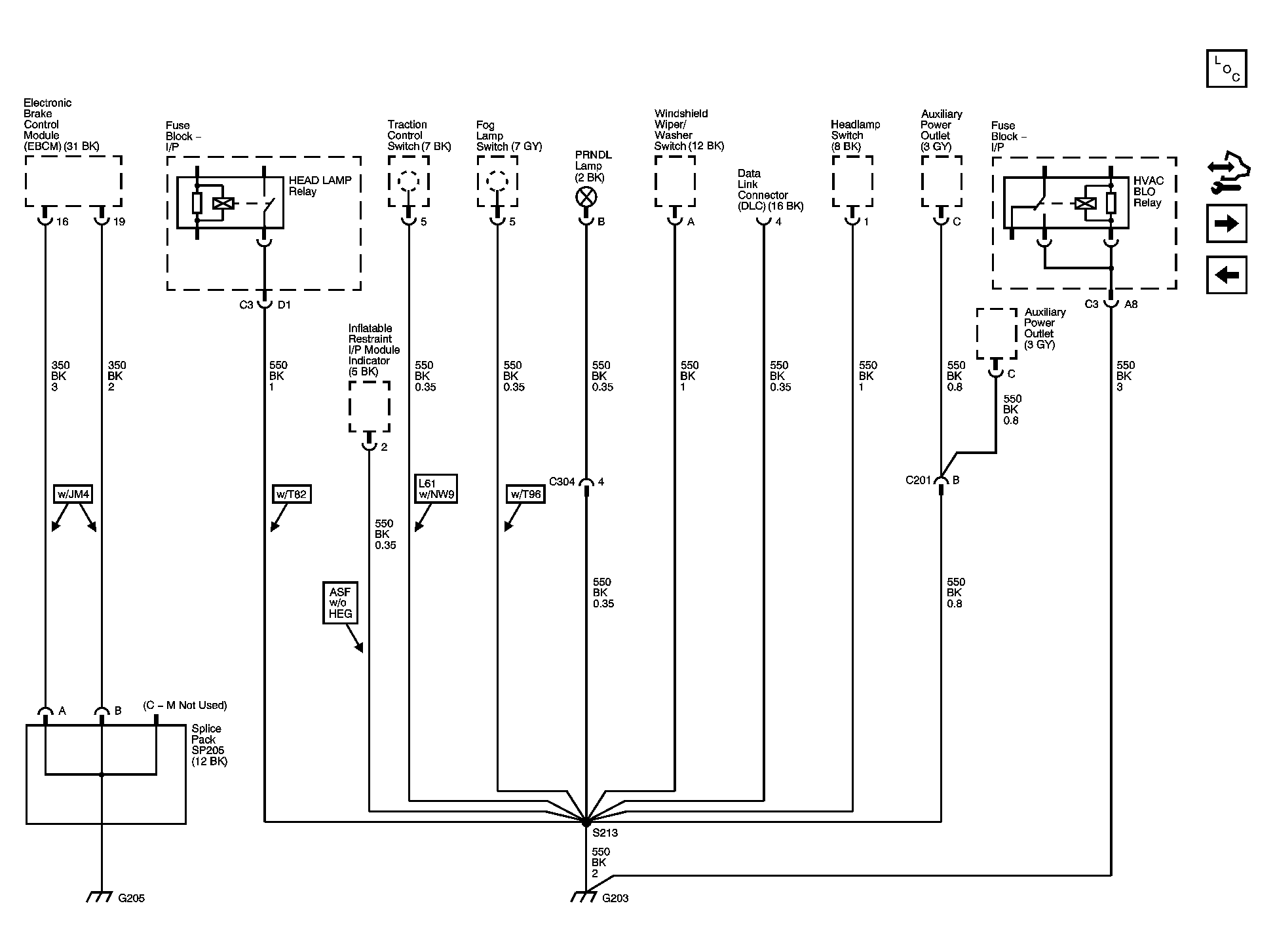

Fig 5: G203 and G205
GM1583946Courtesy of GENERAL MOTORS CORP.

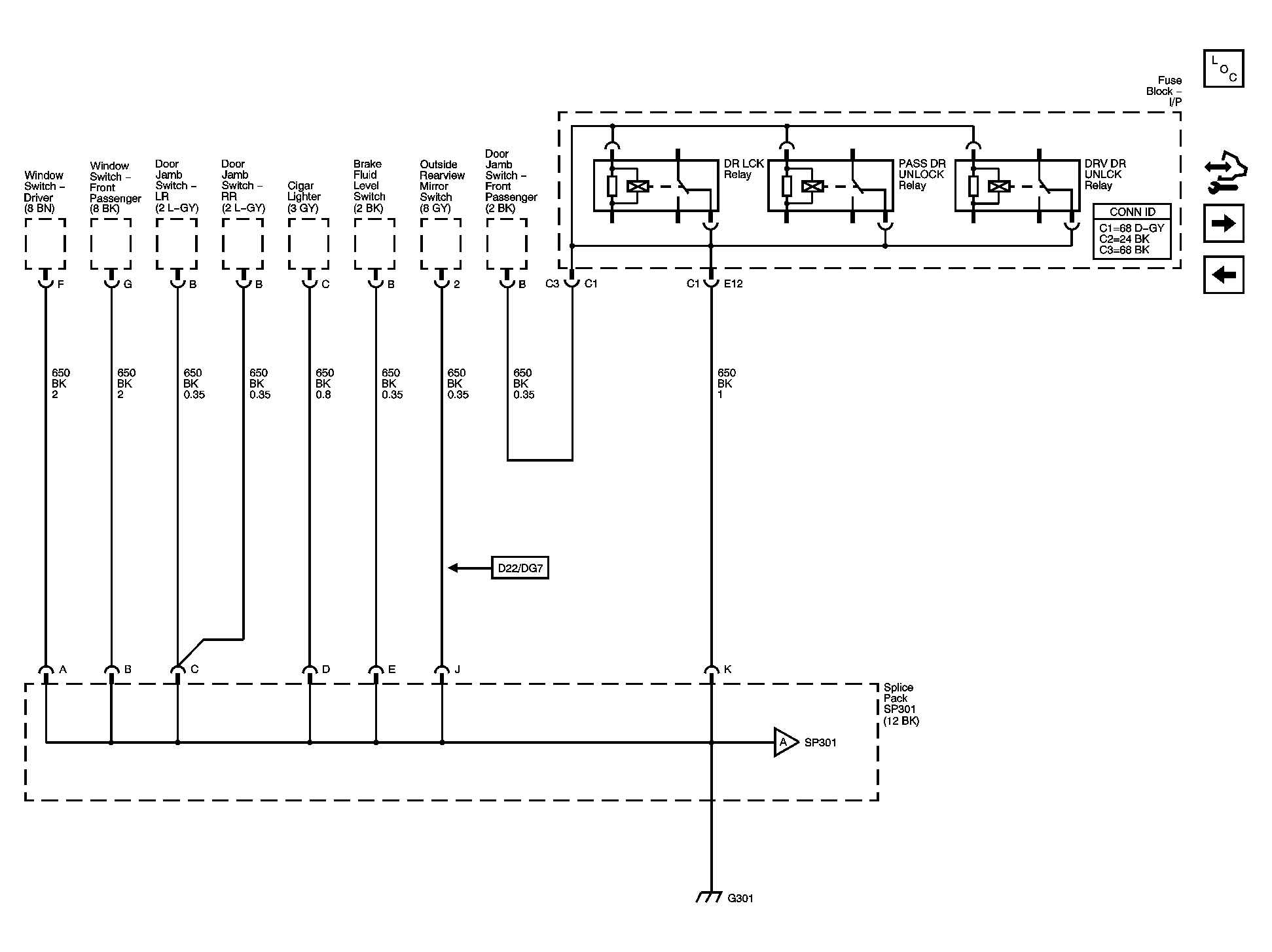

Fig 6: G301 1 of 2
GM1583947Courtesy of GENERAL MOTORS CORP.

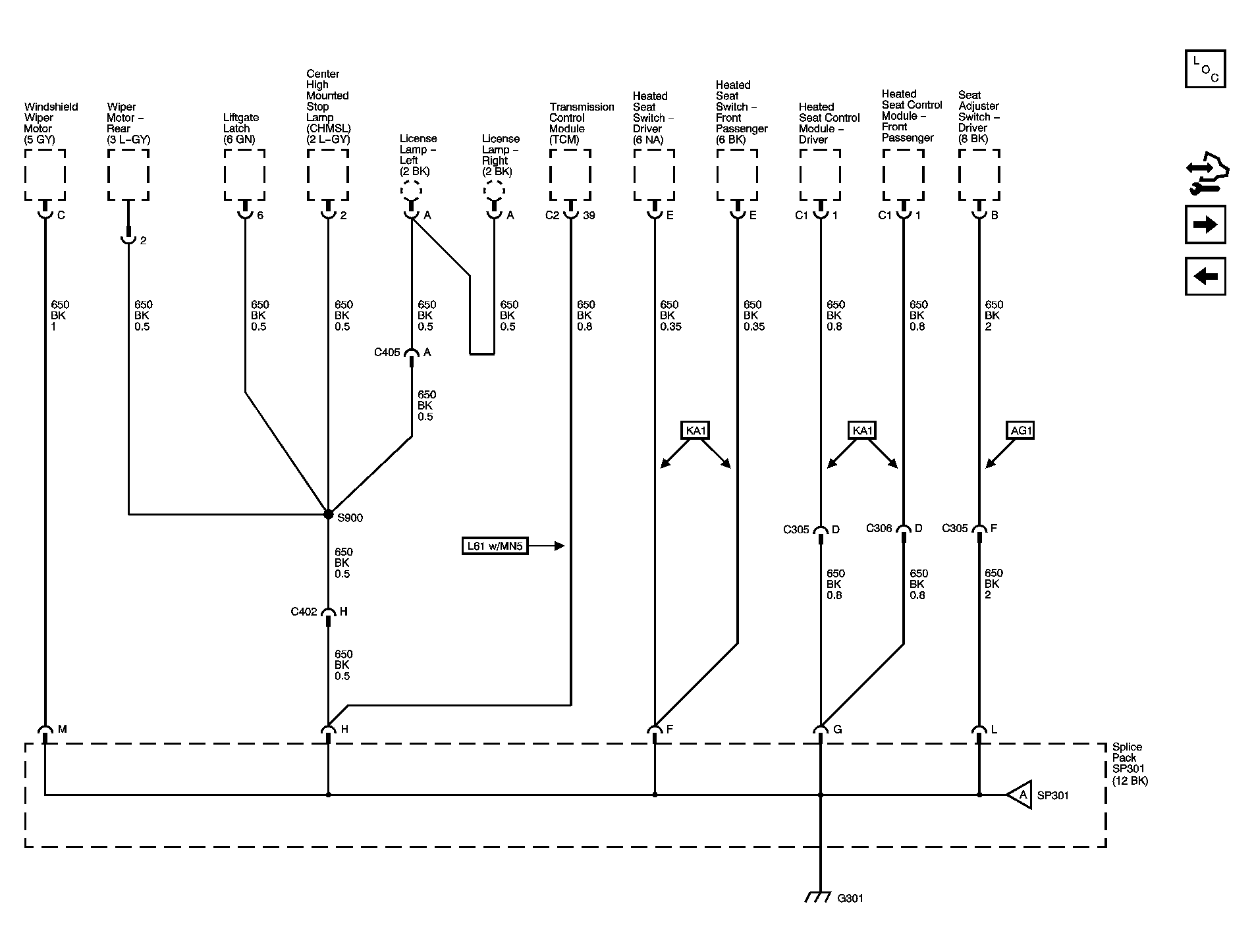

Fig 7: G301 2 of 2
GM1583948Courtesy of GENERAL MOTORS CORP.

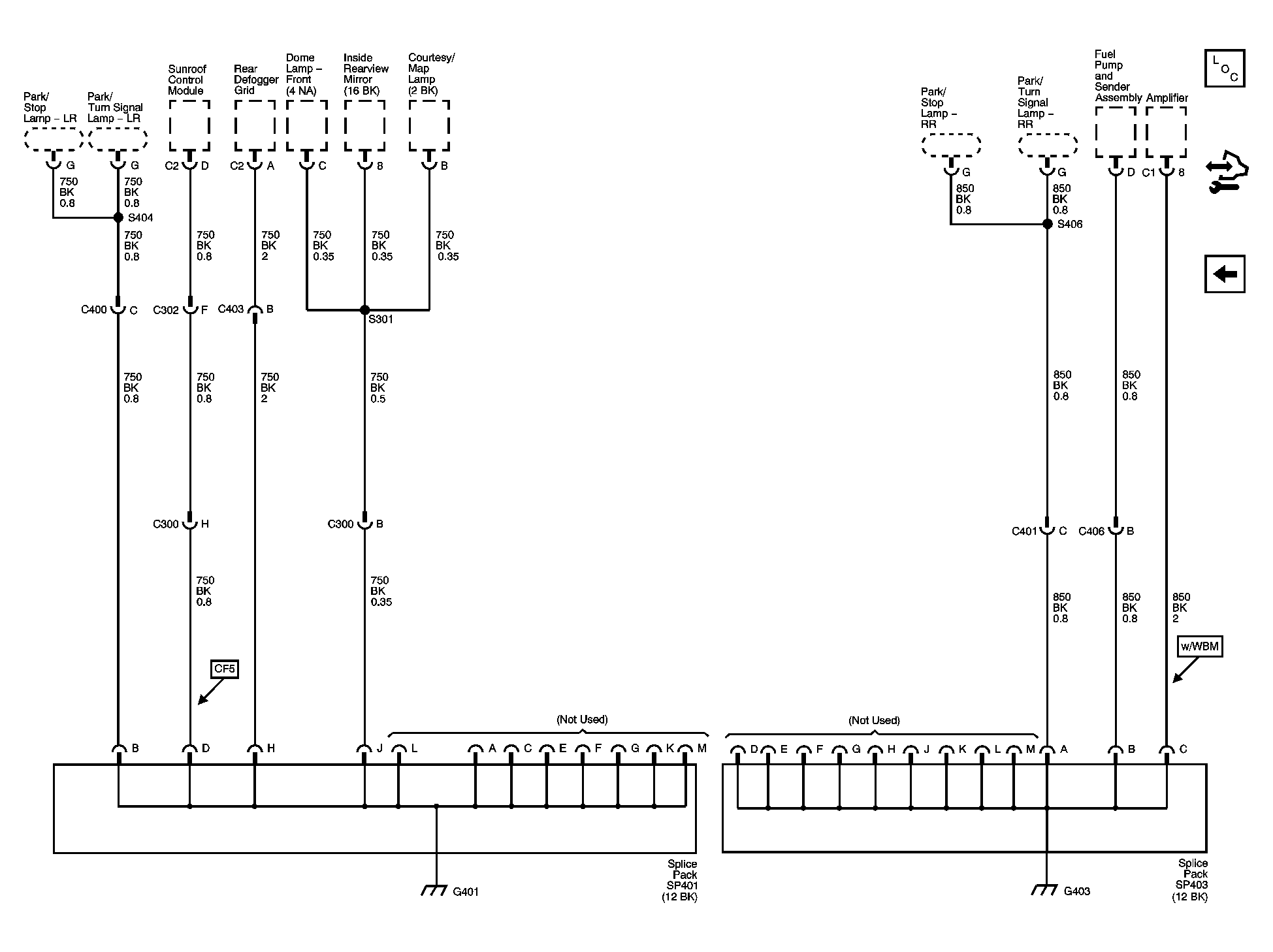

Fig 8: G401 and G403
GM1583949Courtesy of GENERAL MOTORS CORP.
