Installation Procedure

WARNING: This page is about a different car, the 2005 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

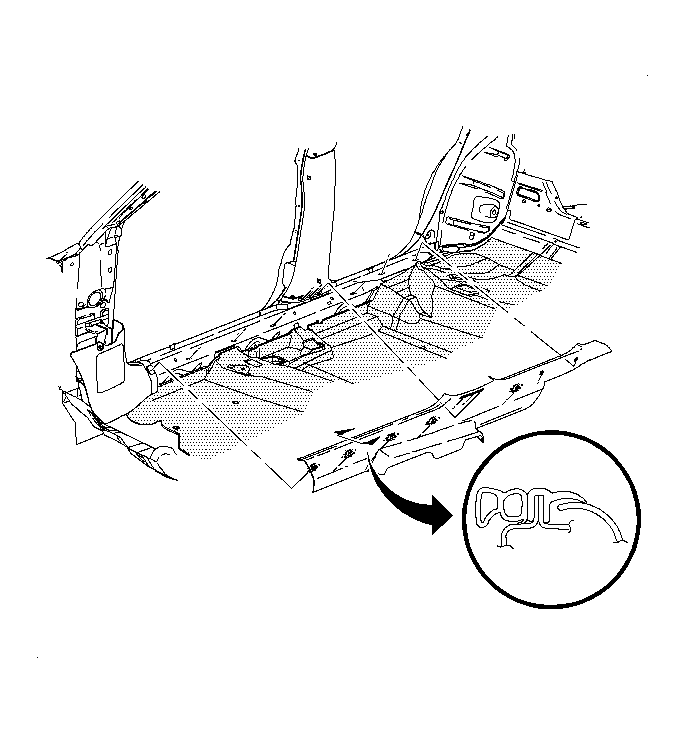

    Fig 1: Removing & Installing Carpet Retainer
    GM881410Courtesy of GENERAL MOTORS CORP.
  1. Position the carpet retainer into the vehicle.
  2. Starting at the rear of the vehicle, slide the carpet retainer under the rear seat cushion.
  3. Position the carpet retainer over the remaining attaching clip locations.
  4. Gently push on the attaching clips to install the carpet retainer.
  5. Install the weatherstrip over the carpet retainer using a flat-blade tool.
