Engine Controls Schematics

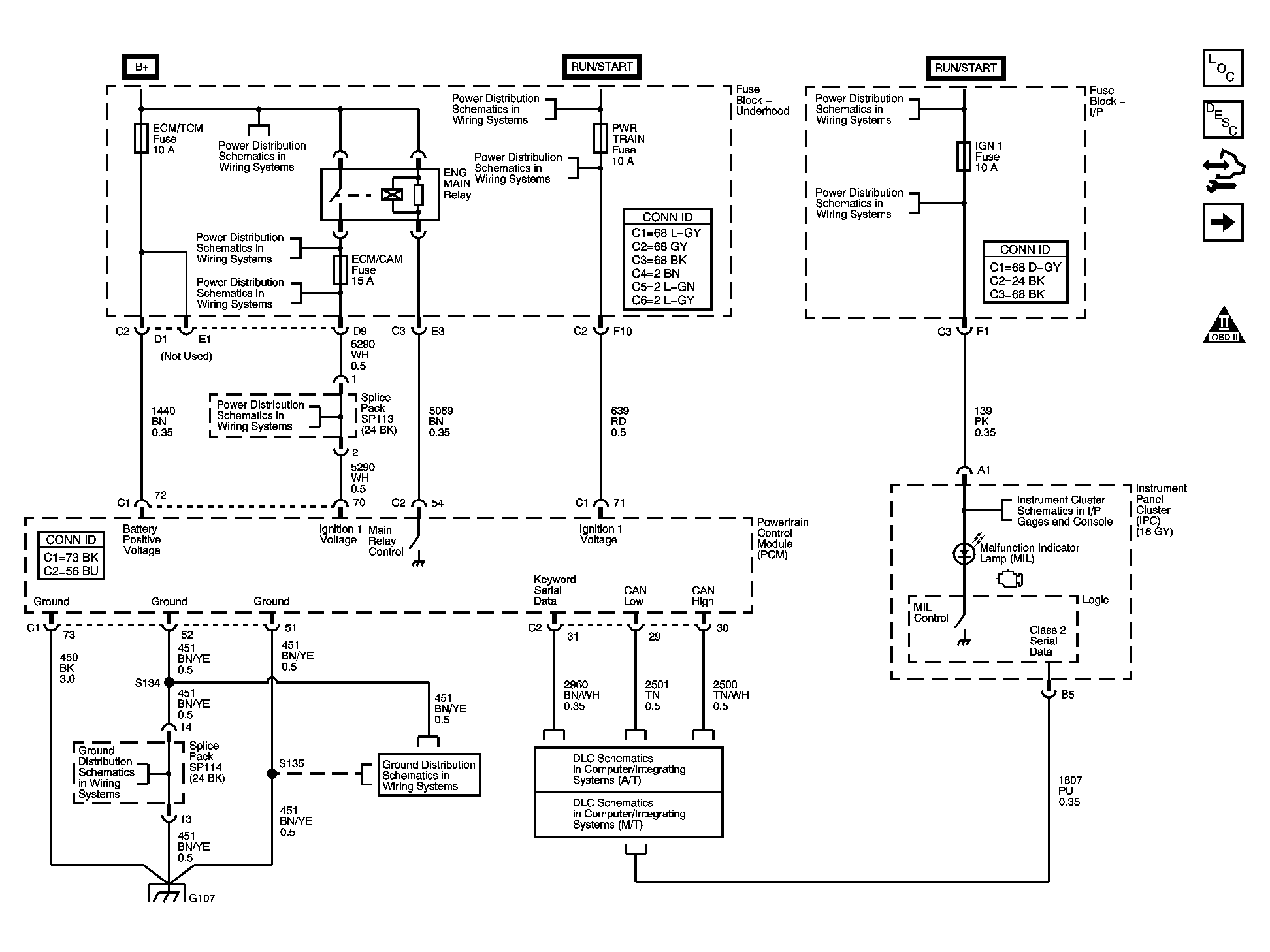

Fig 1: PCM Power, Ground, Communication and the MIL
GM1583995Courtesy of GENERAL MOTORS CORP.

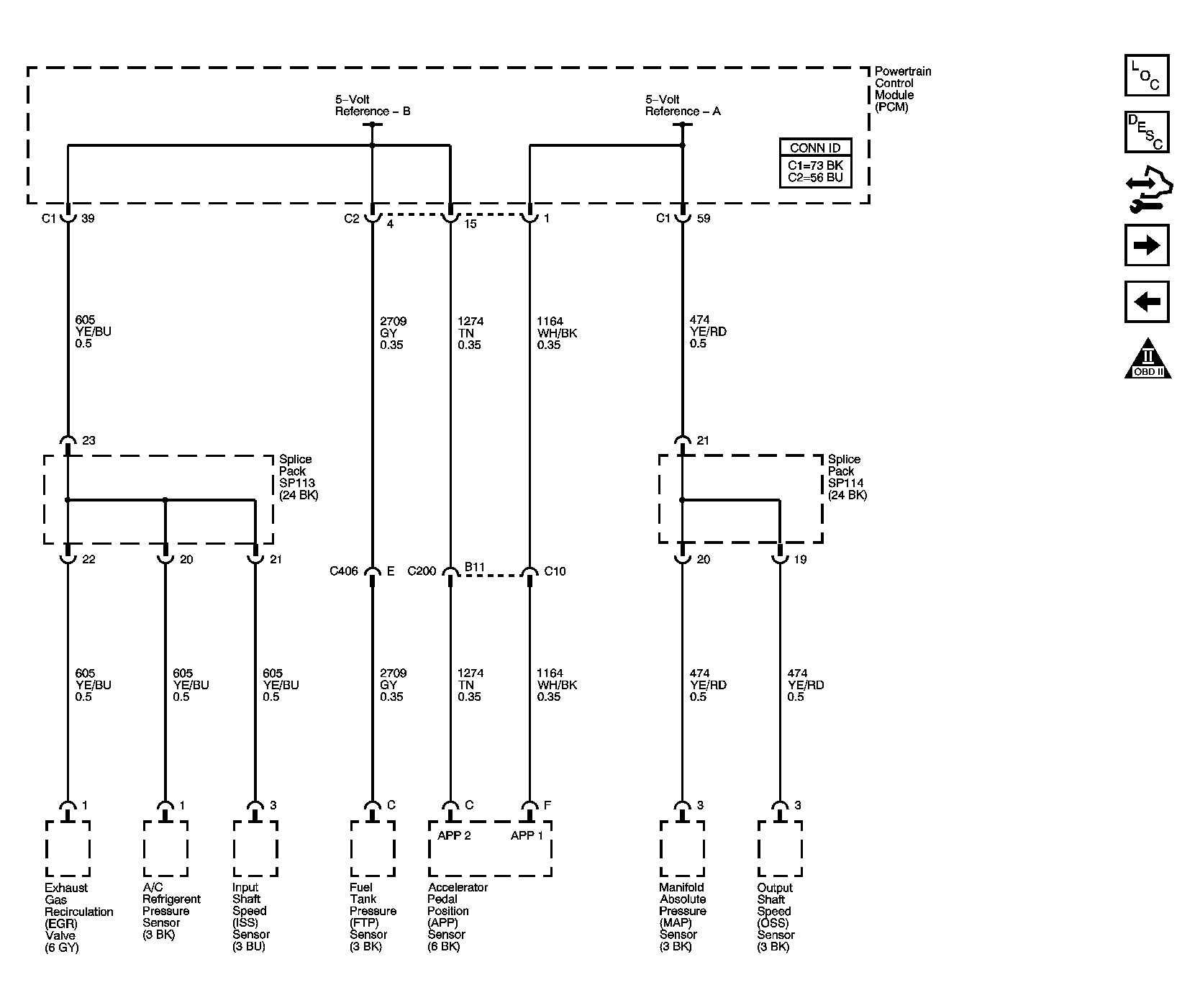

Fig 2: 5-Volt References
GM1583996Courtesy of GENERAL MOTORS CORP.

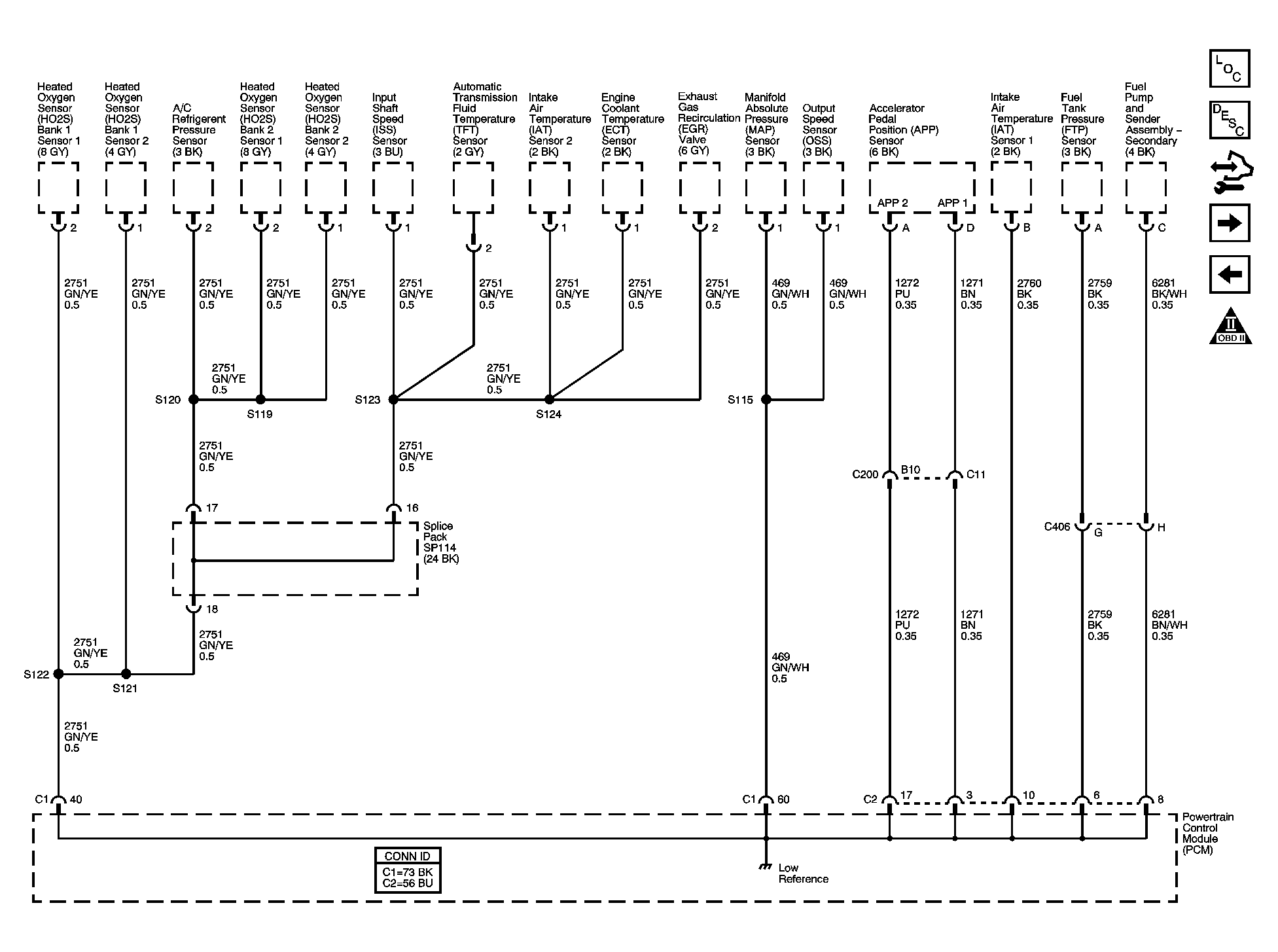

Fig 3: Low References
GM1583997Courtesy of GENERAL MOTORS CORP.

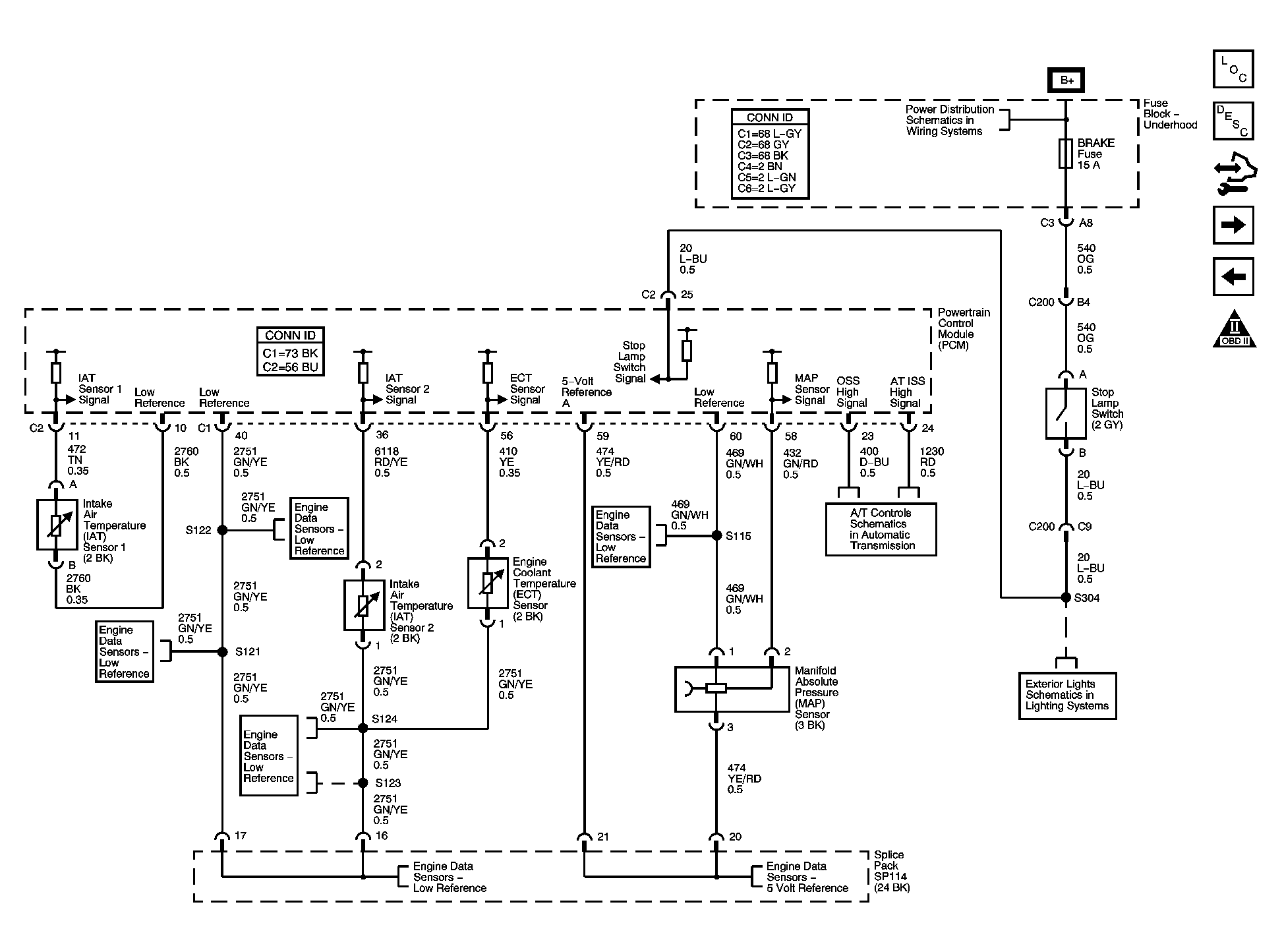

Fig 4: Engine Data Sensors - Pressure, Temperature and the Stop Lamp Switch
GM1583998Courtesy of GENERAL MOTORS CORP.

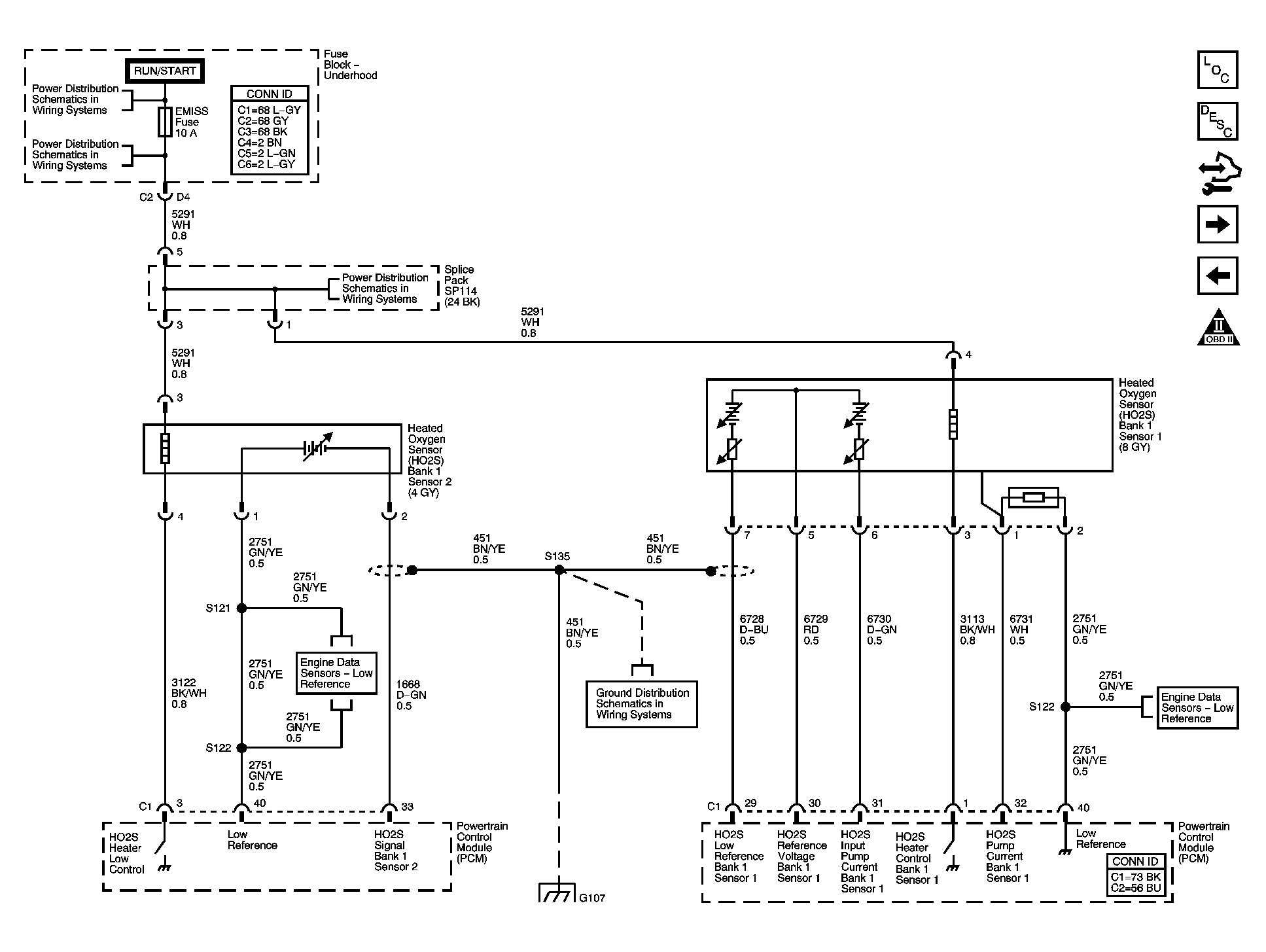

Fig 5: Engine Data Sensors - Bank 1 Oxygen Sensors
GM1584000Courtesy of GENERAL MOTORS CORP.

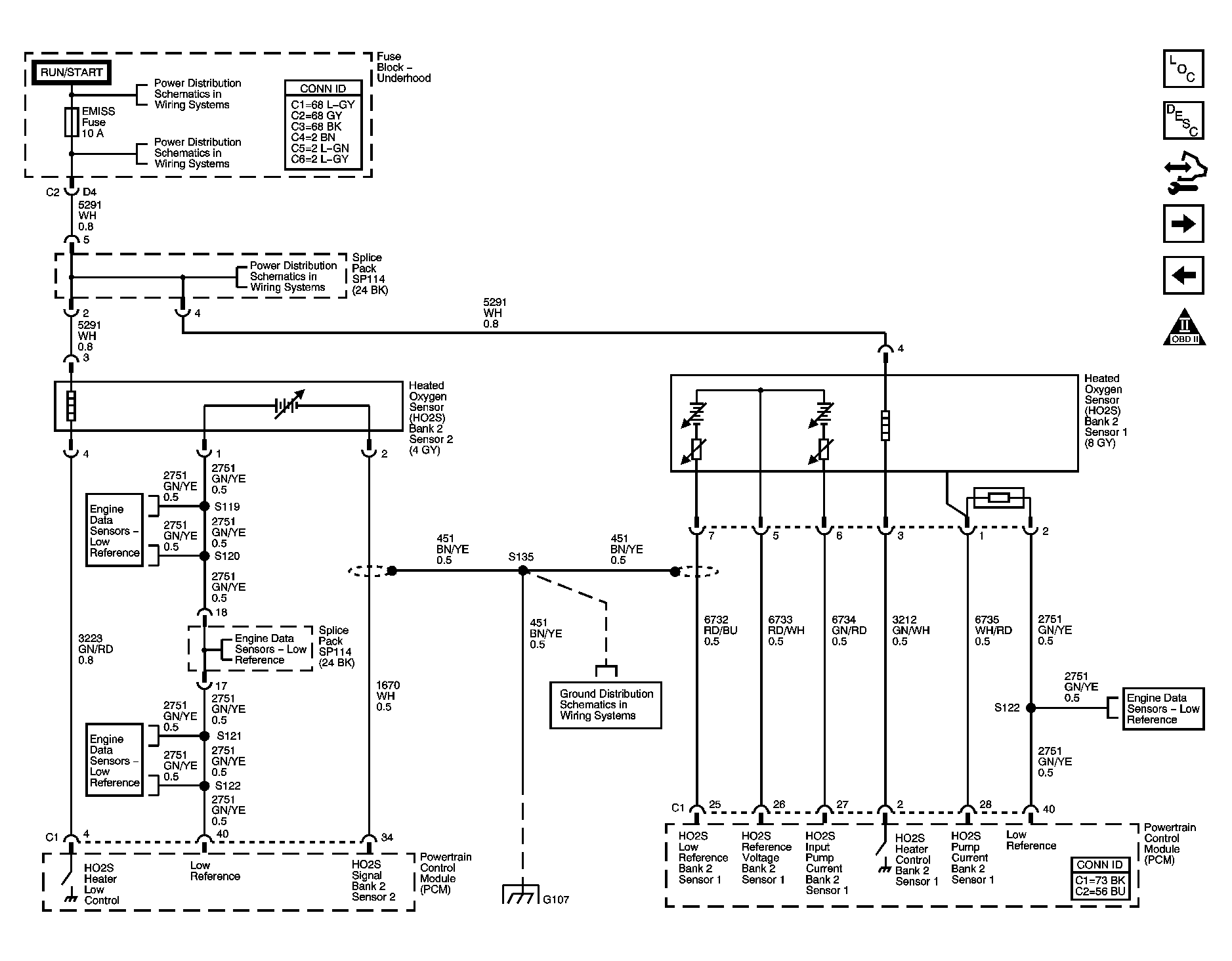

Fig 6: Engine Data Sensors - Bank 2 Oxygen Sensors
GM1584002Courtesy of GENERAL MOTORS CORP.

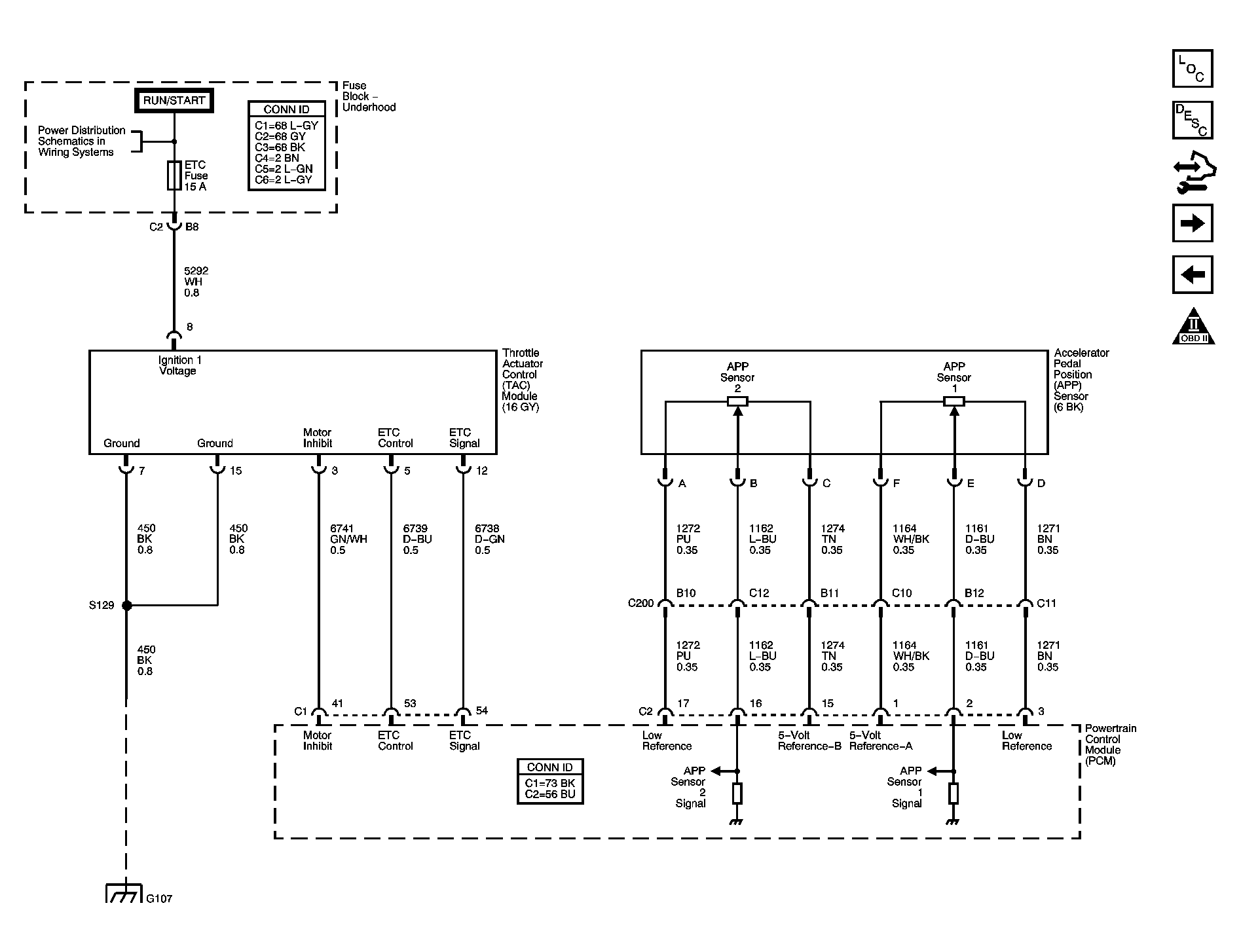

Fig 7: Engine Data Sensors - Throttle Actuator Controls
GM1584003Courtesy of GENERAL MOTORS CORP.

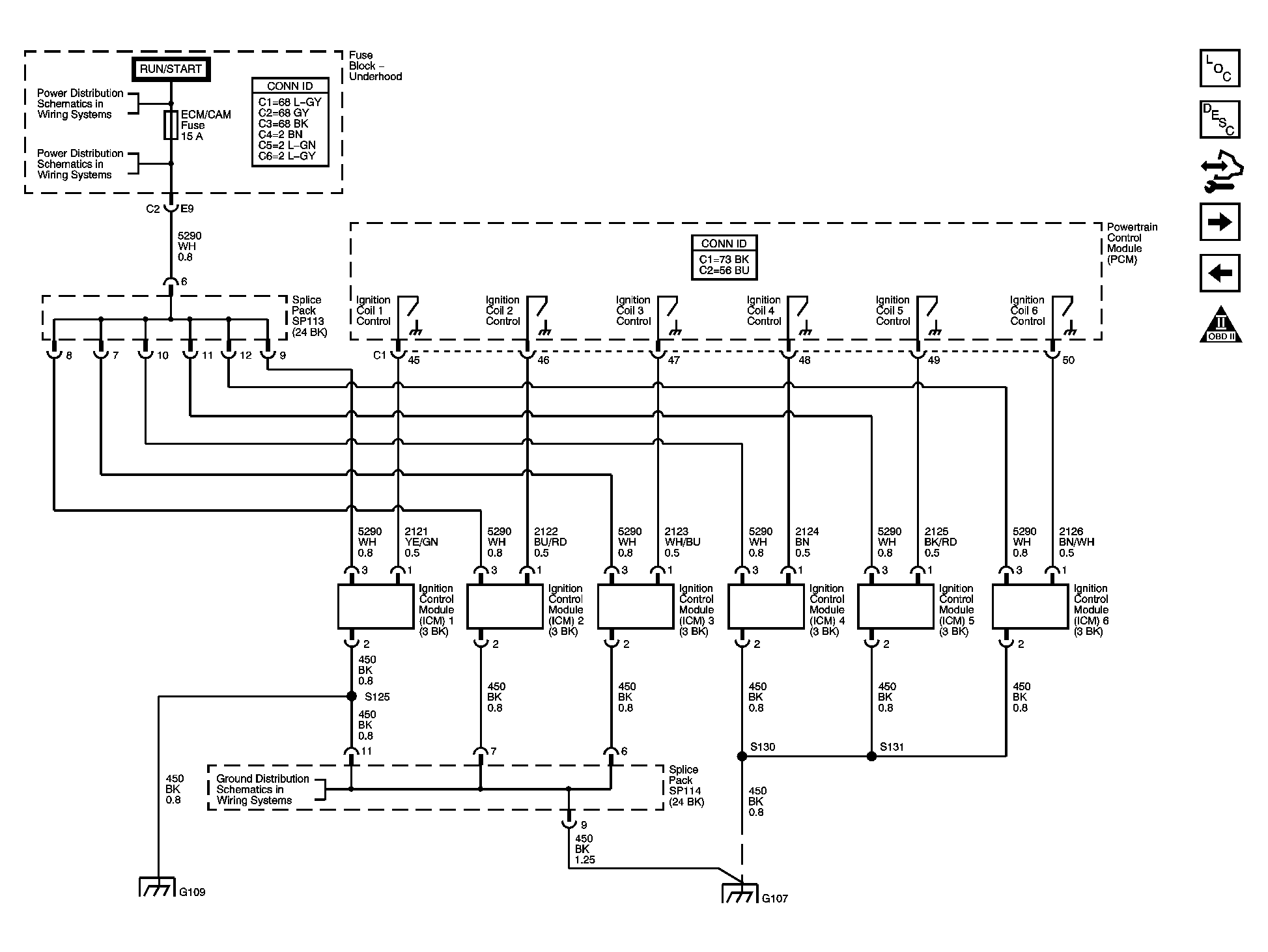

Fig 8: Ignition Controls - Ignition Modules
GM1584005Courtesy of GENERAL MOTORS CORP.

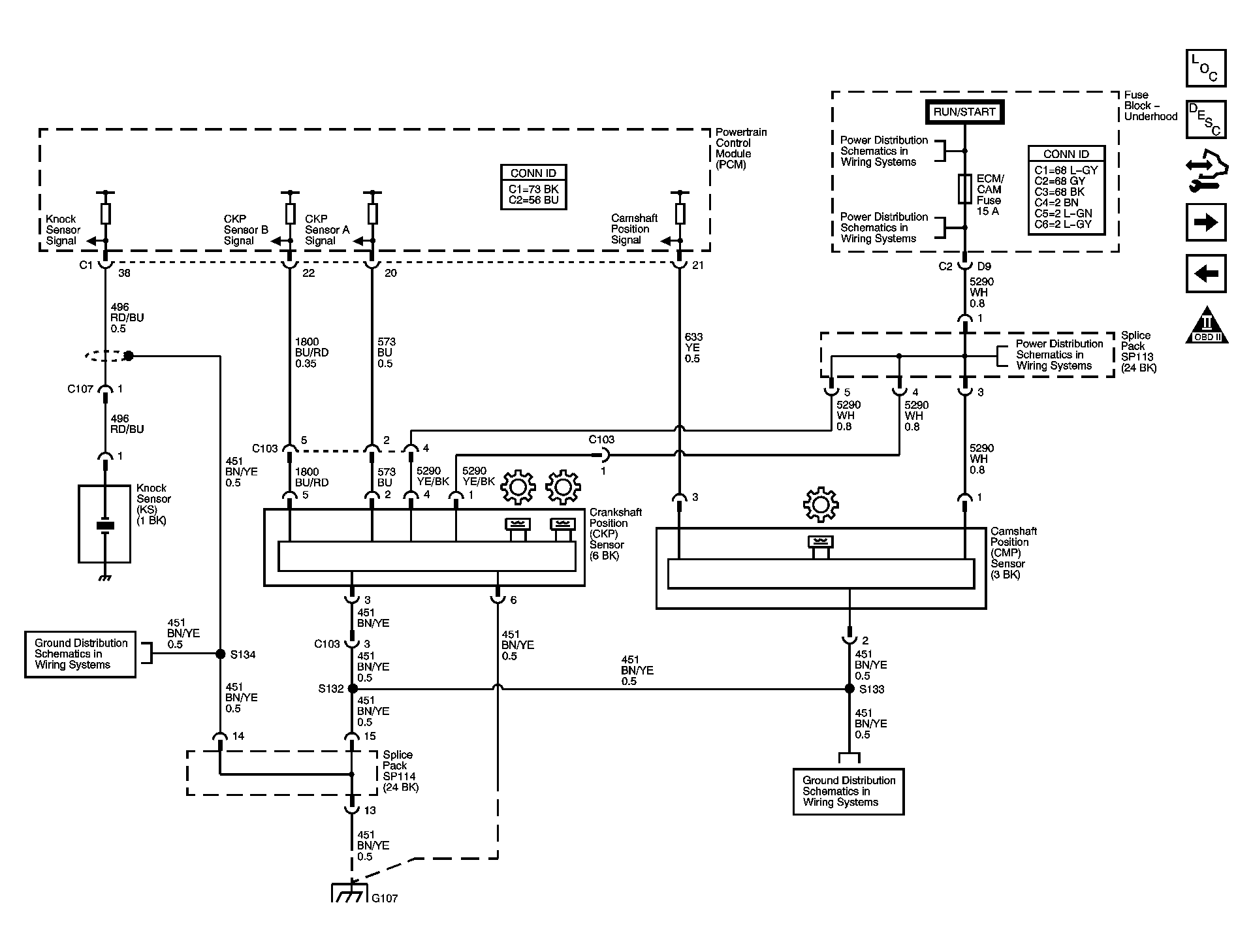

Fig 9: Engine Data Sensors - KS, CKP and CMP Sensors
GM1584009Courtesy of GENERAL MOTORS CORP.

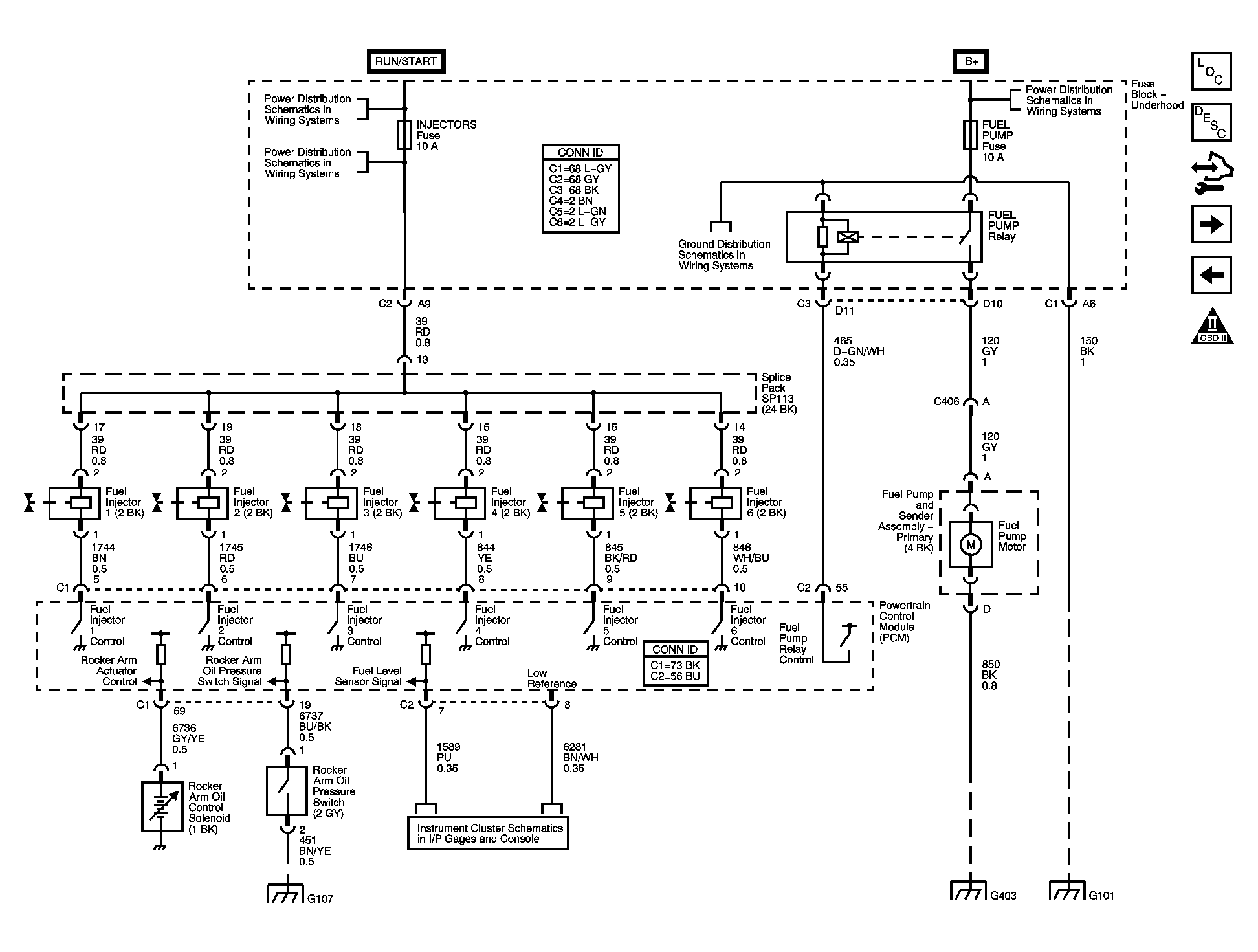

Fig 10: Fuel Controls - Fuel Pump, Injectors, Rocker Arm Solenoid and Rocker Arm Switch
GM1584010Courtesy of GENERAL MOTORS CORP.

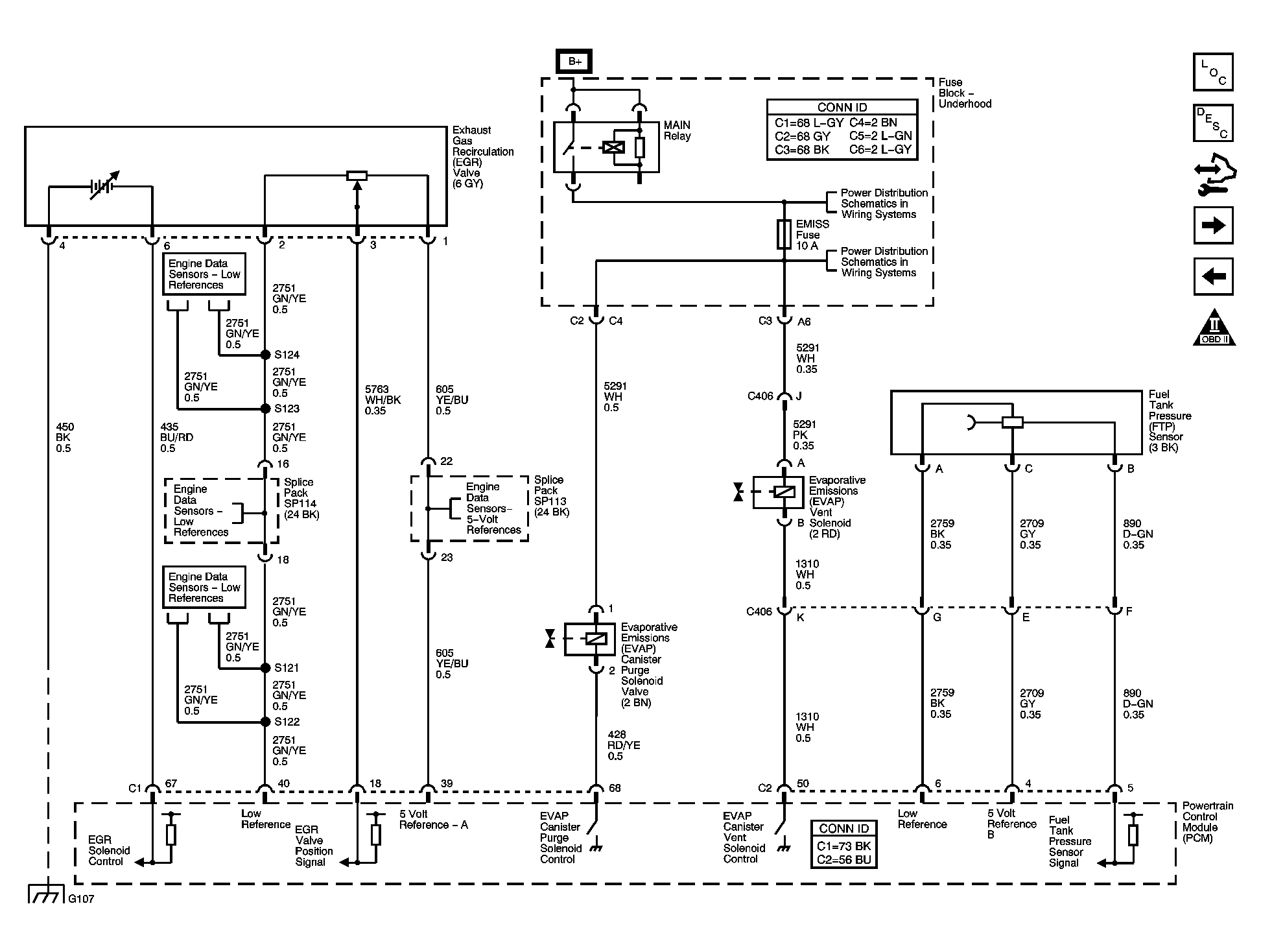

Fig 11: Fuel Controls - EVAP Controls
GM1608189Courtesy of GENERAL MOTORS CORP.

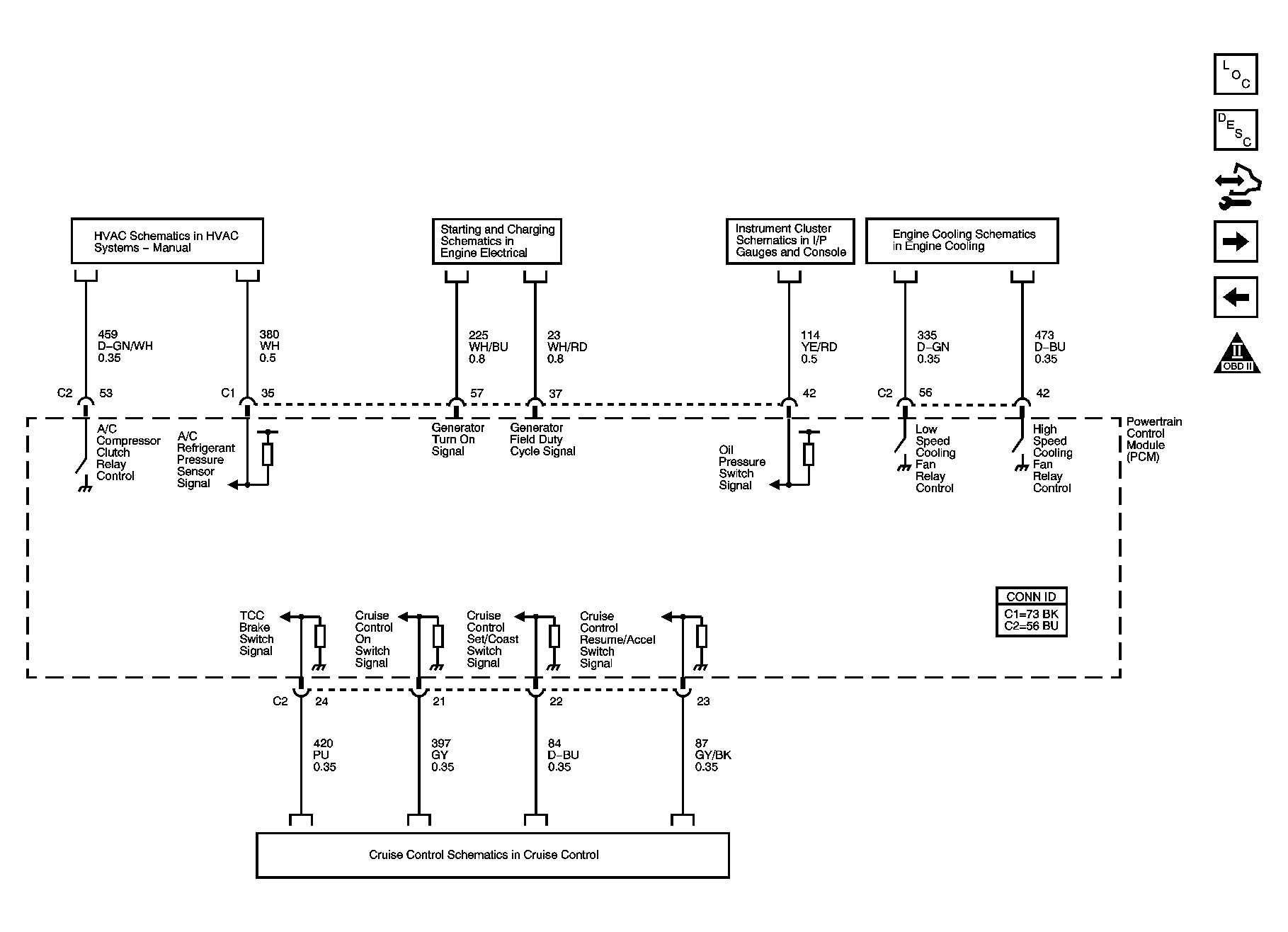

Fig 12: Controlled/Monitored Subsystem References
GM1584013Courtesy of GENERAL MOTORS CORP.

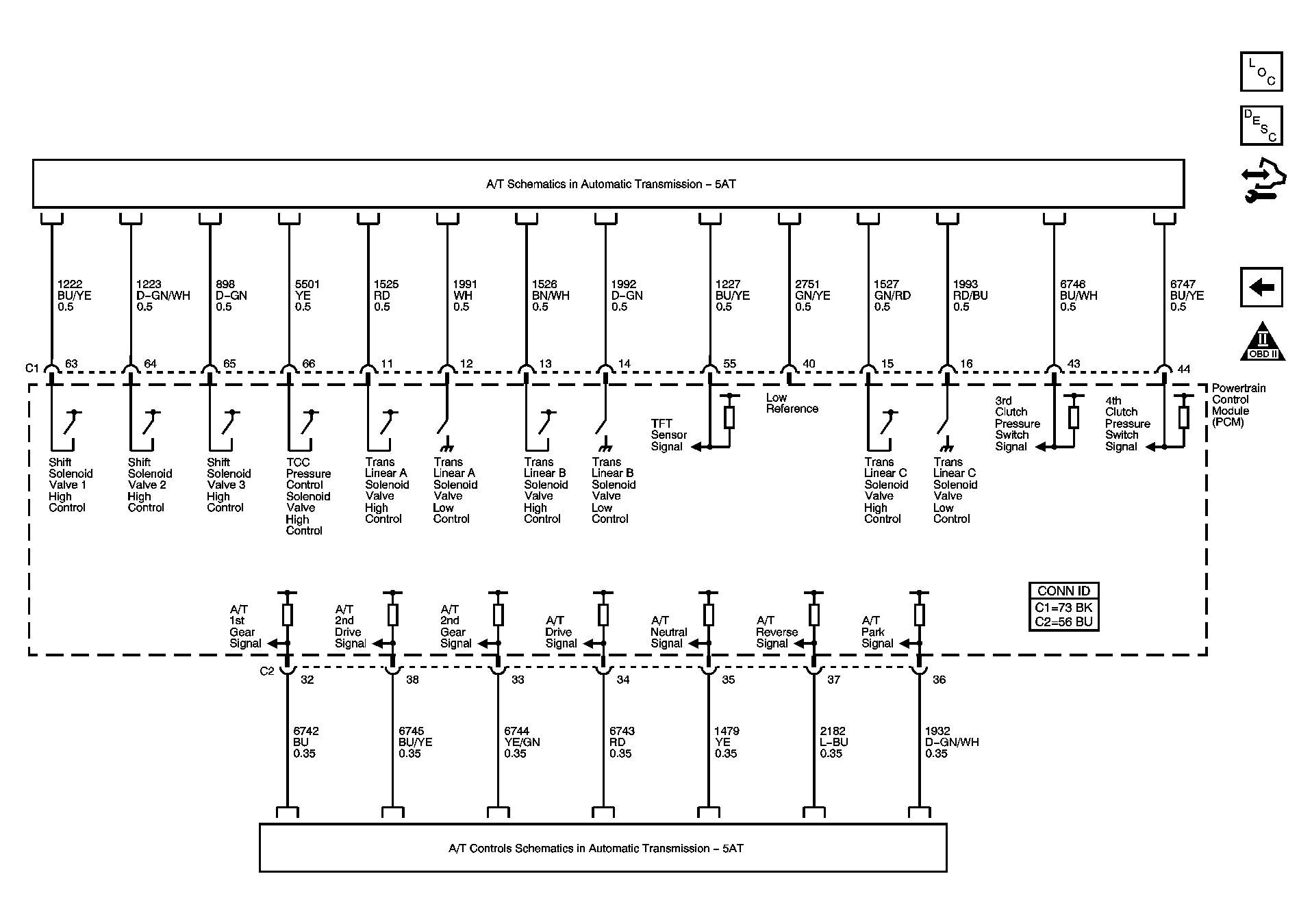

Fig 13: Transmission Controls References
GM1584014Courtesy of GENERAL MOTORS CORP.
