ABS Schematics

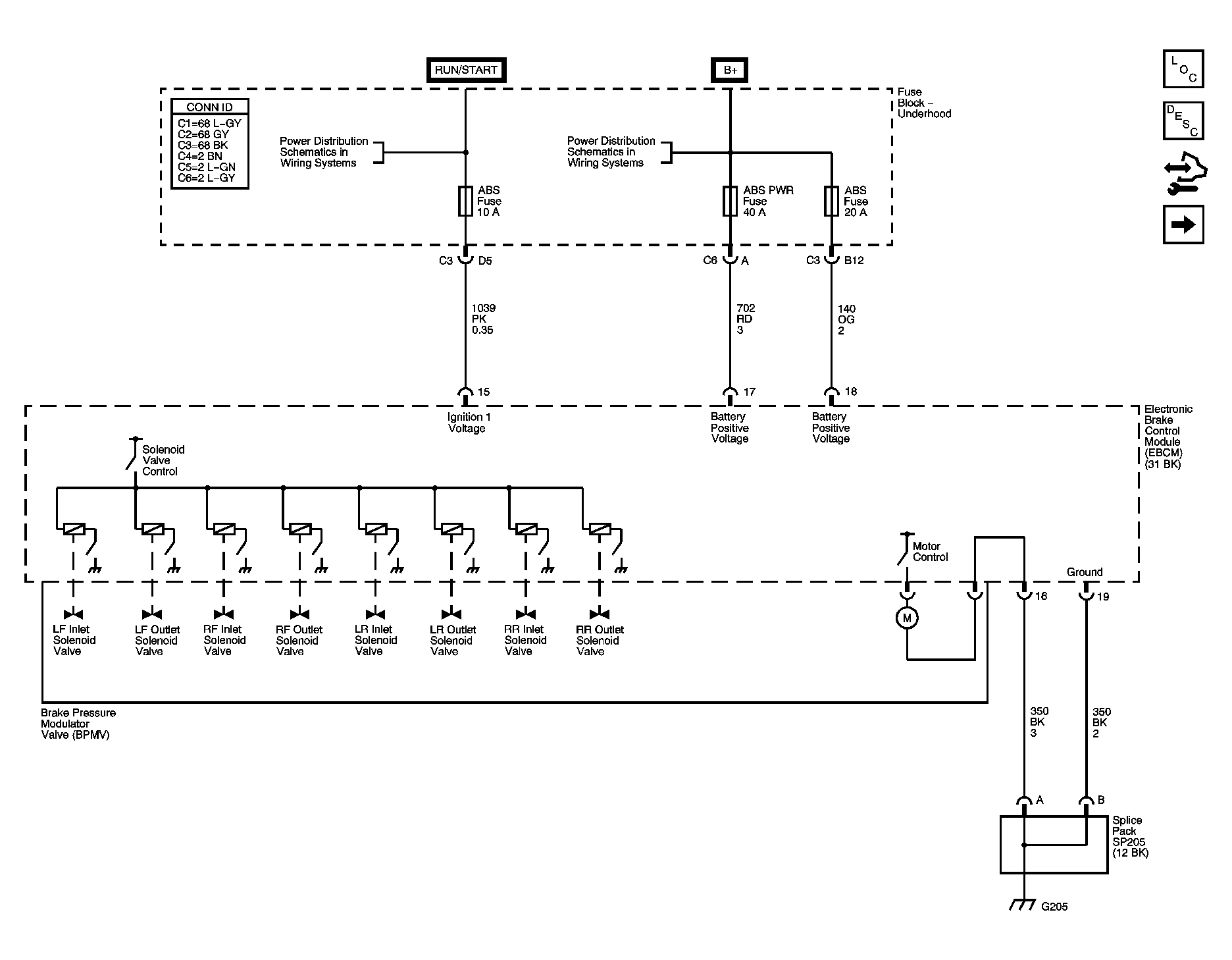

Fig 1: Power and Ground Schematic
GM1583955Courtesy of GENERAL MOTORS CORP.

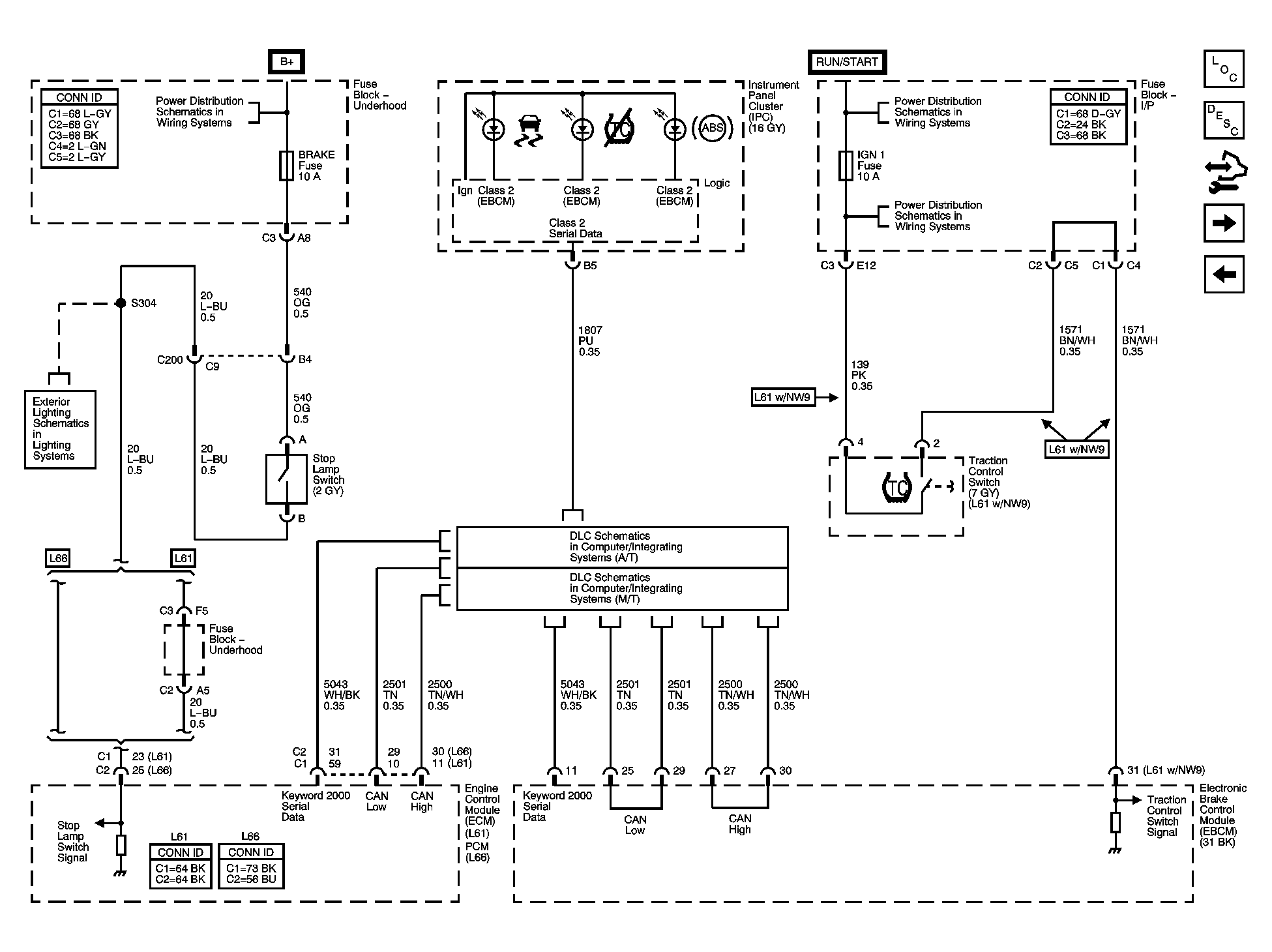

Fig 2: TC Switch, Indicators and the Stop Lamp Switch Signal Schematic
GM1583956Courtesy of GENERAL MOTORS CORP.

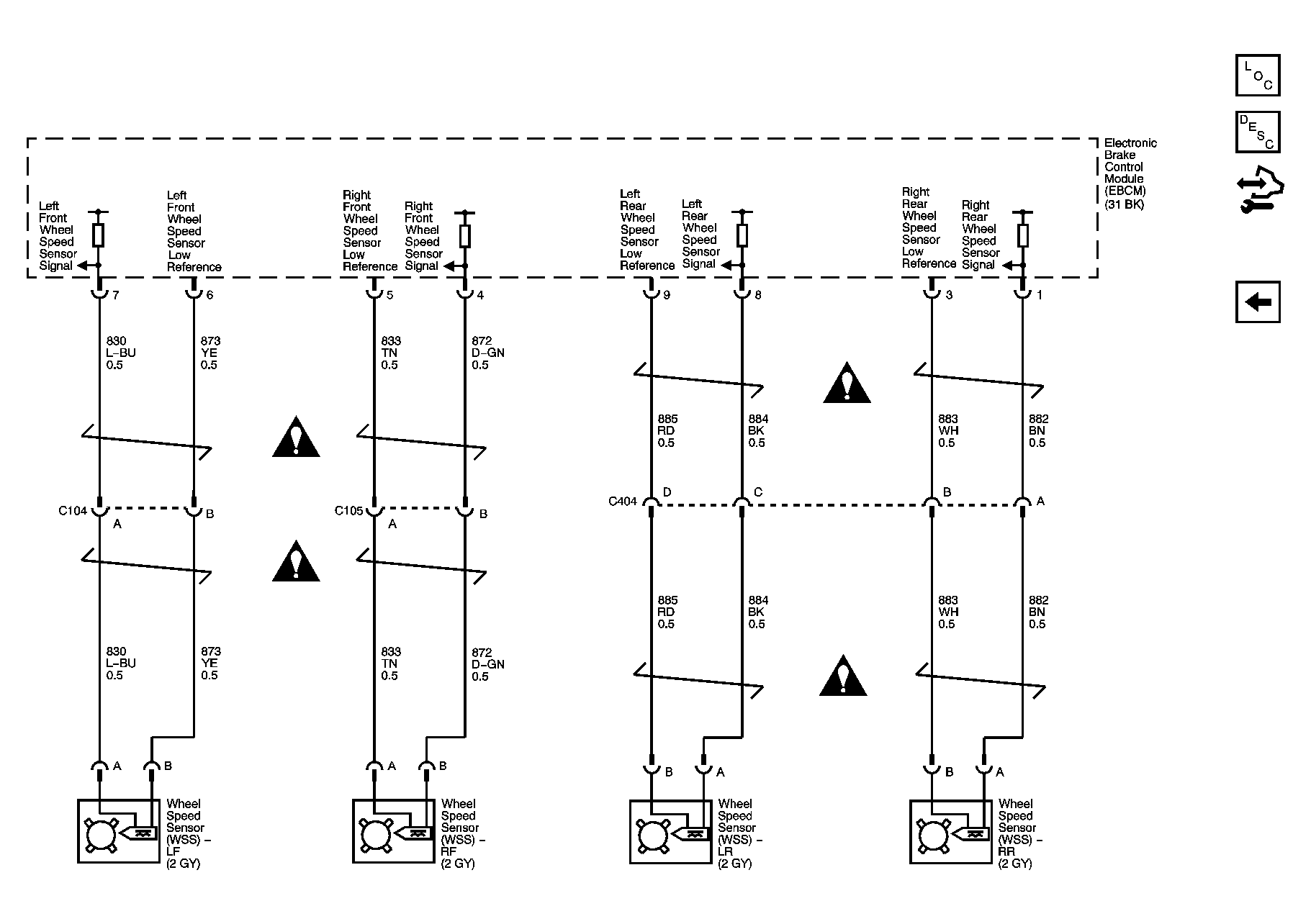

Fig 3: Wheel Speed Sensors Schematic
GM1583957Courtesy of GENERAL MOTORS CORP.
