Door Lock/Indicator Schematics

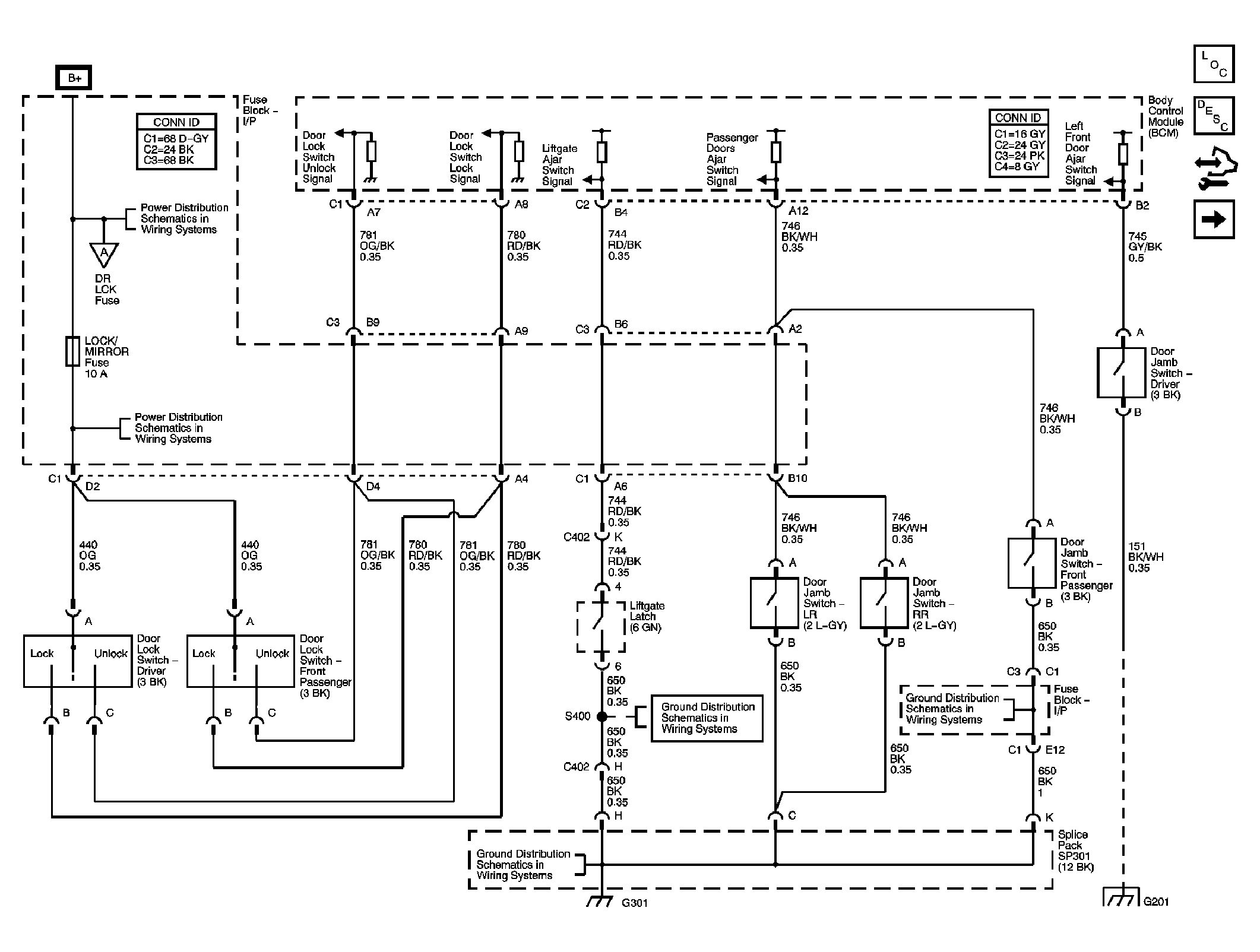

Fig 1: Lock Switches and Ajar Signals

GM1584697

Courtesy of GENERAL MOTORS CORP.

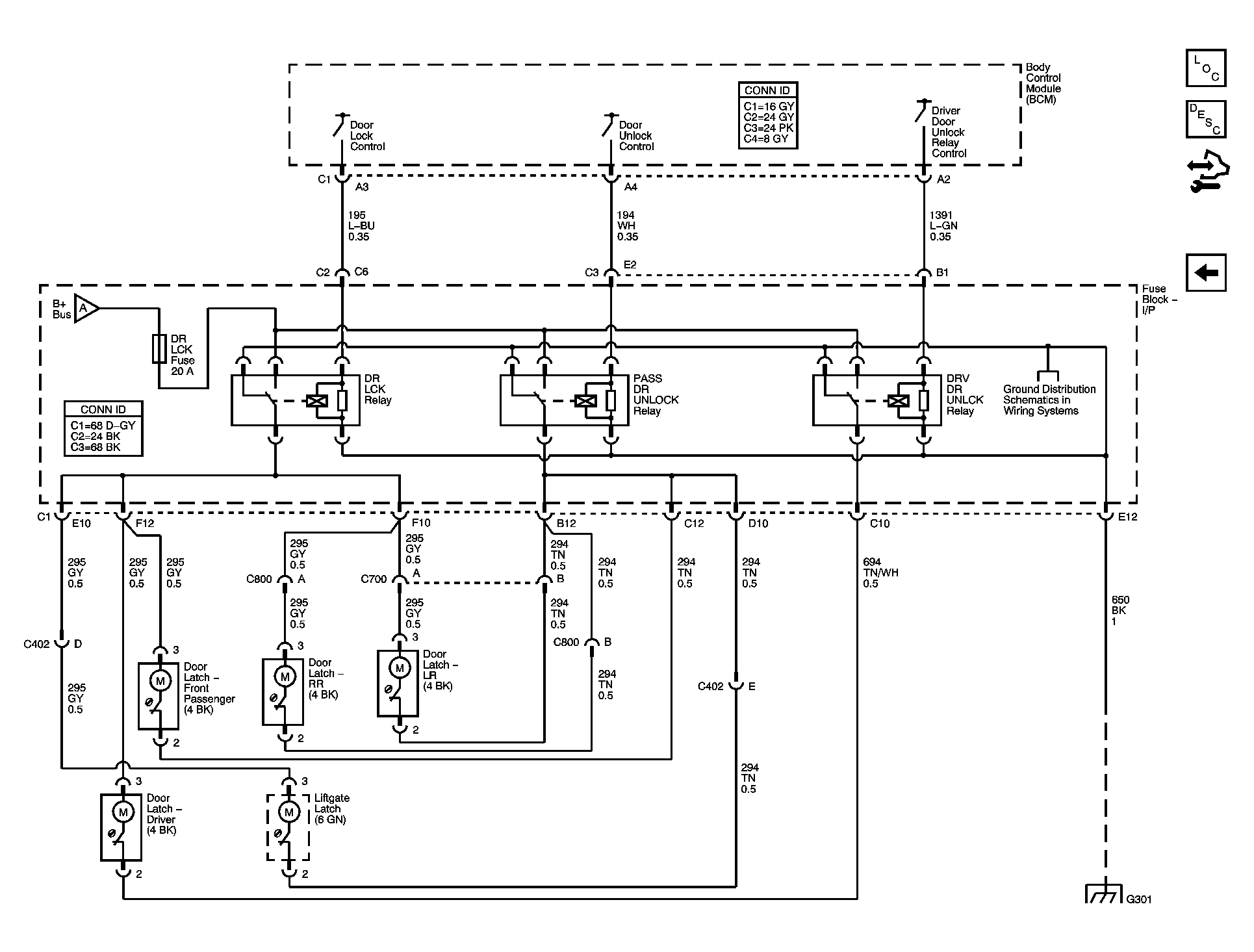

Fig 2: Door Lock Controls

GM1584706

Courtesy of GENERAL MOTORS CORP.
