Home >> Saturn >> 2006 >> Ion Red Line >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transaxle - Mu3 >> Diagnostic Information and Procedures >> DTC P0833 >> Notes

DTC P0833: Notes

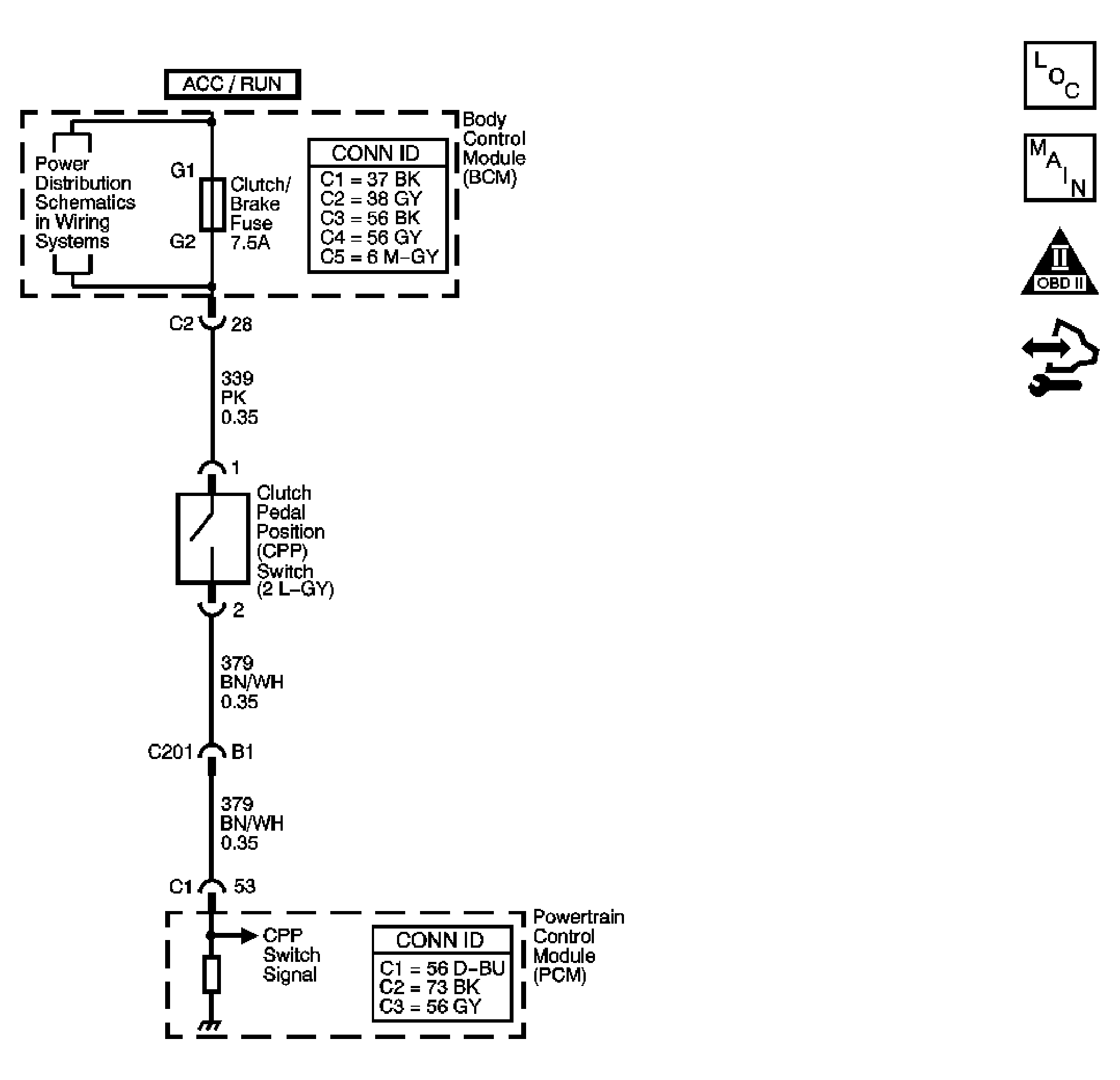

Fig 1: DTC P0833 Circuit Schematic Diagram

GM1578793

Courtesy of GENERAL MOTORS CORP.
