Harness Routing Views

Fig 1: Battery Cable Routing Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Underhood
2	G103
3	Battery Cable - Positive
4	C410 (2.2L)
5	ECM Inline Fuse (2.2L)
6	G502
7	G301

Fig 2: Left Rear Of Vehicle Routing View

Courtesy of GENERAL MOTORS CORP.

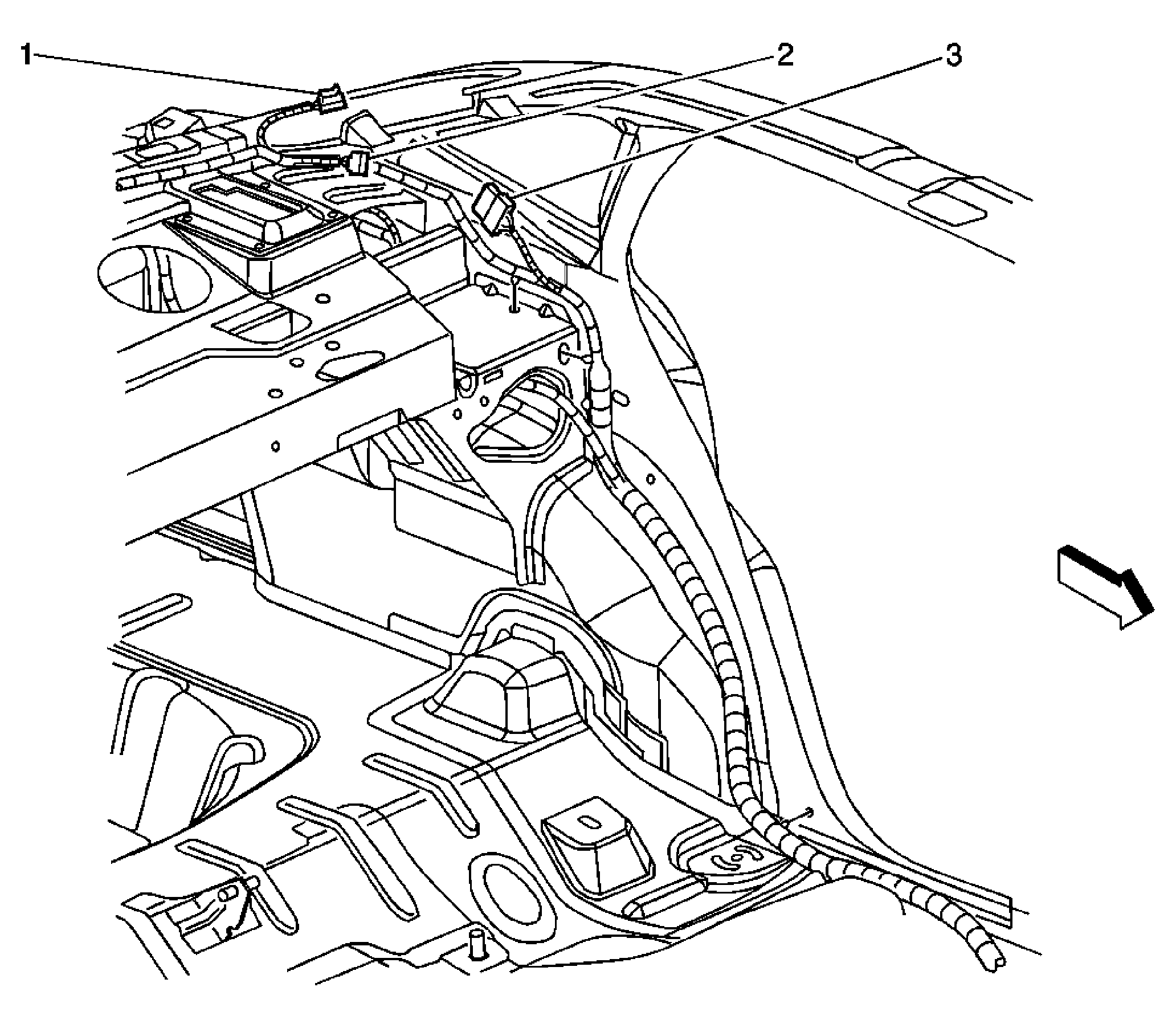

Callout	Component Name
1	Rear Window Defogger Grid
2	Inflatable Restraint Roof Rail Module Left (ASF)
3	C375

Fig 3: Left Side Of Engine Compartment (JM4/JL9) Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C161
2	G109
3	Body Harness

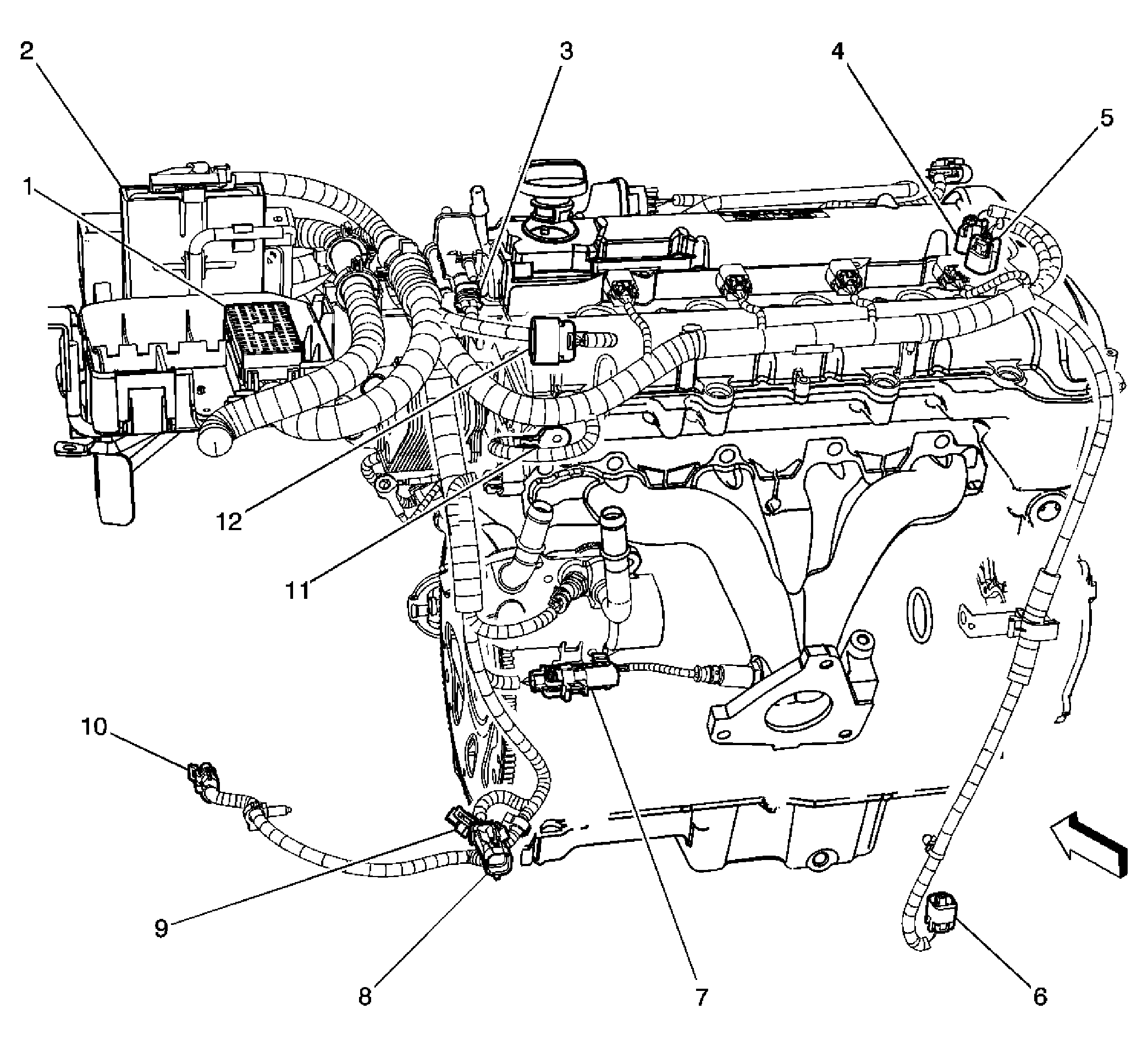

Fig 4: Rear of Engine (2.4L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block Underhood C1
2	Engine Control Module (ECM)/Transmission Control Module (TCM)
3	Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4	Camshaft Position (CMP) Actuator Solenoid - Intake
5	Camshaft Position (CMP) Actuator Solenoid - Exhaust
6	Vehicle Speed Sensor (VSS) - Automatic Transmission
7	Heated Oxygen Sensor (HO2S) 1
8	Heated Oxygen Sensor (HO2S) 2
9	Vehicle Speed Sensor (VSS) - Manual Transmission
10	Backup Lamp Switch
11	G107
12	C171 Engine Harness to Body Harness

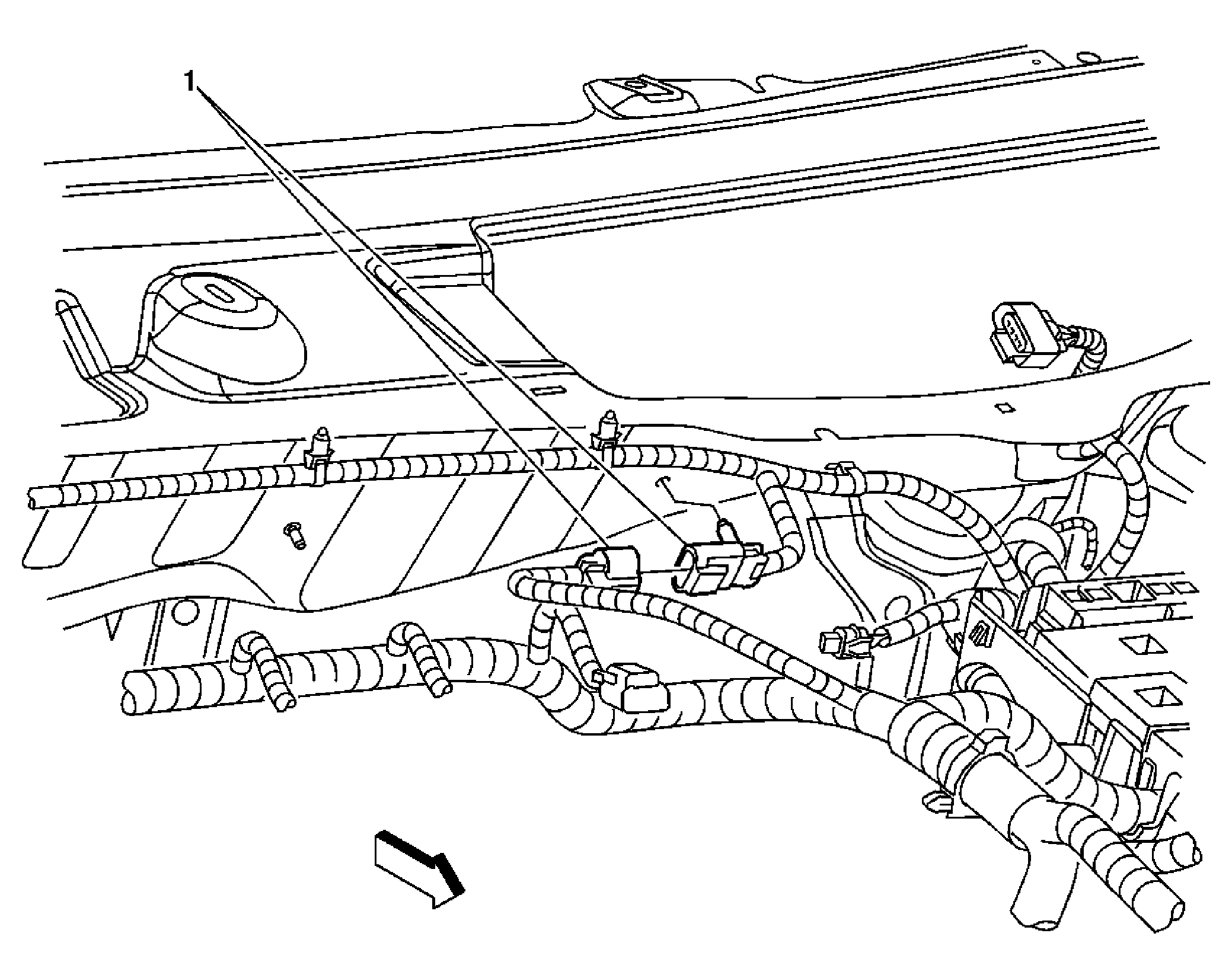

Fig 5: Left Rear Of Engine Compartment (2.0L) Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C171

Fig 6: Behind Left Side Of I/P Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C225
2	G201
3	G203

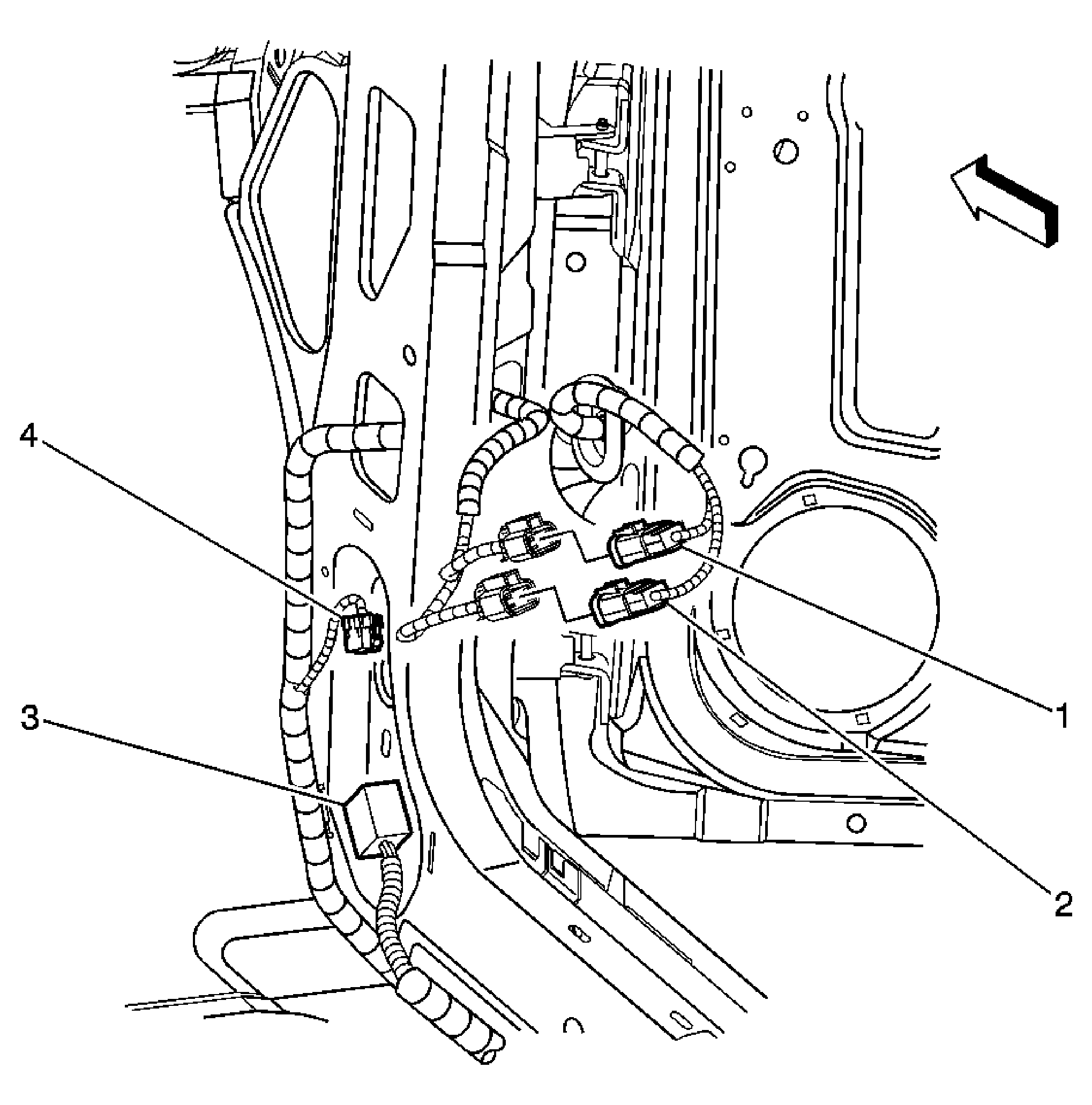

Fig 7: Right Front Door Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C604 (A31/DG7)
2	C602
3	C200
4	C218 (ASF)

Fig 8: Right Front Seat of the Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
2	C300 Passenger Presence System (PPS) Jumper Harness to I/P Harness
3	Passenger Presence System (PPS) Jumper Harness
4	Inflatable Restraint Front Passenger Presence System (PPS) Module
5	I/P Harness
6	Seat Belt Switch - Passenger
7	Seat Belt Buckle - Passenger
8	Passenger Seat

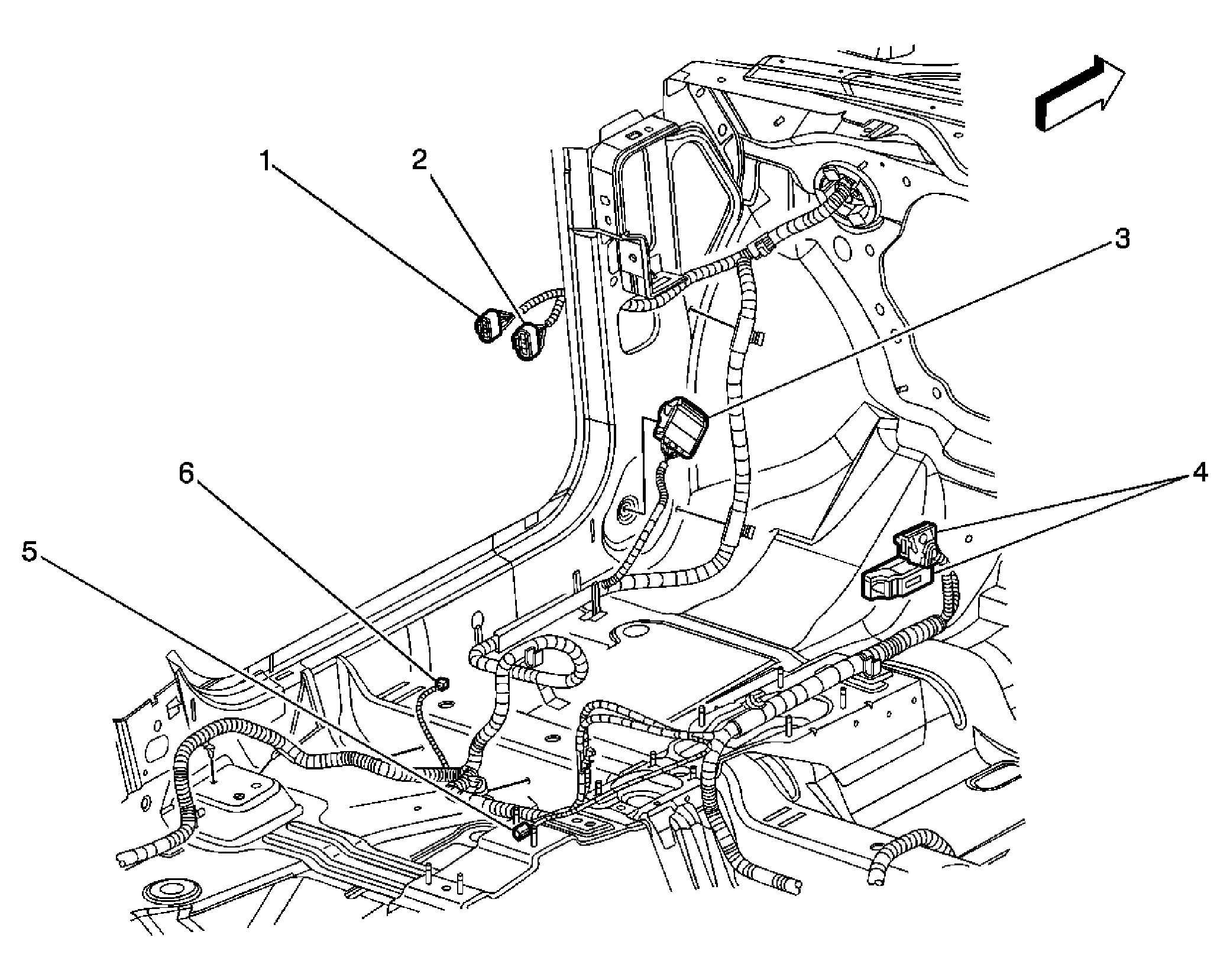

Fig 9: Left Front Side Of Vehicle Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C501
2	C503 (A31/DG7)
3	C201
4	Body Control Module (BCM)
5	Auxiliary Power Outlet - Rear
6	G301

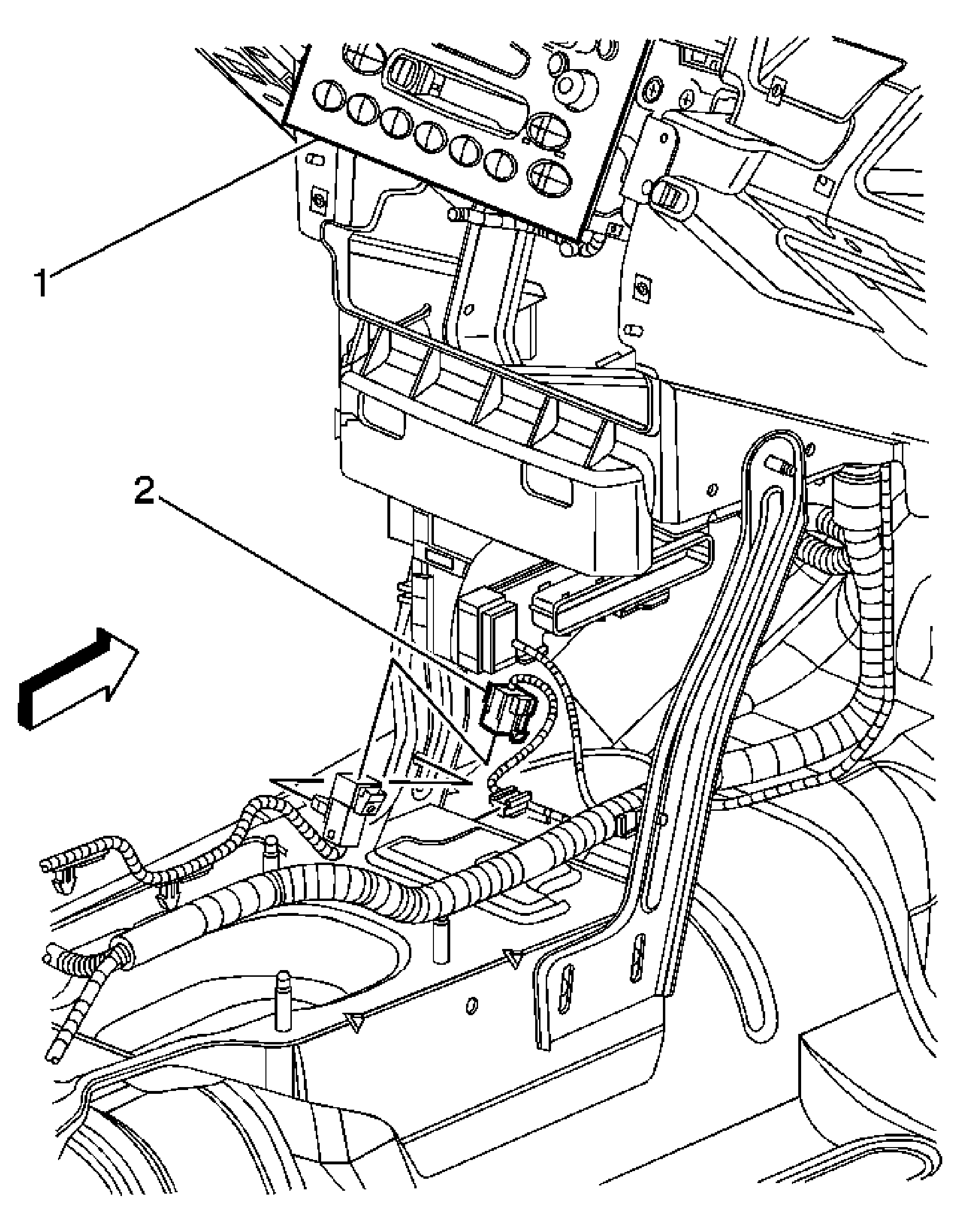

Fig 10: Center Of I/P (UE1) Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio
2	C340

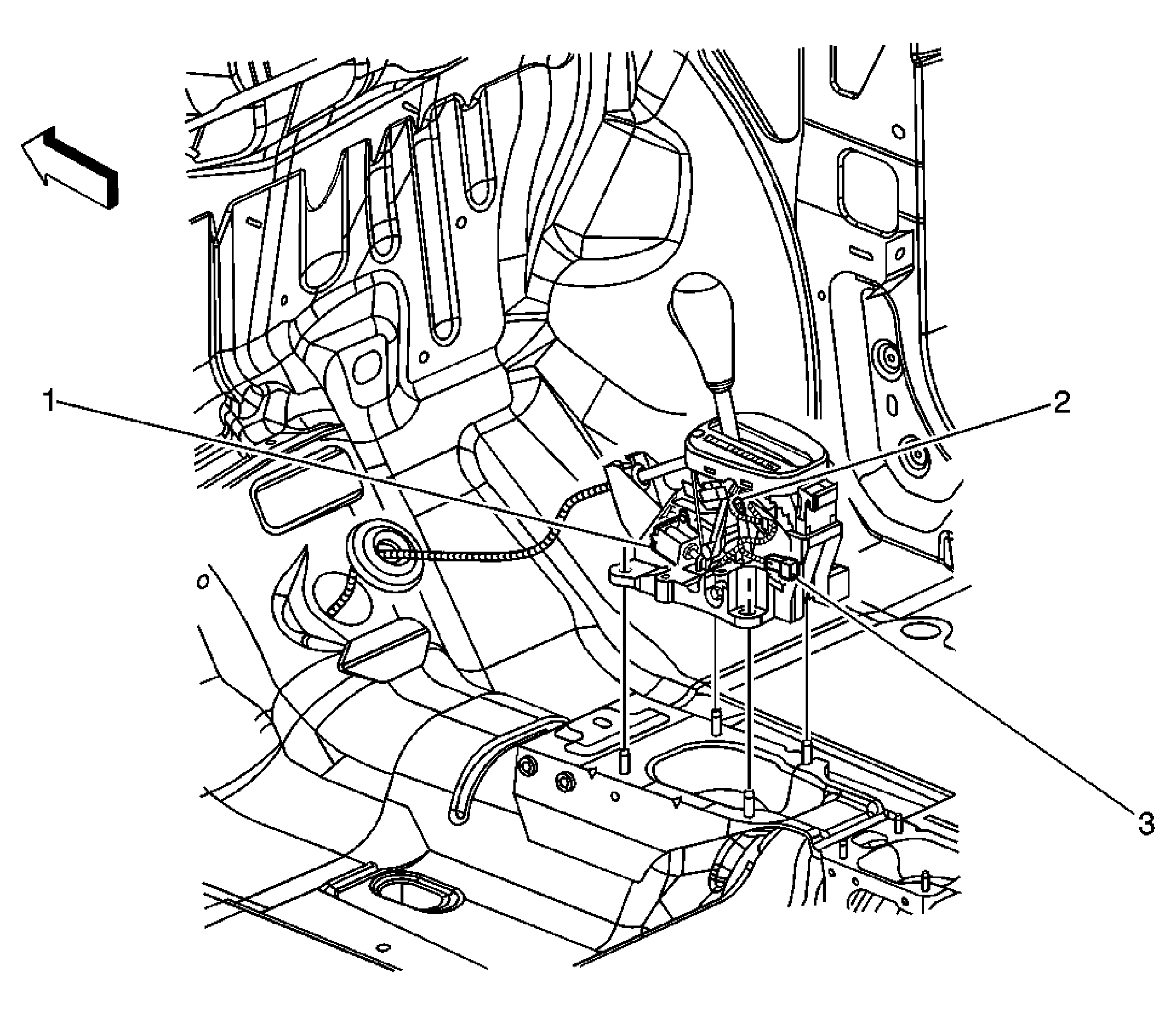

Fig 11: Center Console of the Vehicle (A/T)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	A/T Shift Lock Solenoid
2	A/T Shift Indicator Lamp
3	C351

Fig 12: Vehicle Rear Gate Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Component Lid Latch
2	License Lamp
3	C401

Fig 13: Right Rear Side Under Vehicle Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C406 (Fuel Controls)
2	C406 (EVAP Controls)
3	Evaporative Emission (EVAP) Canister Vent Solenoid

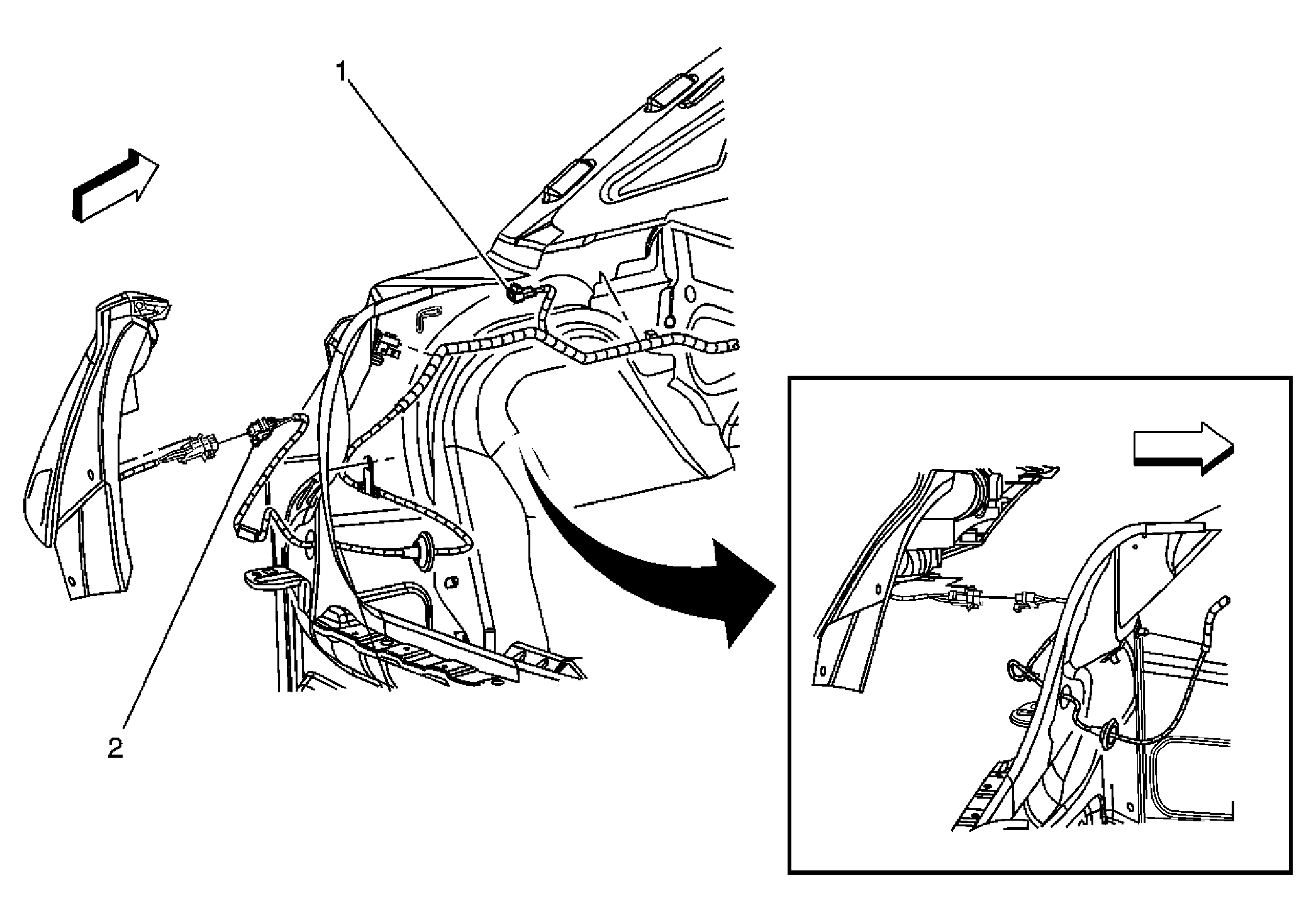

Fig 14: Left Rear Side Of Vehicle Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C401
2	C491, C490 Similar on Right Side

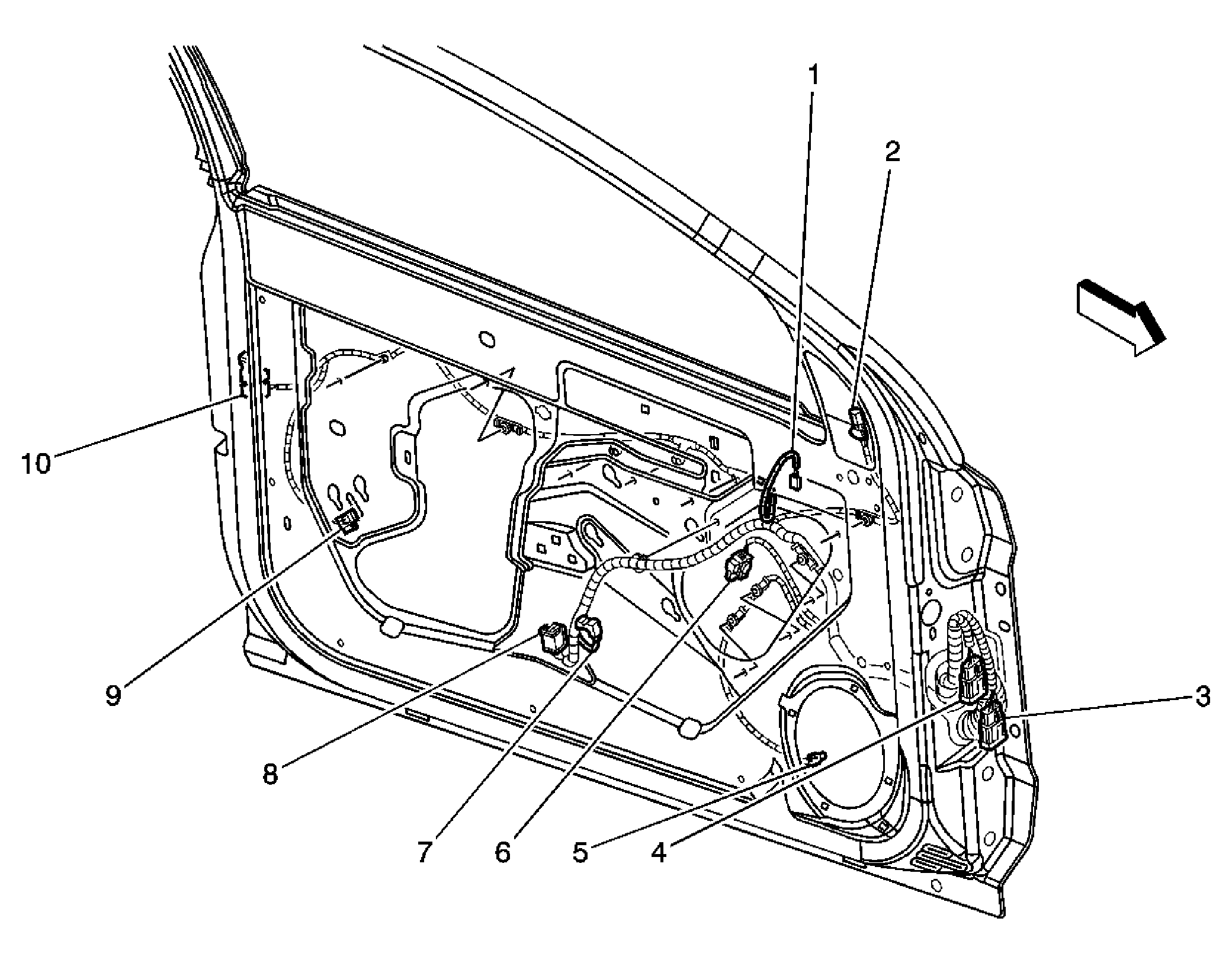

Fig 15: Left Front Door Routing View (Coupe)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver
2	Outside Rearview Mirror - Driver (DG7)
3	C503 (A31/DG7)
4	C501
5	Speaker - LF Door
6	Window Motor - Driver (A31)
7	Outside Rearview Mirror Switch (DG7)
8	Window Switch - Driver (A31)
9	Inflatable Restraint Side Impact Sensor (SIS) - Left (ASF)
10	Door Latch - Driver

Fig 16: RR Door (Sedan) Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch - RR; LR Similar
2	C860; C759 Similar in LR Door
3	Window Motor - RR (A31); LR Similar

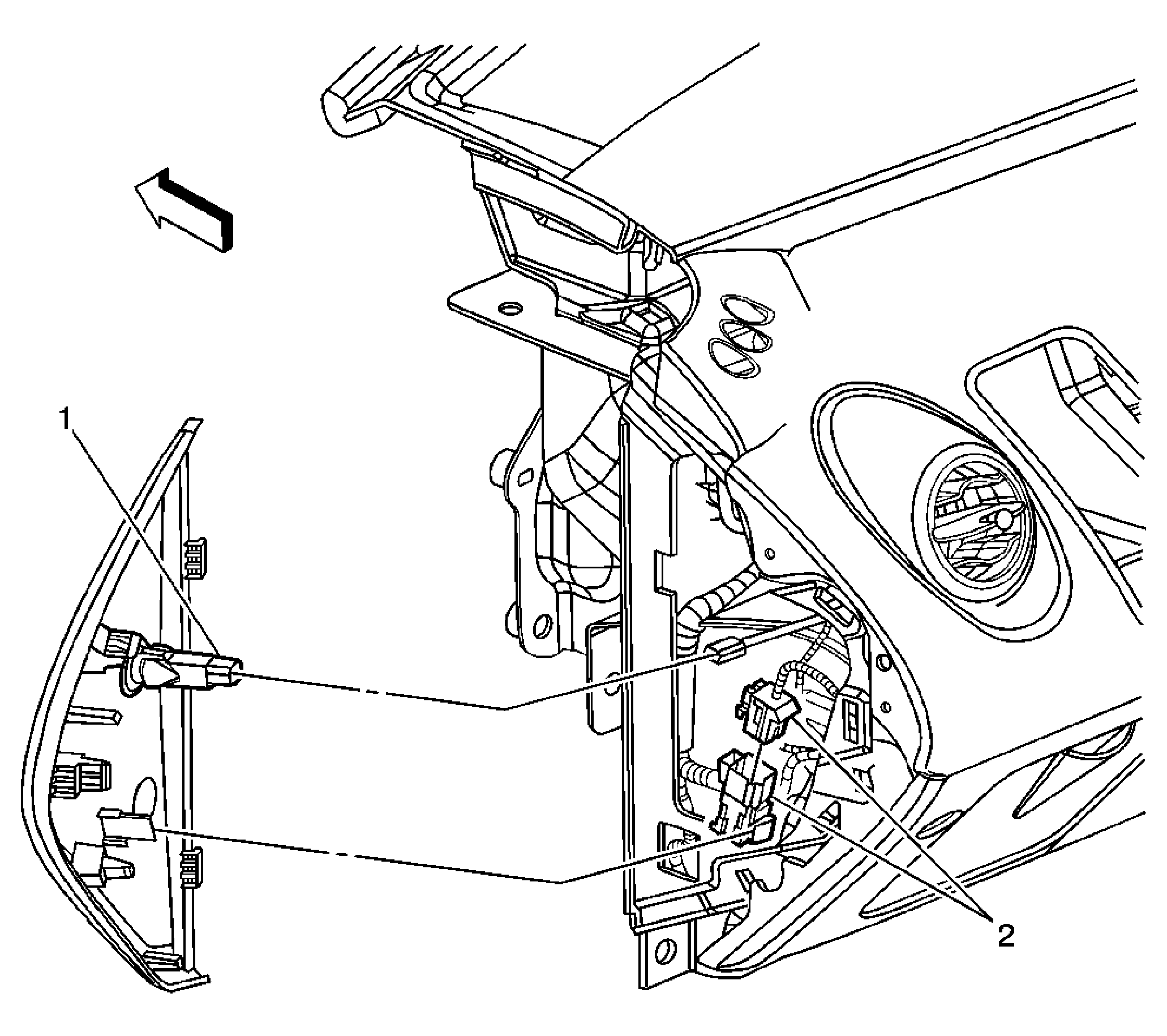

Fig 17: Left Side of the I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Jamb Switch - Driver
2	C215

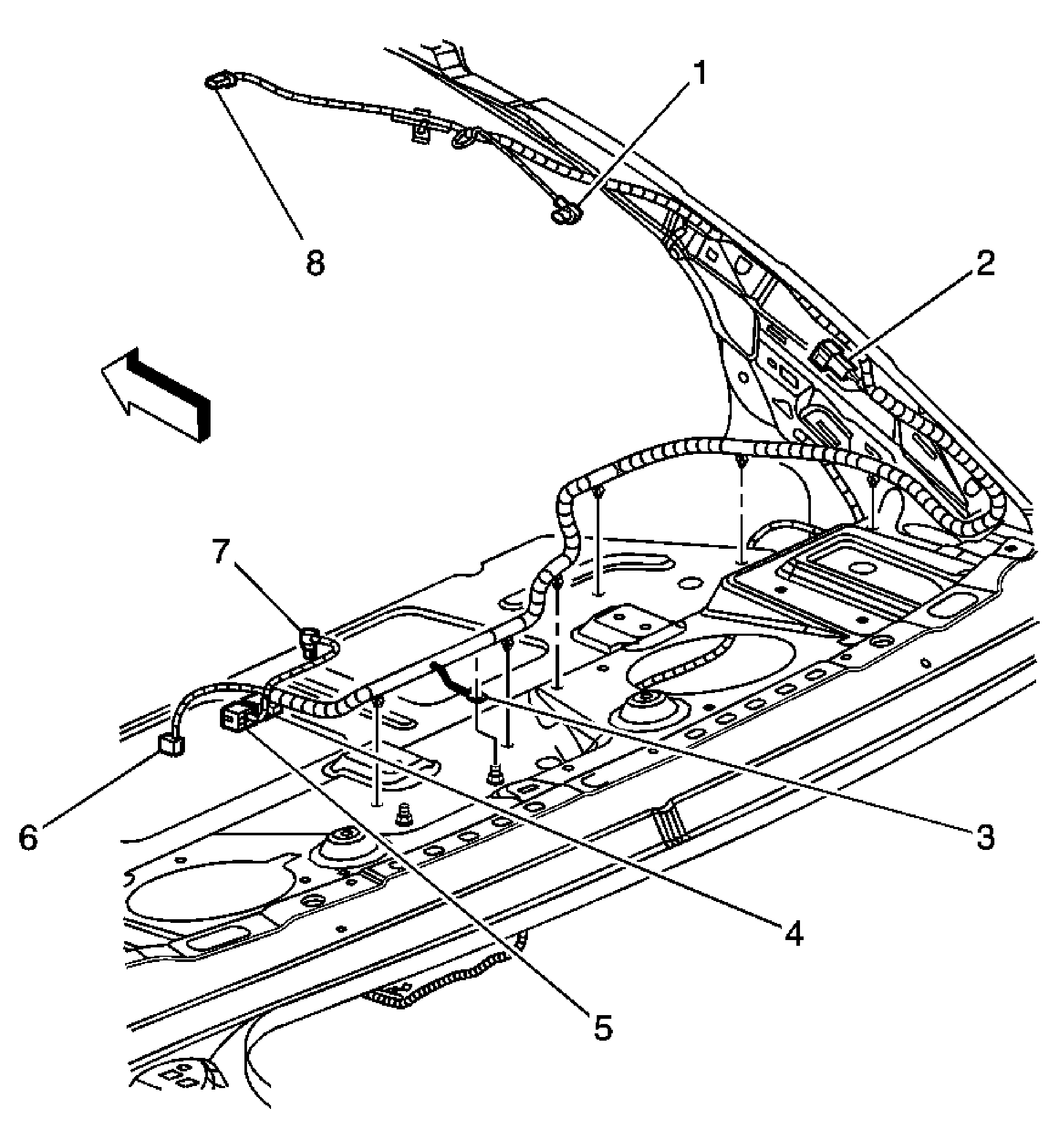

Fig 18: Rear Shelf Of Vehicle (UE1) Routing View - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cell Antenna Coaxial
2	C380 (UE1)
3	G401 (UE1)
4	Vehicle Communication Interface Module (VCIM) C1
5	Vehicle Communication Interface Module (VCIM) C2
6	Cellular Coaxial
7	Global Positioning Satellite (GPS) Coaxial
8	Global Positioning Satellite (GPS) Antenna (UE1)

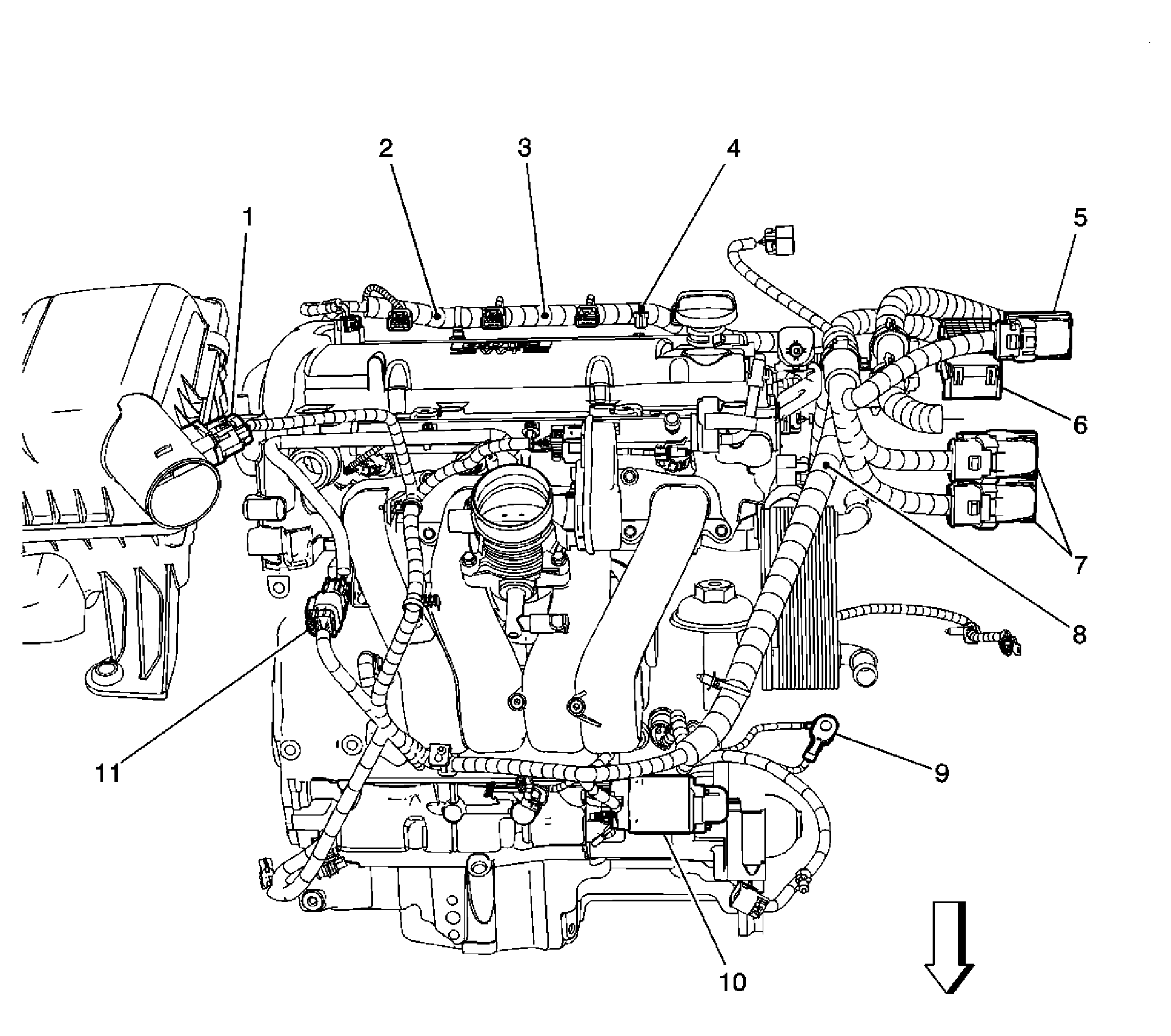

Fig 19: Front of Engine (2.4L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	MAF/IAT Sensor
2	S141
3	S142
4	S140
5	Transmission Control Module (TCM) Connector
6	Fuse Block Underhood C1
7	Engine Control Module (ECM) Connector
8	S175
9	G105
10	Starter
11	C150 Engine Harness to Fuel Injector Harness

Fig 20: Front Left Side Of Engine Component View (2.2L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuel Injectors Rail
2	Throttle Body
3	Manifold Absolute Pressure (MAP) Sensor
4	Ignition Control (IC) Module
5	Evaporative Emissions (EVAP) Canister Purge Solenoid Valve
6	G105 (2.0L Similar)
7	Crankshaft Position (CKP) Sensor
8	Knock Sensor (KS)
9	C150

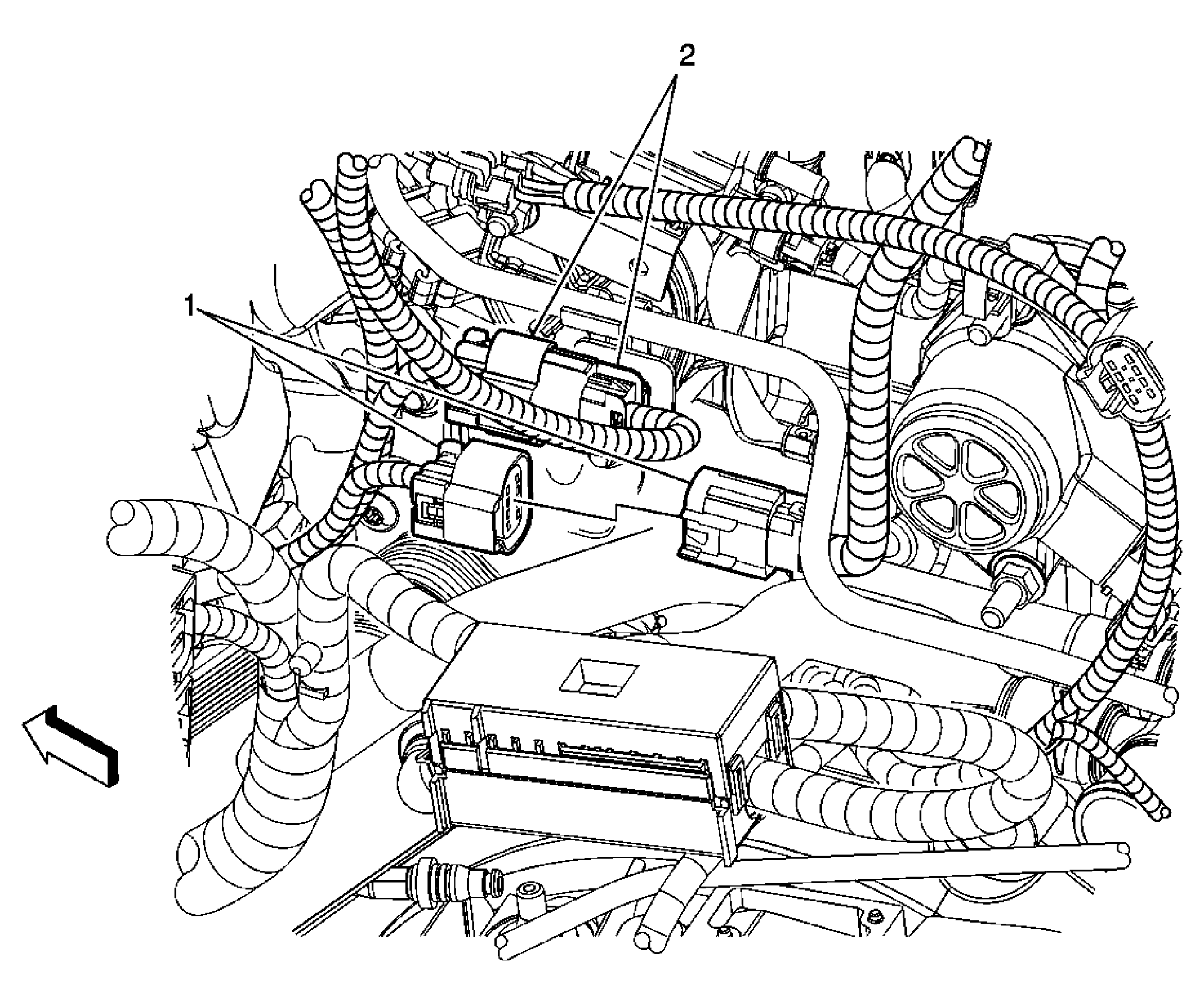

Fig 21: Left Side Of Engine Routing View - 2.0L

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C155
2	C150

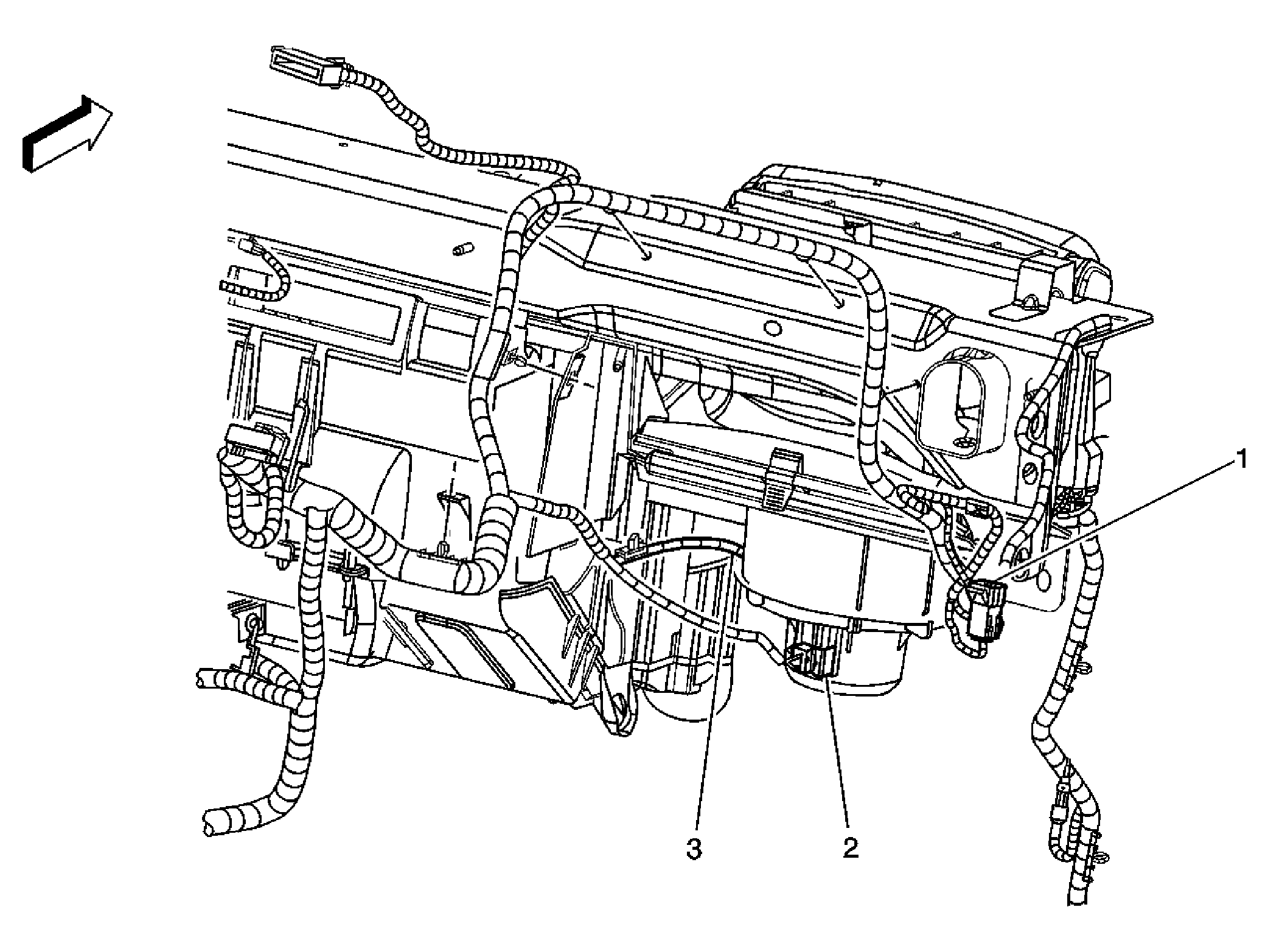

Fig 22: Right Front Of Inside Vehicle Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C216
2	Blower Motor
3	Blower Motor Resistor Assembly

Fig 23: Left Side Of Engine Compartment Routing View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C121 (DF5)
2	G101
3	Electronic Brake Control Module (EBCM) (JM4/JL9)
4	Engine Control Module (ECM) (2.2L)

Fig 24: Left Front Of Vehicle Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C111 (Sedan), C110 Similar on Right
2	Park/Turn Signal Lamp - LF (Sedan), RF Similar
3	Headlamp - Left (Sedan), Right Similar
4	Headlamp - Left (Coupe), Right Similar
5	Park/Turn Signal Lamp - LF (Coupe), RF Similar

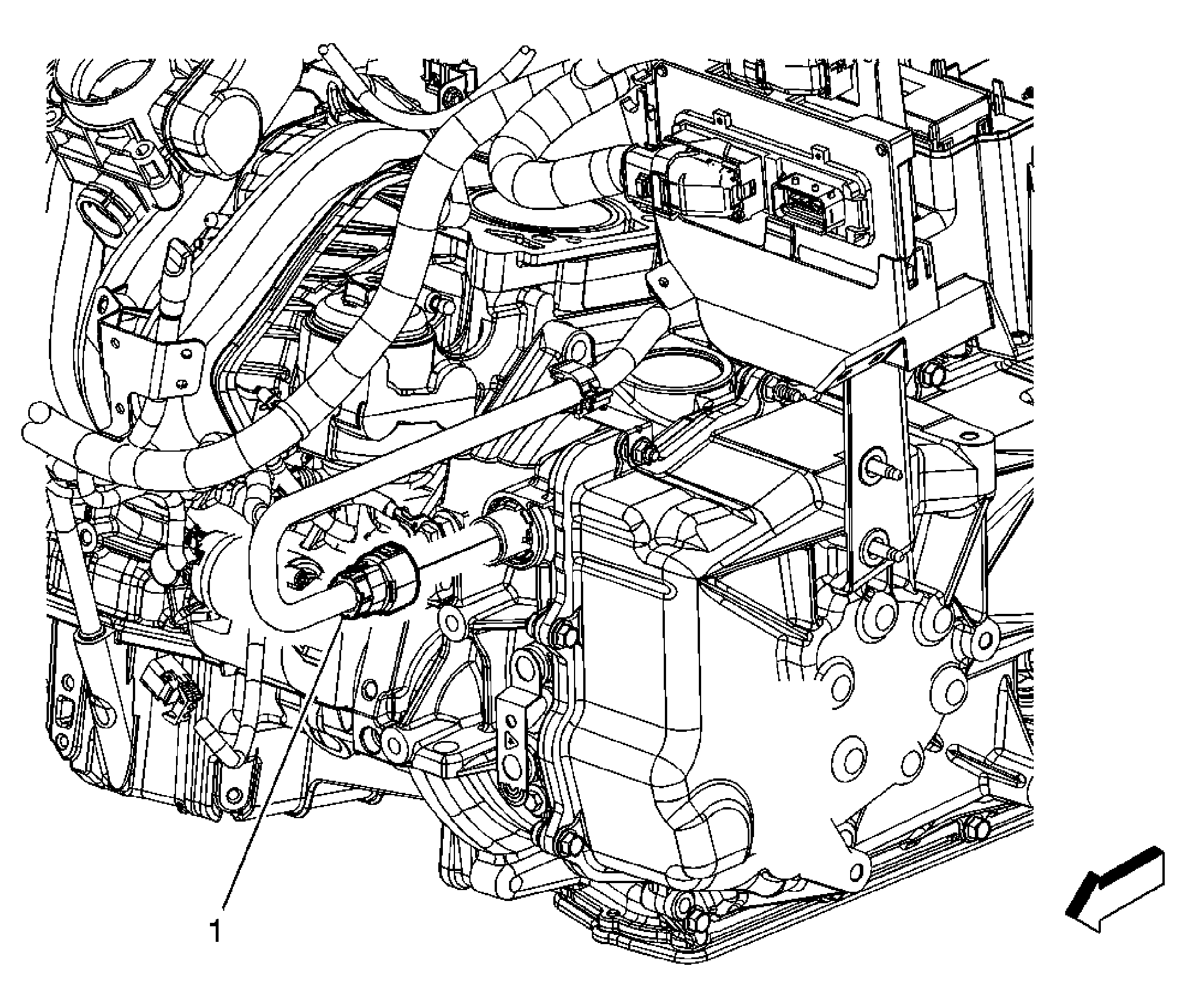

Fig 25: Front of the Transmission

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C100

Fig 26: Lower LF Of Passenger Compartment Routing View (2.0L)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Accelerator Pedal Position (APP) Sensor
2	C220 (w/2.0L)

Fig 27: Sunroof Assembly

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	C302
2	Sunroof Motor
