Rear Compartment Lid Latch Replacement
WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.
Rear Compartment Lid Latch Replacement

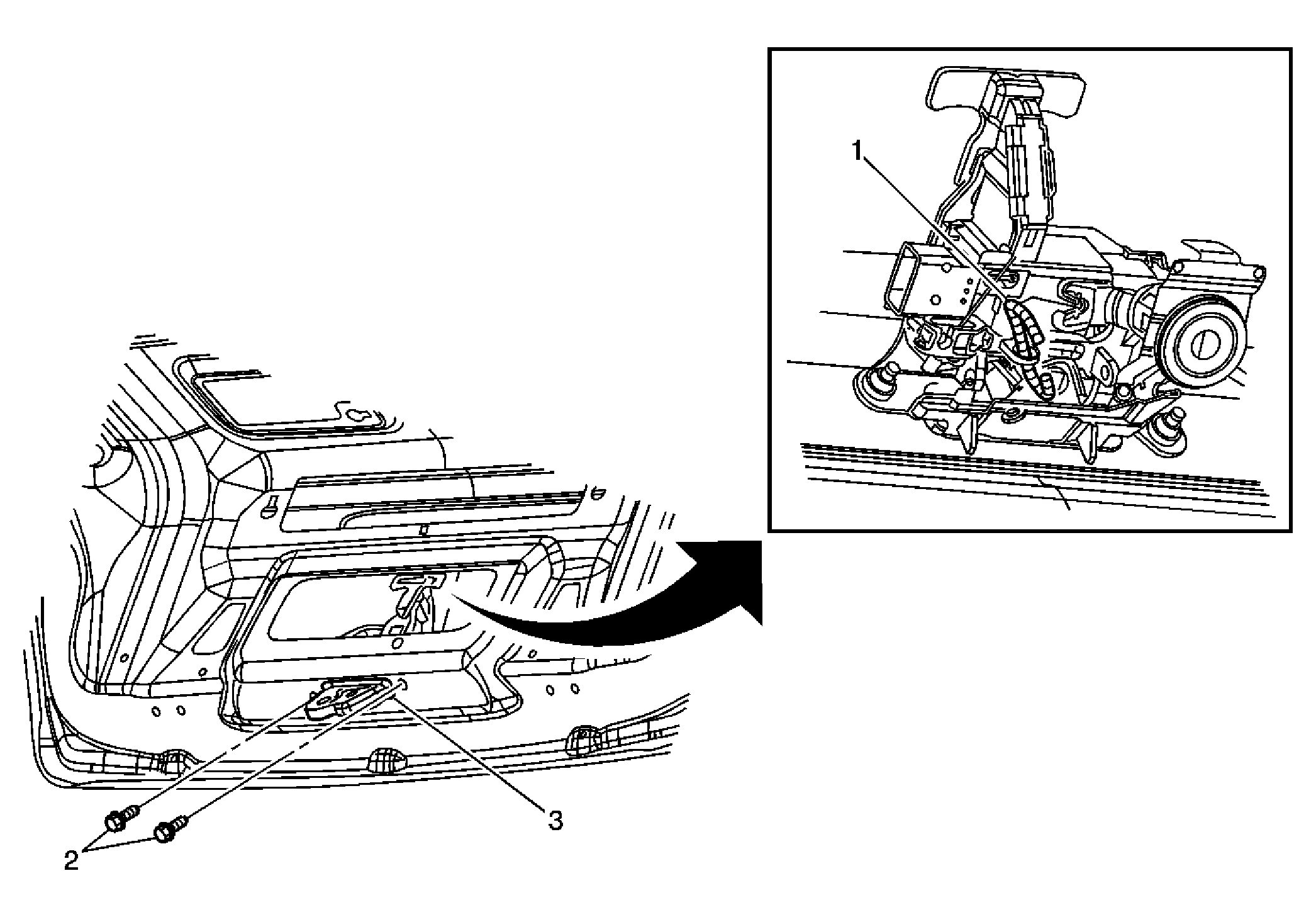

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove the rear compartment lid trim panel. Refer to Rear Compartment Trim Panel Replacement . |
|
| 1 | Rod, Lock Cylinder Tip: Use a flat-bladed tool to release the lock rod. |
| 2 | Bolt, Rear Compartment Latch (Qty: 2)
NOTE:
Refer to Fastener Notice
.
Tighten: 10 N.m (89 lb in) Tip: Disconnect the electrical connector, if equipped. |
| 3 | Latch, Rear Compartment Lid Tip: Remove the latch through the access hole. |
