Installation Procedure

WARNING: This page is about a different car, the 2007 Saturn Ion Red Line, 2007 Saturn Ion 3, and 2007 Saturn Ion 2. However, it is still accessible from the selected car via links, so may be relevant.

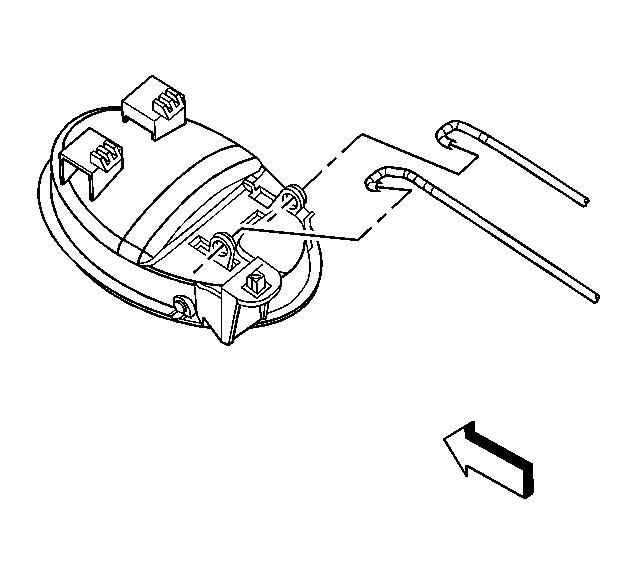

    Fig 1: View Of Inside Door Handle Assembly
    GM891986Courtesy of GENERAL MOTORS CORP.
  1. Assemble the inside handle, inside handle rods, and lock assembly.
    2. Fig 2: View Of Inside Door Handle & Door Lock Assembly
    GM891984Courtesy of GENERAL MOTORS CORP.
  2. Install the assembled inside handle, rods, and lock assembly into the door.
    3. Fig 3: View Of Door Lock Assembly Attachment Bolts
    GM891982Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the front door lock assembly attachment bolts.

    Tighten:  Tighten the bolts to 18 N.m (13 lb ft).

    4. Fig 4: View Of Door Lock Assembly Wiring Connector
    GM861221Courtesy of GENERAL MOTORS CORP.
  4. Connect the wiring connector to the door lock assembly, if equipped.
    5. Fig 5: Locating Door Inside Screw
    GM891979Courtesy of GENERAL MOTORS CORP.
  5. Install the inside handle by engaging the tabs and installing the inside handle screw.
    6. Fig 6: View Of Door Handle Rod Assembly
    GM893017Courtesy of GENERAL MOTORS CORP.
  6. Install the outside handle rod to the lock assembly. Install the outside lock cylinder rod to the lock assembly.
  7. Install the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  8. Install the trim panel. Refer to Front Side Door Trim Panel Replacement .
