Cruise Control Schematics
Cruise Control Schematics

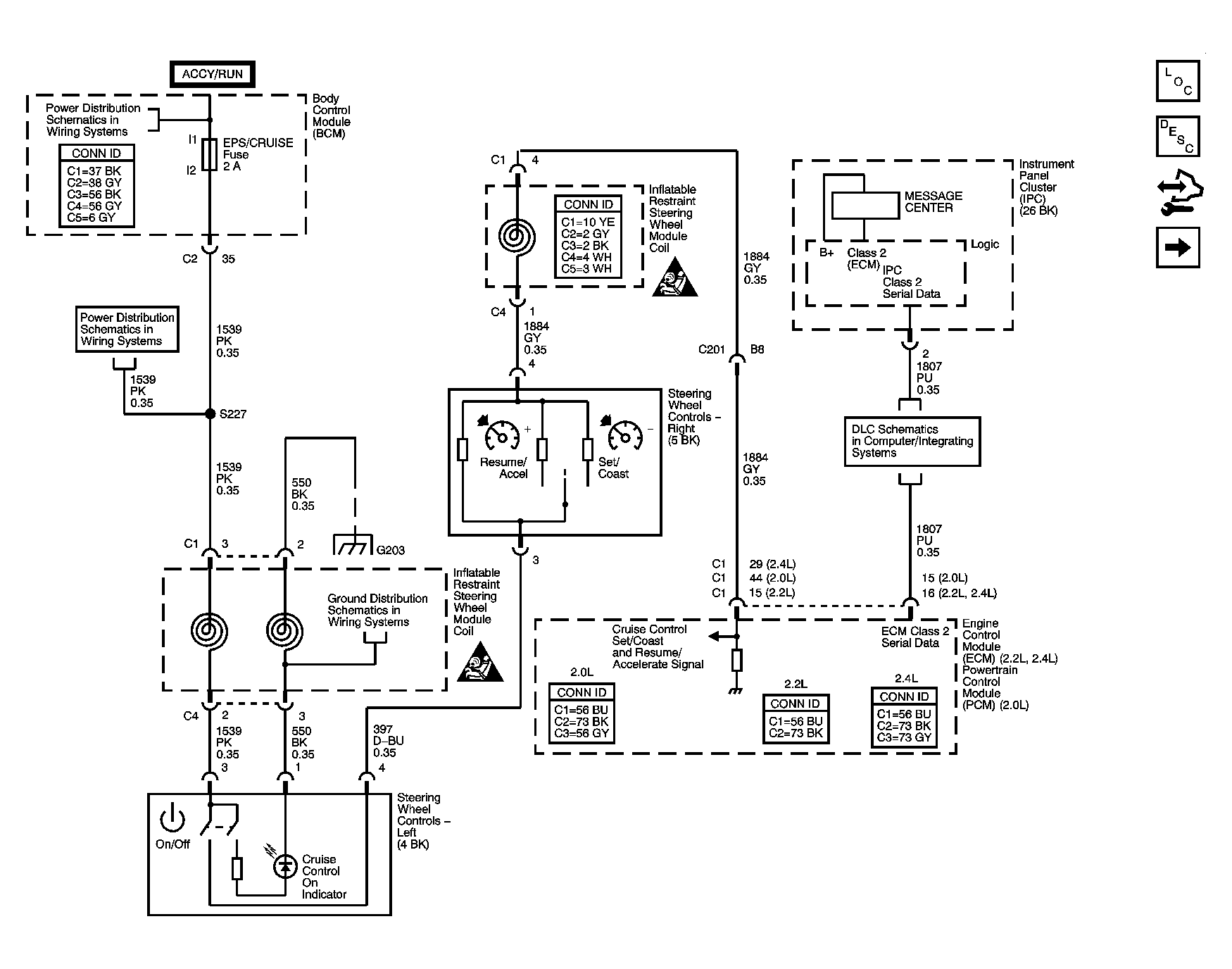

Fig 1: Driver Controls
Courtesy of GENERAL MOTORS CORP.

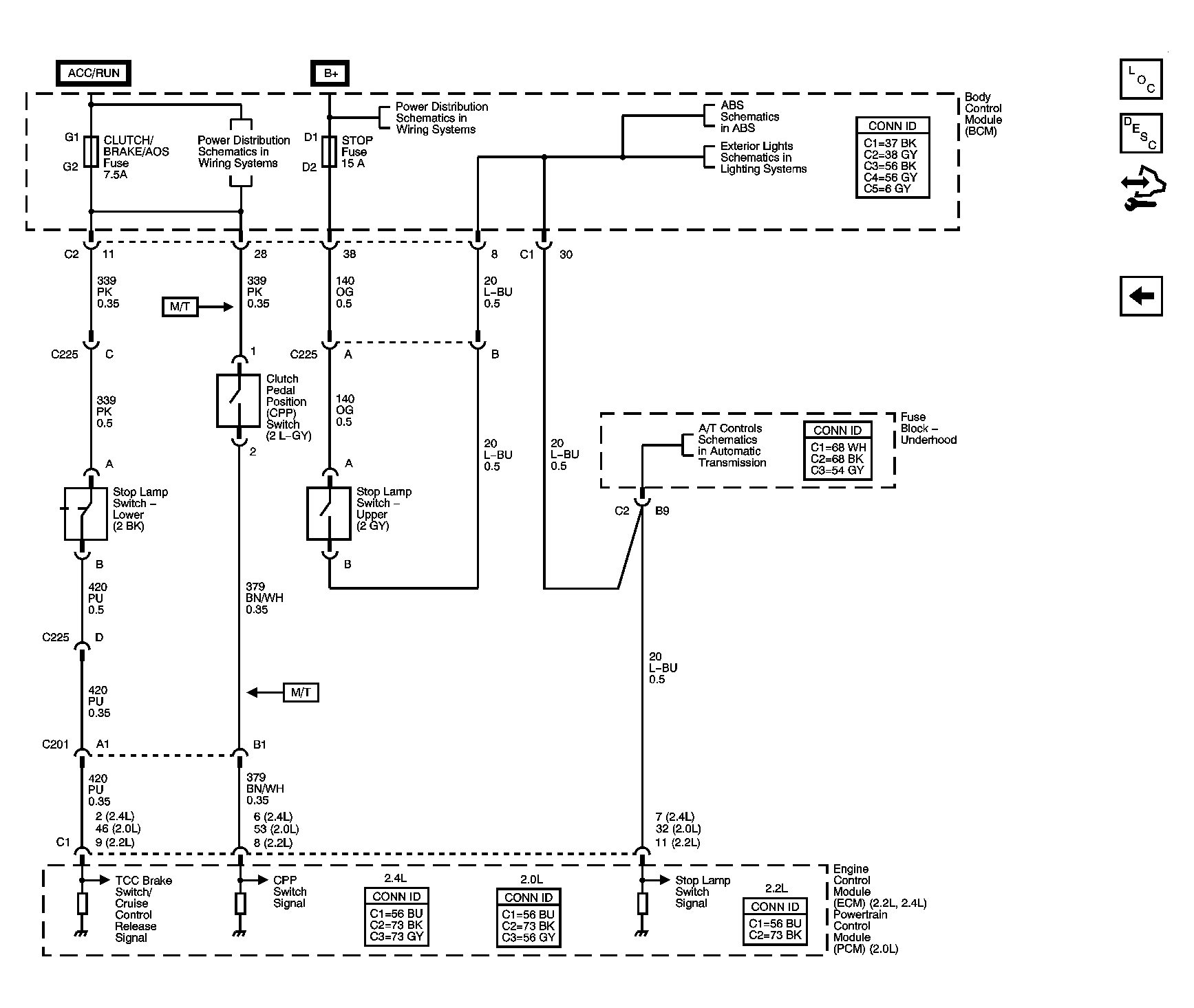

Fig 2: Stop Lamp and Clutch Switches
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
