Transfer Case Input Gear Assembly Installation

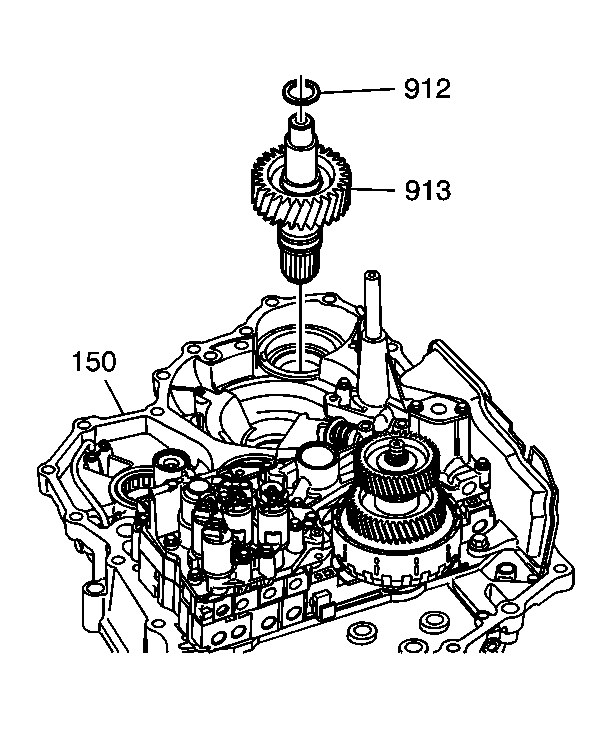

    Fig 1: Transfer Case Input Gear & Selective Shim
    GM1347194Courtesy of GENERAL MOTORS CORP.
  1. Install the transfer case input gear (913) into the torque converter housing (150).
  2. Install the correct predetermined transfer case input gear selective 28.5 mm thrust shim (912) on the machined surface of the transfer case input gear (913).
