Installation Procedure

  1. Install the engine coils.

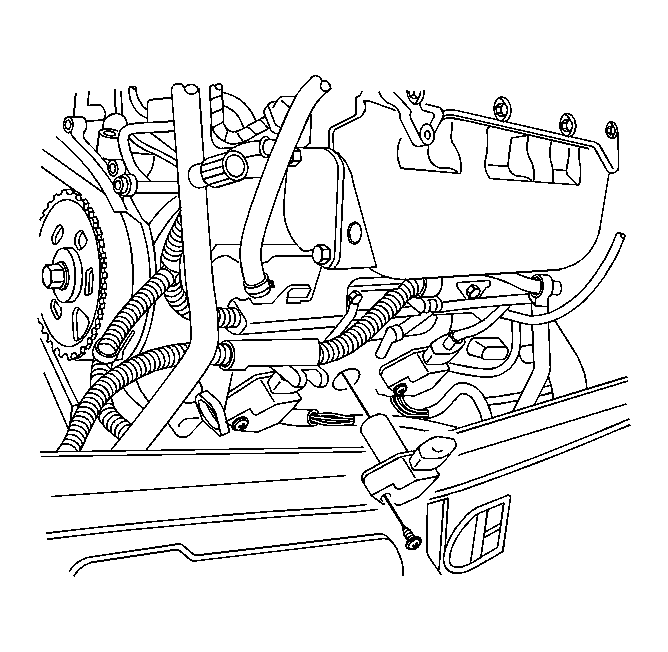

    Fig 1: View Of Engine (Ignition) Coils (Bank 2)
    GM1227041Courtesy of GENERAL MOTORS CORP.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the engine coil bolts.

    Tighten:  Tighten the bolts to 12 N.m (106 lb. in.).

  3. Connect the electrical connectors.
