Home >> Saturn >> 2005 >> Vue Red Line, AWD >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - 3.5L (L66) DTC P0506 To DTC P2199 >> Diagnosis >> DTC P0629 >> Notes

DTC P0629: Notes

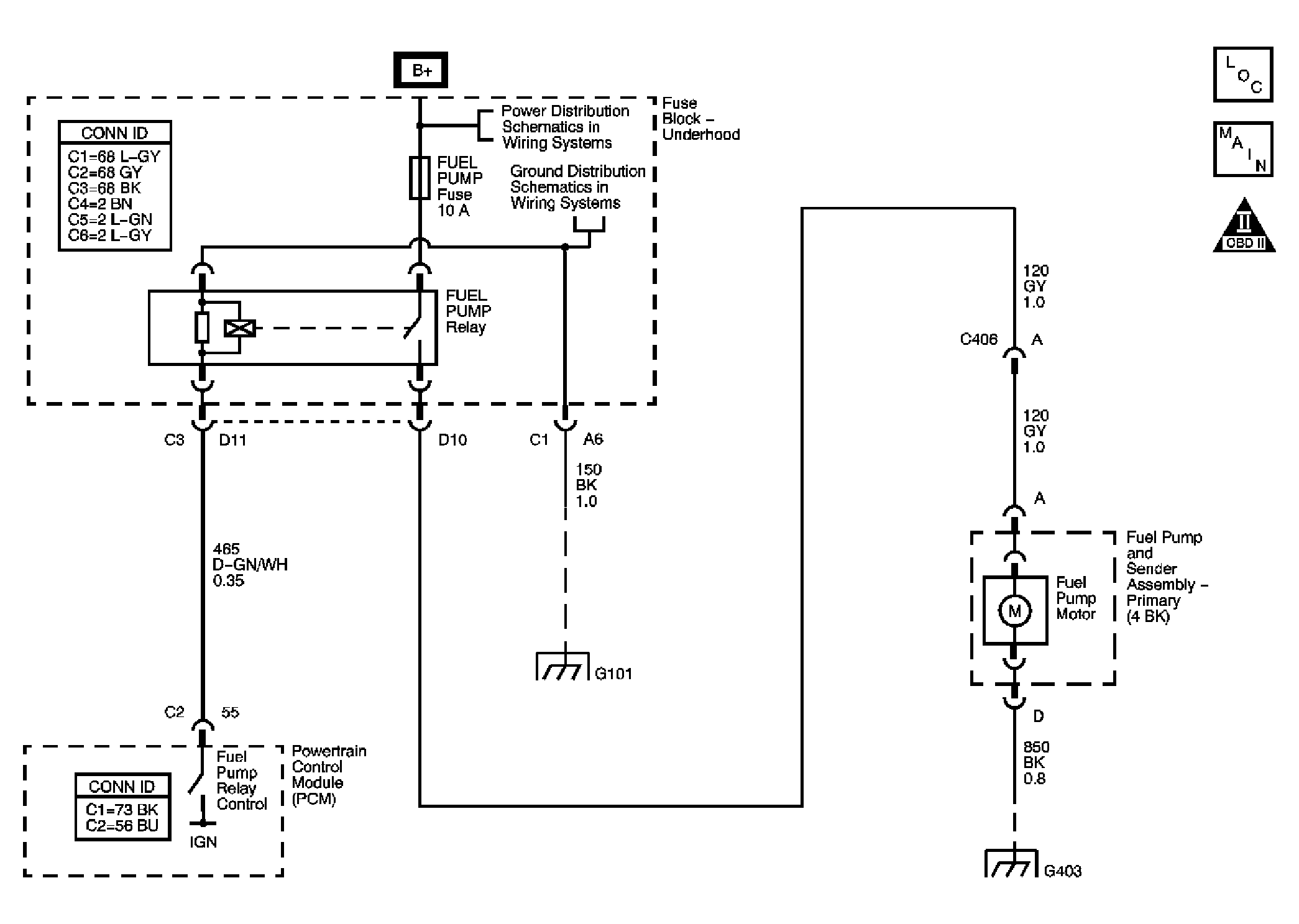

Fig 1: DTC P0628 & DTC P0629 Circuit

GM1350473

Courtesy of GENERAL MOTORS CORP.
