Hood Latch Replacement

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

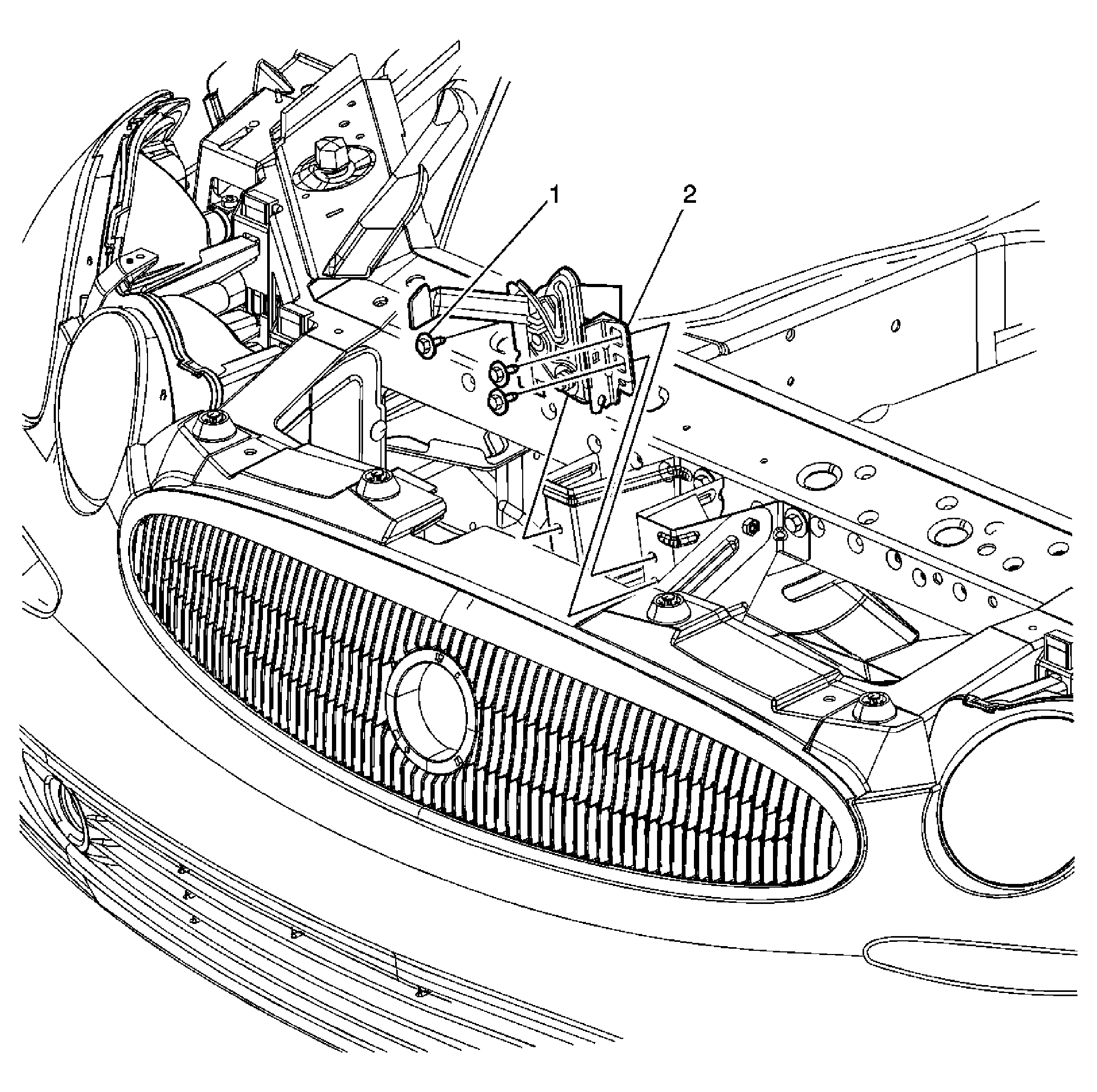

Fig 1: Identifying Hood Latch
GM1527268Courtesy of GENERAL MOTORS CORP.
Hood Latch Replacement

Callout Component Name
NOTE: Refer to Fastener Notice in Cautions and Notices.
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .Preliminary Procedures: Remove the radiator support sight shield. Refer to Radiator Support Sight Shield Replacement .
1 Bolt, Hood Latch (Qty: 3)

Tighten:  10 N.m (89 lb in)

2 Latch, Hood
Tip:  Disconnect the release cable.
