Hood Insulator Replacement

WARNING: This page is about a different car, the 2006 Buick LaCrosse and 2006 Buick Allure. However, it is still accessible from the selected car via links, so may be relevant.

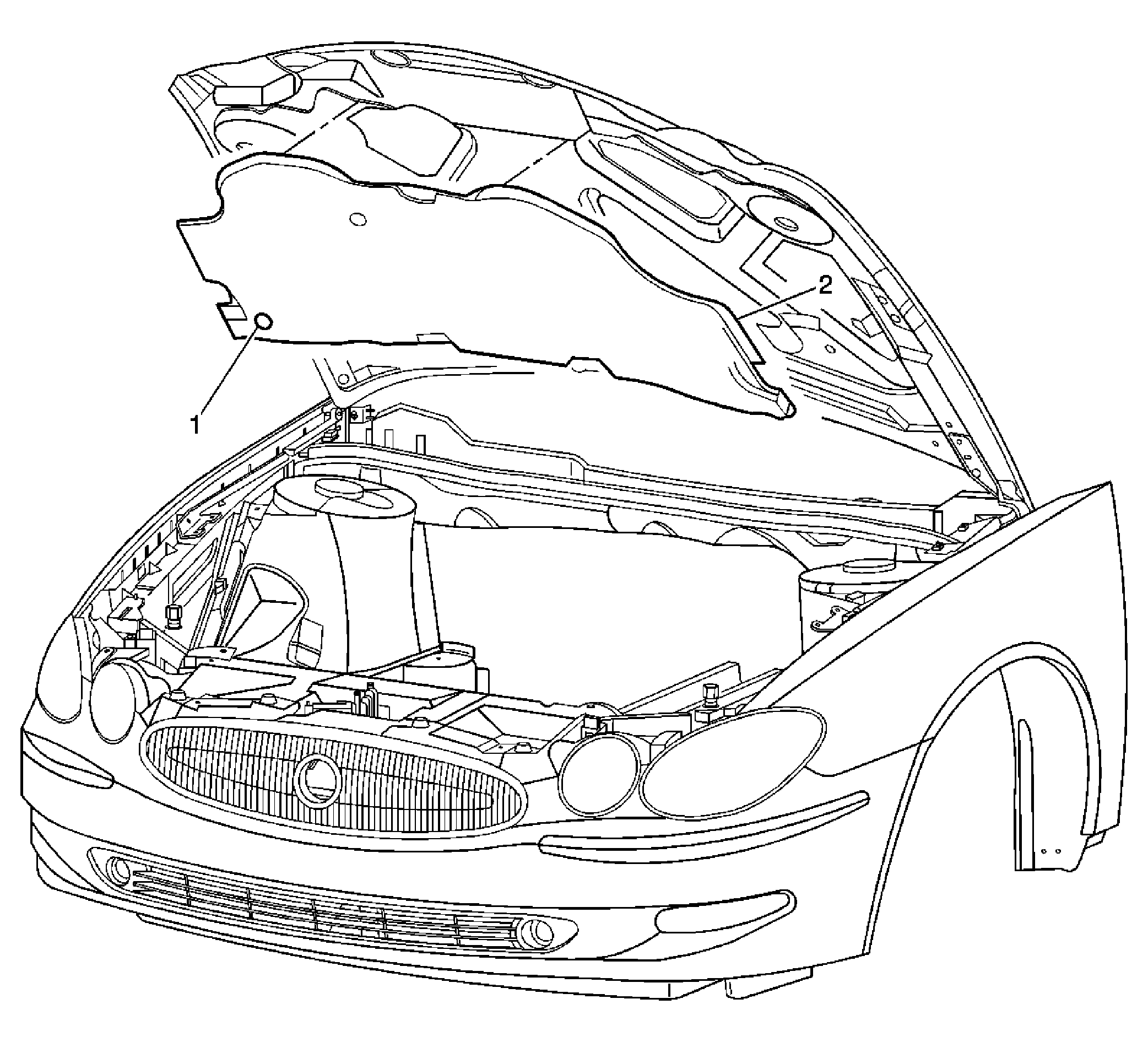

Fig 1: Removing/Installing Hood Insulator
GM1527580Courtesy of GENERAL MOTORS CORP.
Hood Insulator Replacement

Callout Component Name
Fastener Tightening Specifications:  Refer to Fastener Tightening Specifications .
1 Retainer, Hood Insulator (Qty: 4)
2 Insulator, Hood
