Main Relay Diagnosis: Notes

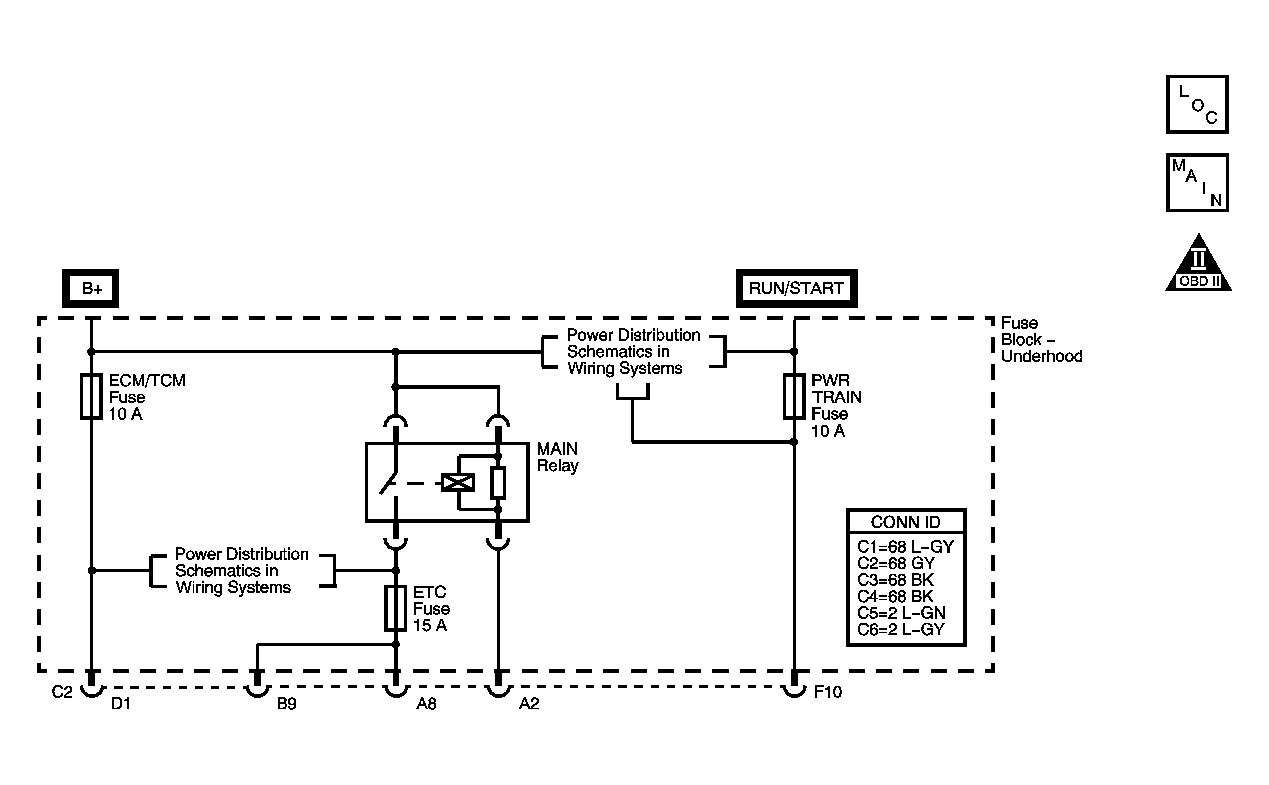

Fig 1: View Of Main Relay Circuits

GM1247607

Courtesy of GENERAL MOTORS CORP.
