Automatic Level Control Suspension Schematics

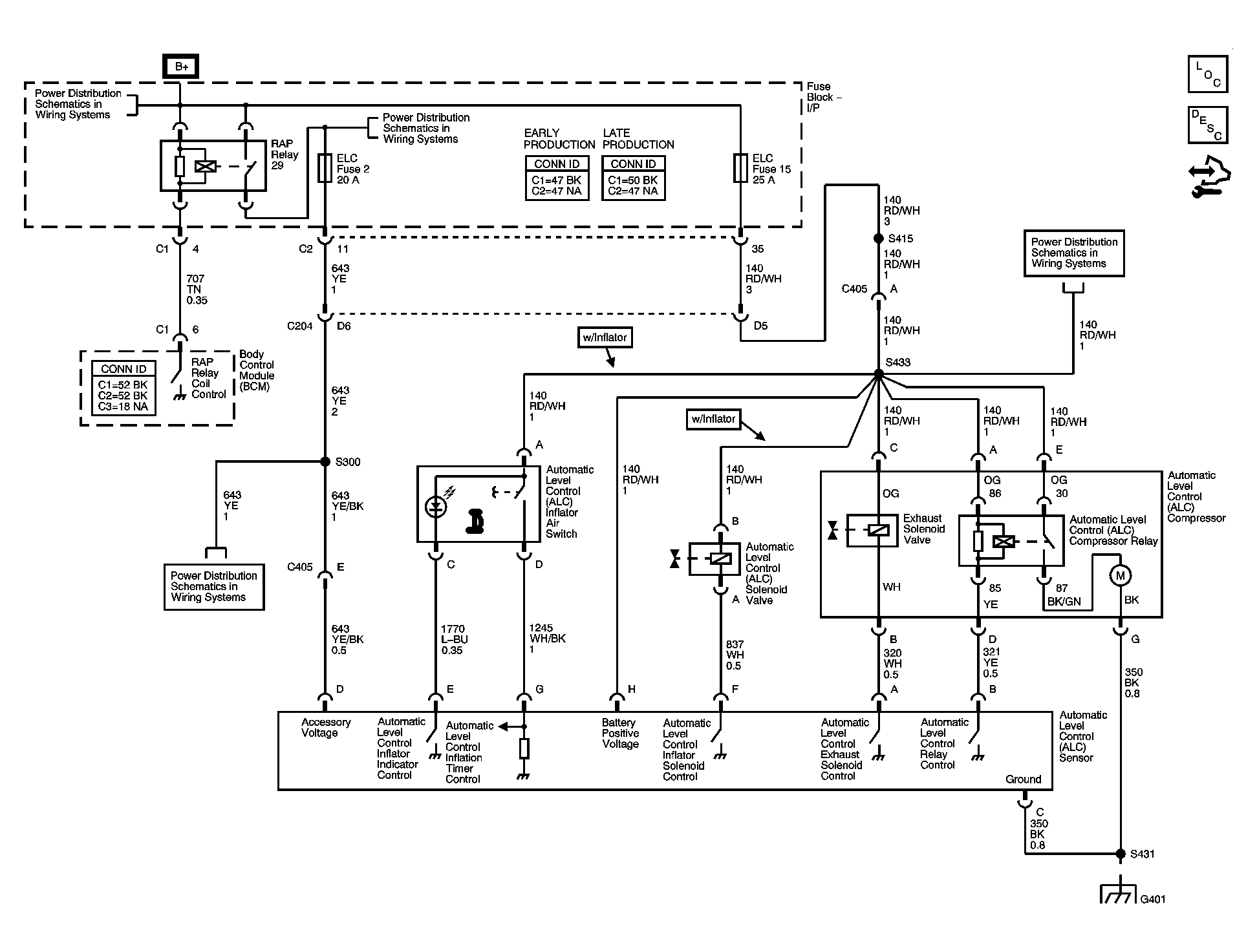

Fig 1: Automatic Level Control Suspension Schematic

GM1486241

Courtesy of GENERAL MOTORS CORP.
