Overhead Console Reading Lamp and Bulb Replacement
WARNING: This page is about a different car, the 2007 Pontiac Montana SV6, 2007 Chevrolet Uplander, and 2007 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

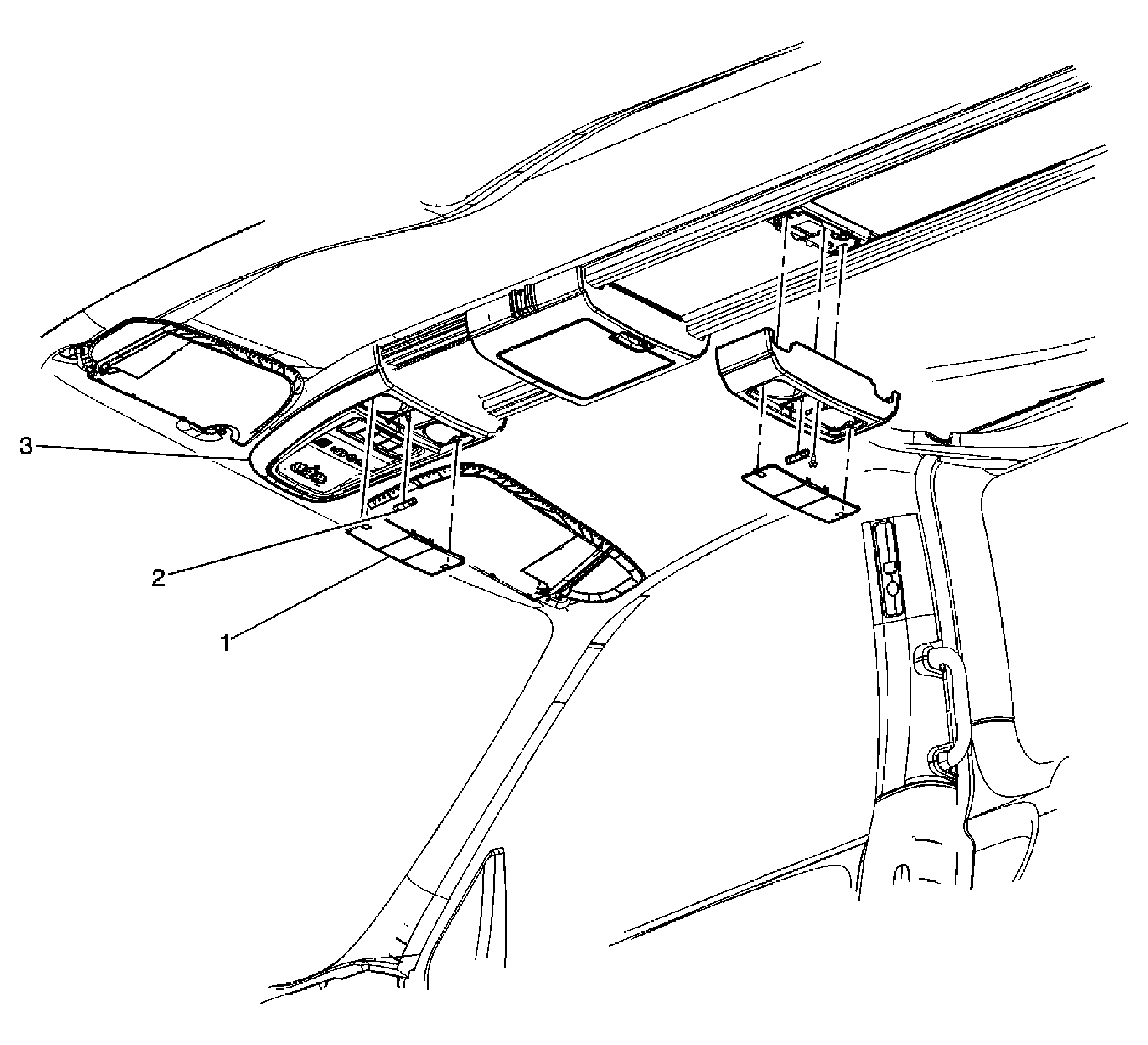

Overhead Console Reading Lamp and Bulb Replacement
| Callout | Component Name |
|---|---|
| Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . | |
| 1 | Lens, Reading Lamp |
| 2 | Bulb, Reading Lamp |
| 3 | Console, Overhead Tip: Reading lamp assembly is part of the overhead console and should be replaced as an assembly. Refer to Roof Console Replacement . |
